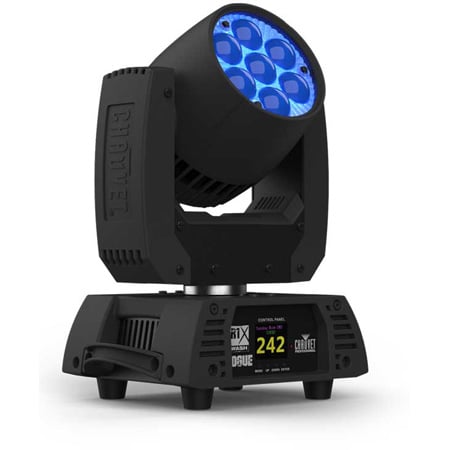

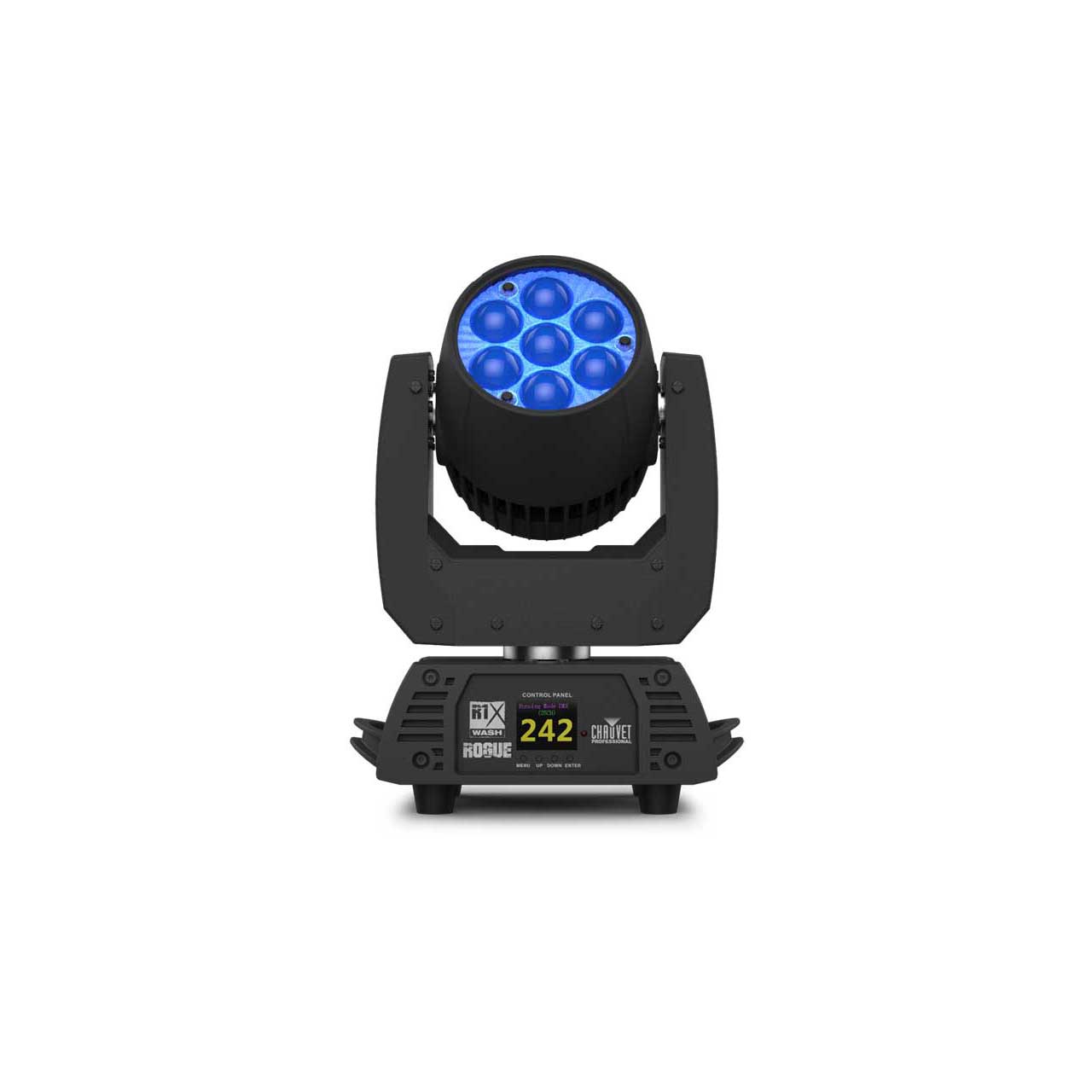

Chauvet ROGUE R1X WASH Compact LED Wash Mover w/ 7 15-Watt Quad LED & 8-48 Degree Zoom Range

ROGUER1XWASH - Overview

• Features:

  • Fully featured RGBW LED yoke wash fixture with zoom
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 7 RGBW LEDs, 25 W each
  • 3- and 5-pin DMX input/output connections
  • Unique lens design for excellent color blending
  • Fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R1 Washes
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket, fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility


• Specifications:

  • Optical
  • Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 8° to 30°
  • Beam Angle: 8° to 30°
  • Field Angle: 11° to 48°
  • Zoom Angle: 11° to 48°
  • Lumens - Source: 4,000
  • Lumens - Output: 2,900
  • Illuminance (11°): 3,280 lux @ 5m
  • Illuminance (48°): 293 lux @ 5m
  • PWM Frequency: 1200 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

    Construction/Physical
  • Dimensions: 7.36 x 10.43 x 13.94" (187 x 265 x 354mm)
  • Weight: 13.6Lbs (6.2kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

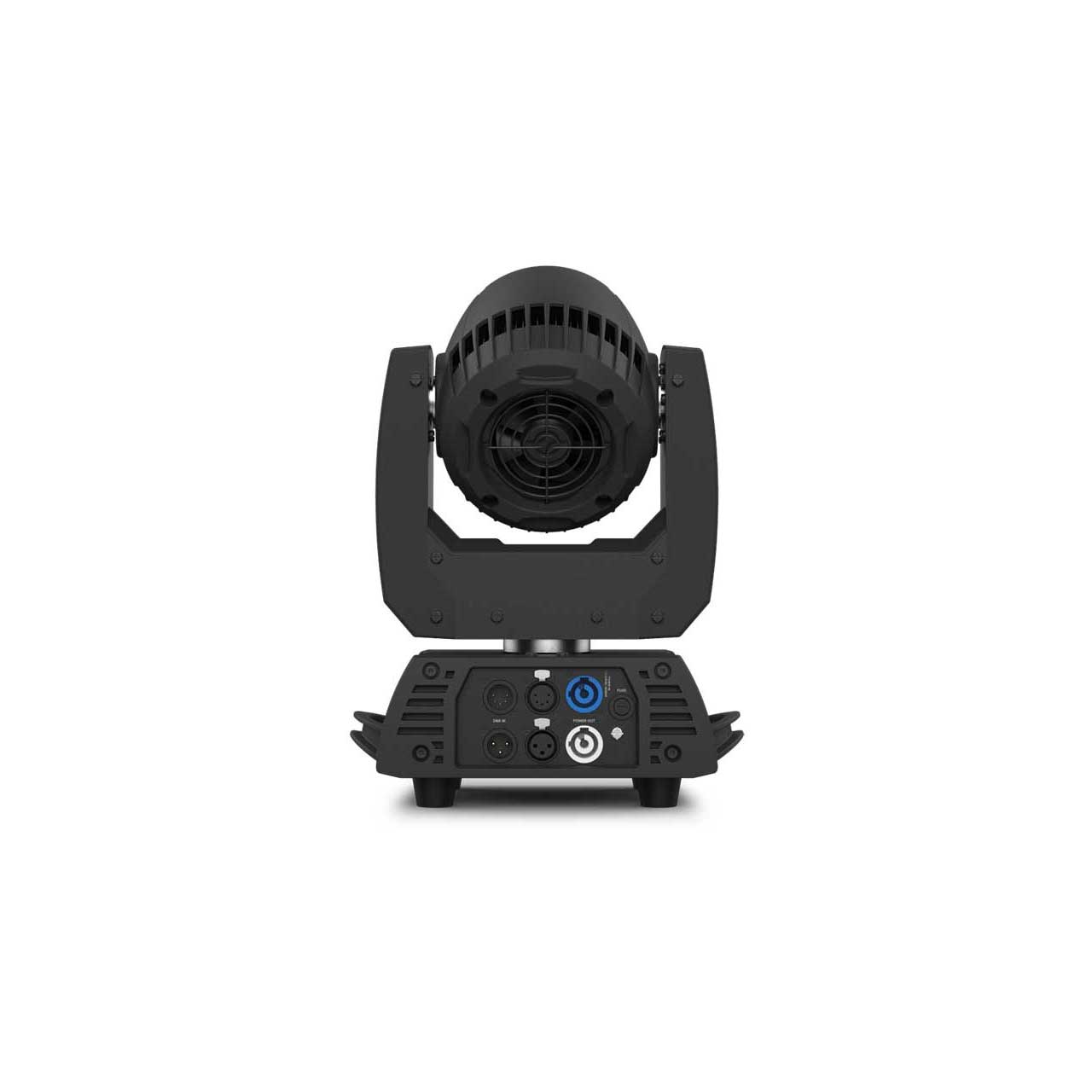

    Connections
  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (Power): 5' (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 17 units @ 208 V; 20 units @ 230 V
  • Power and Current:
  • 157 W, 1.35 A @ 120 V, 60 Hz
    154 W, 0.76 A @ 208 V, 60 Hz
    164 W, 0.67 A @ 230 V, 50 Hz

    Certifications/Qualifications
  • CE, MET, FCCIP Rating: IP20, dry location


• Item Includes:

  • 1x Rogue R1X WashNeutrik® powerCON® power cord
  • 1x Omega bracket with mounting hardware


• GTIN:

  0781462219390
