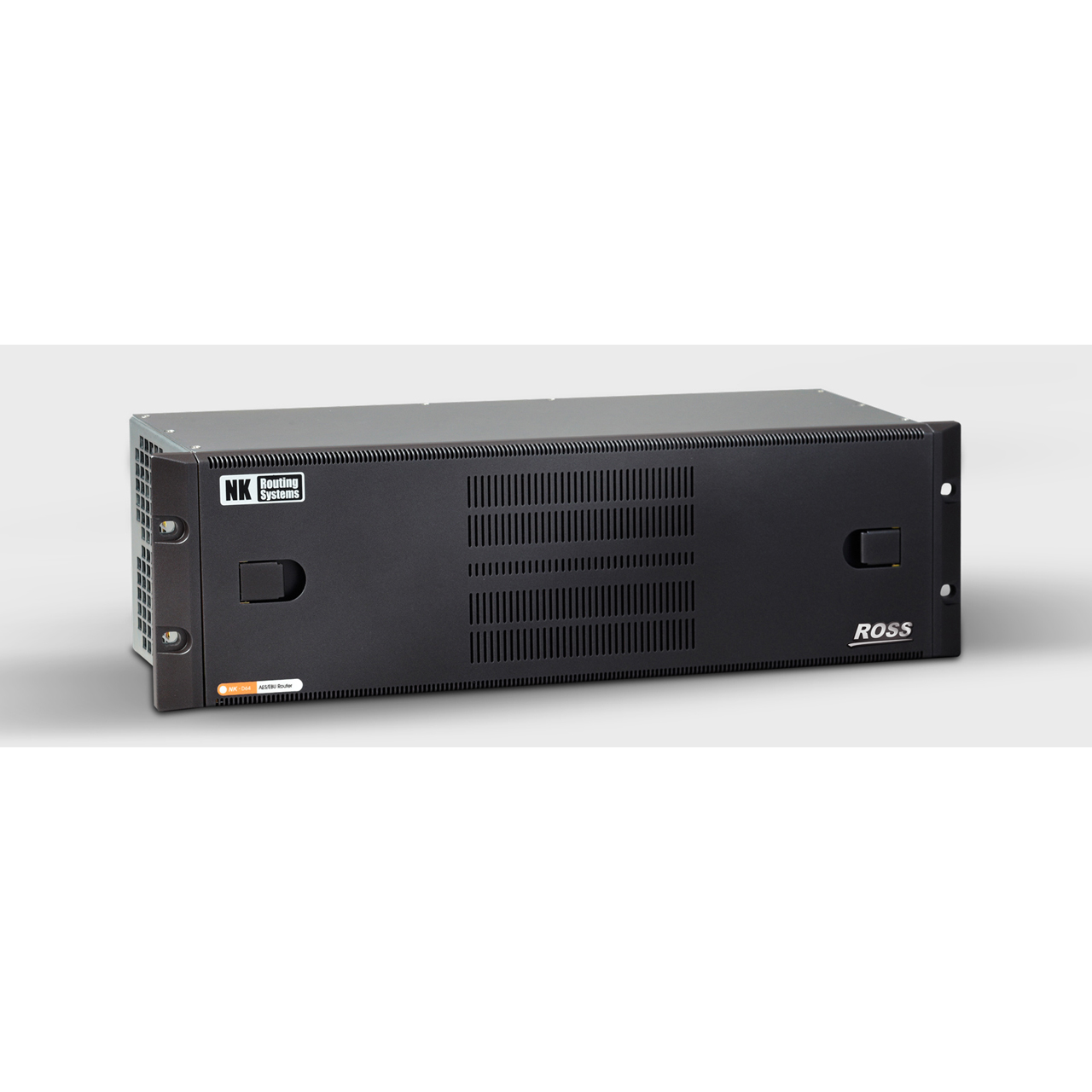

Ross NK Series NK-D64-75 3RU 64x64 75 Ohm AES/EBU Digital Audio Routing System

NK-D64-75 - Overview

• Features:

  • Compact size
  • AES / EBU routing system
  • Data rates 32 to 192KHz
  • Passes Dolby® and other compressed audio

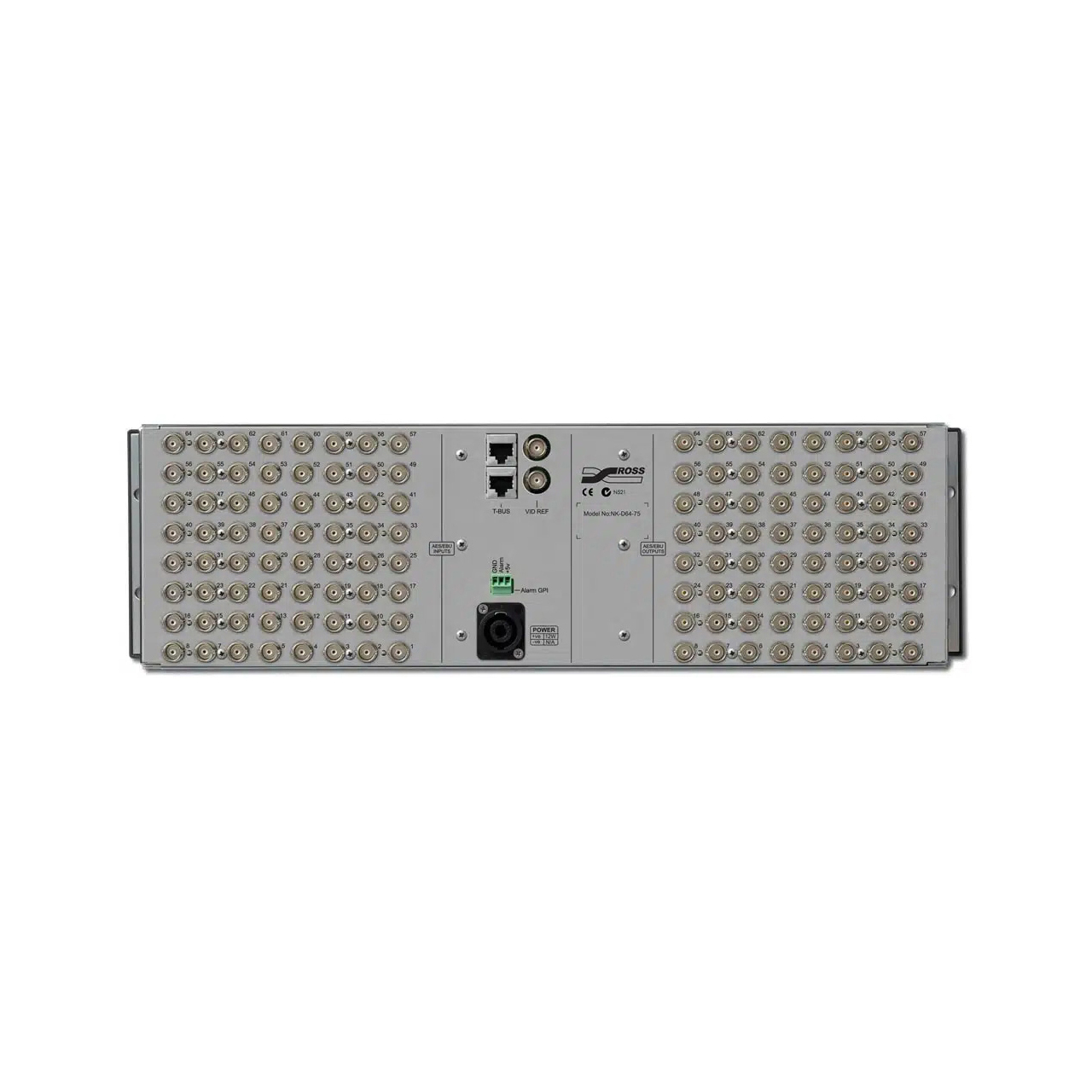

  • 75Ω unbalanced BNC inputs and outputs
  • 64x64 expandable from 8x8 in groups of 8
  • Excellent performance and specifications
  • Low power consumption

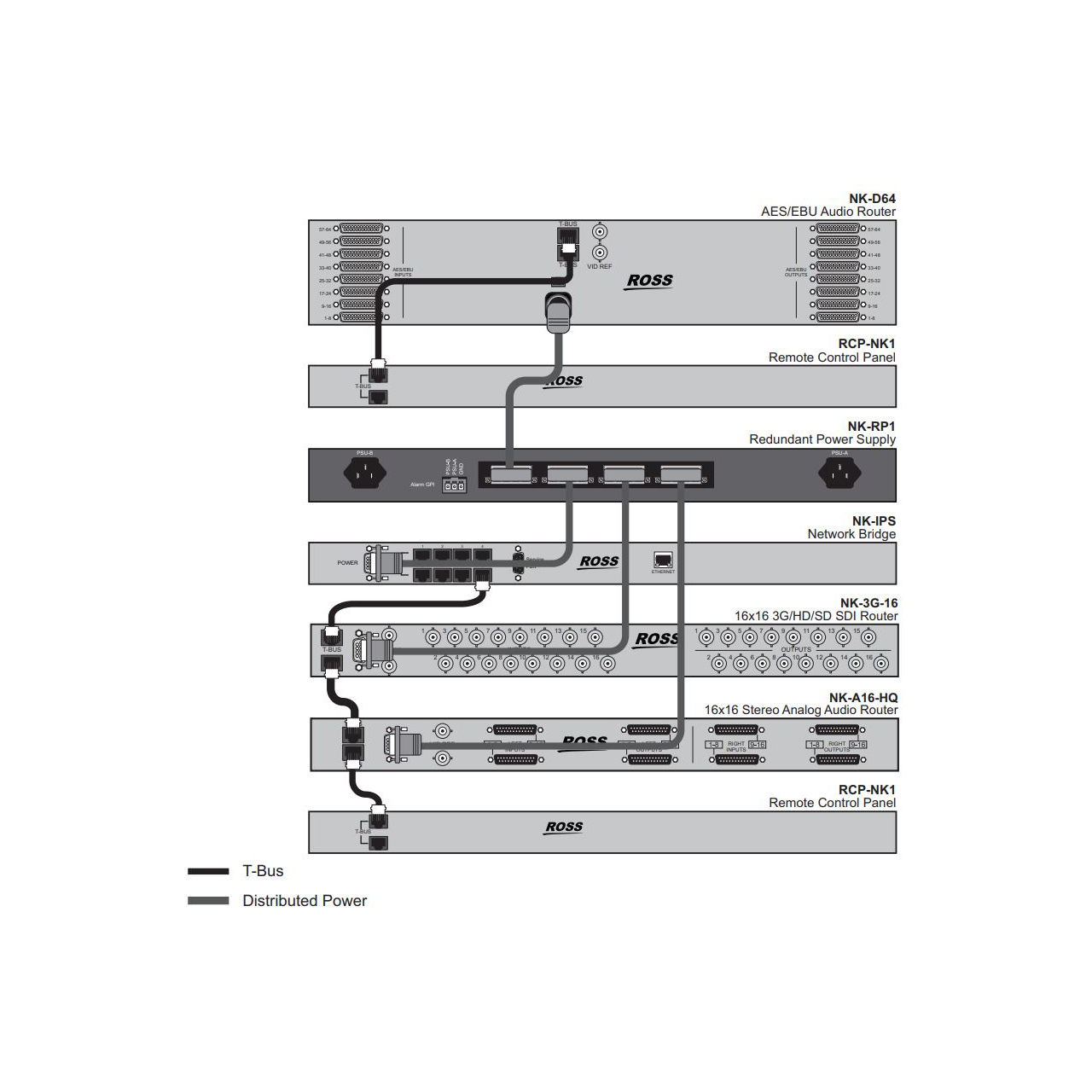

  • Integrated NK Series Control
  • Universal power supply included
  • Optional redundant power


• Specifications:

  • Inputs
  • Connection: 75Ω unbalanced BNC
  • Total # of Inputs: 64
  • Level: 1 V p-p
  • Cable EQ: up to 300m RG59/U

    Outputs
  • Connection: 75Ω unbalanced BNC
  • Total # of Outputs: 64
  • Clocking: non-reclocking
  • Level: 1 V p-p

    Performance
  • Jitter: <2ns (0.013 UI)
  • Data Rate: 32 to 192kHz

    General
  • Partitioning: up to 8 partitions with independent level assignment
  • Configuration: web browser via NK-IPS
  • DashBoard Control System via NK-IPS
  • Dimensions: 3RU, depth 12.0cm
  • Power Consumption: 10W
  • Power Supply: +15 V DC


• Item Includes:

  • 1x Ross NK-D64-75 3RU 64x64 75 Ohm AES/EBU Digital Audio Routing System


• Warranty:

  • 1-year transferable
