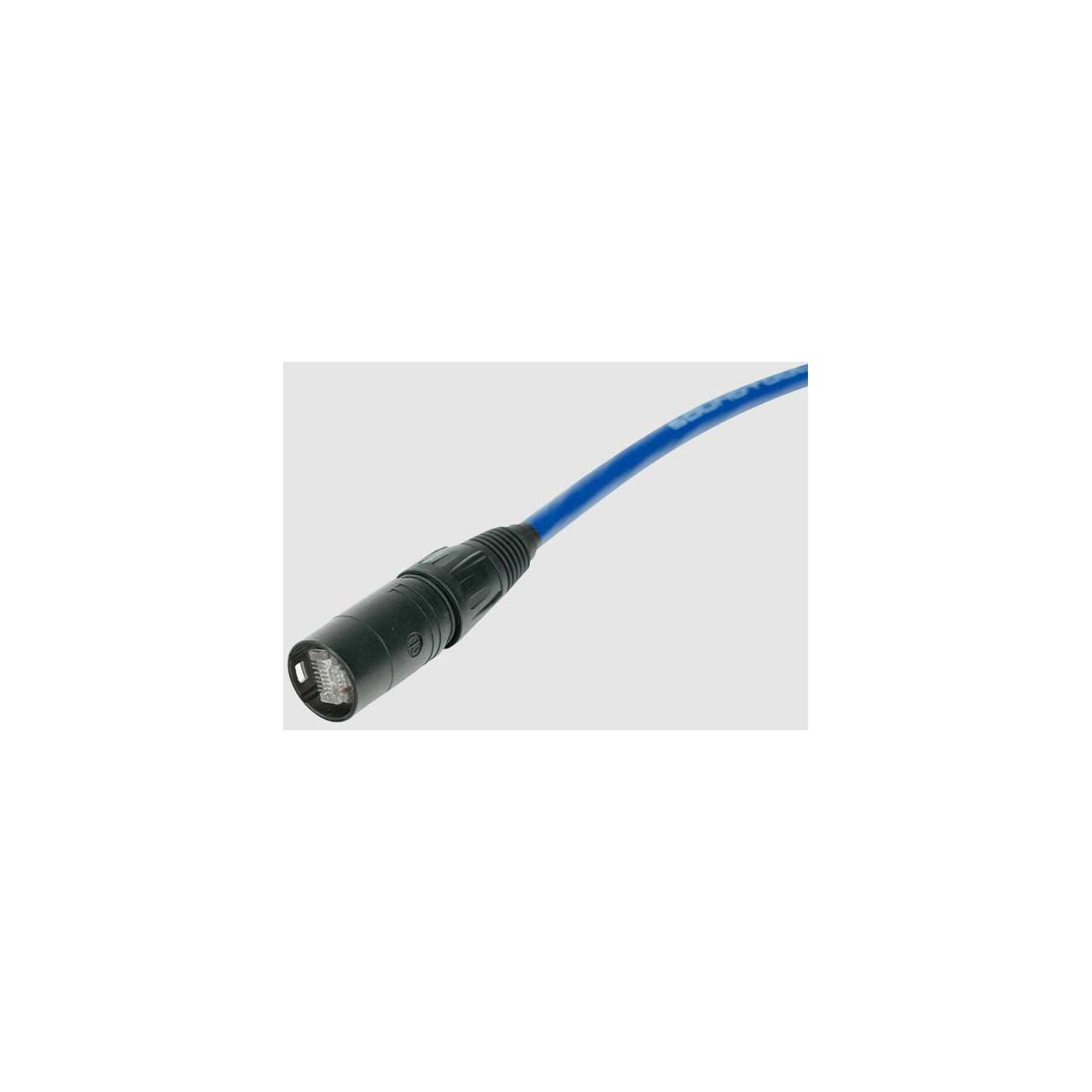

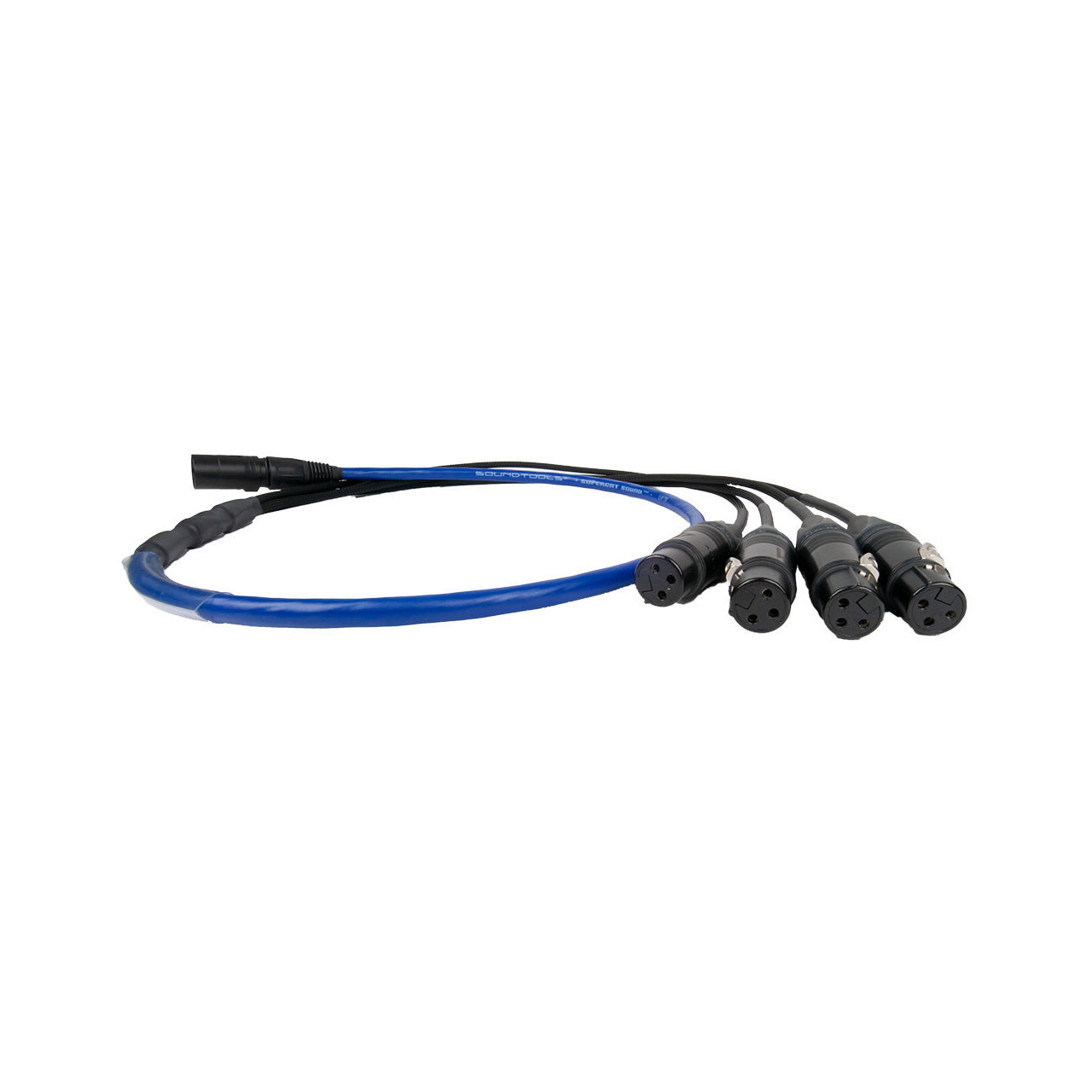

The SoundTools SuperCAT Sound cable allows the SuperCAT Tails to achieve a new level of simplicity at a lower cost while enhancing reliability and reducing weight. The SuperCAT Sound Tails implement a male cable mount etherCON on one end, terminating to four XLR 3-pin connectors on the other end. The SuperCAT Tails can be directly plugged into SoundTools CAT Tails forming a disconnectable four channel male-to-female cable or to create four channel adaptors of differing genders and connector types.
The SuperCAT Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Sound cable is designed with sound in mind; each of the four twisted pairs has its own separate drain wire and shield, and each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response.
The 3-band strain relief system designed by SoundTools offers enhanced durability and prevents the shrink-wrap from flaring or slipping at the crucial junction of the four cables.
Wrap 1: Binds the four bylon mesh covered cables together.
Wrap 2: Offers support for the transition of the four cables to the SuperCAT Sound Cable.
Wrap 3: Adds diameter and maximizes adhesion of the shrink tubing the the SuperCAT Sound Cable.

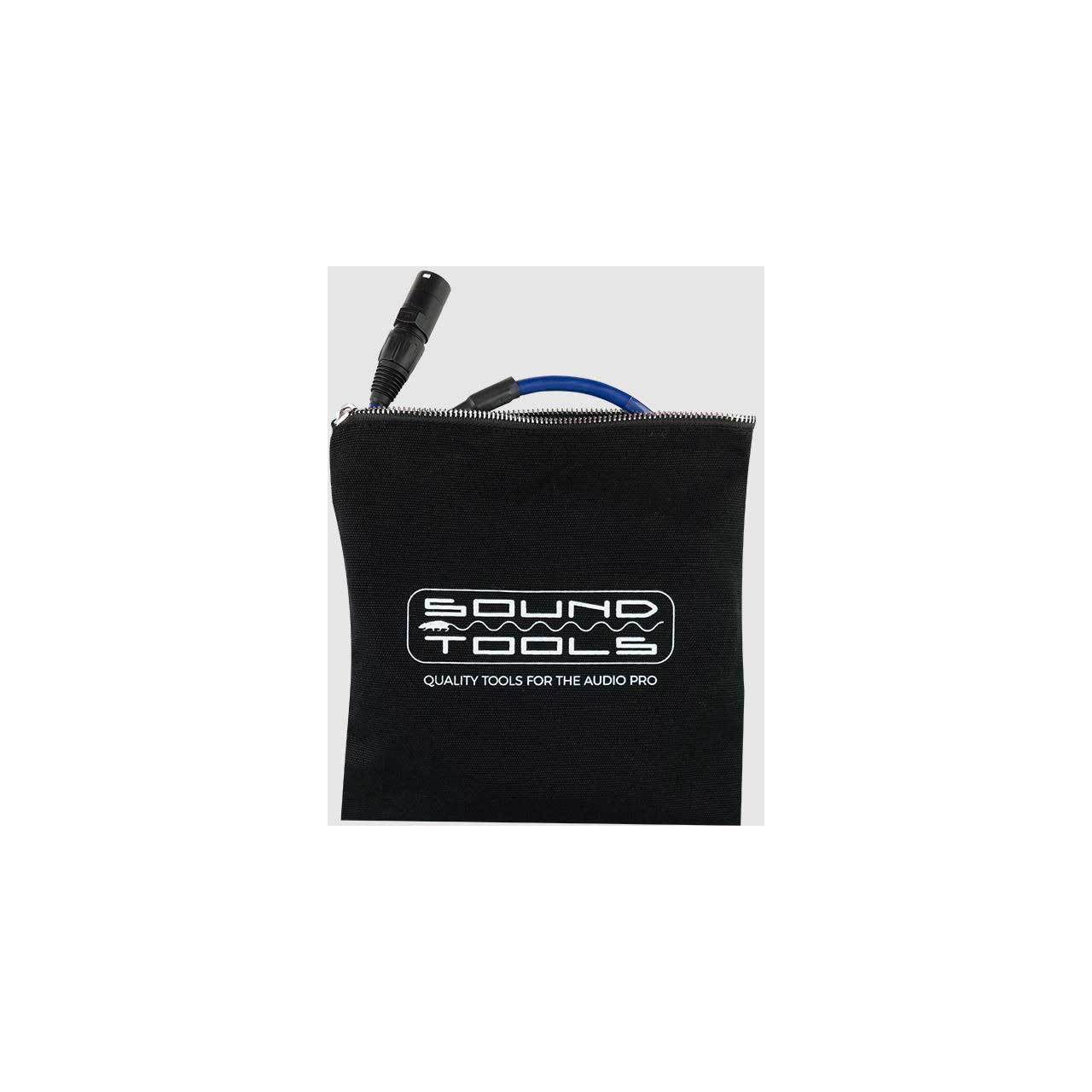

One of our goals at SoundTools is to minimize waste, and whenever possible, we incorporate reusability into our packaging designs. Each of our SuperCAT Tails are packaged in a sturdy canvas bag, which allows you to not only stay organized while protecting your tools but also makes for a fantastic toiletry bag, sharpie case, or snack holder; the possibilities are endless.
Function:
The SuperCAT Sound Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Tails employ a male RJ45 or etherCON connector that can be plugged directly into numerous SoundTools RATCAT products allowing the SuperCAT Tails to be used as a fanout to four channels of XLR. The SuperCAT Tails simplify your stage set up by running one slim Cat5e cable instead of four XLR cables, and can run any mixture of four lines of audio, DMX, COM, or AES3 and is compatible with 48-volt phantom power.
