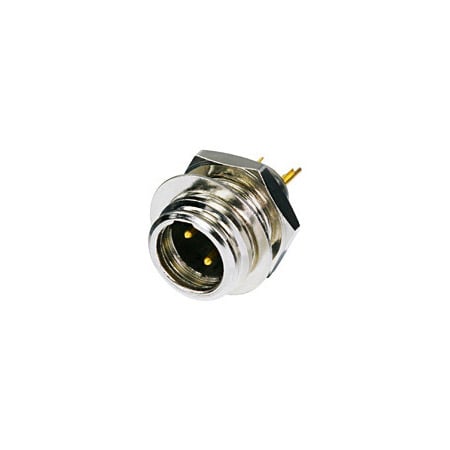

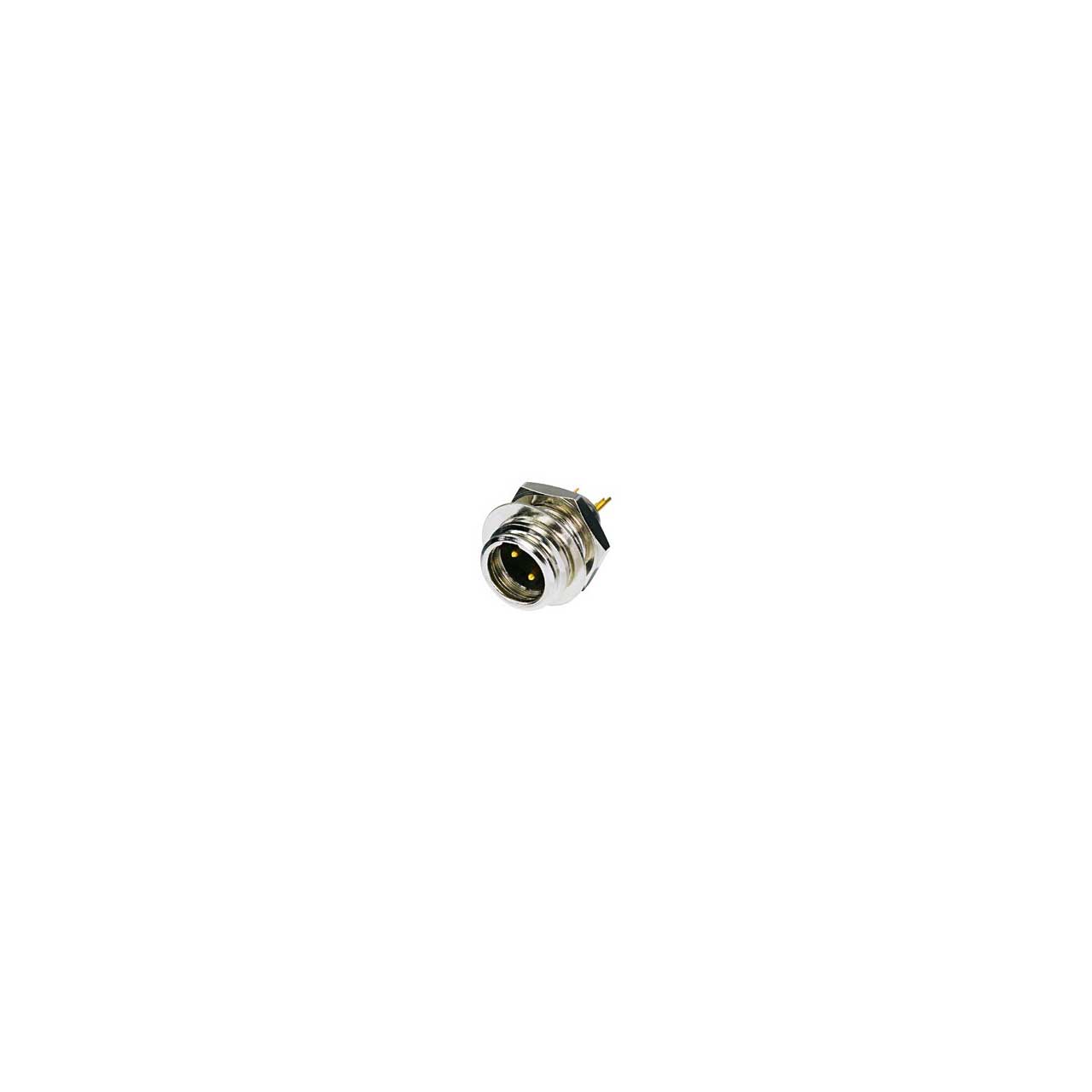

Rean RT3M Tiny 3-Pole Male Black/Gold Chassis XLR Connector

ITEM #: RT3MP MFG #: RT3MP

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$3.28

Our Price:

$1.96

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RT3MP - Overview

The Rean RT3MP is a 3-pole TINY chassis connector with nickel metal housing and gold plated contacts.

  • Specifications:

    • Electrical
    • Contact Resistance: ≤10 mΩ
    • Insulation Resistance: >1 GΩ
    • Dielectric Strength: >500 V rms
    • Rated Current per Contact: <5 A

      Mechanical
    • Lifetime: >1000 Mating Cycles
    • Wiresize: 0.22 mm²
    • Wiresize: 24 AWG

      Material
    • Housing: Zinc
    • Washer: Steel
    • Nut: Brass
    • Plastic Body: PA66+30%GF
    • Pin: Brass
    • Housing: Nickel Plating
    • Washer: Nickel Plating
    • Nut: Nickel Plating
    • Pin: Gold Plating
