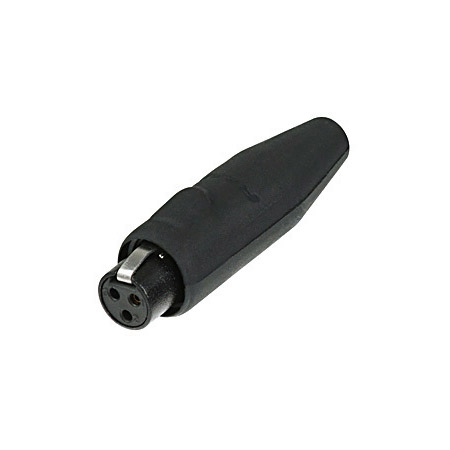

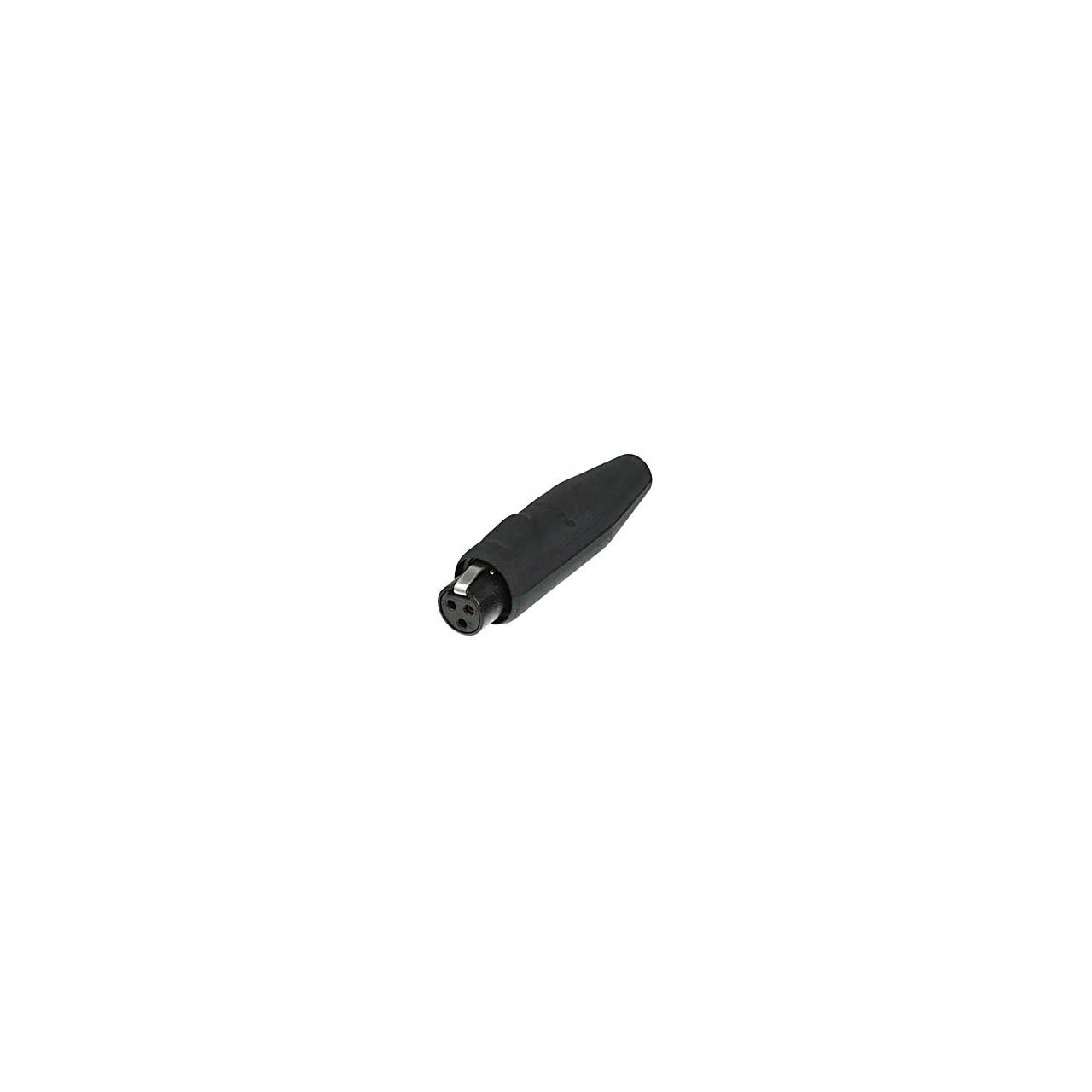

Rean RT3FC-B-W Tiny 3-Pole Female Black/Gold XLR w/Water Resis

RT3FC-B-W - Overview

• Features:

  • Gender female
  • Contact resistance < 5 mOhm
  • Dielectric strength > 0.5 kVdc
  • Insulation resistance > 1 GOhm
  • Rated current per contact < 5 A
  • Cable O.D. 2.0 - 4.5 mm
  • Lifetime > 1000 mating cycles
  • Wiring Solder contacts
  • Bushing ABS
  • Contact plating Au
  • Contacts Bronze
  • Insert PA 6.6 30 % GF
  • Shell Zinc diecast
  • Shell plating Black
  • Strain relief PA6
  • Protection boot EPDM
  • Solderability Complies with IEC 68-2-20
  • Temperature range -30° C to +80° C


• Specifications:

  • Electrical
  • Contact Resistance: ≤10 mΩ
  • Insulation Resistance: >1 GΩ
  • Dielectric Strength: >500 V rms
  • Rated Current per Contact: <5 A

    Mechanical
  • Cable O.D. Range: 2.0-4.5mm
  • Lifetime: >1000 Mating Cycles
  • Wiresize: 0.22 mm²
  • Wiresize: 24 AWG

    Material
  • Ground Contact: Steel
  • Rubber Spring: Rubber
  • Latch: Zinc
  • Chuck: POM
  • Boot: PC/ABS+TPU
  • Housing: Zinc
  • Plastic Housing: PA6+30%GF
  • Jack: Bronze
  • Ground Contact: Bronze
  • Tube: Aluminum
  • Latch: Nickel Plating
  • Housing: Nickel Plating
  • Jack: Gold Plating
  • Ground Contact: Tin
  • Tube: Black Plating
