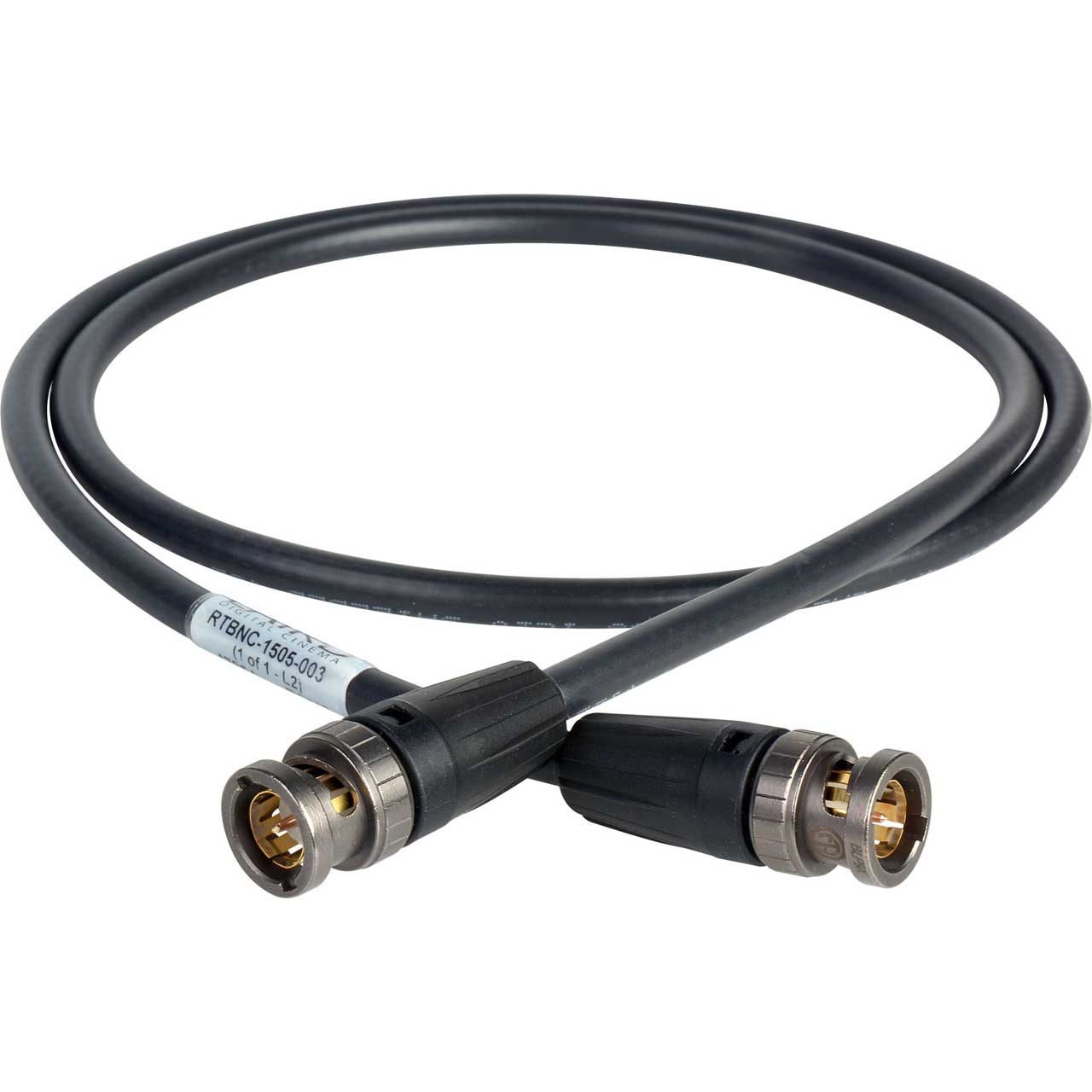

Laird 6G-SDI 2K UHD Cable w/ Neutrik rearTWIST UHD BNC Connectors & Belden 1505A Cable - 3 Foot

ITEM #: RTBNC-1505-003 MFG #: RTBNC-1505-003

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$28.95

Our Price:

$25.49

Availability: In Stock
iAvailability Description Popup


    RTBNC-1505-003 - Overview

    Laird RTBNC-1505-003 UHD BNC Cable Assembly with True 75 ohm 4K/8K Performance The Laird RTBNC-1505-003 6G-2K Cable Assembly with Neutrik's rearTWIST UHD BNC connectors and Belden RG59 1505A cable is built for extended bandwidth for 6G-2K video applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist. The 20AWG Belden SDI coaxial cable features a solid .023 " bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), and a PVC jacket. Custom lengths available.

    • Features:

      • High frequency optimized contact pin and insulator for UHD transmissions
      • Improved return loss values at high frequencies
      • Extended bandwidth for 6G-2K video applications
      • For recessed panel mount BNC connections Rear twist design is patch bay friendly
      • No special BNC removal tool required
      • Fully compatible with conventional BNC chassis connectors
      • UL CMR cable

    • Specifications:

      • Neutrik rearTwist UHD BNC Connector
      • Male BNC 75 Ohm
      • Swiss Antraloy Plating and Brass Contacts
      • Bayonet Locking Device
      • Jacket Crimping

        Belden Cable
      • SDI Coaxial 1505A
      • RG Type: 59/U
      • AWG: 20
      • Nom. Characteristic Impedance: 75 +/- 1.5O

    • Warranty:

      • 1 Year
