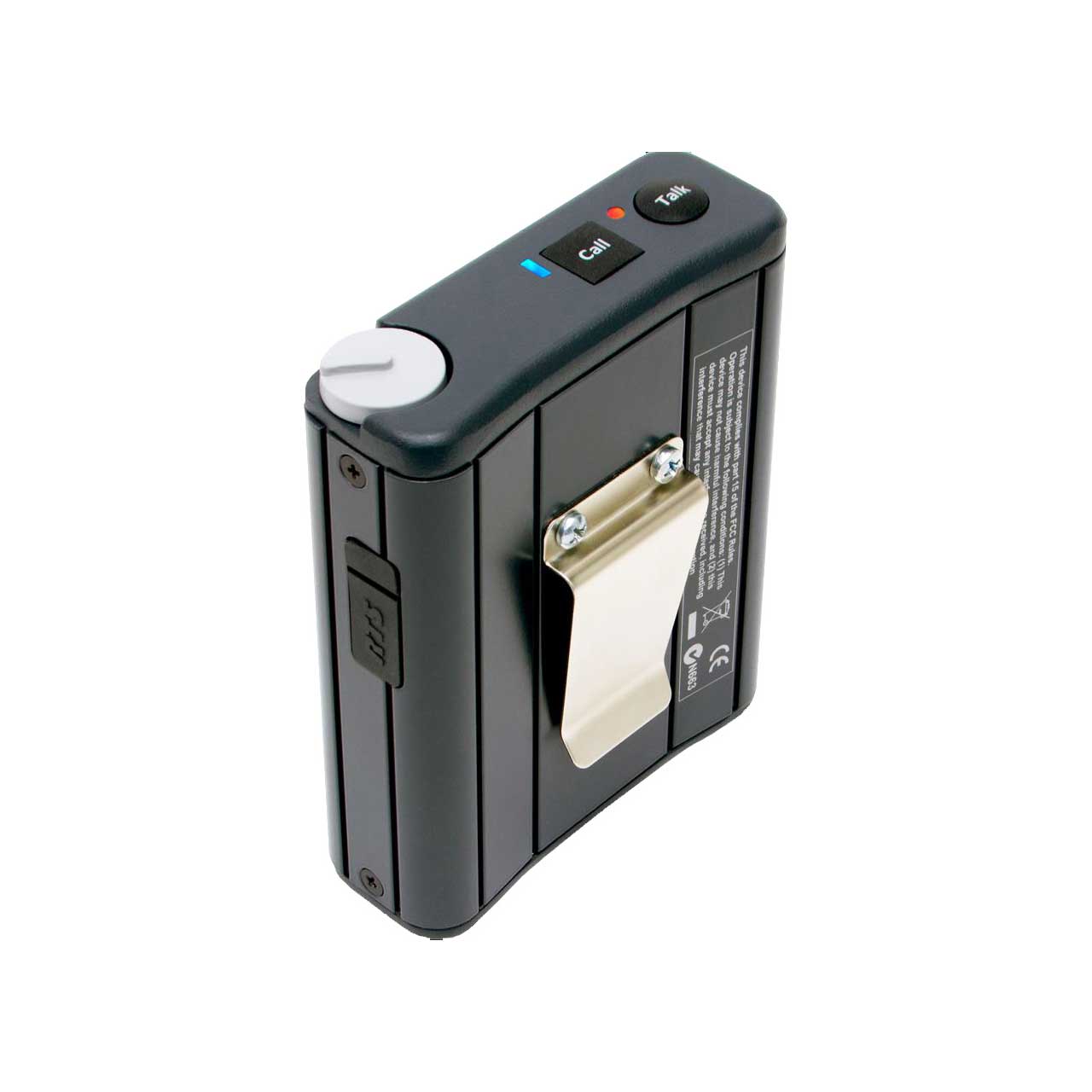

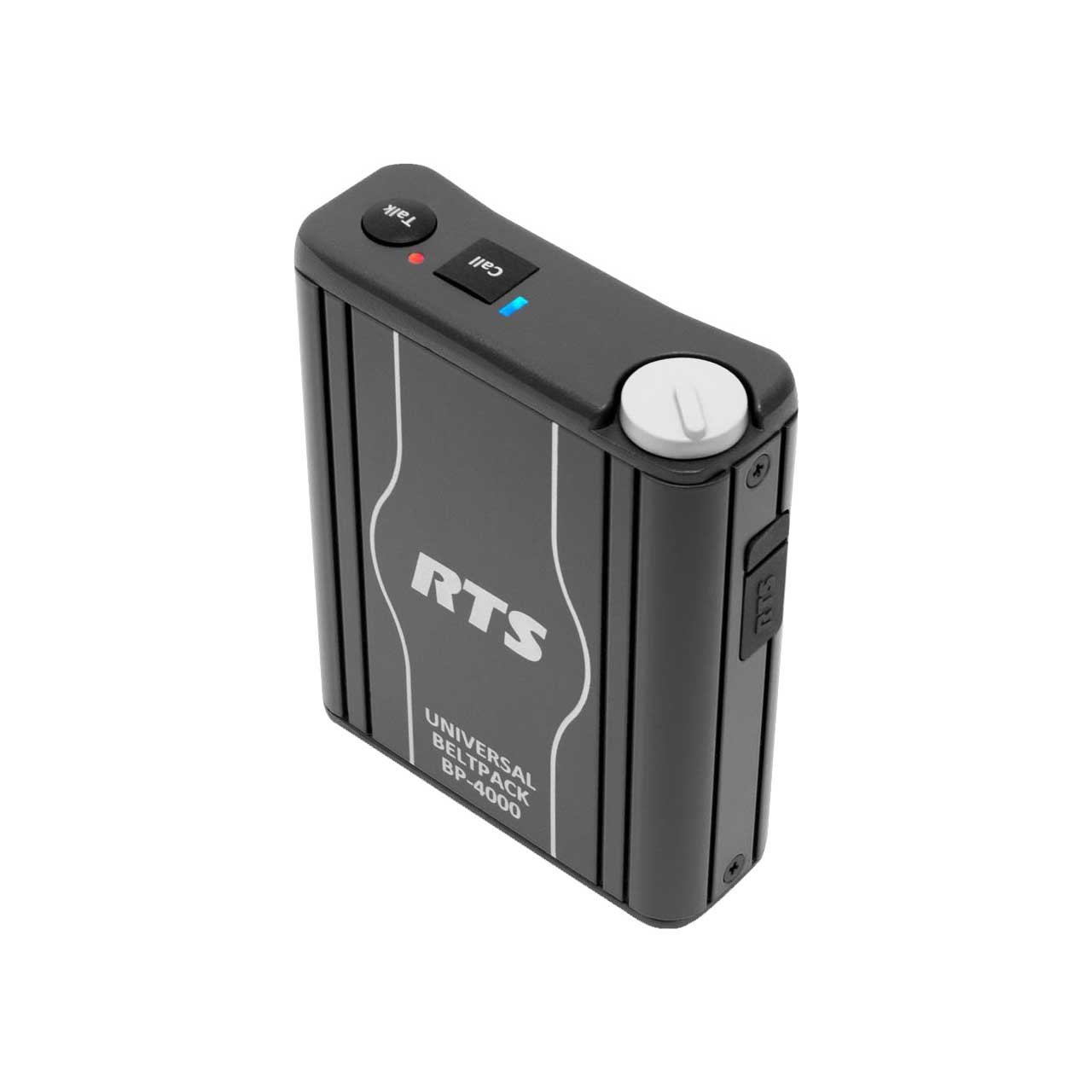

RTS BP4000 Universal Beltpack with 4-pin Male Connection

Name: RTS BP4000 Universal Beltpack with 4-pin Male Connection
Brand: RTS Intercoms
SKU: RTS-BP4000A4M
Price: 379.00 USD
Availability: PreSale

ITEM #: RTS-BP4000A4M MFG #: F01U327756

RTS Intercoms

Our Price:

$379.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

F01U327756 - Overview

The Universal Beltpacks are portable user stations compatible with RTS, Audiocom, and Clear-Com party line systems. They are available in 1-channel and 2-channel versions. Both have the mode-sensing system configuration, meaning the beltpacks can determine what type of system they are installed into and configure themselves according to that system.

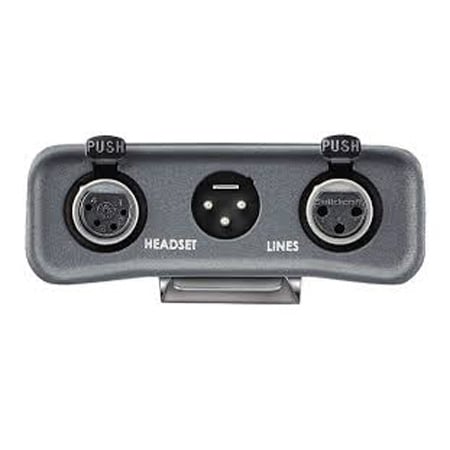

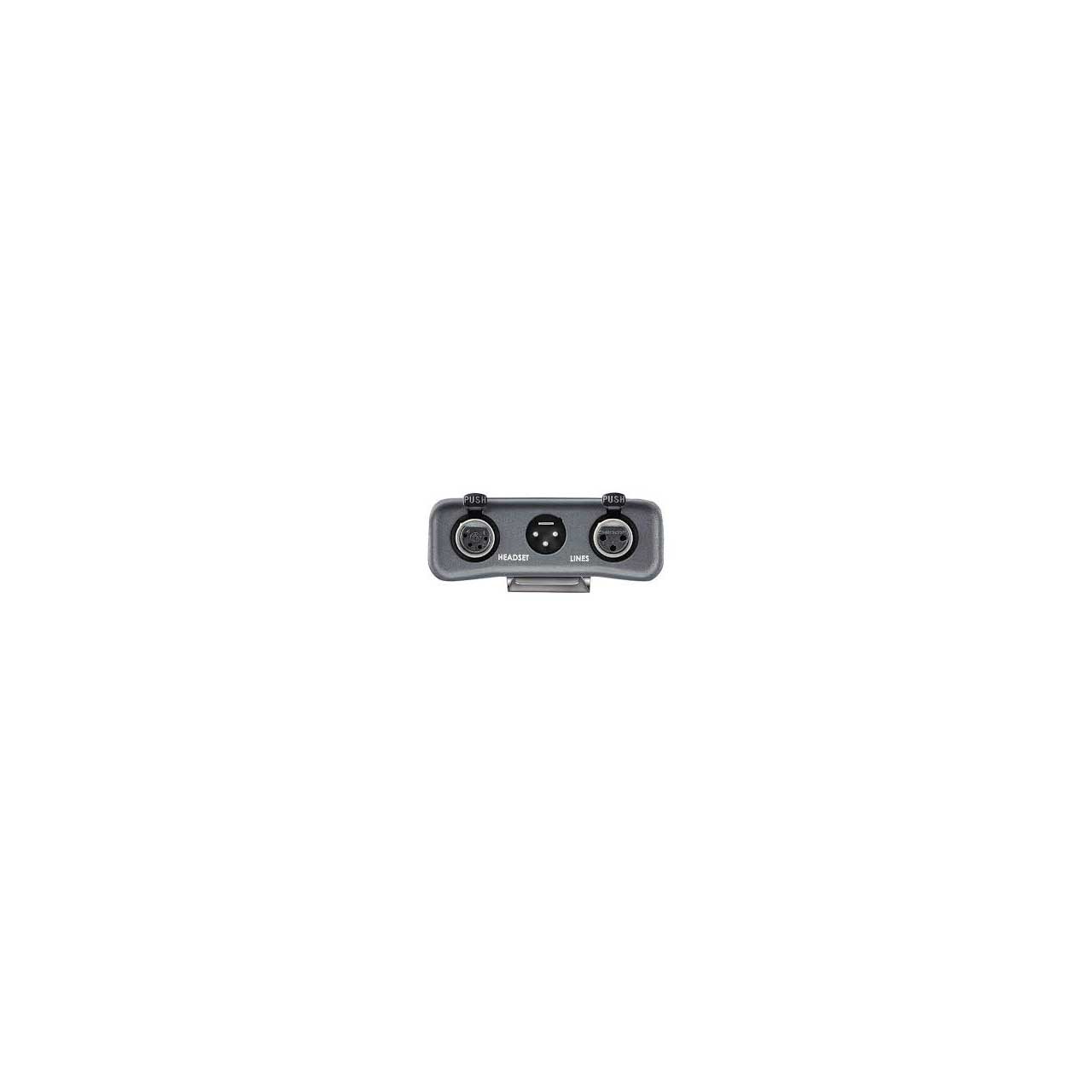

The BP-4000 and BP-5000 can be ordered with either a 4-pin male, 4-pin female or 5-pin female XLR connector, providing a wide range of headset options. Dynamic and electret headset microphones are supported.

Multiple programming options are available. To simplify programming, voice prompts guide the user through menus. Beltpacks are available in black only.

Features:
- Voice prompts for simplified configuration
- Remote Mic Kill turns off all active microphones, reducing background noise
- Programmable TALK button, (Always) On, (Always) Off, Switched, or Momentary
- Mode-sensing System Configuration
- Updated design for modern, sleek appearance
- Reduced current draw allows for more beltpacks being powered by the power supply
- Auto-sensing headset inputs, electret or dynamic
Specifications:
- Max Operating Current (unbalanced): 45 mA
- Max Operating Current (balanced): 52 mA
- Channel Supplied: 18-33 VDC
- Local Power: 18-33 VDC
- Operating Temperature: 32° F to 131° F
- Operating Humidity: 5% to 95%, non-condensing
- Storage Temperature: -4° F to 158° F
- Storage Humidity: 15% to 90%, non-condensing
- Dimensions (W x D x H): 3.75" x 1.35" [1.55" D with beltclip] x 4.69" [4.79" H with top panel]
- Headset: 50 to 200 Ω (dynamic); 1k to 13k Ω (electret)
- Headphones: 50 to 600 Ω
- Output Level: 0.0 dBu nominal
- Noise Contribution: <-60 dBu
- Total Harmonic Distortion: <1.0%
- Balanced Impedance: 300 Ω
- Bridging Impedance: >10k Ω
- Call Signaling: Send - 20 kHz; Receive - 20 kHz
- Mic Off Frequency: Send - 24 kHz; Receive - 24 kHz
- Output Level: 0.0 dBu nominal
- Terminating Impedance: 200 Ω
- Noise Contribution: <-60 dBu
- Total Harmonic Distortion: <1.0%
- Headphone Amplifier Maximum Output: >140 mW into 150 Ω load
- Frequency Response: 200 - 8 kHz ±2 dB
- Audible Alert: 1 kHz
- Sidetone: >20 dB dynamic range
