Simply45 ST-163009 Lantek IV-S 3000MHz Cable Certifier - TIA Category 8/ ISO Class I/II

ST-163009 - Overview

• Features:

  • Voltage Protection: Provides immediate notification / protection if accidentally connected to PoE
  • Complete Connectivity: WiFi, USB-A, USB-C

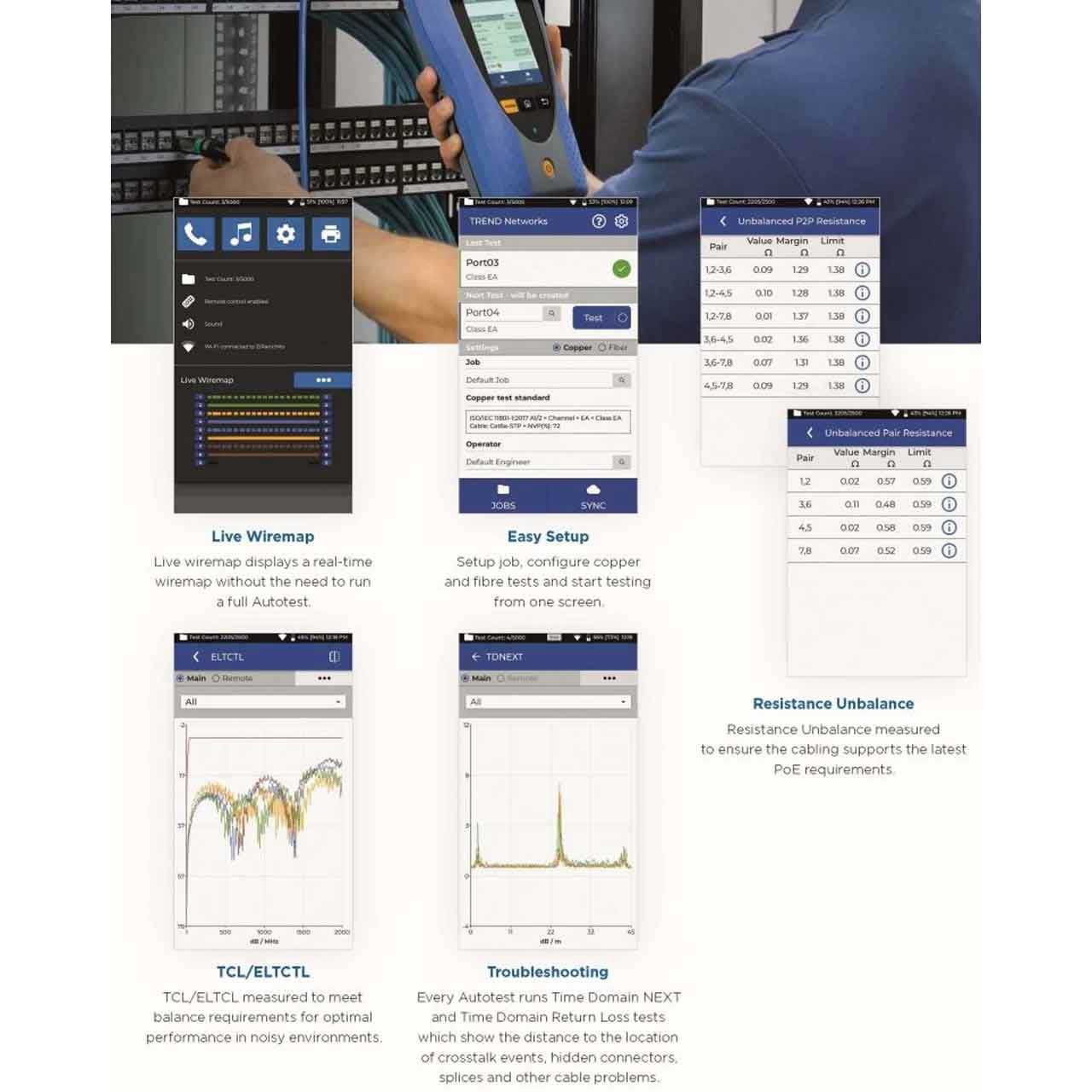

  • Live Wiremap: Instant wiremap result before the Autotest begins
  • Label Printer Connectivity: Easily send label IDs to printers for fast and accurate labeling
  • Integrated Kickstand: Integrated Kickstand allows for convenient placement on a desk or shelf for easy viewing
  • Rugged Design: Rubberized housing, protected screen and protected measurement port
  • Performs All Extended Measurements: TCL / ELTCTL Resistance Unbalance Shield Integrity
  • Beyond Cat 8 / Class II: LanTek IV-S 3000MHz exceeds highest current standards by 50% for future applications

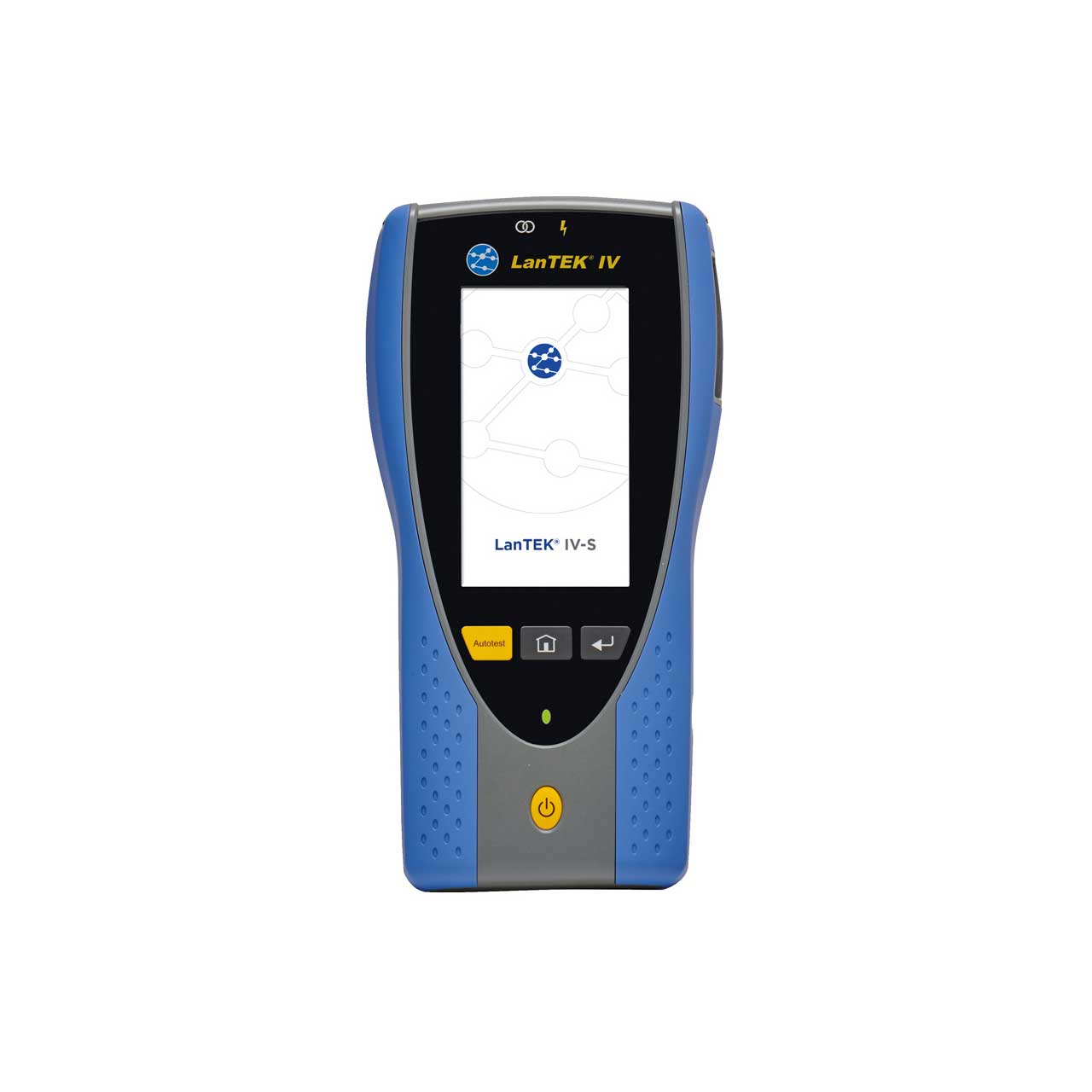

  • Touchscreen: High resolution impact resistant touchscreen for ease of use
  • Intuitive User Interface: Simplified user interface for easy setup and operation
  • Partner Finder: Provides audible tone and visible indicator when connected to the remote unit

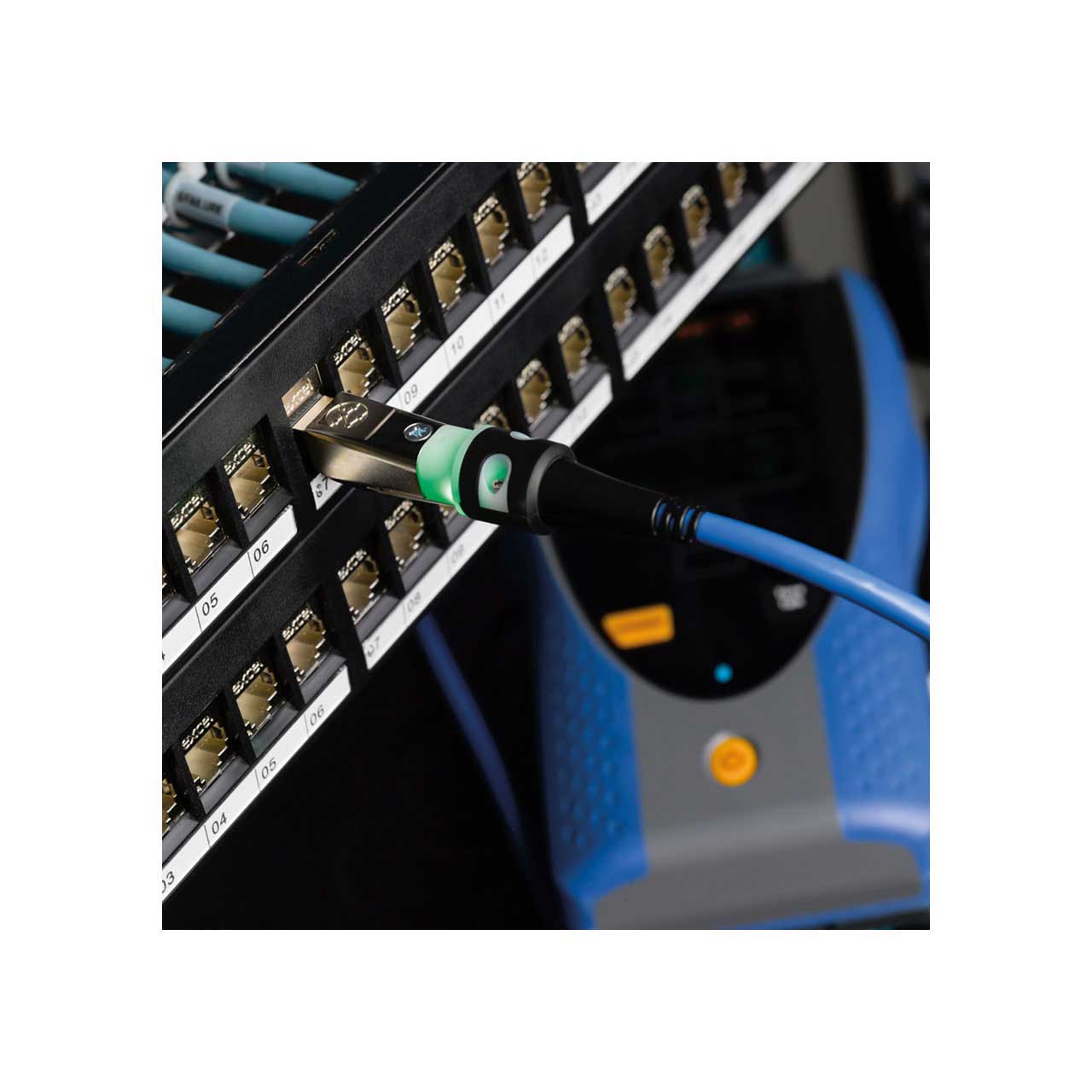

  • Permanent Link Modules (VisiLINQ™): To test and certify UTP/STP Cat5e/6/6A/8.1 cabling from the patch panel to the work area outlet. The RJ45 tip on the Permanent Link Modules are field replaceable to reduce the cost of ownership
  • Channel Modules: Select from a wide range of Channel Testing Modules for various applications including Cat6ARJ45, Cat8.1RJ45, Cat 7A/8.2 GG45, TERA, EC7, COAX and M12
  • Patch Cord Modules: Cat 5e/6/6A testing modules are available for certification of patch cordes to TIA and ISO standards. A patch cord module can be combined with a permanent link adapter to perform a Modular Plug Terminated Link (MPTL)


• Specifications:

  • Batteries:
  • Removable, interchangeable, rechargable Lithium-ion. 7.4V, 6.6Ah, 48.8Wh
  • Charge Time: 8 hours in handset, 4 hours using external charging port
  • Typical Run Time: 8 hours
  • Mains Operation: Hansets can operate from mains power with or without battery installed


  • Screen: IPS capacitive color touchscreen, 480 x 854 pixels, 5"
  • Weight Of A Handset With Battery: 2.42 ibs
  • Dimensions: 10 x 5 x 2.08"
  • Operating Temperature: 32°F to 113°F
  • Storage Temperature: -4°F to 158°F
  • Vibration/Shock: MIL-PRF-28800 Fm Class 3 (by design)
  • User Interface: English, French, German, Spanish, Italian, Portuguese, Polish, Russian, Chinese, Japanese
  • Internal Memory: non-volatile flash with a capacity of 2500 tests with plots and troubleshooting data

    Interfaces:
  • 2.4/5 GHz Wi-Fi-801.11 b/g/n
  • USB C (USB 2.0) & USB A (USB 2.0)
  • 3.5 mm Headset Jack

    Data Export:
  • USB memory key, up to 512GB
  • Cloud via Wi-Fi

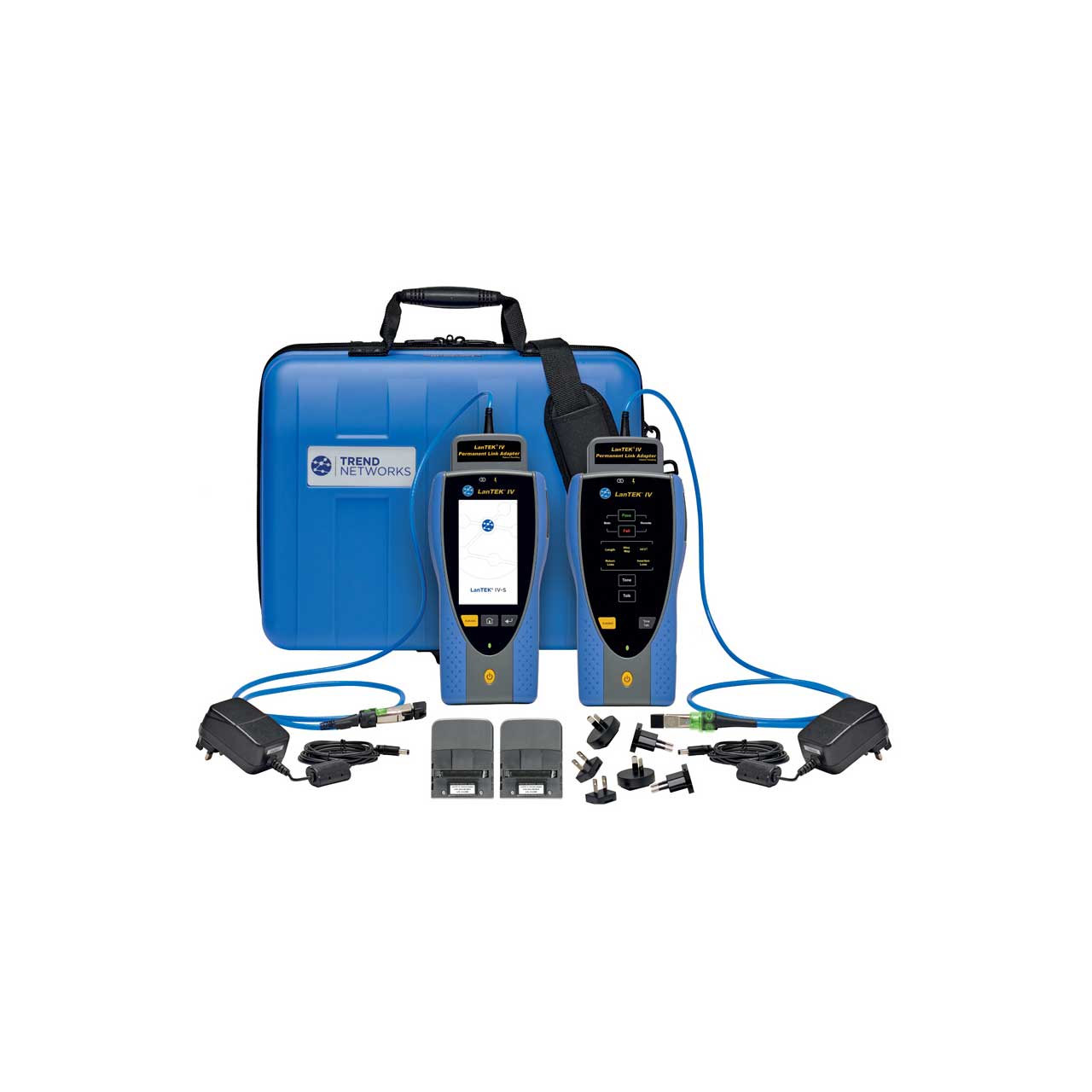

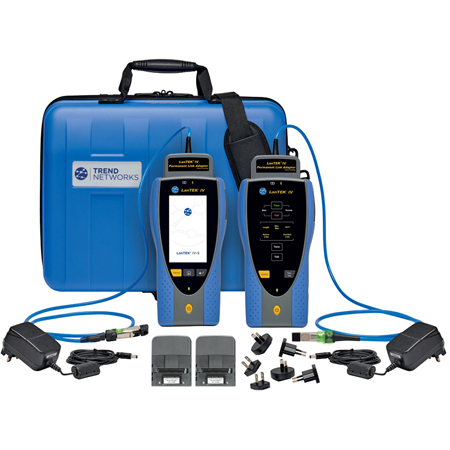

• Item Includes:

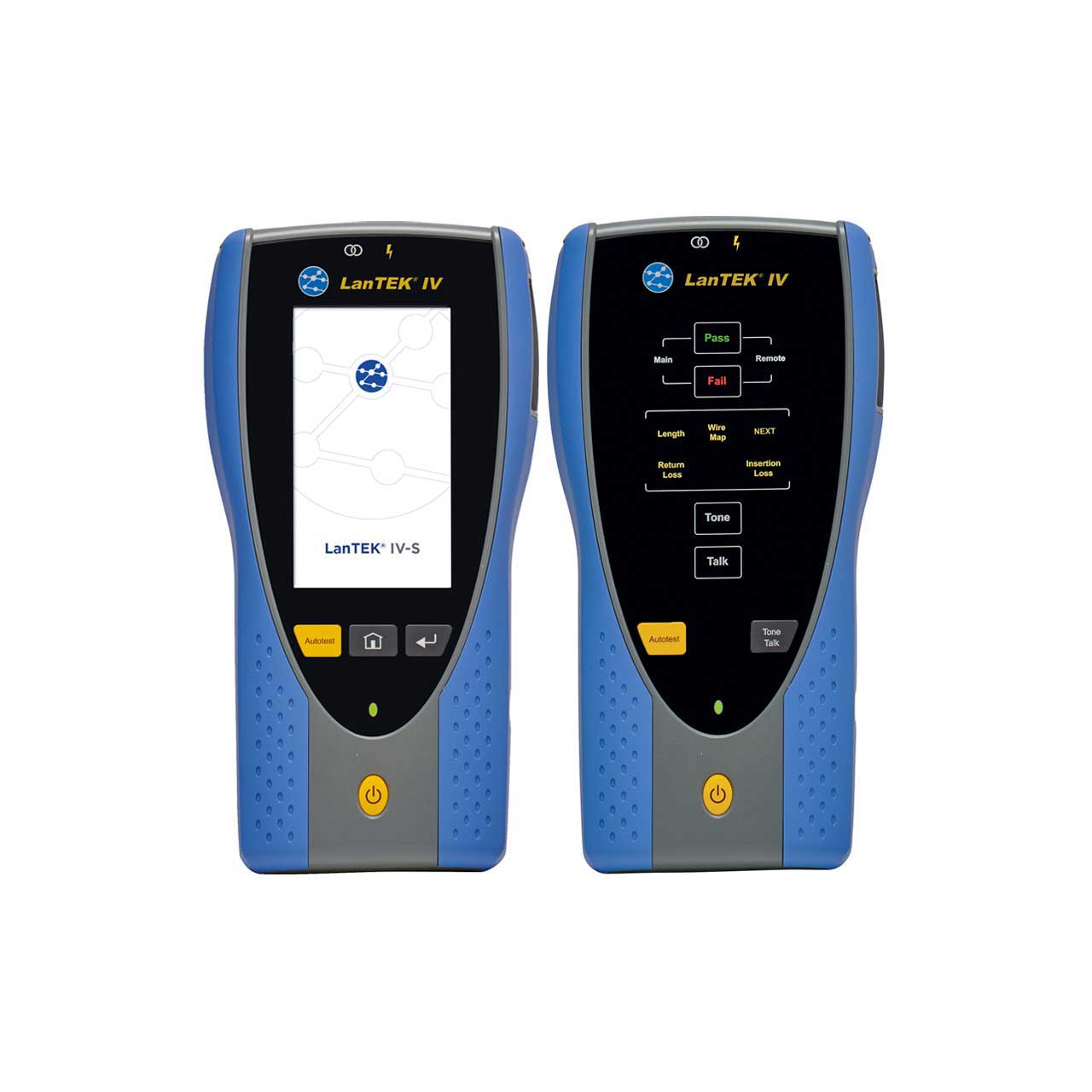

  • 2x LanTEK IV-S Display/Remote handsets
  • 2x Li-ion Battery
  • 2x Universal Power Adapter
  • 2x Hanging Strap
  • 1x Quick Reference Guide
  • 1x Carry Case
  • 2x CAT8 RJ45 VisiLiNQ Permanent Link Adapters
  • 2x CAT8 Channel Adapter


• GTIN:

  0810093721115
