SurgeX SA1810 Surge Protector & Power Conditioner 15 Amps at 120 Volts

Name: SurgeX SA1810 Surge Protector & Power Conditioner 15 Amps at 120 Volts
Brand: SurgeX
SKU: SA-1810

ITEM #: SA-1810 MFG #: SA-1810

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SA-1810

SurgeX SA-1810 STANDALONE Power Surge Protector & Conditioner - 15A/120V x 10Our Price: $699.00
ESP D11316T Multi-Stage Digital QC Power Filter - Non-Networked - 120V/15A - 2x 5-15R OutletsOur Price: $130.99
Dataprobe iBoot-PDU8A-N15 Eight Outlet 15A Fanless Switched PDUOur Price: $539.00
Tripplite PDUNV PDU Basic 100V - 240V 16A 1RU - C13 C19 Outlet PDUOur Price: $227.00

Required Accessories

Recommended Accessories

SA-1810 - Overview

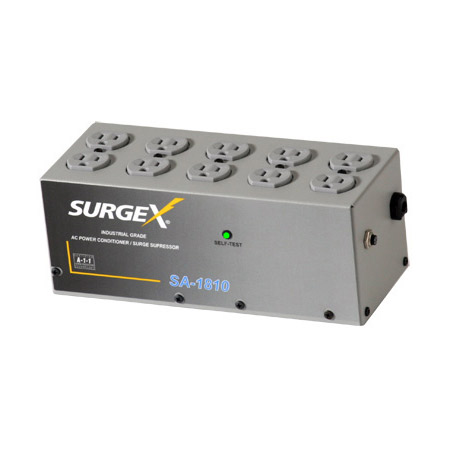

The SA1810 provides guaranteed surge protection for audio, video, broadcast, computer and all sensitive electronic equipment.

The unit is rated for 15 amps and features industrial grade grounded AC receptacles. When fitted with the optional mounting brackets the standalone unit easily mounts where you need it.

SurgeX Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.

Features:
- Magnetic shielding steel enclosure
- 6' grounded 3-wire #14 line cord
- 10 grounded AC receptacles
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Specifications:
- Load Rating: 15 amps @ 120 volts
- Power Requirement (no load): 10 watts
- Surge Let-Through Voltage (6000-volt surge): 0 volts
- UL 1449 Adjunct Classification Test Results:
- 1000 surges, 6000 volts, 3000 amps, B3 pulse;
- Measured suppressed voltage: 170 volts; no failures
- Federal Guidelines: Grade A, Class 1, Mode 1 (CID A-A-55818)
- EMI/RFI Filter, Normal Mode (50-ohm load):
- 40 dB @ 100 kHz; 50 dB @ 300 kHz;
- 50 dB @ 3 MHz; 50 dB @ 30 MHz
- EMI/RFI Filter, Common Mode (50-ohm load):
- 18 dB @ 300 kHz; 30 dB @ 1 MHz;
- 50 dB @ 5 MHz; 50 dB @ 20 MHz
- Maximum Applied Surge Voltage: 6000 volts*
- Maximum Applied Surge Current:
- Unlimited, due to current limiting*
- Maximum Applied Surge Energy:
- Unlimited, due to current limiting*
- Endurance (C62.41-1991 Category B3 pulses):
- 1 kV>500,000; 3 kV>10,000; 6 kV>1000
- Dimensions: 4.0" H x 10.2" W x 4.2" D (10.2 x 25.9 x 10.7 cm)
- Weight: 8.5 lbs (3.8 kg)
- Temperature Range: 5§ to 35§ C
- Humidity Range: 5% to 95% R.H., non-condensing
- Agency Listings: ETL and cETL (UL 1449, 2nd edition;
- CSA C22.2 No.8-M1986, R2000)
  *1.2 x 50 æs pulse, industry standard combination wave surge, as per IEEE C62.41
GTIN:
0859971002564
