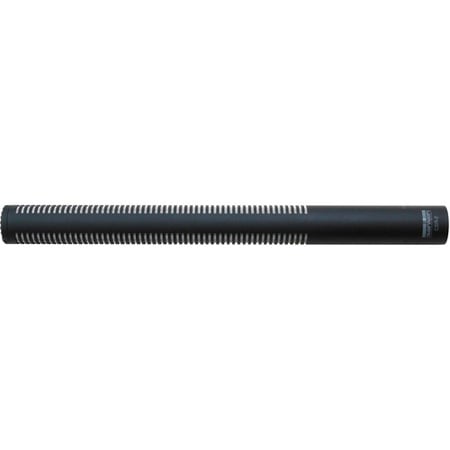

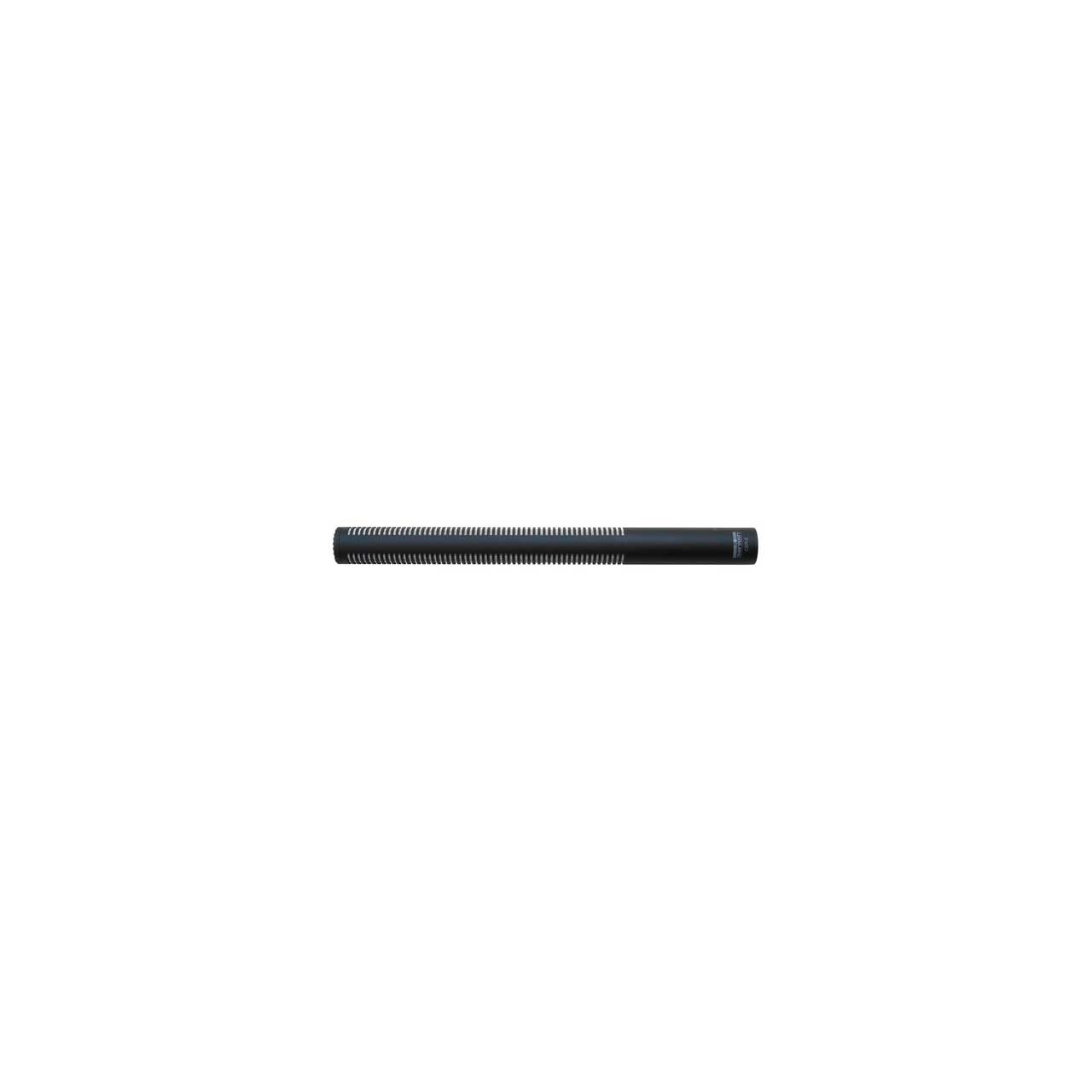

Sanken CSR-2 Rear Rejection Shotgun Microphone

ITEM #: SANKEN-CSR-2 MFG #: CSR-2

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,450.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CSR-2 - Overview

The matte black CSR-2 Rear Rejection Shotgun Microphone from Sanken is used to capture audio in critical applications such as TV, film sound and more. This microphone features a back electret condenser with 3 capsules. It combines the long acoustic tube and rectangular capsule design of the Sanken CS-2 with the mid and low frequency side and rear rejection of the Sanken CS-3e. A switch allows you to turn off the mid and low frequency side and rear rejection capsule to obtain a wider and warmer sound image. The frequency range is 70 to 18kHz.

The CSR-2 is built with an XLR connector and is powered by +48V phantom power. Measuring about 10 inches in length and weighing 6 ounces this mic is a candidate for camera or boom pole mounting scenarios. A urethane wind screen and vinyl case is included.

  • Features:

    • Back Electret Condenser Transducer
    • 3 Capsules Included
    • 70 Hz to 18 kHz Frequency Response
    • XLR Connector
    • 48V Phantom Powered
    • Urethane Wind Screen is Included
    • Vinyl Case is Included

  • Specifications:

    • Directivity Mid-High: Lobar
    • Mid-Low: Rear rejection by second gradient two capsules
    • Transducer 3 x Back electret condenser
    • Frequency Range 70 to 18 kHz
    • Sensitivity Nominal at 1 kHz: 71 mV/Pa (-23 dB, 0 dB=1 V/Pa)
    • Equivalent Noise Level Rear Rejection ON: 16 dB SPL (A-weighted)
    • Rear Rejection OFF: 15 dB SPL (A-weighted)
    • Max SPL Level 123 dB (1% THD)
    • Output Impedance 150 ? at 1 kHz
    • Powering +48 V, ±4 V phantom
    • Current Consumption 4.5 mA
    • Connector XLR-3M
    • Dimensions (Diam. x L) 0.87 x 9.8" (22 x 250 mm)
    • Weight 6 oz (170 g)

  • Item Includes:

    • WM-R2 Urethane Wind Screen
    • Vinyl Case
    • Limited 1-Year Warranty
