    SAPPHIRE BBG-2110-H/S (P) - Overview

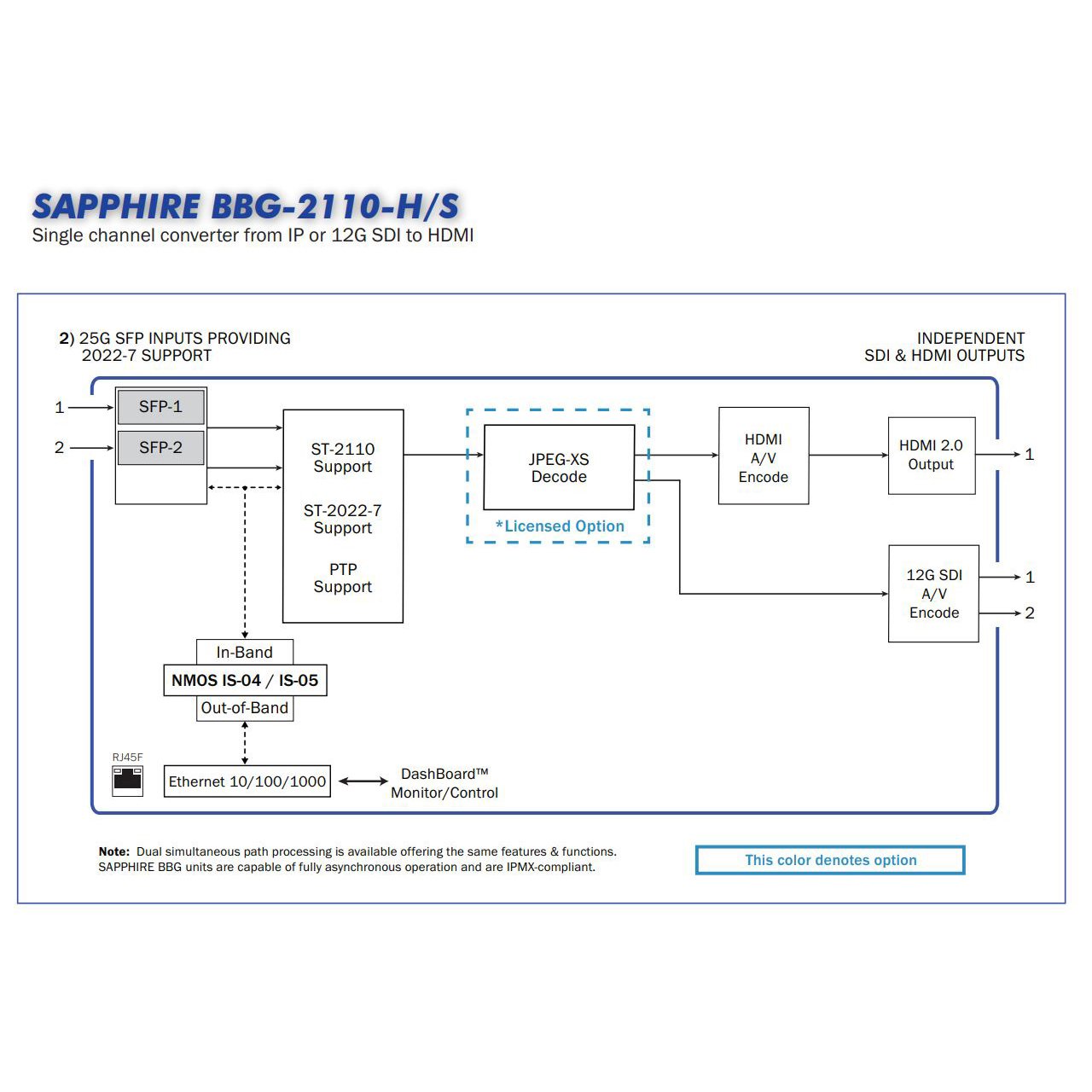

    The COBALT SAPPHIRE BBG-2110-H/S mini-converter addresses the need to display received JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini-converter is designed to be mounted behind the monitor. The BBG-2110-H/S is a single channel SMPTE 2110-22, JPEG-XS*, 12G SDI to HDMI 12G converter unit with simultaneous 12G SDI and HDMI outputs.

    The converter includes dual SFP cages with support for 10G and 25G Ethernet ports, an additional 1Gb copper Ethernet port for out- of band management, support for SMPTE ST 2022-7 Seamless Switching up to Class C operation for WAN environments, support for NMOS IS-04/IS-05 control and management (both in-band and out-of-band), and in-band PTP support.

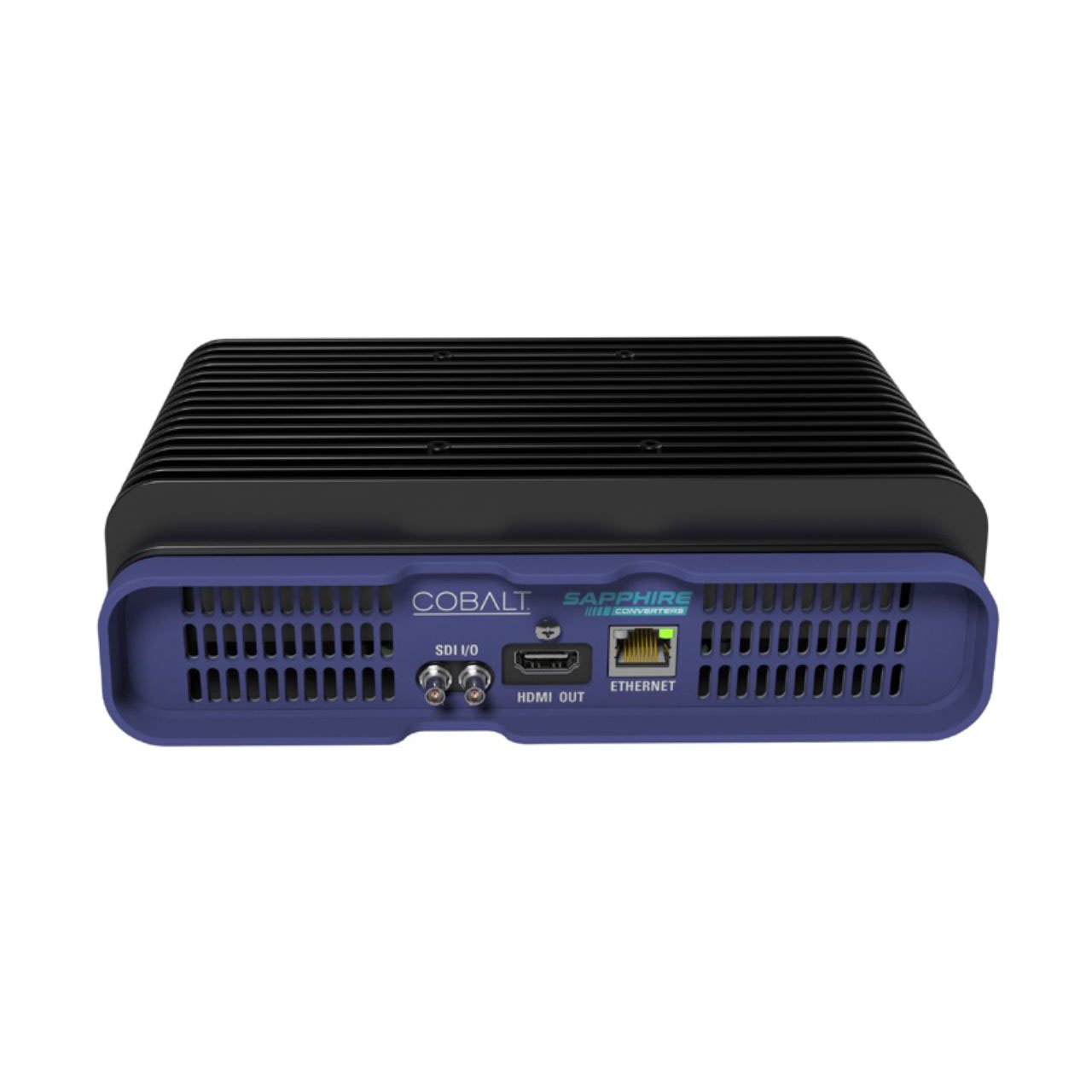

    Sapphire BBG-2110-H/S (P) - Fanless Passive Cooling!
    This unit features a passive fan-less design option for quiet environments and has support for uncompressed ST 2110-20 video. The units can be mounted directly behind the monitor and will not take up any rack space, and are incredibly quiet, which makes them ideal for control rooms. The SAPPHIRE BBG units are the ideal choice for directly displaying incoming JPEG-XS* content on HDMI monitors, including content originating from a WAN connection.

    • Features:

      • Converts 1 JPEG-XS* stream or 12G SDI with associated audio and ancillary data essences to HDMI.
      • Supports NMOS IS-04/IS-05 control, both in-band and out-of-band.
      • Supports SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation. Web interface and DashBoardT control.
      • Available with Active cooling fan or Passive fan-less version for quiet operation.
      • Dual power supply connections for redundancy.

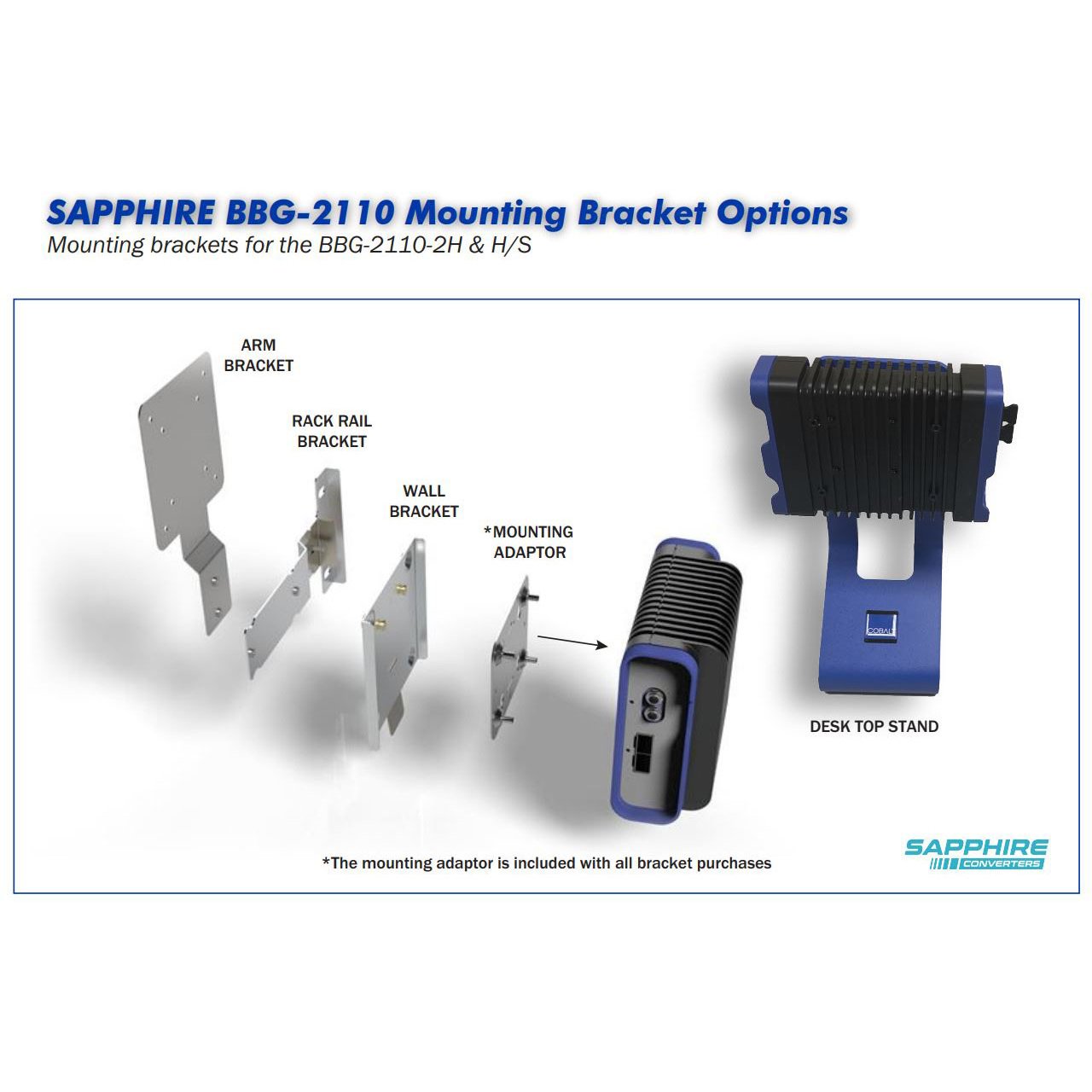

      • Can be mounted behind the monitor.
      • Supports all popular formats: 720p, 1080i, 1080p, 2160p, +JPEG-XS * optional license
      • Uncompressed ST 2110-20 video
      • JPEG-XS* ST 2110-22 (software license option)
      • VSF TR-08 Support for ST 2110-30 audio
      • ST 2110-40 ancillary data essences
      • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.

    • Specifications:

      • Dimensions: 8 x 5.5 x 2.5 inches

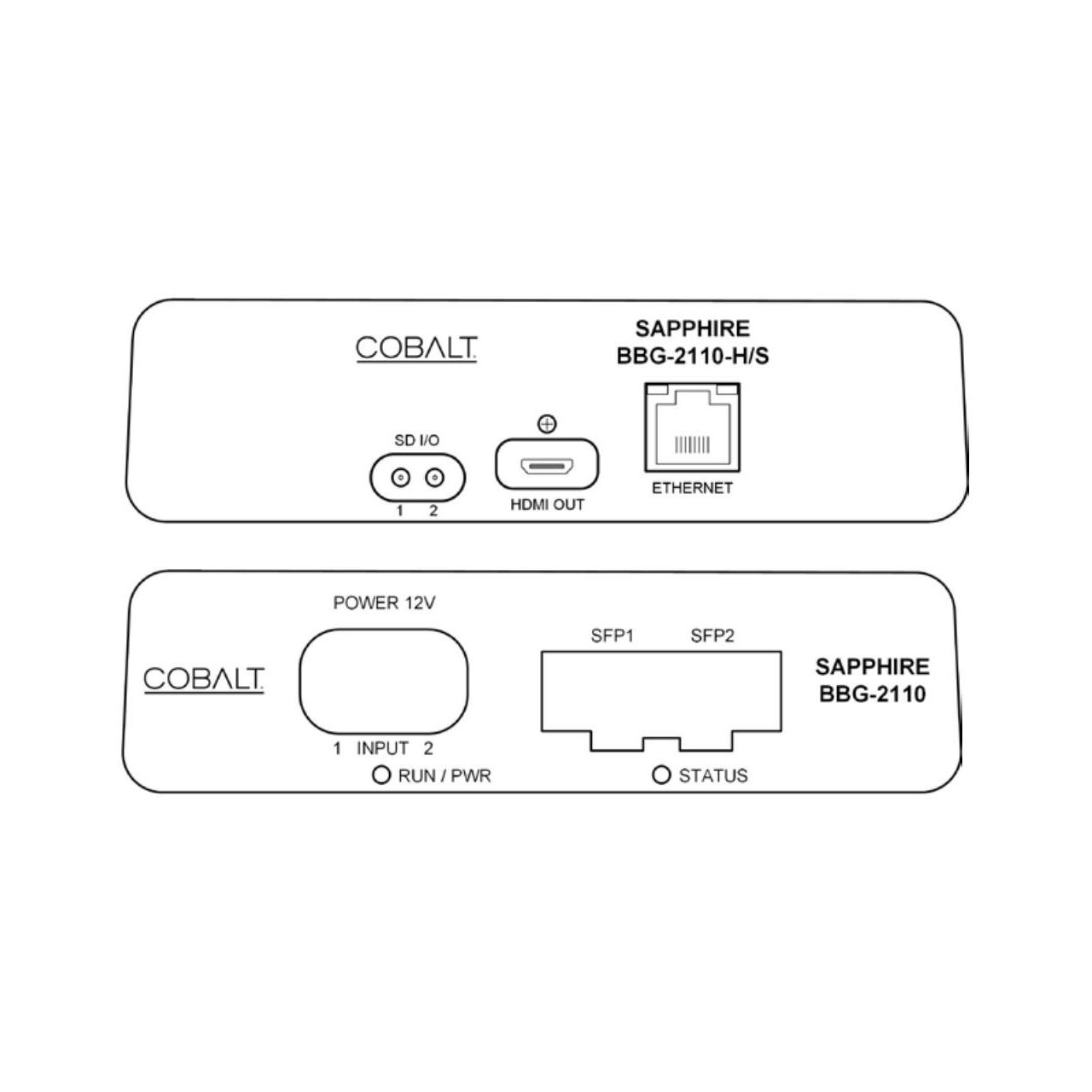

      • Outputs: Simultaneous HDMI and 12G SDI outputs (2)
      • Stream Interfaces: Dual 10G/25G SFP - 28 cages
      • Management Port: 100/1000 Mbps Ethernet with Auto-MDIX
