Smart AVI DPN-4PS 4-Port DisplayPort KVM Switch with USB 2.0 and Front Panel Push Buttons

DPN-4PS - Overview

• Features:

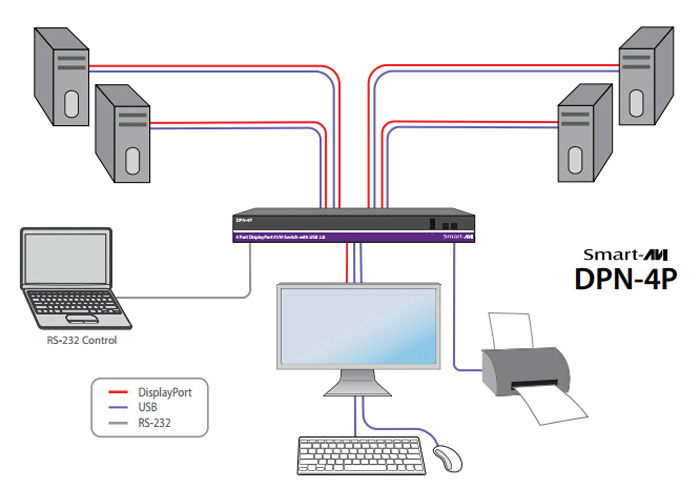

  • Switch KVM control on four connected computers from one workstation with a DisplayPort monitor
  • Supports resolutions up to 3840x2160 (@30Hz)
  • DisplayPort 1.2 compliant
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 2.0 devices, including keyboard and mouse
  • Supports Windows, Mac and Linux
  • Rack mountable in a standard 19 inch rack
  • Supports control via RS-232
  • Hot key commands for quick channel selection
  • Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save in another computer
  • Complete keyboard emulation for error free booting

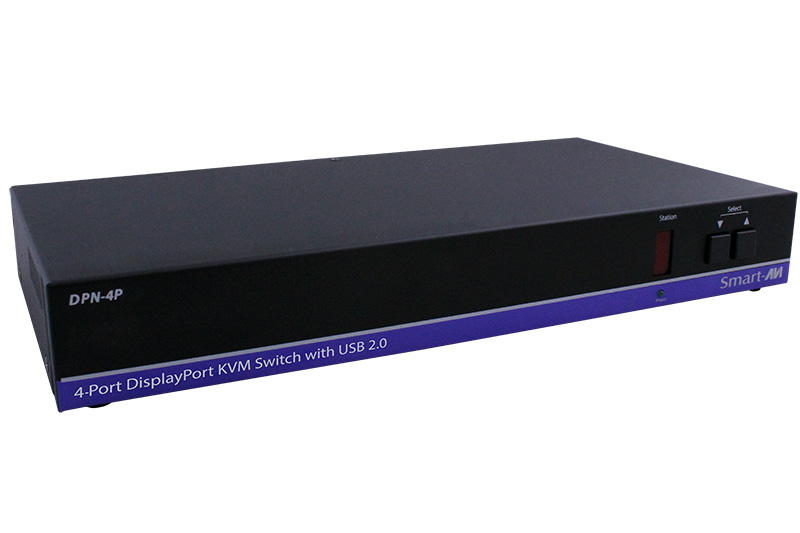

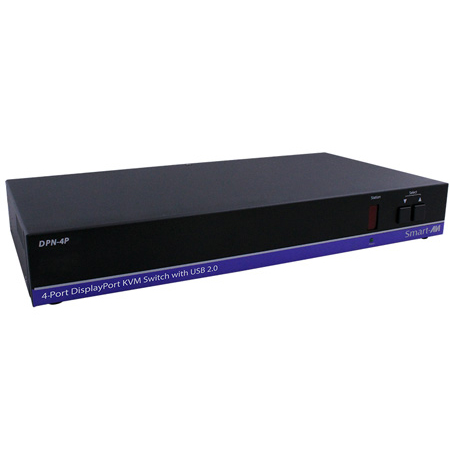

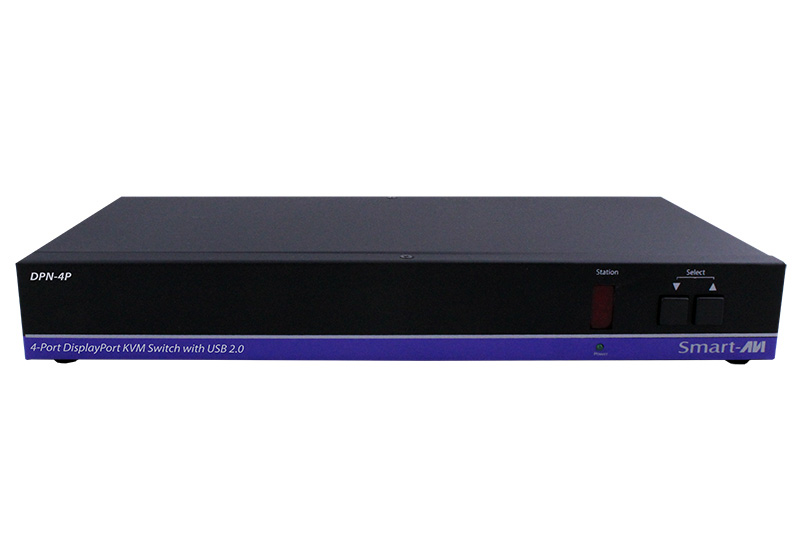

  • Front panel keys for manual switching
  • HDMI and DVI supported with adaptors, backwards compatible with prior DisplayPort versions


• Specifications:

  • Video
  • Format DisplayPort 1.2
  • Link Rate 5.4 Gbps/lane

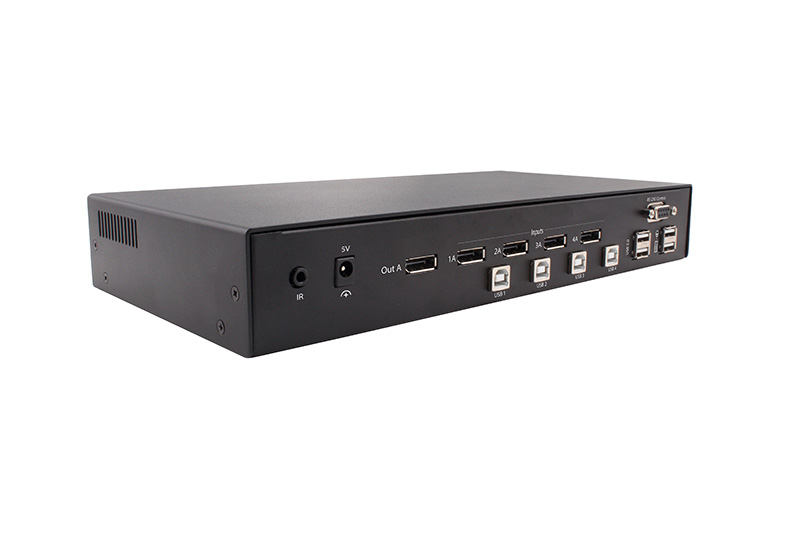

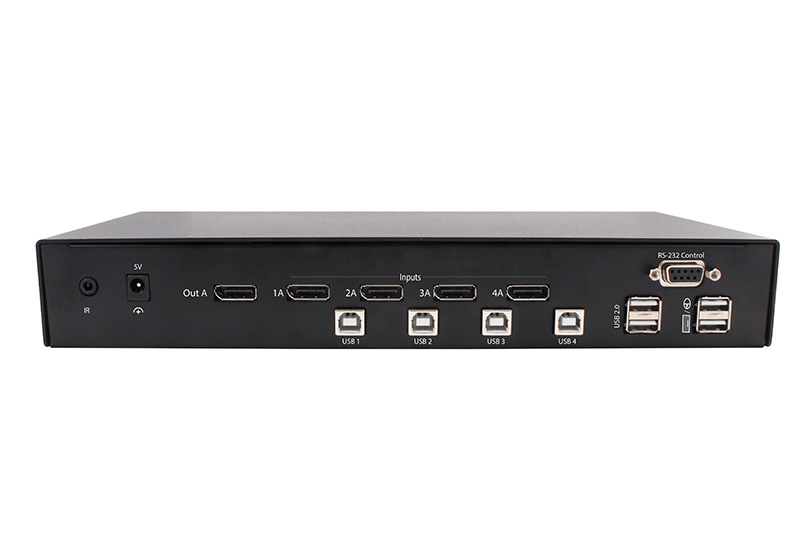

  • Input Interface (4) DisplayPort (female)
  • Output Interface (1) DisplayPort (female)
  • Resolution Up to 3840x2160 (@30Hz)
  • DDC Faux transaction mode option over Aux channel
  • Input Equalization Automatic
  • Bandwidth Frequency 10.2Gbps


  • USB
  • Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
  • Input Interface (4) USB Type B (female)
  • Output Interface (2) USB 1.1 Type A (female) for keyboard and mouse
  • (2) USB 2.0 Type A Transparent


  • Control
  • Front Panel Tactile Switches
  • RS-232 Via Control @ 9600 bps
  • Hot Keys Via Keyboard
  • Emulation Keyboard and mouse only


  • Other
  • Power External 100-240 VAC/ 5VDC4A @ 20W
  • Consumption 20 W (Max)
  • Dimensions 1.75" H x 6" D x 12" W
  • Weight 3.5 lbs
  • Approvals UL, CE, ROHS Compliant
  • Operating Temp. -5 to +35°C (+23 to +95°F)
  • Storage Temp. -4-185°F (-20-85°C)
  • Humidity 5 to 90% (No Condensation)


• GTIN:

  0813280017121
