Science Image VELARACKSDI 12G-SDI/HDMI 2.0 4K60 Video Encoder/Decoder/Converter/Media Recorder with Touch Screen Display

ITEM #: SCI-SI-VELARACKS MFG #: SI-VELARACKSDI

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Science Image
Free Shipping with $49 Minimum Order

Our Price:

$1,299.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SI-VELARACKSDI - Overview

The Ultra-Versatile Encoder/Decoder/Recorder/Converter - All In One!

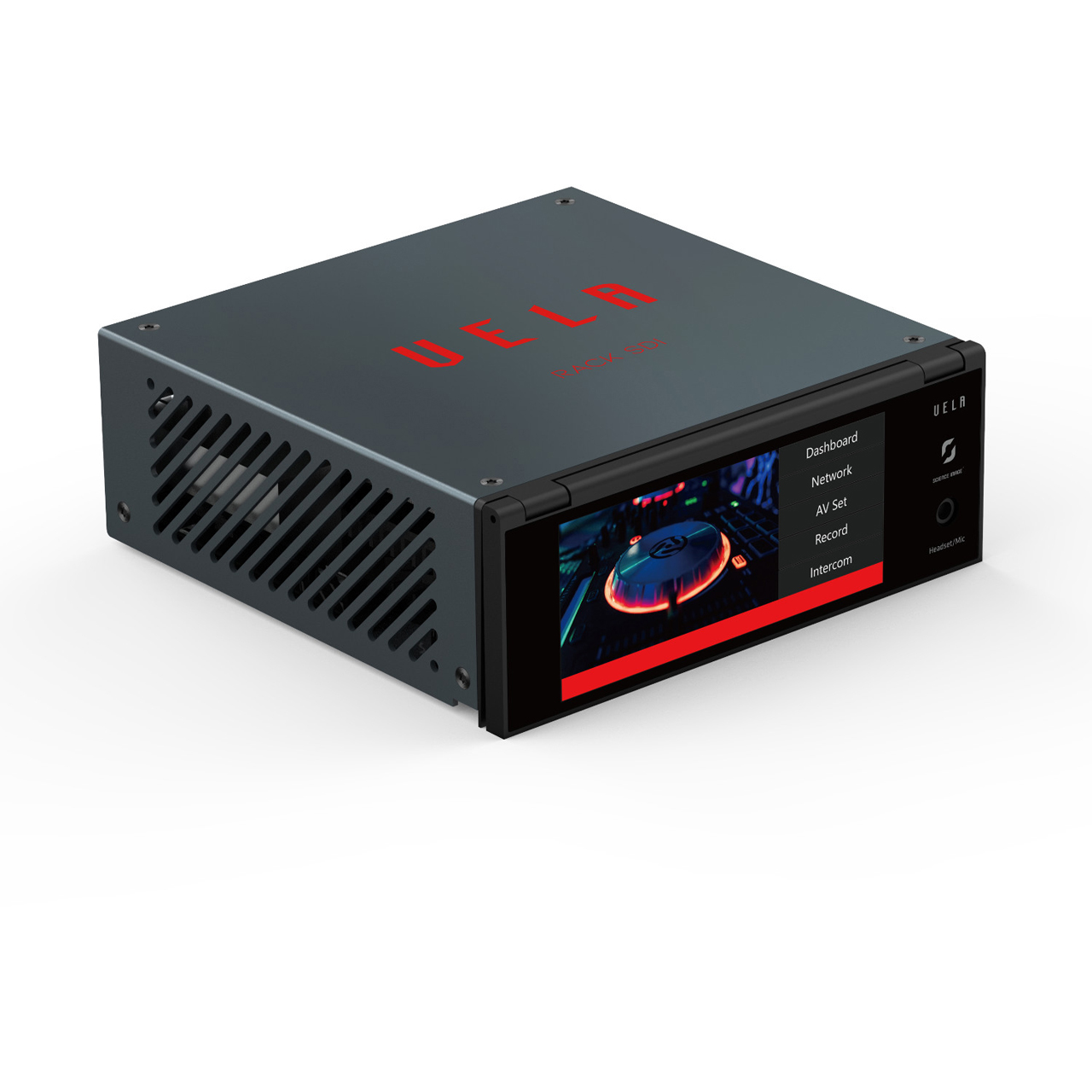

The Vela Rack SDI from Science Image is a versatile, multipurpose video production tool that works equally well as a video encoder, decoder, recorder, and format converter. The Vela Rack SDI is small in size, taking up only about a third of a rack unit in space, while still including a full-color LED touch screen, tally light, SSD recording bay, and a full complement of SDI, HDMI, audio, and network connections.

The Science Image Vela Rack SDI has many uses in live production. These are a just a few possible workflows:

- Encode SDI video signals up to 4Kp60 to High-Bandwidth NDI, NDI|HX2, or NDI|HX3.
- Decode NDI video to SDI outputs, while simultaneously monitoring the signal on the built-in display and outputting via HDMI to an external monitor.
- With two Vela units, capture SDI video on the first unit, transmit the via fiber to the second unit, which then encodes that SDI signal to RTMP for a live stream.
- Record NDI video to the internal SSD drive while decoding it to an SDI output.

Although the Vela Rack SDI can be used as a standalone unit, with the optional Vela Shelf up to three of these devices can be installed in a single 1RU of rack space.

  • Features:

    • Multi-functional 12G-SDI video encoder, decoder, converter, and media recorder

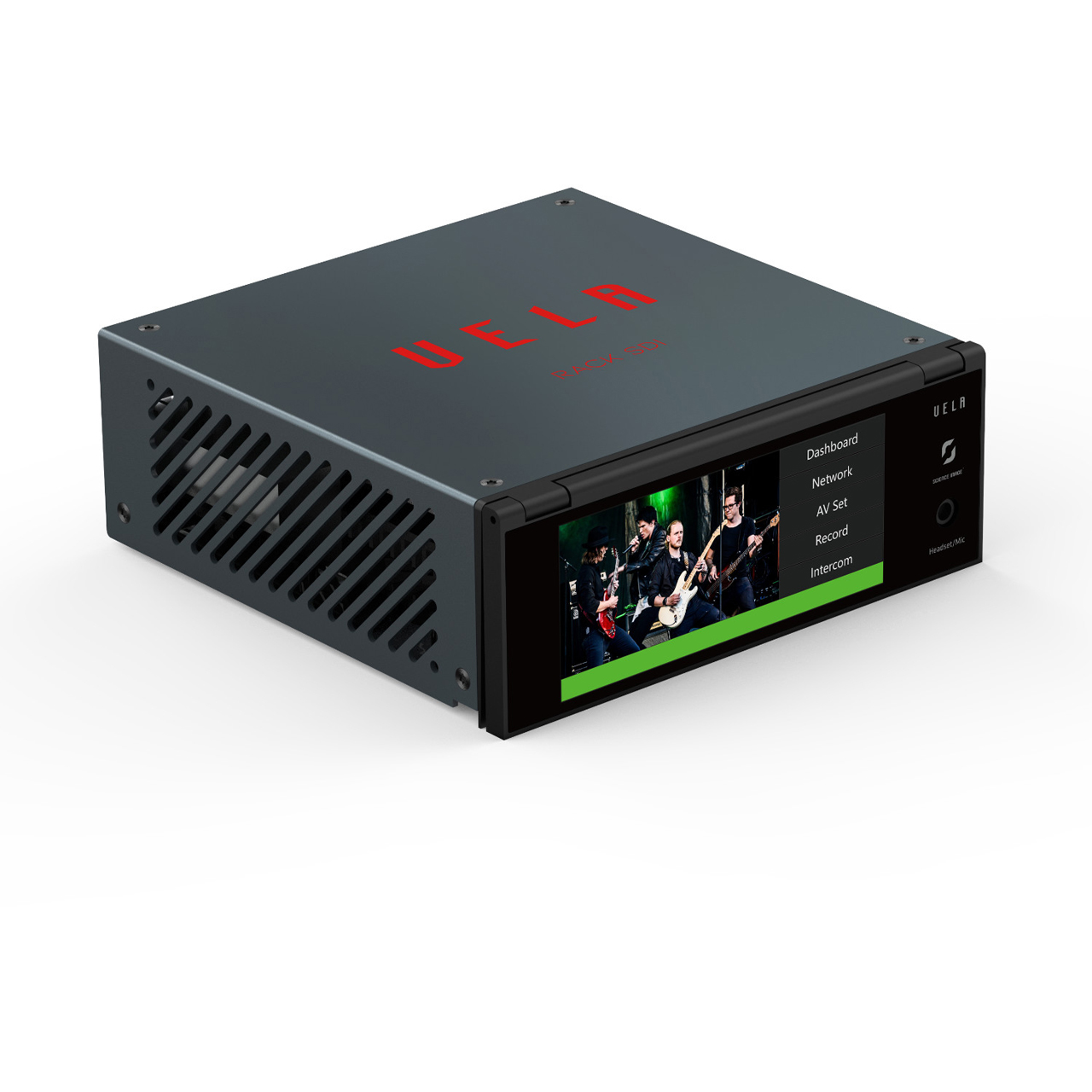

    • 3.4-inch touch-screen display with live video monitoring and user-interface control
    • Simultaneous encoding and decoding capability
    • Supported formats: RTMP, RTSP, SRT, High-bandwidth (Full) NDI, NDI|HX2, NDI|HX3
    • Encode, decode and record up to 4K 3840x2160 @ 60fps and up to 10-bit 4:4:4 quality
    • Front-panel 3.5mm stereo audio jack for intercom and stream monitoring
    • 12G-SDI input, 12G-SDI loop-out, HDMI2.0 output
    • Optical SFP+ interface for optional Science Image T1 12G-SDI fiber transceiver
    • USB 3.0 port for external PTZ control

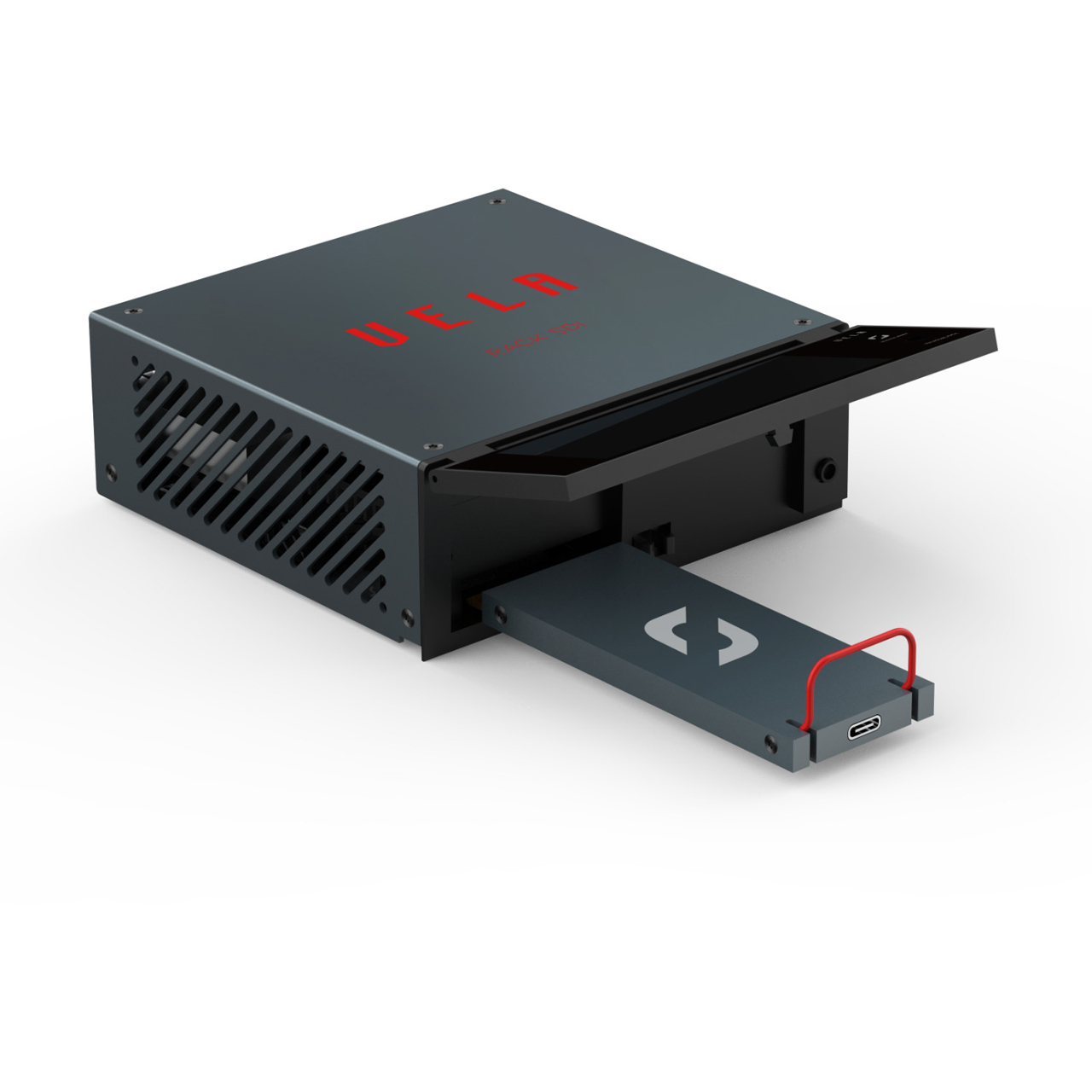

    • SSD recording slot compatible with Science Image C1 PCIe SSD docking sled
    • RJ-45 Gigabit Ethernet port with POE support
    • 12V DC power supply input


  • Specifications:

    • SDI video format
    • 1.5G/3G-SDI HD Video Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
    • 6G/12G-SDI/Ultra HD /4K Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K DCI: 4KDCIp60?4KDCIp59.94?4KDCIp50?4KDCIp30?4KDCIp29.97?4KDCIp25?4KDCIp24?4KDCIp23.98
    • SDI Standards: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

      HDMI Video Format
    • HD Video Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
    • 4K Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Video Sampling: 10-bit 4:2:2/4:4:4
    • SDI Audio Sampling Rate: TV Standard 48kHz
    • SDI Color Accuracy: 4:2:2/4:4:4
    • Color Space: REC 601, REC 709, BT.2020
    • HDMI Color Accuracy: YUV 4:2:2 and RGB 4:4:4

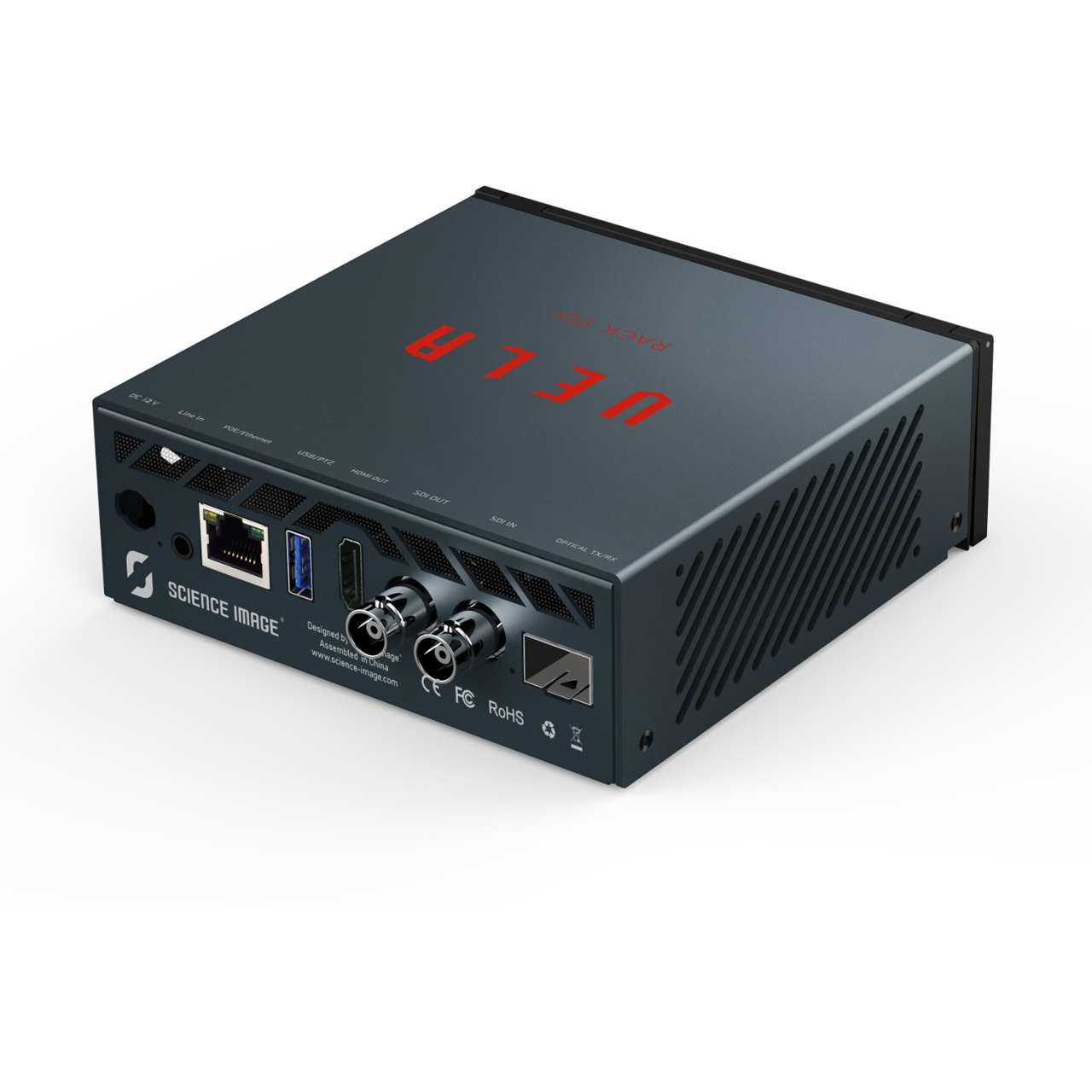

      Interfaces
    • SDI Video Input: 1x 1.5G/3G/6G/12G-SDI, Adaptive input, automatic switching
    • SDI Video Loop out: 1x 1.5G 3G/6G/12G-SDI, Adaptive input, automatic switching
    • HDMI Video Output: 1x HDMI 2.0 Type A port supports output up to HDMI 4K60p , downward compatibility, and is used for conversion, decoding as well as playback of video sources
    • SSD Hard Disk: Based on PCIe bus, supports 1TB/2TB capacity, NVMe solid state drive box slot
    • Optical Fiber Input and Output: 1x SMPTE SFP optical socket
    • Gigabit Ethernet Interface: 1x RJ-45 Used to control and set device parameters, input and output NDI and other streaming media signals
    • 3.5mm LINE IN Jack: 1x LINE IN 3.5mm Used for embedding external analog audio
    • 3.5mm LINE OUT Jack: 2x 3.5mm Analog audio de-embedded output port, used for audio output after SDI and HDMI video source de-embedded, as well as headphone output port for monitoring and call functions
    • Display and Control: 3.4-inch TFT touch screen, flip-up, used to monitor video source, encode/decode/replay audio and video, control and set all parameters and functions


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    6974658120318
