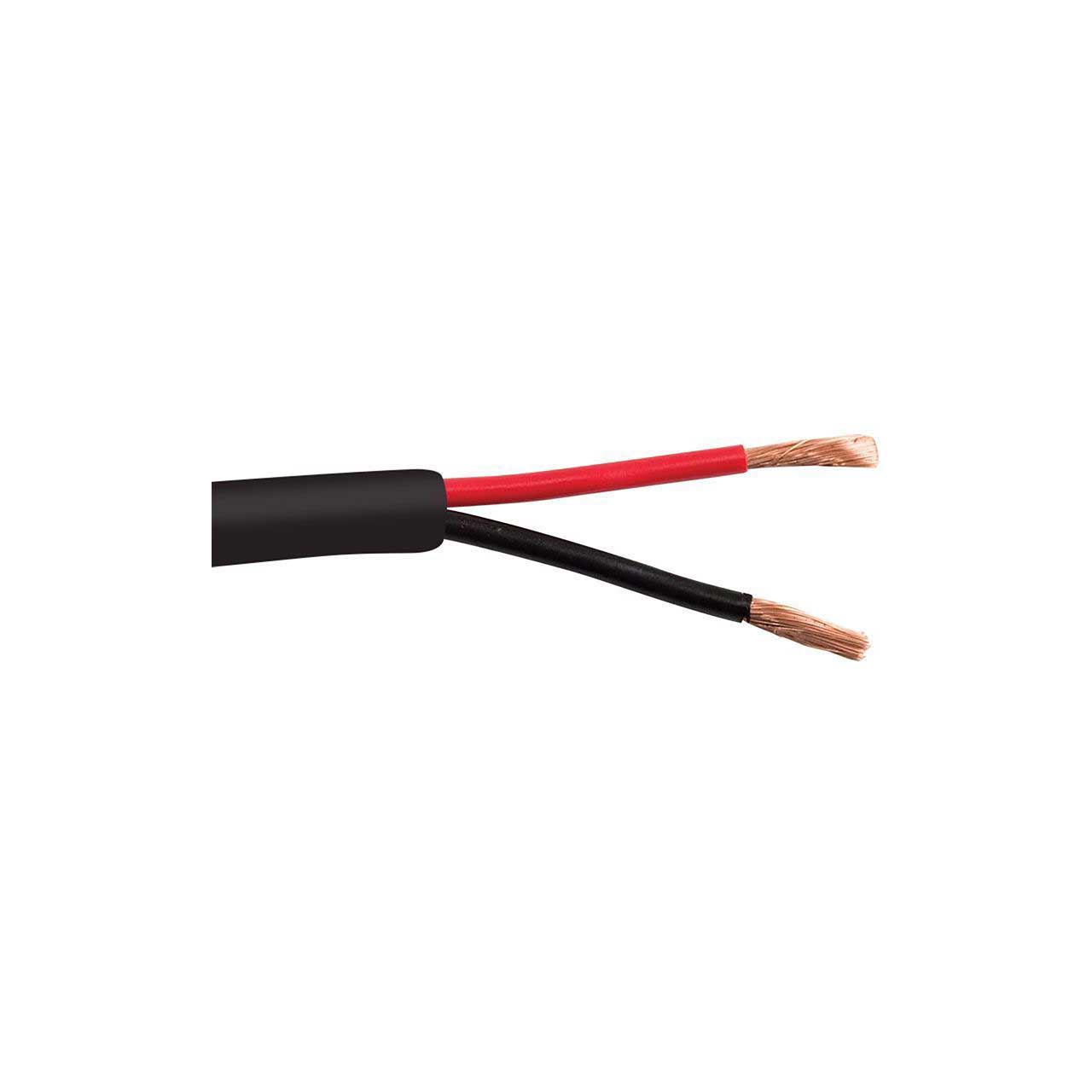

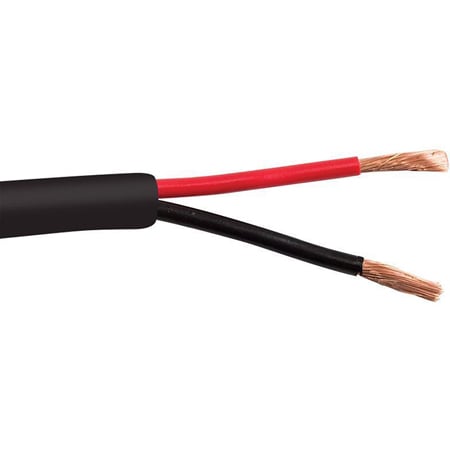

Structured Cable 12/2OFC Direct Burial 2-Conductor 12 AWG Stranded Copper Indoor/Outdoor Speaker Cable - 500 Feet Black

Name: Structured Cable 12/2OFC Direct Burial 2-Conductor 12 AWG Stranded Copper Indoor/Outdoor Speaker Cable - 500 Feet Black
Brand: Structured Cable Products
SKU: SCP-122OFCHDBK
Price: 293.75 USD
Availability: PreSale

ITEM #: SCP-122OFCHDBK MFG #: 12/2OFC-HD-BK

Structured Cable Products

List Price:

$470.00

Our Price:

$293.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

12/2OFC-HD-BK - Overview

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip Heavy Duty Premium UV treated PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

Features:
- Highly Flexible
- Indoor/Outdoor Rated
- High Strand Count Oxygen Free Copper (OFC)
- Unshielded
- Insulated twisted pair
- HD UV Sun Resistant PVC Jacket
- Easy Strip Round Rope Lay Construction
- SCP Tangle Free Reelex II Box
- Descending Feet and Zone/Outlet Jacket Markings

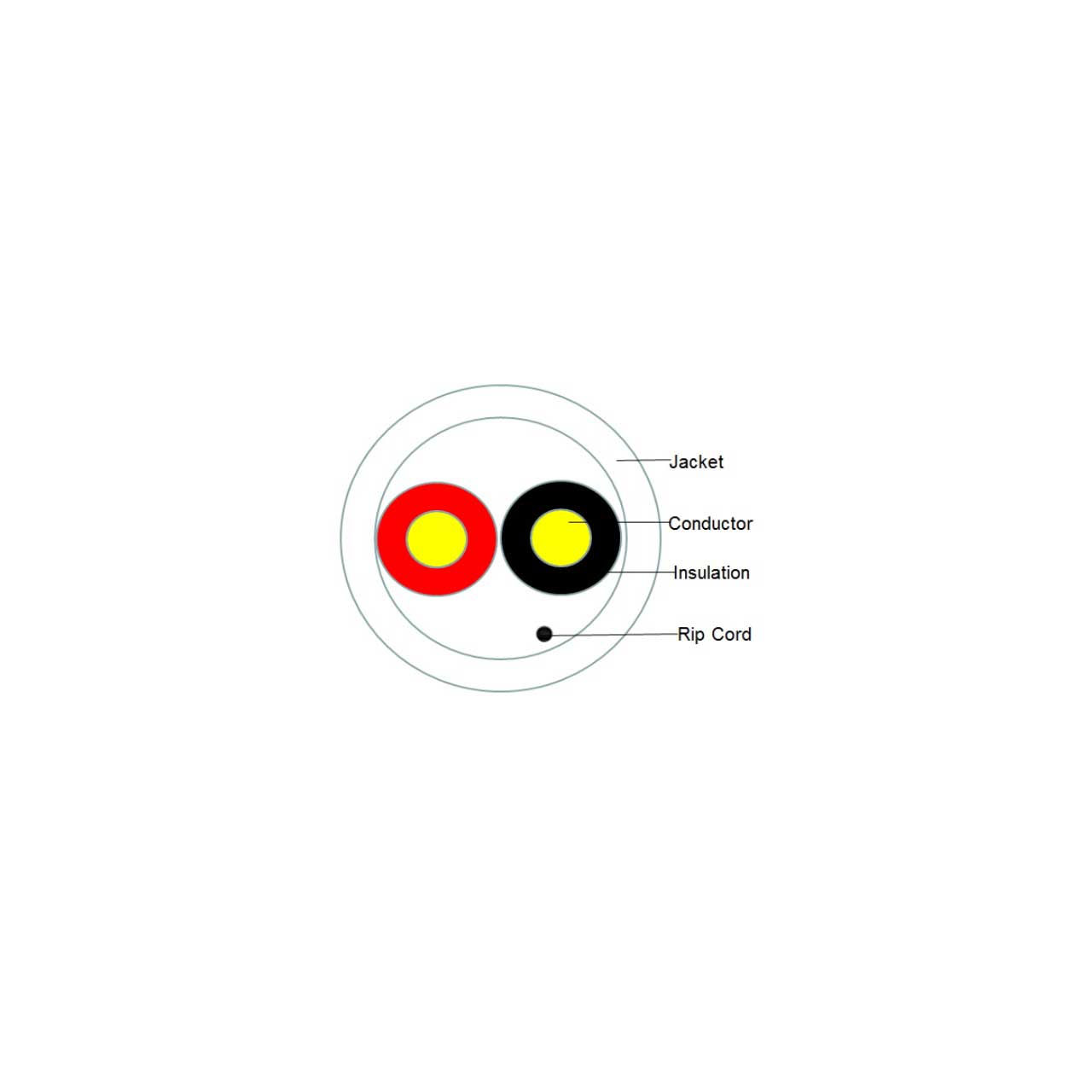

Specifications:
- Conductor:
- Material: Stranded Bare Copper
- Size: 12AWG X 2C (3.28mm²)
- Construction: 65/0.254mm±0.004mm
- Resistance: Max 5.8Ω/km at 20°C

  Insulation:
- Material: PVC
- Min. Thickness: 0.30mm
- Avg. Thickness: 0.36mm
- Diameter: 3.20mm±0.10mm
- Colors: Black and Red
- Resistance: Min 50MΩ*km at 20°C

  Jacket:
- Material: PVC
- Min. Thickness: 0.80mm
- Avg. Thickness: 0.95mm
- Diameter: 8.3mm±0.20mm
- Rip Cord: Nylon
- Bend Radius: Min 15D/125mm
- Operating Temperature Range: -20°C - +75°C
- Minimum Installation Temperature: 0°C - 40°C
- Dielectric Strength: Min AC1.5KV
- Rated Voltage (Insulated/Operating): Max 300V/80V
- Test Voltage: 800V/min
- Impedance (nearby): 77±5Ω
- Capacitance (nearby): 20±3pf/ft
GTIN:
0810070016364
