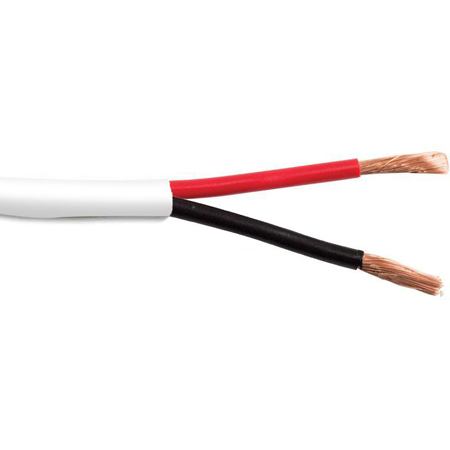

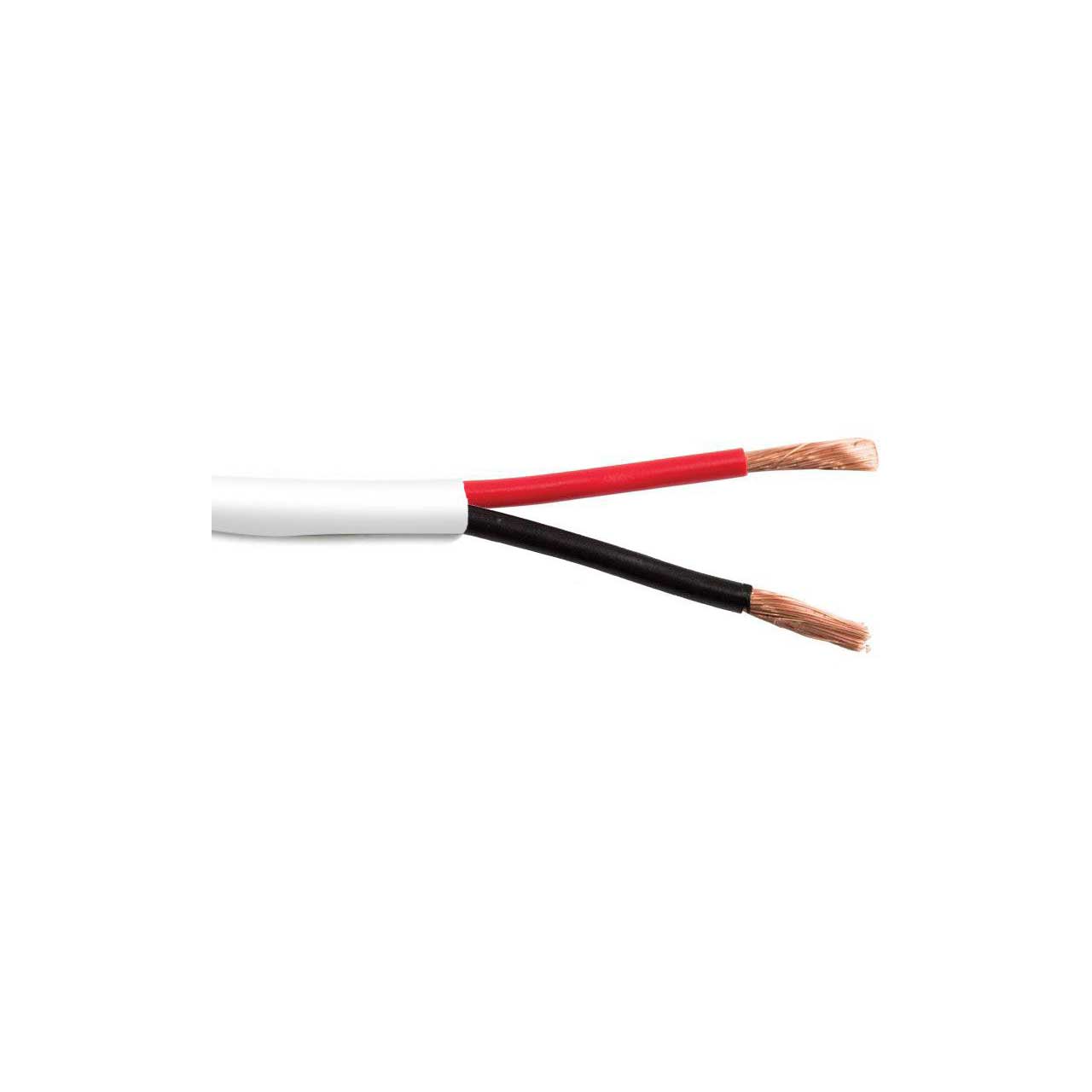

Structured Cable 12/2OFC 2-Conductor 12 AWG Stranded Copper In-Wall Speaker Cable - 500 Feet White

12/2OFC-WT - Overview

• Features:

  • Highly Flexible with Minimum OD
  • High Strand Count Oxygen Free Copper
  • Unshielded
  • Insulated twisted pair
  • Easy Strip PVC Jacket
  • Smaller OD ideal for conduit
  • SCP Tangle Free Reelex II Box
  • Descending Feet and Zone/Outlet Jacket Markings


• Specifications:

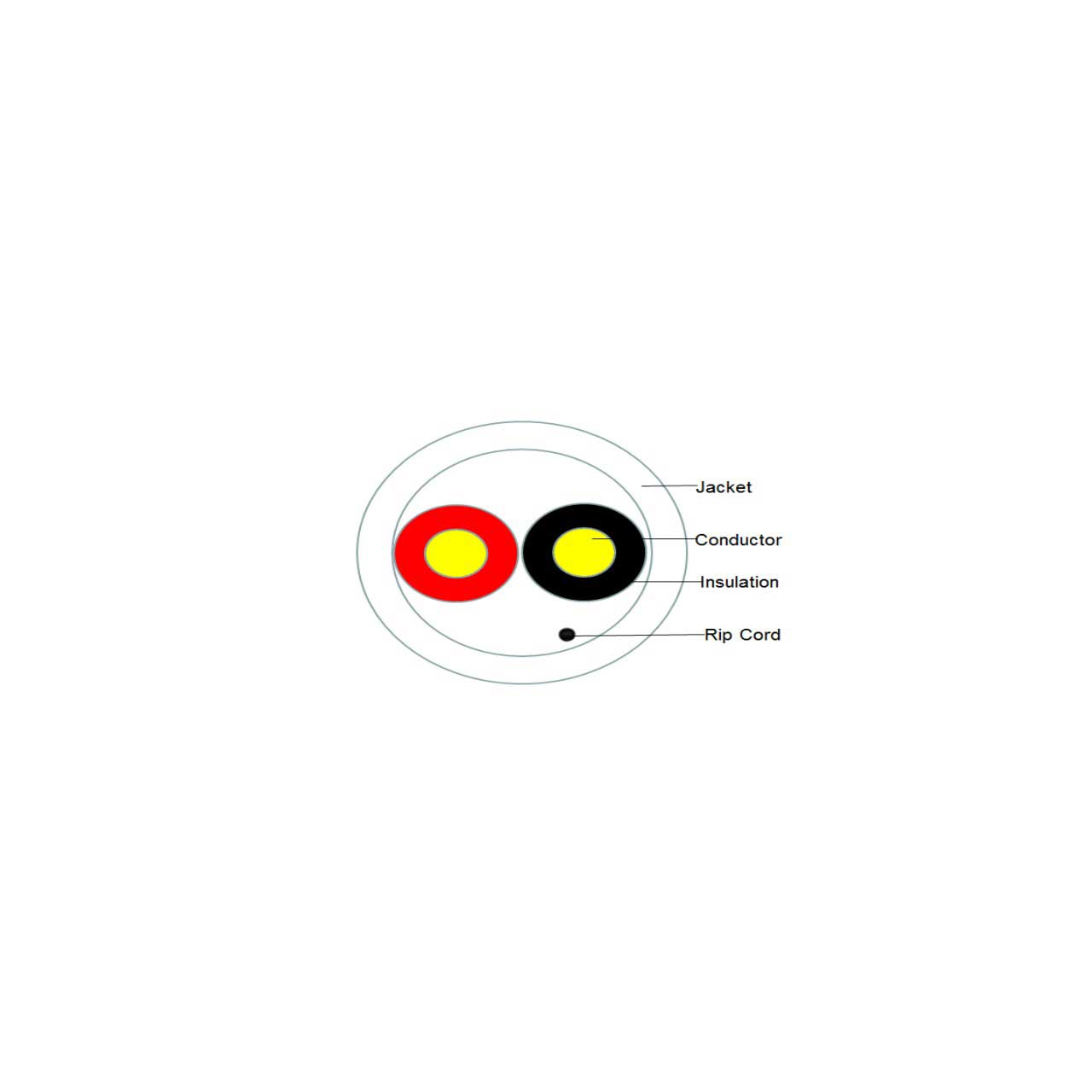

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 12AWG X 2C (3.28mm²)
  • Construction: 65/0.254mm±0.004mm
  • Resistance: Max 5.8Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.33mm
  • Avg. Thickness: 0.36mm
  • Diameter: 3.20mm±0.10mm
  • Colors: Black and Red
  • Resistance: Min 50MΩ*km at 20°C

    Jacket:
  • Material: PVC
  • Min. Thickness: 0.60mm
  • Avg. Thickness: 0.80mm
  • Diameter: 8.0mm±0.20mm
  • Rip Cord: Nylon


  • Bend Radius: Min 15D/120mm
  • Operating Temperature Range: -20°C - +75°C
  • Operating Temperature Range: 0°C - 40°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage: 300V
  • Test Voltage: 800V/min
  • Impedance (nearby): 77±5Ω
  • Capacitance (nearby): 20±3pf/ft


• GTIN:

  0810070010171
