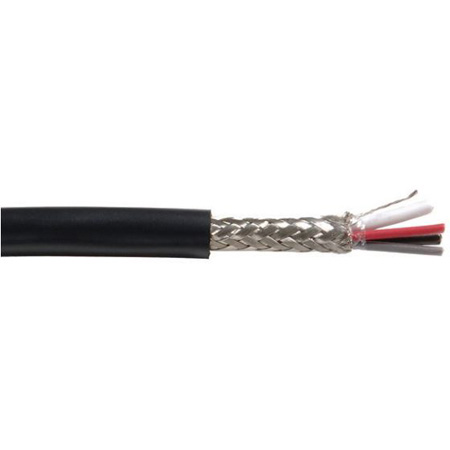

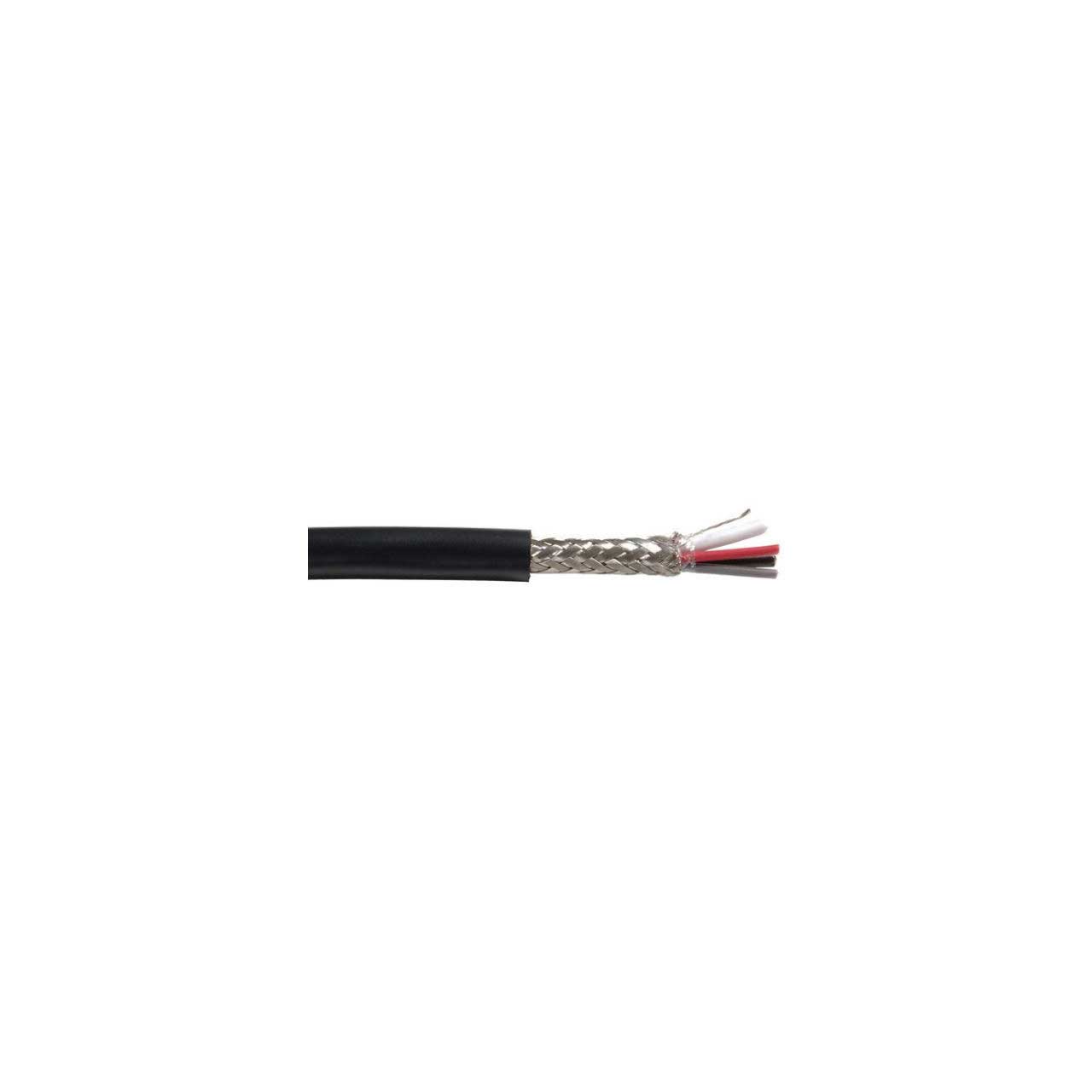

Shattuc SCOP.16/22R 6/2 & 22/2 O/S (Braid) Cable for SMPTE Camera Power - CMR - Installation - 1000 Foot

SCOP-16-22R - Overview

• Specifications:

  • Conductor
  • Material: Annealed tinned copper
  • Conductor Count: 2 conductors
  • AWG & Stranding: 16 AWG 65 Strands

    Insulation
  • Cable Braid: 36 Awg Tinned Copper
  • Material: Polyethylene
  • Wall Thickness: 0.020"
  • Color Code: Black, White

    Element 2: 22 AWG 2C Insulated with PE Conductor
  • Material: Annealed Tinned Copper Color: Black
  • Conductor Count: 2 Conductors Ripcord: No
  • Awg & Stranding 22 Awg 19 Strands

    Insulation
  • Material: Polyethylene
  • Wall Thickness: 0.015"
  • Color Code: red, gray

    Overall Cable Assembly - Elements 1 & 2
  • Cable Lay Length: 3.00" Lhl (4.00 Tw/Ft), Nominal
  • Binder: Clear/Mylar Wrap - 100% Coverage
  • Cable Drain Wire : 22 Awg 7 Strands Tinned Copper(In Contact With Braid)
  • Cable Braid: 36 Awg Tinned Copper

    Jacket
  • Material: Polyvinylchloride
  • Wall Thickness: 0.043"
  • Diameter: 0.312"
  • Color: Black
  • Ripcord: No
  • Weight: 74 Lbs/Mft
  • Capacitance: 13.80 pF/ft
