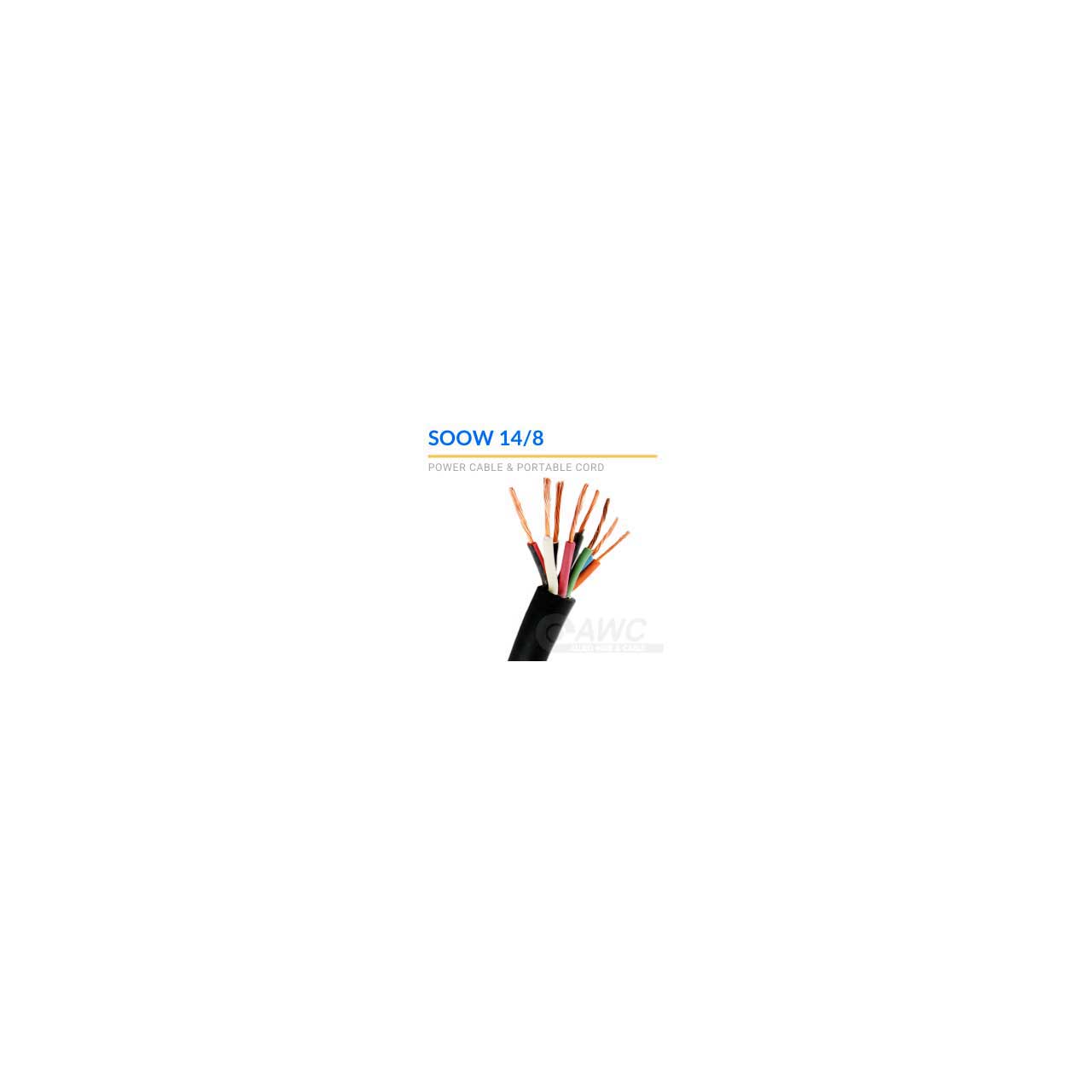

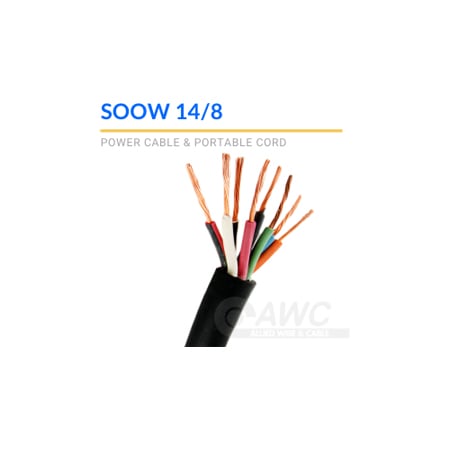

AWC SO14-8 14 Gauge Portable and Power Conductor Cable 65/30B SOOW 90C 600V - Black

ITEM #: SO14-8 MFG #: SOOW 14/8

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4.95

Our Price:

$4.75

Availability: In Stock
iAvailability Description Popup


SOOW 14/8 - Overview

The AWC SOOW 14/8 14 gauge cable is part of our Power Cables & Portable Cord line of Wire & Cable. SOOW 14/8 is composed of 8 bare copper conductors with a 41/30 stranding, an ethylene propylene diene monomer rubber (EPDM) insulation, and a chlorinated polyethylene (CPE) jacket. These cables are rated for a voltage of 600 volts, an amperage of 10.5 amps, have a temperature range of -40° to 90°, and weighs approximately 435 lbs/MFT. SOOW Cord is designed for hard usage with portable tools, industrial and processing equipment, construction equipment, cranes and hoists, track systems, battery chargers, portable appliances, small motors and associated machinery, and electrical equipment that is exposed to oils, solvents, flame, or moisture. SOOW Cable is resistant to water, abrasion, oils, solvents, weather, sunlight, and ozone. It offers excellent flexibility and is UL Listed and CSA Certified for both indoor and outdoor use and features good tensile strength, elongation, and aging characteristics.

  • Specifications:

    • Amps: 10.5
    • Approx LBS/MFT: 435.00
    • AWG Size: 14
    • Cond. Material: Bare Copper
    • Conductor Stranding: 41/30
    • CSA Type: SOOW
    • Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
    • Jacket Material: Chlorinated Polyethylene (CPE)
    • Jacket Thickness: 0.095
    • Max. Temp: 90C
    • No. of Cond.: 8
    • No. of Strands: 41
    • Nom. Insul. Thick. (in): 0.045
    • Nom. O.D. of Cable (in): 0.735
    • Strand Size: 30
    • UL Style: SOOW
    • Voltage: 600


SOOW 14/8 - Required Accessories
