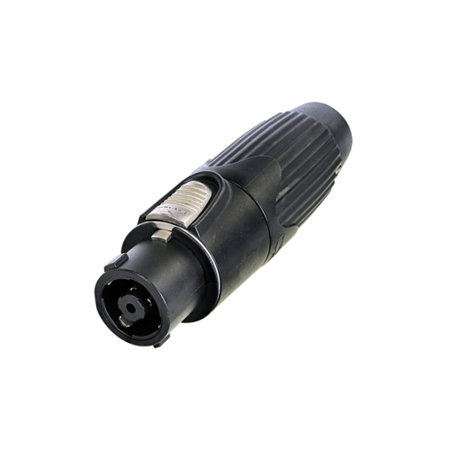

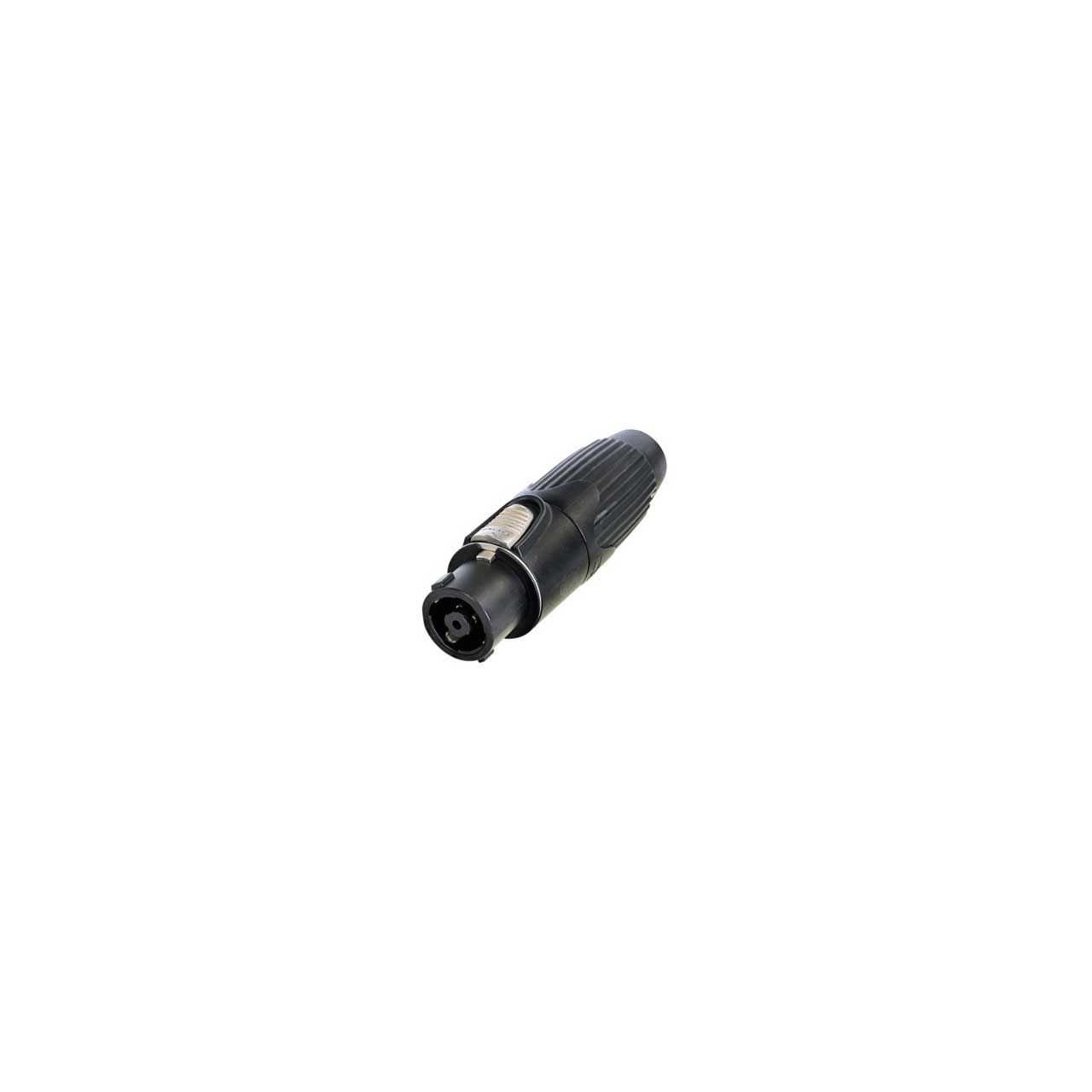

Neutrik NLT8FXX-BAG 8 Pole Female Cable Connector - Metal Housing - Chuck Type Strain Relief - Solder Contacts

NLT8FXX-BAG - Overview

• Features:

  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Current rating 30 A rms
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Precise "Quick Lock" system
  • Compatible with complete speakON 8 pole product series


• Specifications:

  • Gender: female
  • Contact resistance: < 2 mMax.
  • Dielectric strength: 1.5 kVac
  • Insulation resistance: > 0.1 GMax. (after dampheat)
  • Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
  • Cable O.D.: 8 - 20 mm
  • Cable retention: ? 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 1.5 ² - 6 ²
  • Wiresize: 10 AWG
  • Termination: Solder contacts
  • Locking device: Quick Lock (latch)
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 6.6)
  • Locking element: Zinc diecast
  • Strain relief: Polyacetal (POM)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0
  • Protection class: IP 50 (mated condition)
  • Solderability: Complies with IEC 68-2-20


• Item Includes:

  • 1x Neutrik NLT8FXX-BAG 8 Pole Female Cable Connector - Metal Housing - Chuck Type Strain Relief - Solder Contacts
