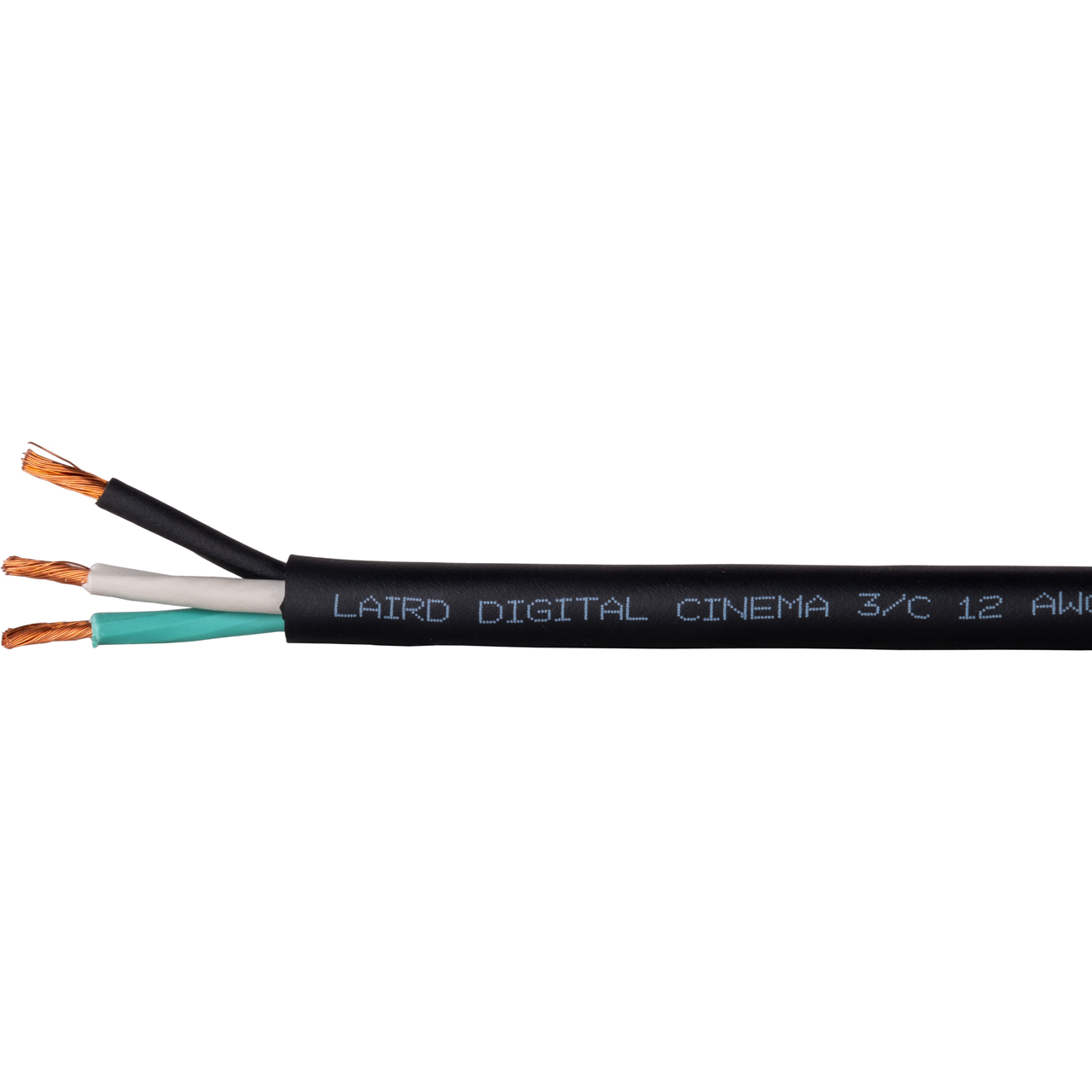

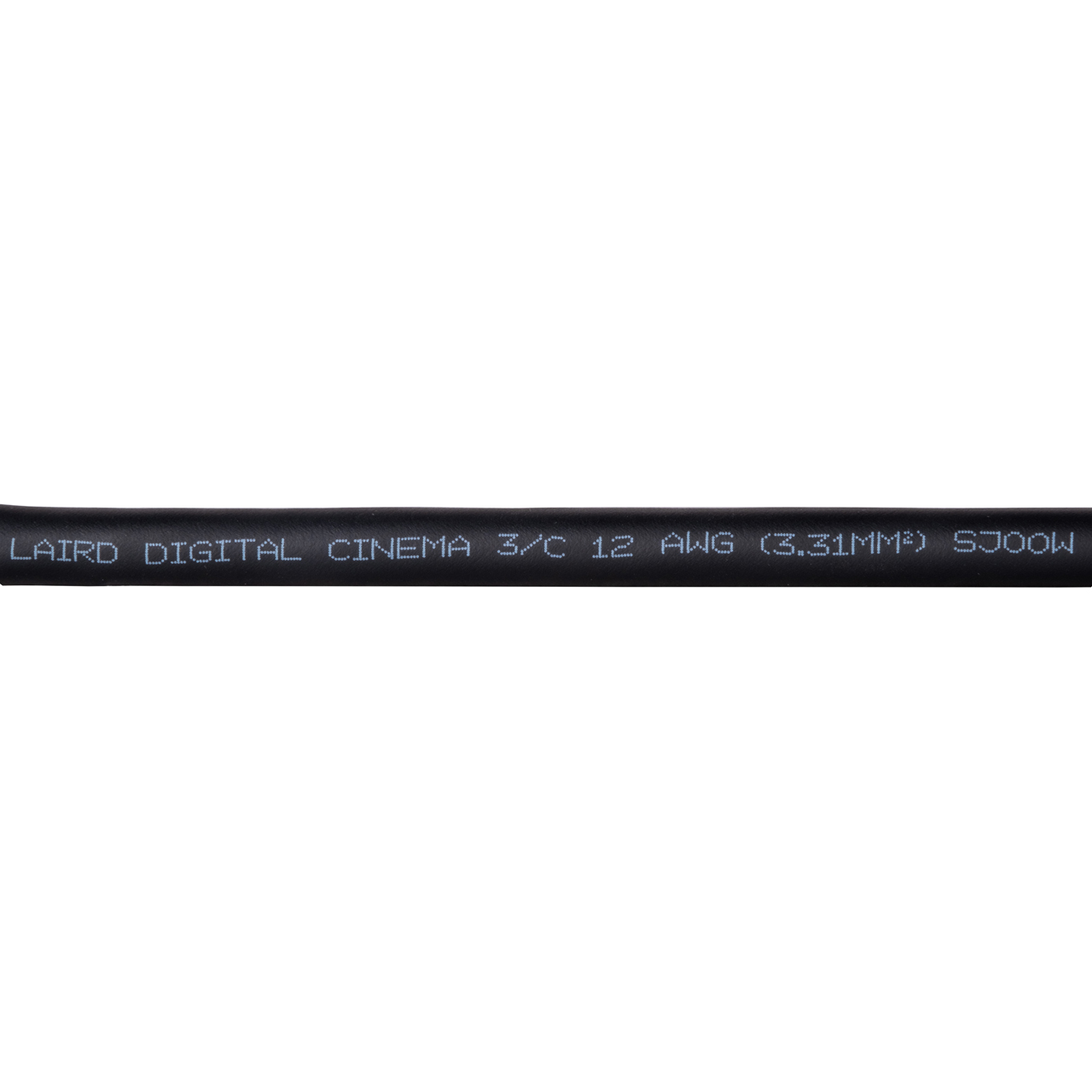

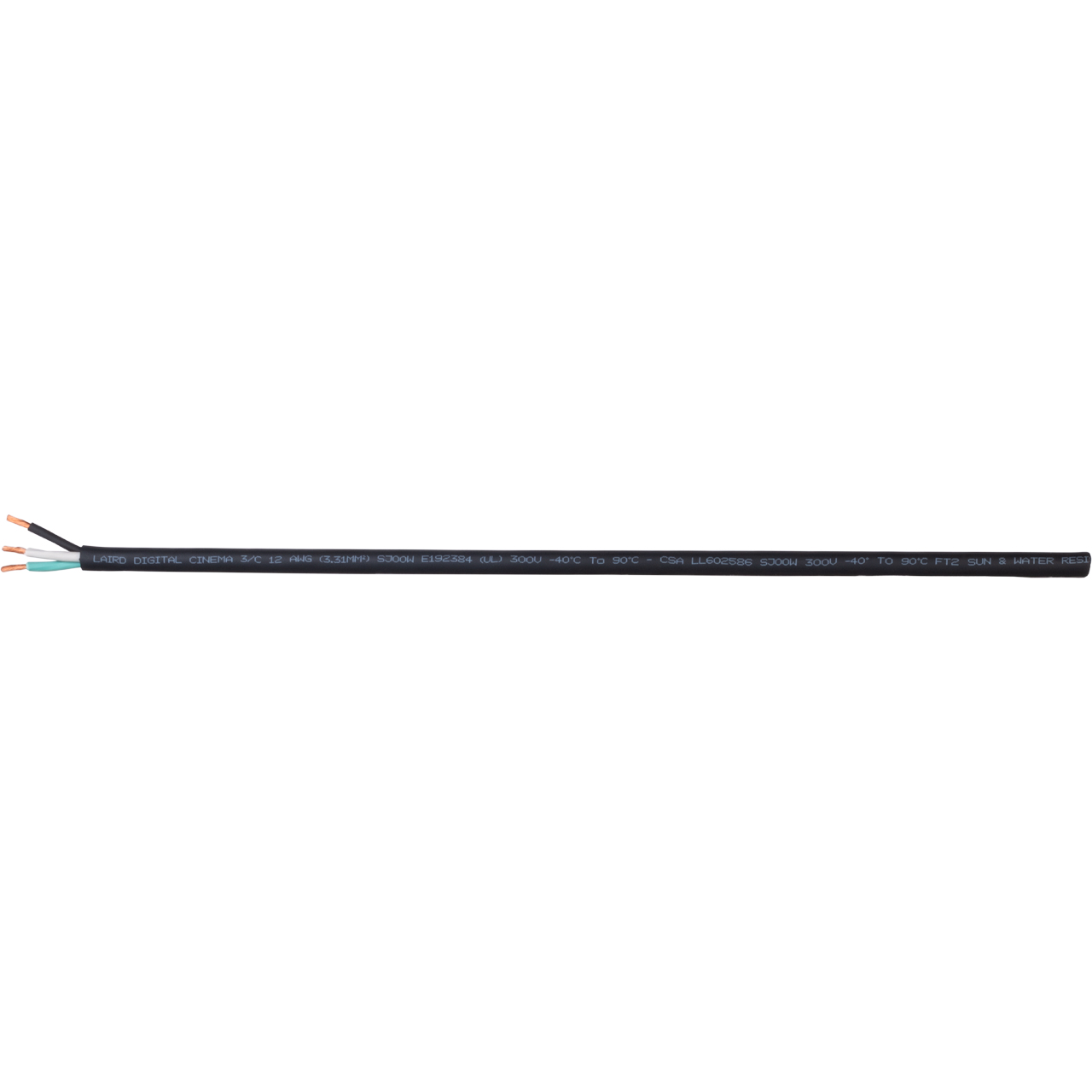

Laird Heavy Duty Bulk Power Cable SJOOW - 300V 12 AWG - Per Foot

ITEM #: PWR-12/3-TP MFG #: PWR-12/3-TP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Our Price:

$1.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PWR-12/3-TP - Overview

UL Listed 3 Conductor Jacketed Heavy Duty Power Cord - CPE Jacket - Black. From power cables on a sound stage, to replacing the power cords, this cable has unlimited uses. Premium grade black rubber jacket allows good flexibility even in low temperatures. 3 conductor colors: black, white and green.

  • Features:

    • Resistant to oil, ozone, weathering effects, greases, water, UV radiation
    • Approved by the Mine Safety and Health Administration
    • Rubber-Jacketed


  • Specifications:

    • Conductor Material: Bare Copper Wire
    • Number of conductors x AWG: 3x12
    • Conductor Insulation: Rubber (EPR)
    • Outer Jacket Material: Rubber (CPE)
    • Current Carrying Capacity: 25 Amps
    • Outer Diameter: 0.425in-0.476in
    • Nom. Voltage: AC U 300V
    • Temperature:
      -Flexing: -4°F to 194°F (-20°C to 90°C)
      -Static: -40°F to 194°F (-40°C to 90°C)
    • Min Bend Radius:
      -Flexing: 4.76in
      -Static: 2.85in
    • Weight: 0.14lbs/ft


  • Warranty:

    • 1 Year
