Shattuc SCS-1308 13AWG 8 Conductor Flexible Cable for Speaker and Control Non-UL - 1000 Foot

ITEM #: SCS-SCS-1308 MFG #: SCS-1308

Primary Image
Shattuc Cord Specialties, Inc.
Free Shipping with $49 Minimum Order

List Price:

$3,758.87

Our Price:

$3,579.87

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

SCS-1308 - Overview

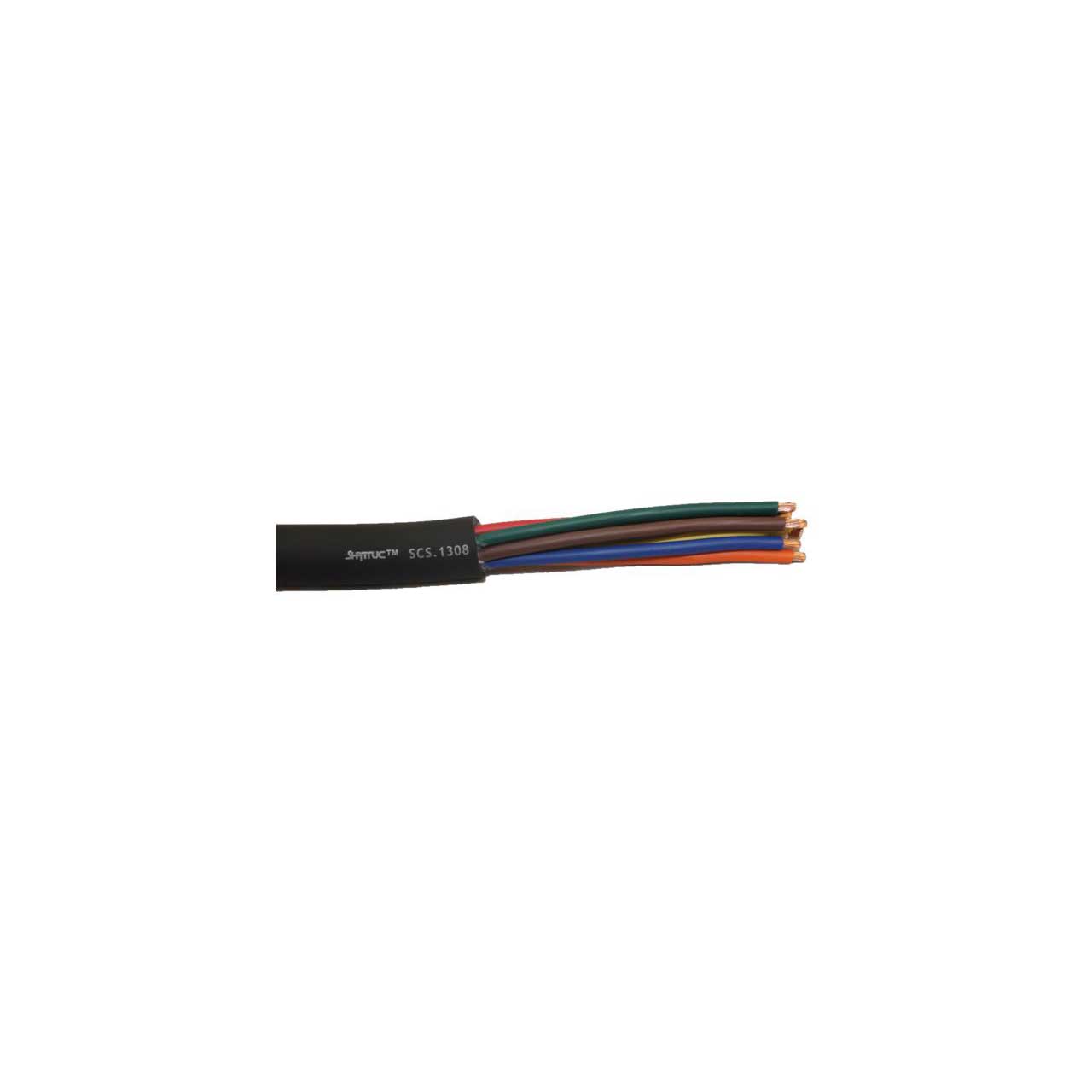

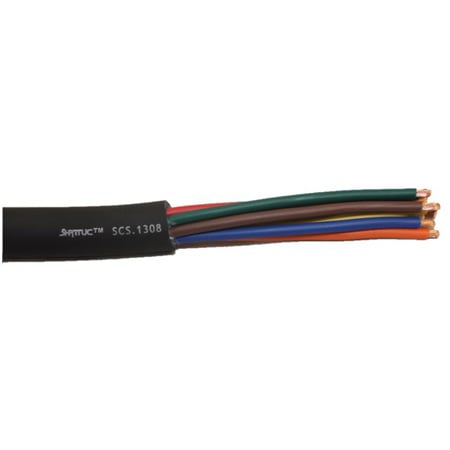

This Shattuc SCS-1308 is a 13 AWG 8 conductor unshielded cable constructed with stranded bare copper, PVC insulation and an overall pressure extruded flexible thermoplastic elastomer jacket.

Applications:
For audio/control application - manufactured in the USA and is non-UL

  • Specifications:

    • Conductor
    • AWG & Stranding: 13 AWG 52 Strands
    • Material: Annealed Bare Copper
    • Conductor Count: 8 Conductors

      Dialectric
    • Material: Polyvinylchloride
    • Diameter: 0.022"
    • Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow

      Assembly
    • Cable Lay Length: 5.00" LHL (2.4 TW/FT)
    • Cable Binder: Nonwoven Polyester - 100% Coverage

      Jacketing
    • Marterial: Pressured Thermoplastic Elastomer
    • Wall Thickness: 0.071"
    • Diameter: 0.570" ±0.010"
    • Color: Black
    • Ripcord: Not Required
    • Weight: 250 LBS/MFT
