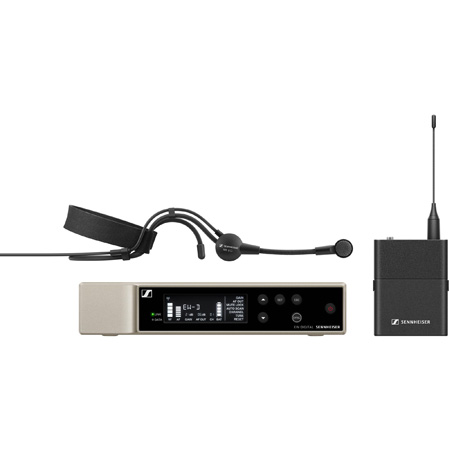

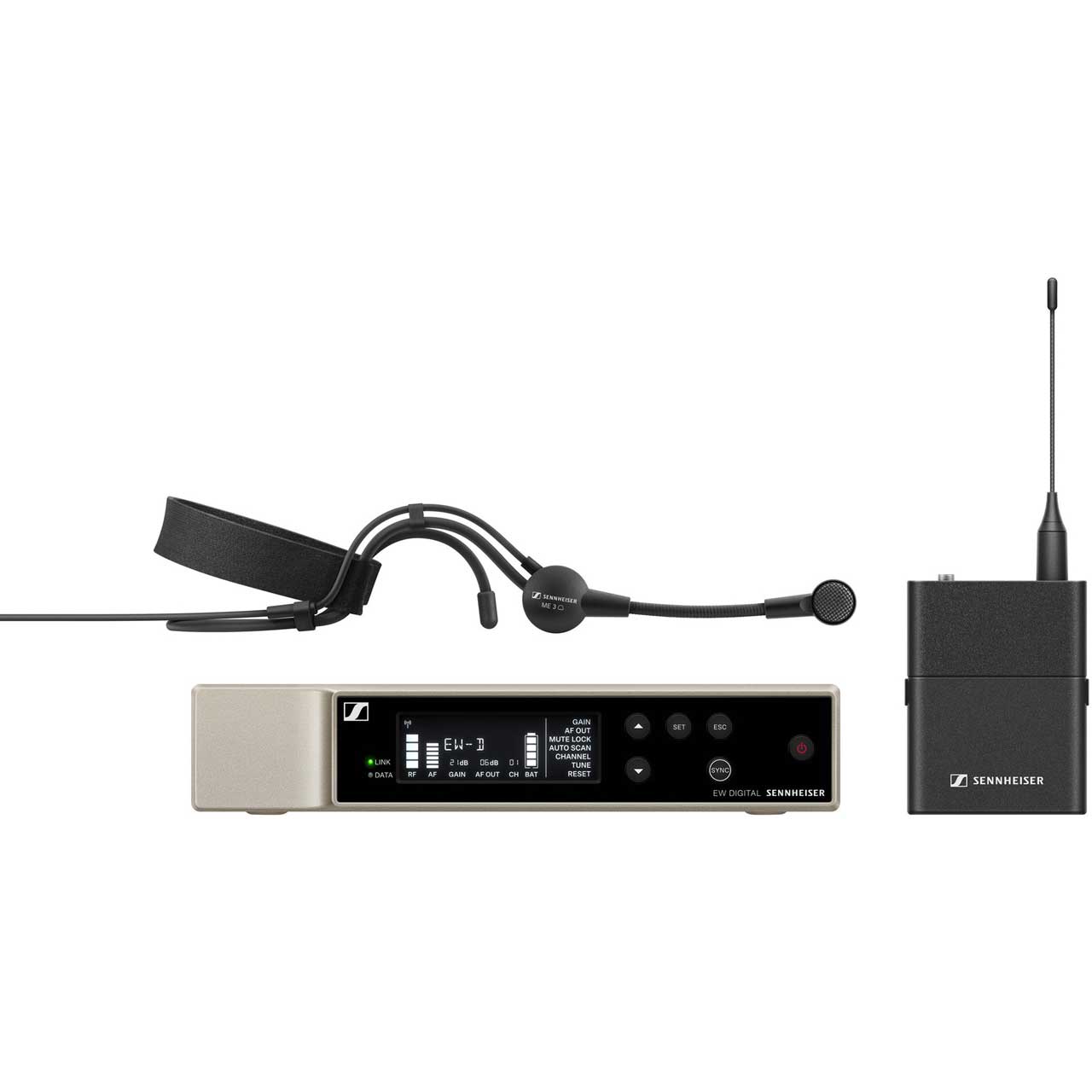

Sennheiser EW-D ME3 SET (R4-9) Digital Wireless Headmic Set w/ Receiver/Transmitter and Headset Mic (552 - 607.8 MHz)

ITEM #: SENN-EWDME3-R4-9 MFG #: EW-D ME3 SET (R4-9)

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$899.00

Our Price:

$749.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    EW-D ME3 SET (R4-9) - Overview

    The Sennheiser EW-D ME3 SET (R4-9) is a versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

    With a metal housing, the robust bodypack transmitter and feedback resistant headmic ME 3 with high speech intelligibility suit perfectly for daily use on stage.

    Raising the bar
    Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it's easy to see why this wireless system is in a class of its own.

    Equidistant Spacing - simpler than it sounds
    Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system's scalability and impressively high channel count.

    An engineer in your pocket
    The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

    • Features:

      • Digital wireless eliminates noise, interference and static bursts
      • UHF transmission greatly enhances range, reliability and scalability
      • Mobile App streamlines setup and operation and eliminates complicated menus
      • Automated setup creates reliable connections with minimal time and effort
      • Up to 2,240 selectable frequencies
      • 56 MHz Bandwidth will allow for up to 90 channels
      • Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

    • Specifications:

      • System
      • Audio Link Frequency Ranges: R4-9 552 - 607.8 MHz
      • Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
      • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
      • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
      • Operating Temperature: -10 °C - +55 °C, (14 °F - 131 °F)
      • Relative humidity: 5 - 95 % (non-condensing)

        EW-D EM (Rack Receiver)
      • Input Voltage: 11 - 13 V~
      • Input current: ≤ 300 mA
      • Transmit power (radiated): BLE: max. 10 mW EIRP
      • Audio output power: 18 dBu max.
      • Dimensions: 212 x 44 x 189 mm
      • Weight: approx. 1000 g (without antennas and power supply)

        EW-D SK (Bodypack Transmitter)
      • Input voltage: 2.0 - 4.35 V
      • Input current: < 300 mA
      • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied bandwidth: 200 kHz
      • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
      • Dimensions: 63 x 80 x 20 mm (without antenna)
      • Weight (without batteries): approx. 120 g

        ME 3 (Headset Microphone)
      • Transducer principle: pre-polarized condensor microphone
      • Sensitivity: 1.6 mV/Pa
      • Sound pressure level: 150 dB SPL
      • Pick-up pattern: cardioid
      • Connector: 3.5 mm jack
      • Cable length: approx. 1.60 m
      • Temperature range: -10 °C to +55 °C

    • Item Includes:

      • 1x EW-D EM Rack Receiver
      • 1x EW-D SK Bodypack Transmitter
      • 1x ME 3 Headset Microphone
      • 2x Rod Antennas
      • 1x Power Supply with Adapters
      • 1x Rackmount Set
      • 4x Rubber Feet
      • 1x Quick Guide
      • 1x Safety Guide
      • 1x Manufacturer Declaration Sheet
      • 2x AA Batteries

    • GTIN:

      0615104334724


    EW-D ME3 SET (R4-9) - Required Accessories
