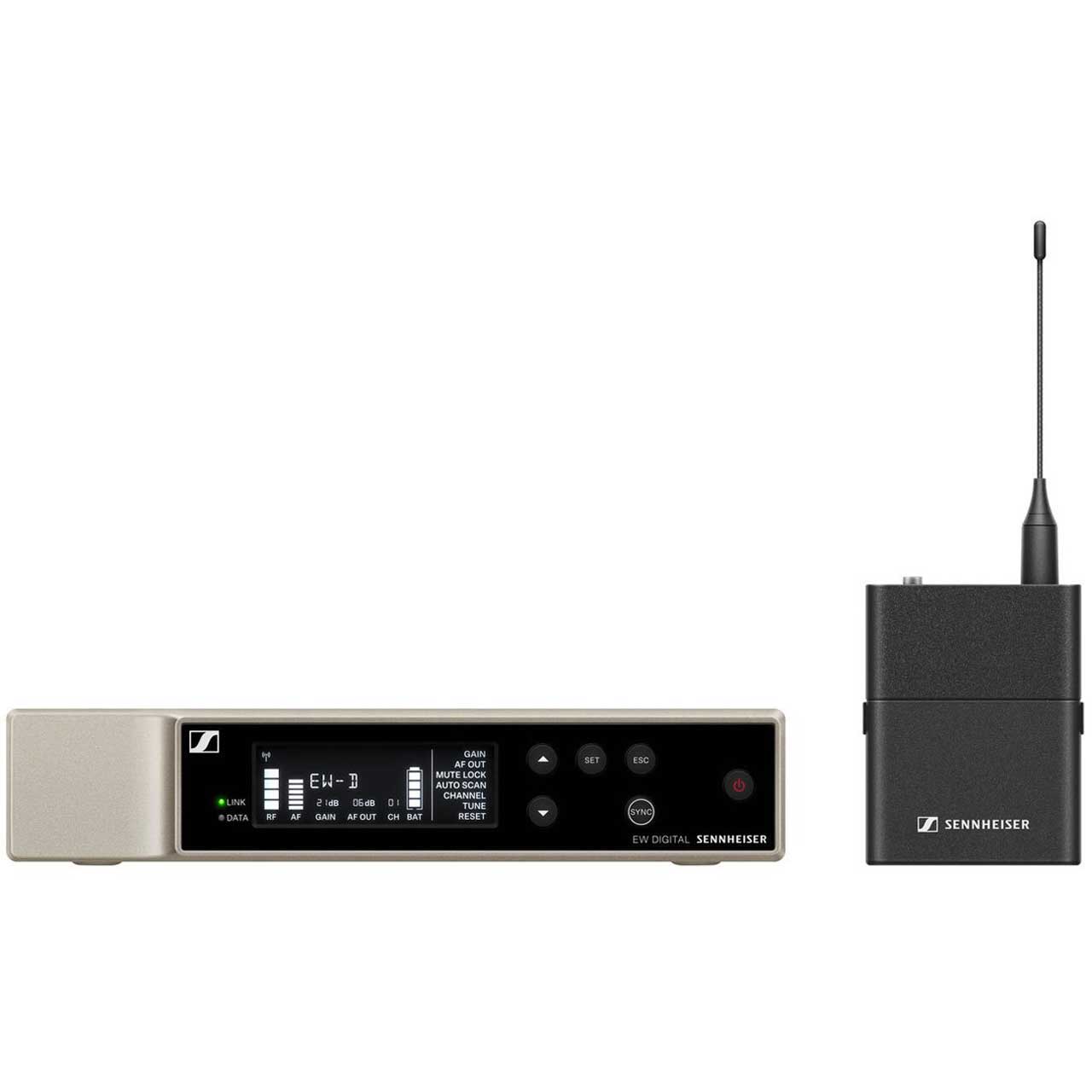

Sennheiser EW-D SK BASE SET Digital Wireless Bodypack Base Set w/ Receiver and Transmitter - Q1-6 (470.2 - 526 MHz)

ITEM #: SENN-EWDSKQ16SET MFG #: 508740

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$699.00

Our Price:

$599.00

Availability: In Stock
iAvailability Description Popup


508740 - Overview

The Sennheiser EW-D SK BASE SET (Q1-6) is a versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it's easy to see why this wireless system is in a class of its own.

Equidistant Spacing - simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system's scalability and impressively high channel count.

An engineer in your pocket
The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

  • Features:

    • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
    • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
    • Auto scan creates reliable connections with minimal time and effort
    • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
    • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
    • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
    • 2,240 selectable frequencies allow for fine tuning
    • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided
      AA batteries)

  • Specifications:

    • System
    • Audio Link Frequency Ranges: Q1-6 470.2 - 526 MHz
    • Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
    • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
    • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
    • Operating Temperature: -10 °C - +55 °C, (14 °F - 131 °F)
    • Relative humidity: 5 - 95 % (non-condensing)

      EW-D EM (Rack Receiver)
    • Input Voltage: 11 - 13 V~
    • Input current: ≤ 300 mA
    • Transmit power (radiated): BLE: max. 10 mW EIRP
    • Audio output power: 18 dBu max.
    • Dimensions: 212 x 44 x 189 mm
    • Weight: approx. 1000 g (without antennas and power supply)

      EW-D SK (Bodypack Transmitter)
    • Input voltage: 2.0 - 4.35 V
    • Input current: < 300 mA
    • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
    • Occupied bandwidth: 200 kHz
    • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
    • Dimensions: 63 x 80 x 20 mm (without antenna)
    • Weight (without batteries): approx. 120 g

  • Item Includes:

    • 1x EW-D EM Rack Receiver
    • 1x EW-D SK Bodypack Transmitter
    • 2x Rod Antennas
    • 1x Power Supply with Adapters
    • 1x Rackmount Set
    • 4x Rubber Feet
    • 1x Quick Guide
    • 1x Safety Guide
    • 1x Manufacturer Declaration Sheet
    • 2x AA Batteries

  • GTIN:

    0615104335264
