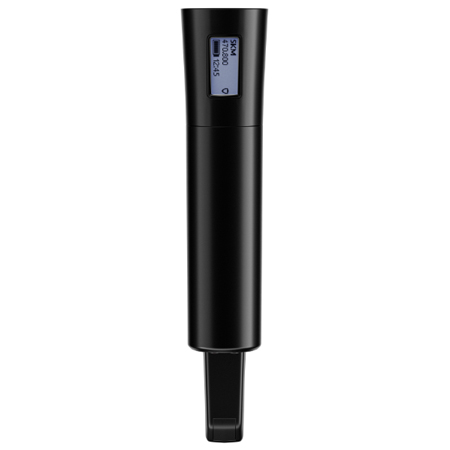

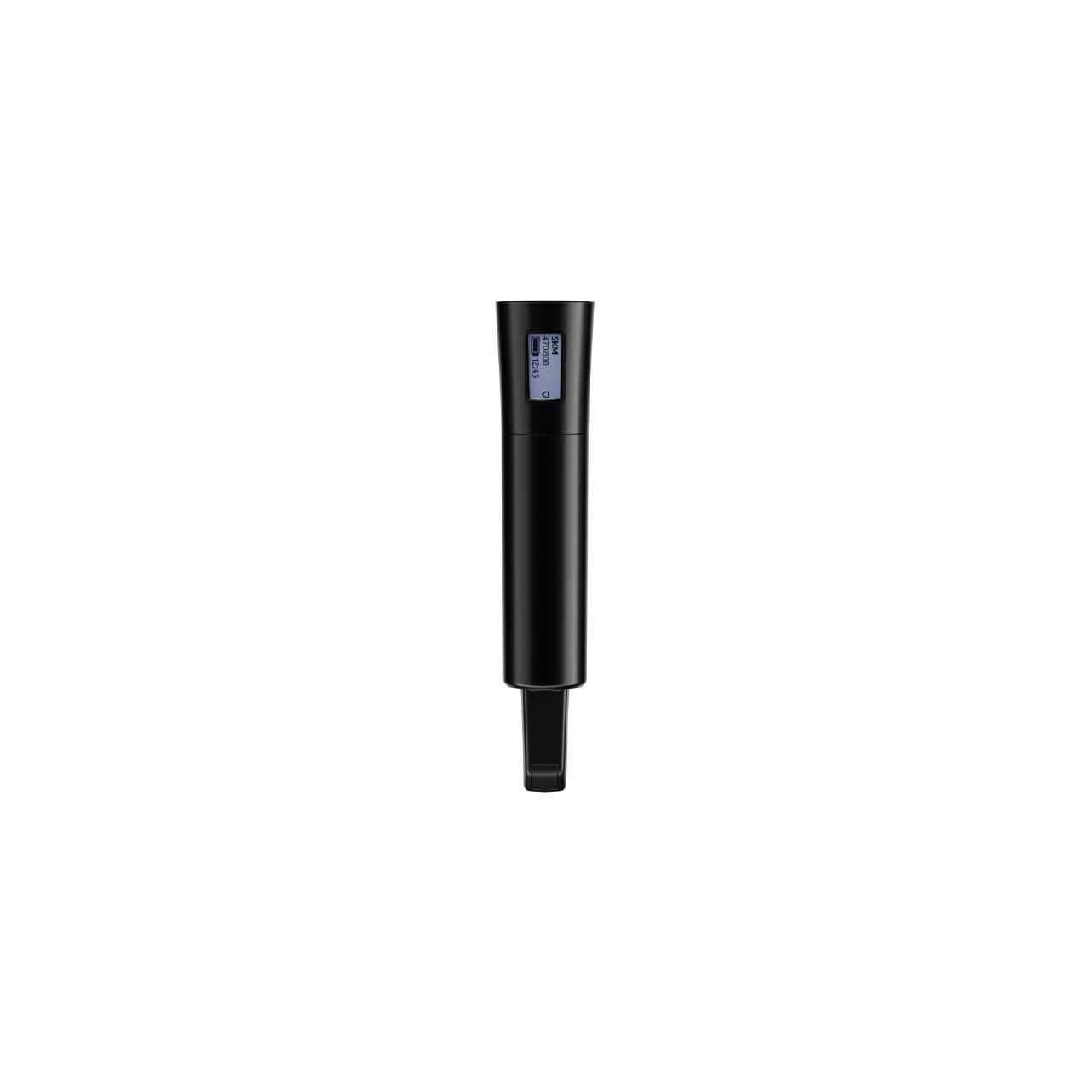

Sennheiser EW-DX SKM-S Q1-9 Handheld Transmitter with Switch - Frequency 470.2 - 550 MHz

509412 - Overview

• Features:

  • EW-DX SKM-S/EW-DX SKM
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing


• Specifications:

  • System
  • Audio Link Frequency Ranges
    Q1-9: 470.2 - 550 MHz
    R1-9: 520 - 576 MHz
    V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65MHz
  • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
  • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic Range: 134 dB
  • System Latency: 1.9 ms
  • Operating Temperature: -10°C - +55°C (14°F - 131°F)
  • Relative Humidity: 5 - 95 % (non-condensing)

    EW-DX SKM (Handheld Transmitter)
  • Input Voltage: 2.0 - 4.35 V
  • Input Current: < 300 mA
  • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied Bandwidth: 200 kHz
  • Transmit Power (Radiated):
    Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    LD mode: 10 mW ERP
    BLE: max. 10 mW EIRP
  • Dimensions (ø x l):
  • (Incl. MMD 835 Microphone Module): 50 x 268mm (1.97" x 10.55")
    (Without Microphone Module): 40 x 200mm (1.57" x 7.87")
  • Weight (Without Batteries):
    (incl. MMD 835 microphone module): approx. 304g (0.67Lbs)
    (without microphone module): approx. 195g (7.14Lbs)


• Item Includes:

  • 1x EW-DX SKM-S handheld transmitter
  • 1x MZQ 1 microphone clamp
  • 2x Batteries (AA)
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet


• GTIN:

  0615104362529
