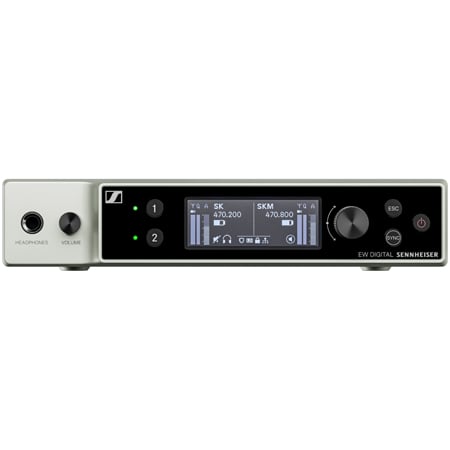

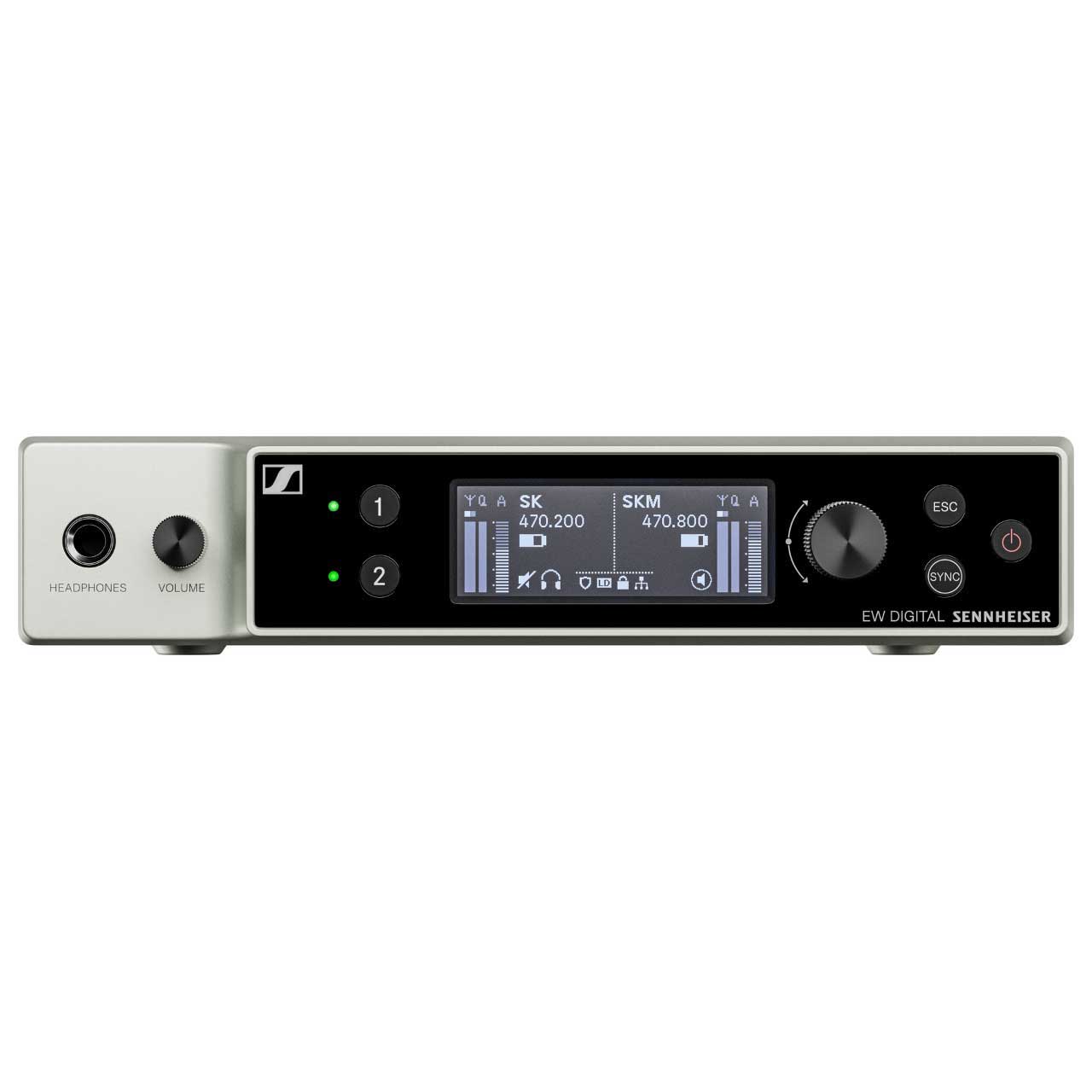

Sennheiser EW-DX EM 2 Q1-9 2-Channel Half-Rack 9.5-Inch Non-Dante Wireless Mic Receiver - Frequency 470.2 - 550 MHz

509342 - Overview

• Features:

  • EW-DX EM 2
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing


• Specifications:

  • System
  • Audio Link Frequency Ranges
    Q1-9: 470.2 - 550 MHz
    R1-9: 520 - 576 MHz
    V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65MHz
  • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
  • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic Range: 134 dB
  • System Latency: 1.9 ms
  • Operating Temperature: -10°C - +55°C (14°F - 131°F)
  • Relative Humidity: 5 - 95 % (non-condensing)

    EW-DX EM 2 (Rack Receiver)
  • Input Voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
  • Input Current: ≤ 1 A
  • Transmit Power (Radiated): BLE: max. 10 mW EIRP
  • Audio Output Power: 18 dBu max.
  • Headphone Output: 2x 70 mW @ 32Ω
  • Ethernet: RJ-45 socket, IEEE802.3, 100Base-TX (half+full duplex), 10Base-T (half+full duplex), (CAT5e or higher)
  • Dimensions: 212 x 44 x 189mm (8.35 x 1.73 x 7.44")
  • Weight: approx. 1000g (2.2Lbs) (without antennas and power supply)


• Item Includes:

  • 1x EW-DX EM 2 rack receiver
  • 2x Rod antennas
  • 1x Power supply with country adapters
  • 1x GA 3 rackmount set
  • 4x Rubber feet
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet


• GTIN:

  0615104361447
