Sennheiser MAS 133 MAS 133 XLR Inline Switch Box for Simple Microphone Control and Status Indication

ITEM #: SENN-MAS-133 MFG #: 505621

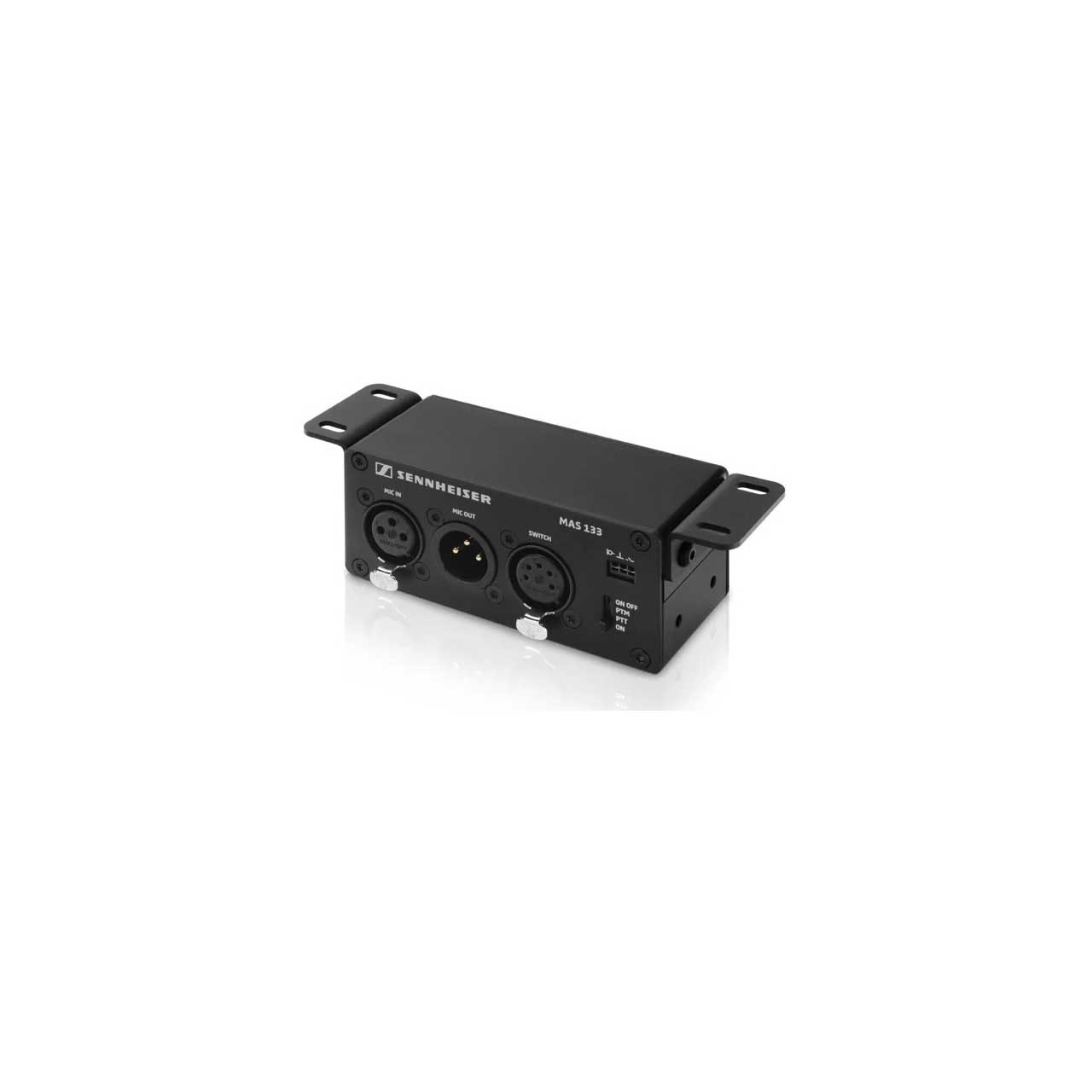

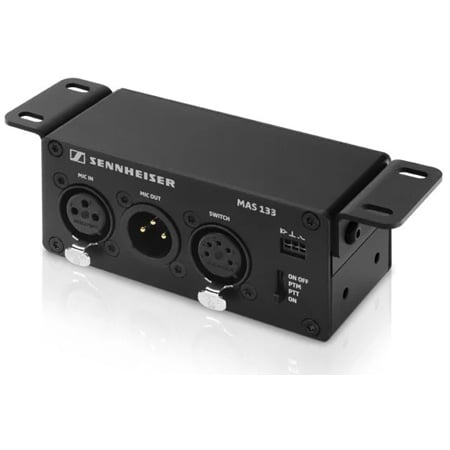

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


505621 - Overview

The MAS 133 is a versatile XLR inline switch box for integrated microphone solutions. Attached between the mic and mixing console, it powers the MAS 1 microphone button. It is able to control any XLR-attached microphone using switchable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). The MAS 133 features a TTL logic, enabling the user to trigger e.g. camera or media control systems for various purposes.

  • Features:

    • Toggle on/off
    • Push to mute
    • Push to talk
    • permanent on

  • Specifications:

    • Dimensions: 5.9 x 1.7 x 1.7 in (W x D x H)
    • Connector Mic in: XLR-3F
    • Connector Mic out: XLR-3M
    • Weight: 7.47 oz
    • Phantom powering: P 48
    • Operating temperature: 14 ° to 122 °F
    • Current consumption: 4.5 mA
    • Output voltage High level: > 2.4 V
    • Output voltage Low level: < 0.4 V

  • Item Includes:

    • MAS 133
    • Mounting material
    • Quickguide

  • GTIN:

    0615104230484
