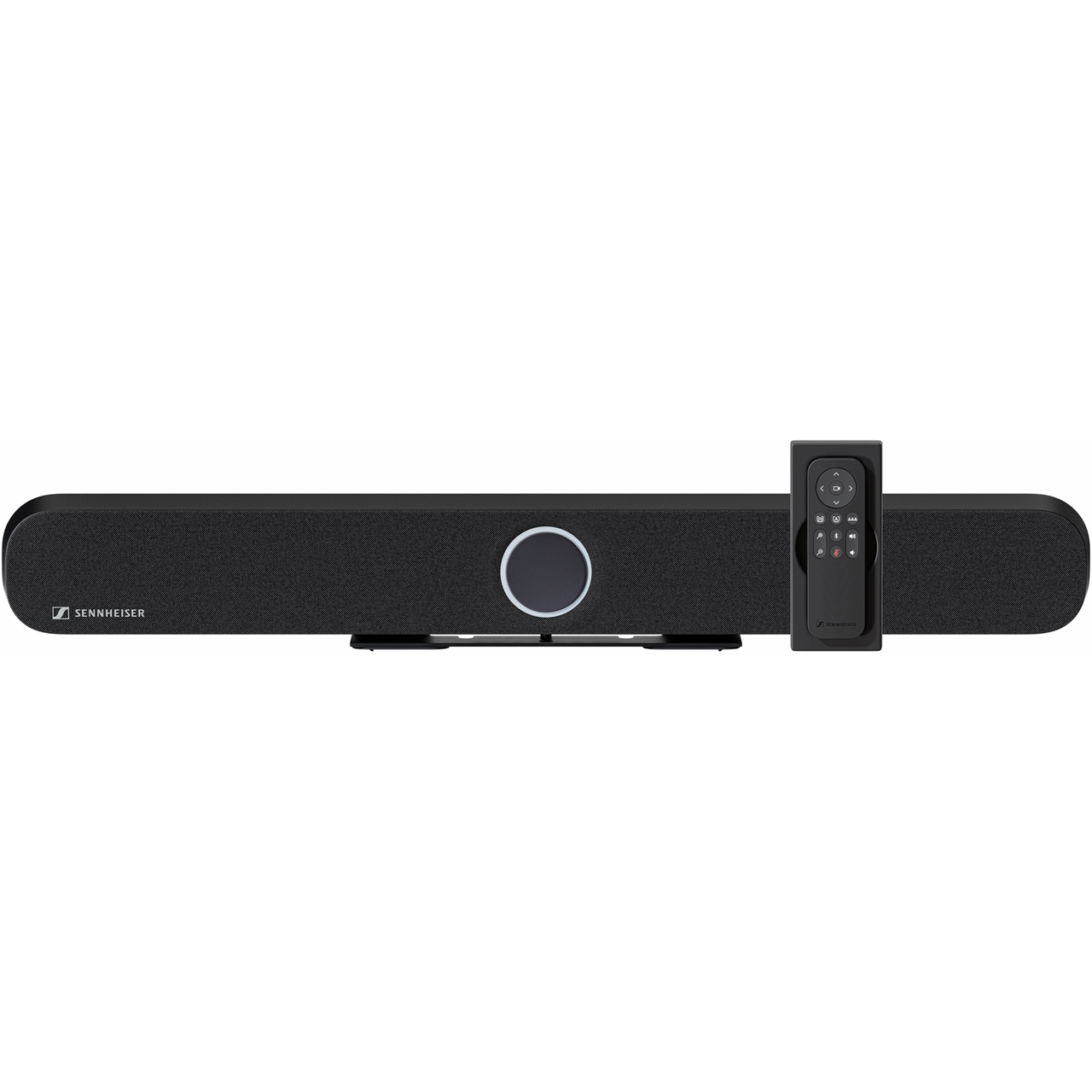

Sennheiser TeamConnect Bar M All-in-one Video Conferencing Device for Mid-Size Rooms with 4K UHD Camera - Mic & Speakers

TC BAR M - Overview

• Features:

  • Plug and Play Device: Quick start via USB cable
  • Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters

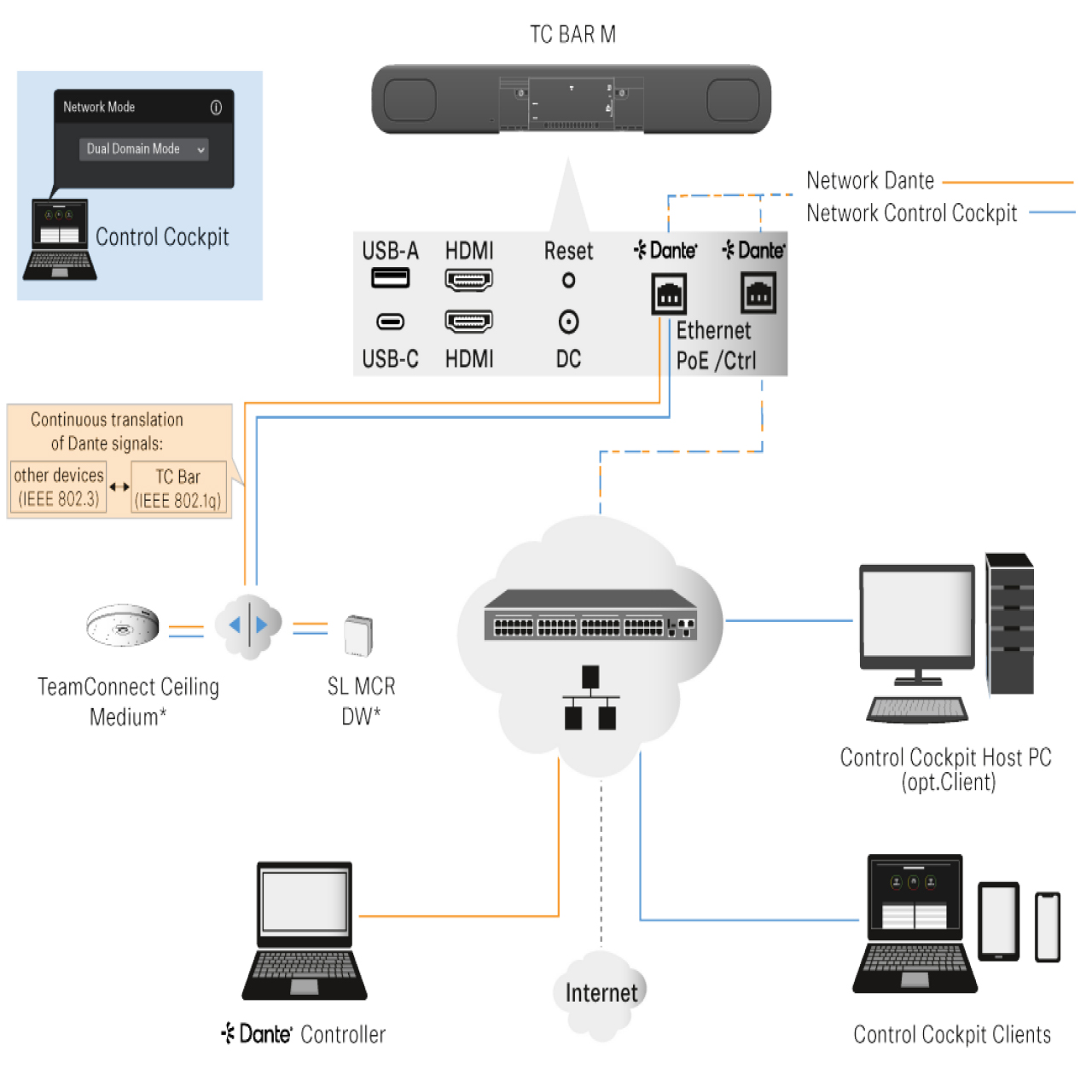

  • Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
  • High Video Quality: 4K Ultra HD camera equipped with advanced AI features
  • Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
  • Built-In DSP: Automatically optimizes room acoustics

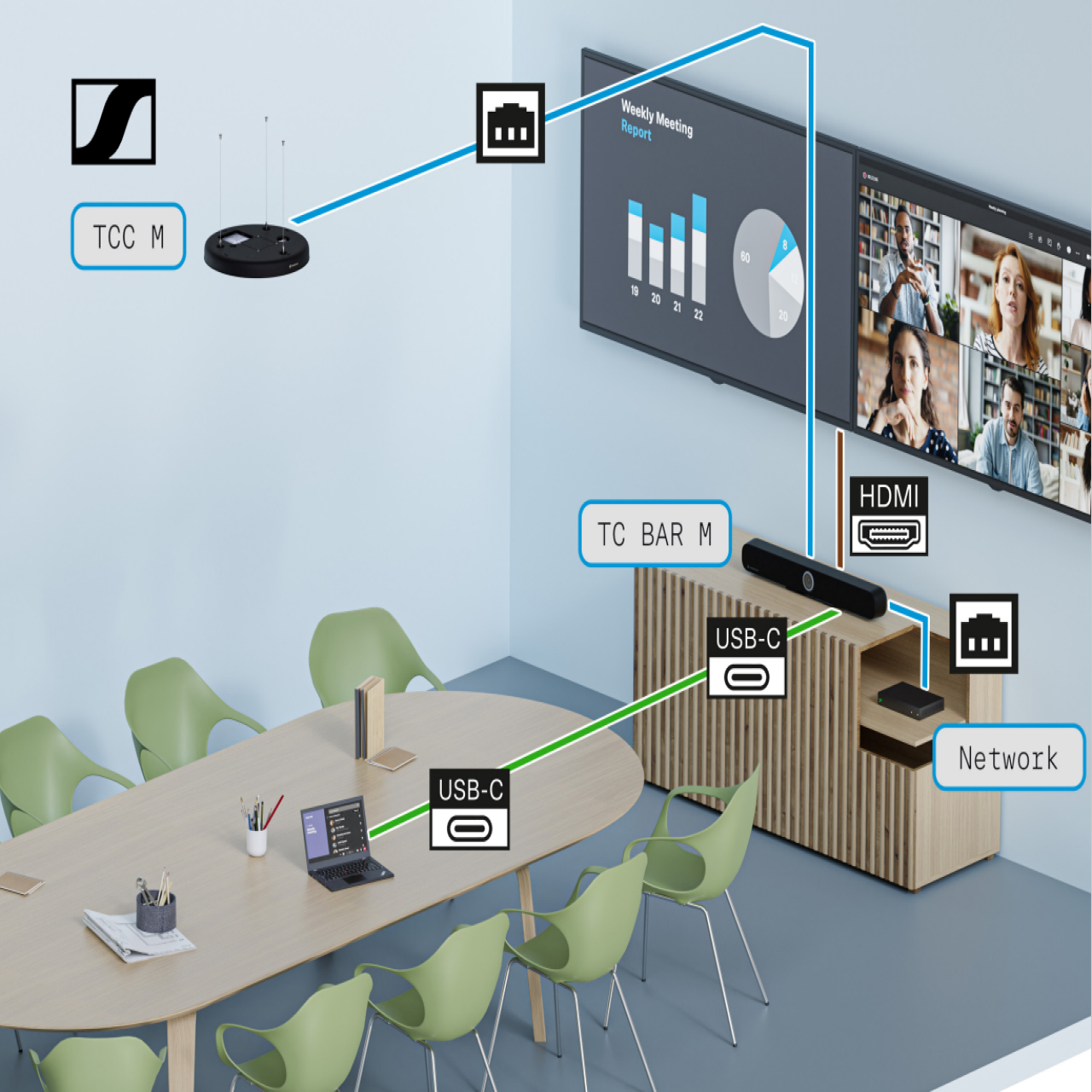

  • Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
  • Autoframing and Person Tiling: Features to clearly see everyone in the room
  • Control Management: Full remote-control access via Sennheiser Control Cockpit
  • Brand Agnostic Integration: Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
  • Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission


• Specifications:

  • General
  • Operating Temp Range: 32°F to 104°F (0°C to 40°C)
  • Storage Temp Range: -13°F to 158°F (-25°C to 70°C)
  • Relative Humidity Operation: 0 to 75% non-condensing
  • Relative Humidity Storage: 0 to 95% non-condensing
  • DC IN: 18V/Max 4A
  • Max Power Consumption: 72W
  • Voltage Range PoE (PD): 44.0-57V (IEEE 802.3at Type 1, PoE+)

    Power State Information
  • Standby Mode(All Ports Deactivated): ≤.5W (Entered after <2.5 hours with no activity on any network port)
  • Networked Standby(All Ports Activated): ≤2W (Entered after <20 minutes of inactivity)

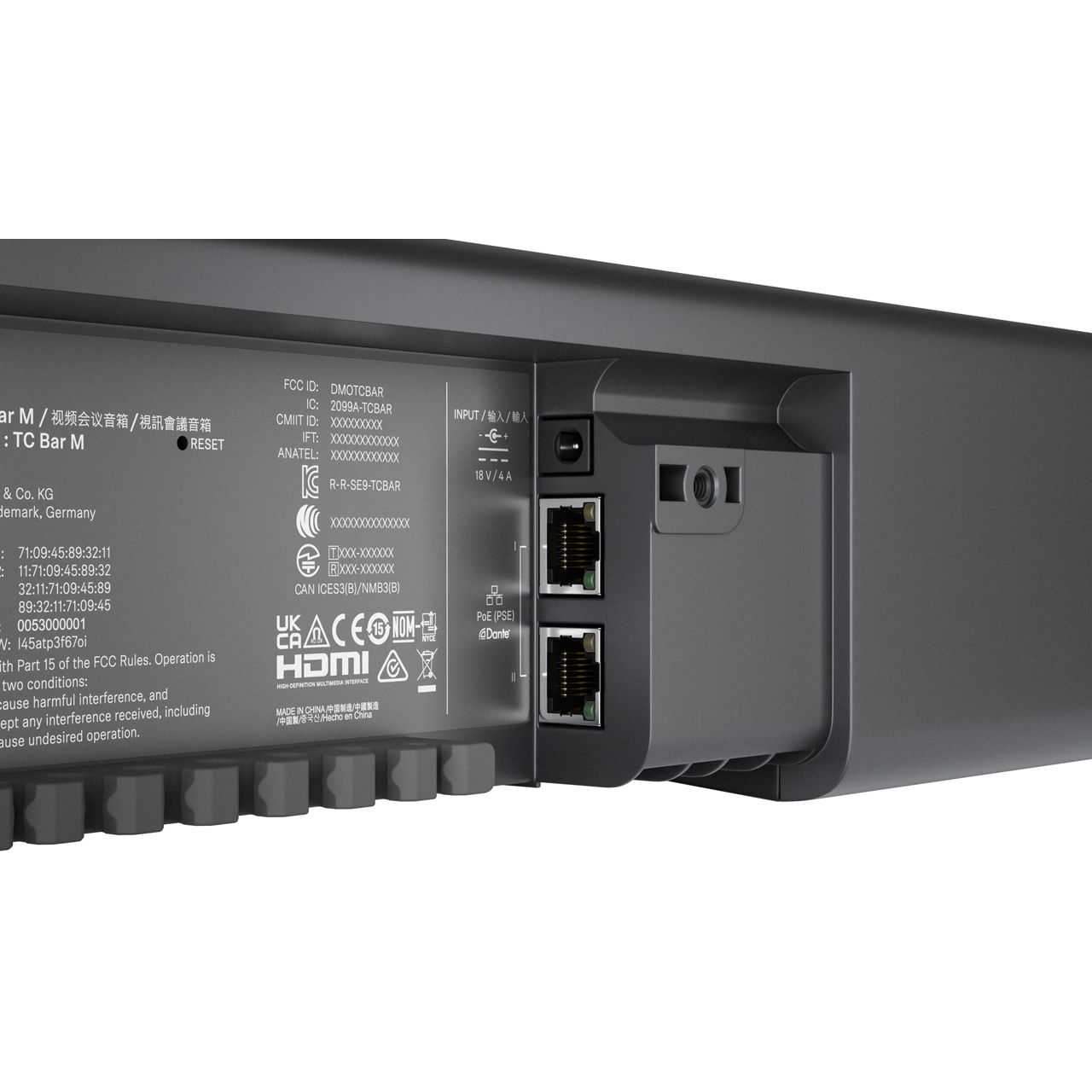

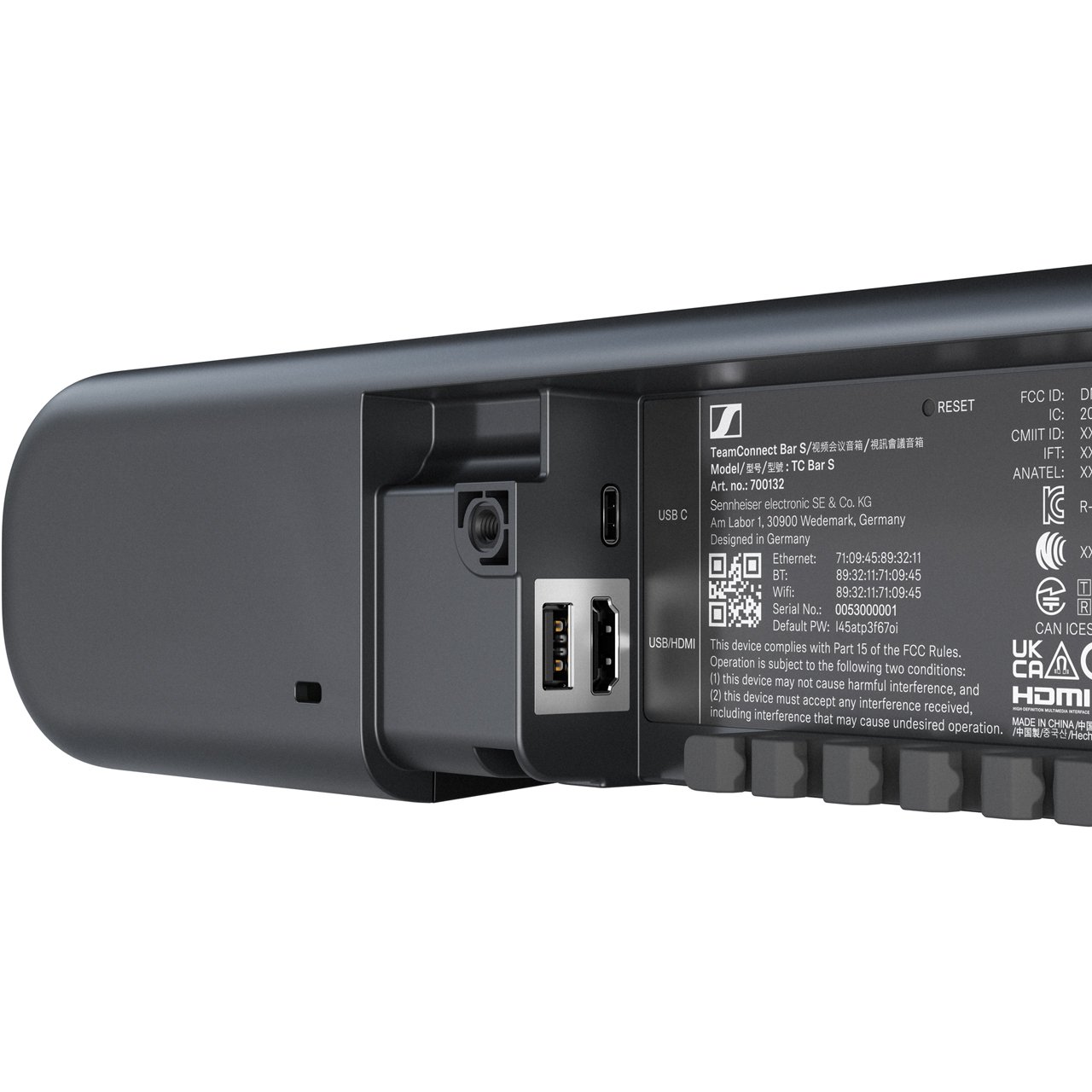

    Interfaces
  • HDMI Out 1: HDMI 2.0
  • HDMI Out 2: HDMI 2.0
  • USB-C: USB 3.1(Gen 1)
  • USB-A: USB 3.1(Gen 1)
  • Power Output: 5V - Max 900mA
  • Ethernet: 2x 1000/100/10 Mbit/S(RJ45)
  • Please Note: Only use Network Cables with the standard Cat5e (F/STP) or better.

    Loudspeaker
  • Number of Speakers: 4 Full Range Loudspeakers with passive radiator
  • Diameter: 50 mm(2 Inch)
  • Frequency Response: 100Hz - 18KHz
  • THD at max output: <5%
  • Amplifier: Class D
  • Max SPL(Output): 84 dB SPL
  • Total Audio Power (RMS/Peak): 20W/40W

    Microphones
  • Transducer Principle: MEMS
  • Dynamic Range(>): 69 dB (A)
  • Max Sound Pressure level: 84 dB SPL
  • Pick-Up Pattern: Beamforming Array
  • Number of Microphone Capsules: 4
  • Frequency Range: 100 Hz to 14.5 kHz
  • Pickup Range: 4.5 m

    Connectivity:
  • Connection: Wired
  • Connectors: USB,RJ45(For Ethernet)

    Ambient Conditions
  • Operating Relative Humidity (≤%): 0 to 75% Non-Condensing
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

    Battery & Power
  • Battery Specification: 2x AAA

    Wifi
  • Wifi Modulation: 64QAM,16QAM,QPSK,BPSK,CCK,DQPSK,DBPSK
  • WiFi Standard: IEEE 802.11a/b/g/n/ac
  • WiFi Transmission System: SISO (Single-In, Single-Out)
  • Frequency Ranges (Max RF Output Power): 2412-2472MHz (Max 20 dBm RF Power), 5150-5350MHz (Max 23 dBm RF Power), 5470-5725MHz (Max 23 dBm RF Power), 5725-5850MHz (Max 14 dBm RF Power)

    Camera
  • Camera Diagonal Field of View: 120°
  • Camera Horizontal Field of View: 115°
  • Camera Technology: ePTZ
  • Camera Resolution: UHD 2160p (4K),1080p,720p,960x480,848x480,640x480,640x360,432x244

    Bluetooth
  • Bluetooth Max RF Output Power: 10dBm
  • Bluetooth Version: 5.1
  • Bluetooth Modulation: GFSK, π/4 DQPSK,8DPSK
  • Bluetooth Transmission Frequency: 2402 MHz - 2480 MHz
  • Bluetooth Codec: SBC
  • Bluetooth Profile: A2DP,HFP,AVRCP


• Item Includes:

  • 1x TC Bar M
  • 1x Mounting Bracket + Drilling Template
  • 1x Power Supply Unit (E096-1A180500B3)
  • 1x RC TC Bar Remote Control
  • 1x Bracket and Storage
  • 1x Magnetic Lens Cap
  • 1x HDMI Cable
  • 2x AAA 1.5V Batteries
  • 1x USB-C 3.1 Cable
  • 1x User Manual
  • Screws


• Warranty:

  • 2 Year Warranty


• GTIN:

  0615104380349
