Sennheiser TCC-M-S-W TeamConnect Ceiling Medium Mic Array w/ Housing Kit for Surface/Suspension Mounting - White

700294 - Overview

• Features:

  • Patented automatic dynamic beamforming
  • TruVoicelift
  • 15 SMD Electret condenser capsules made in Germany
  • Perfect speech intelligibility
  • Dante or Analog Output
  • PoE
  • Certified for: MS Teams, Zoom, DingTalk and Tencent
  • Exclusion Zones
  • Priority Zone
  • Camera Control via talker position data
  • IEEE 802.1x
  • TLS 1.2


• Specifications:

  • Safety certification: IEC/EN 62368-1 (including UL 2043 testing and compliance).
  • Dimensions (O x H): 477 x 46 mm (16 x 1.8 ").
  • Weight: max. 4,9 kg (10.8lbs).

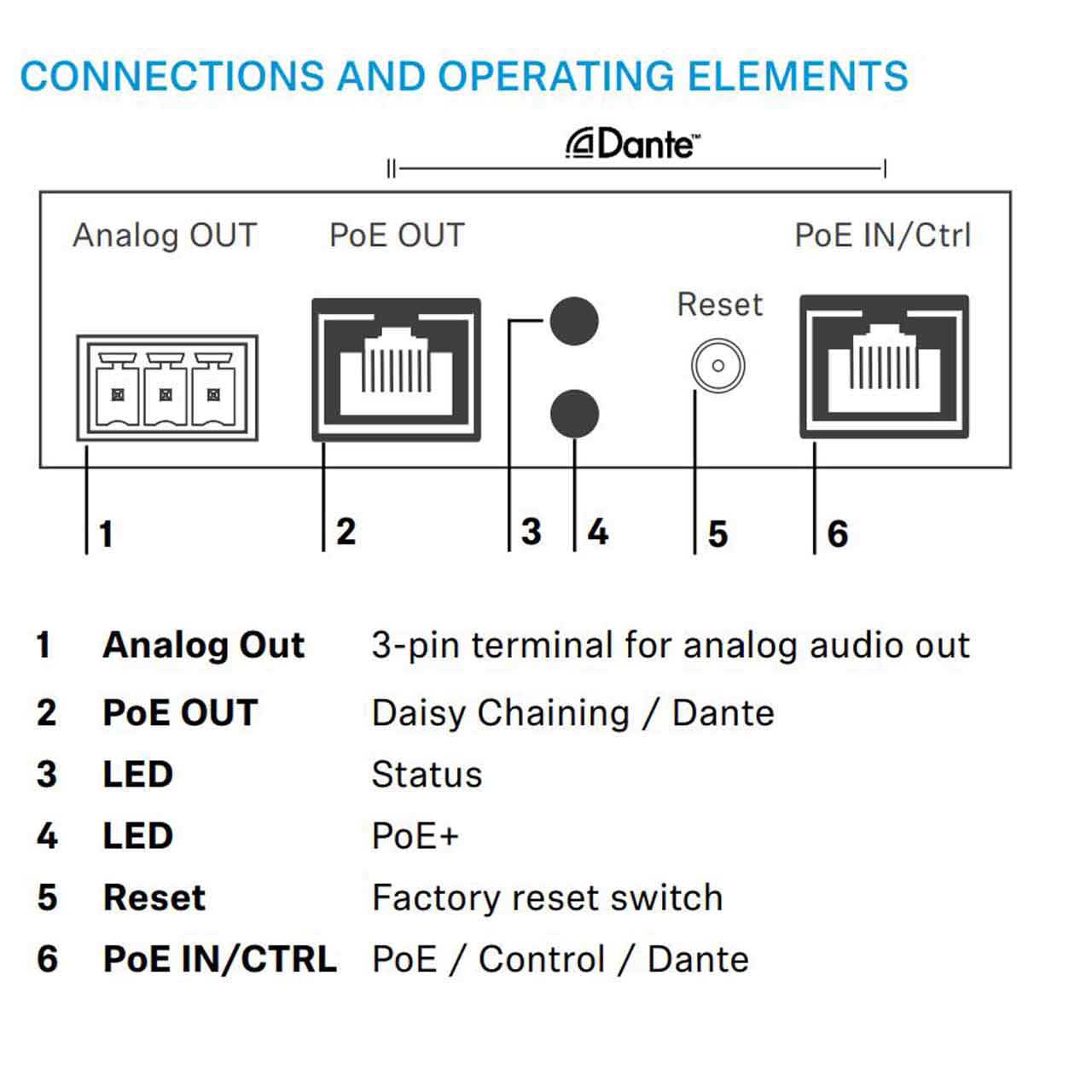

  • Audio output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81), 1x Digital Dante Network Audio (RJ-45).
  • Network/Control: 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication.
  • Supply voltage: PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded).
  • Power consumption: Approx. 8 W.
  • Transducer principle: Pre-polarized condenser microphone.
  • AF frequency response: 100 Hz to 16,000 Hz.
  • Sensitivity: 0 dBV/Pa (890 mV/Pa).
  • Signal-to-noise ratio: 79 dB (A).
  • Equivalent noise level: 15 dB (A)
  • Number of KE 10-237 microphone capsules: 15.
  • Pick-up pattern: Beam pattern.
  • Max. sound pressure level: 98 dB SPL.
  • Dynamic range: 83 dB (A).
  • Temperature Range: Operation: 0 to 40°C, Storage: -10 to 60°C.
  • Relative air humidity: 20 to 95%, non-condensing.

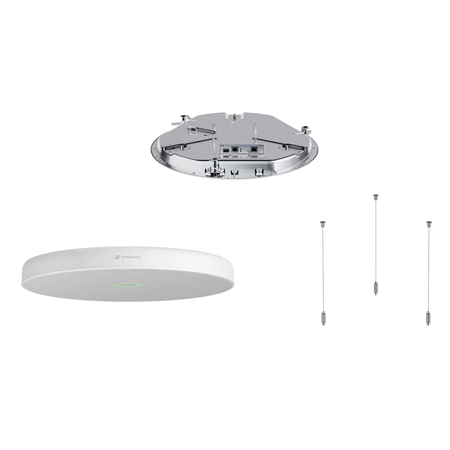

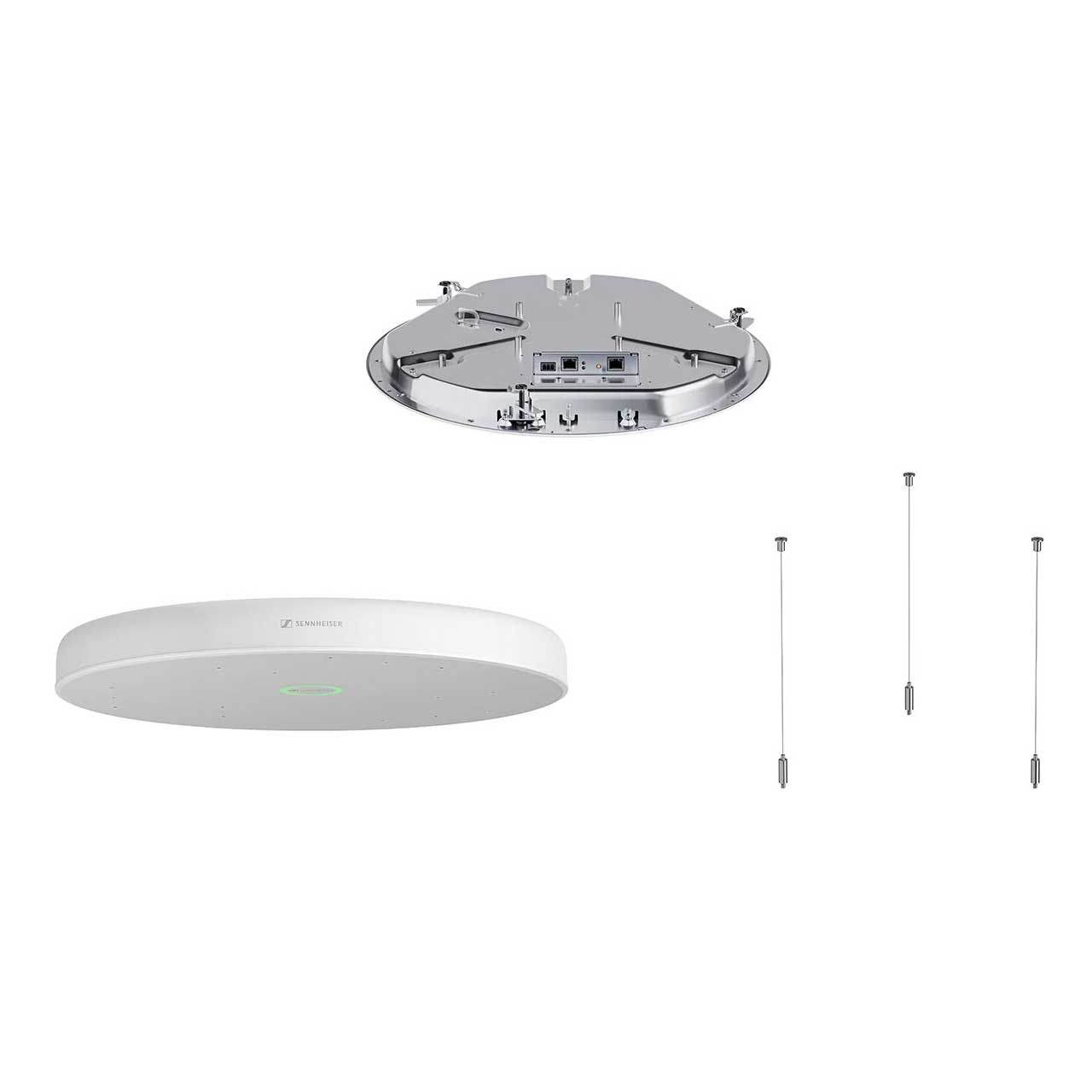

• Item Includes:

  • TCC M microphone
  • Front plate White
  • Design housing black

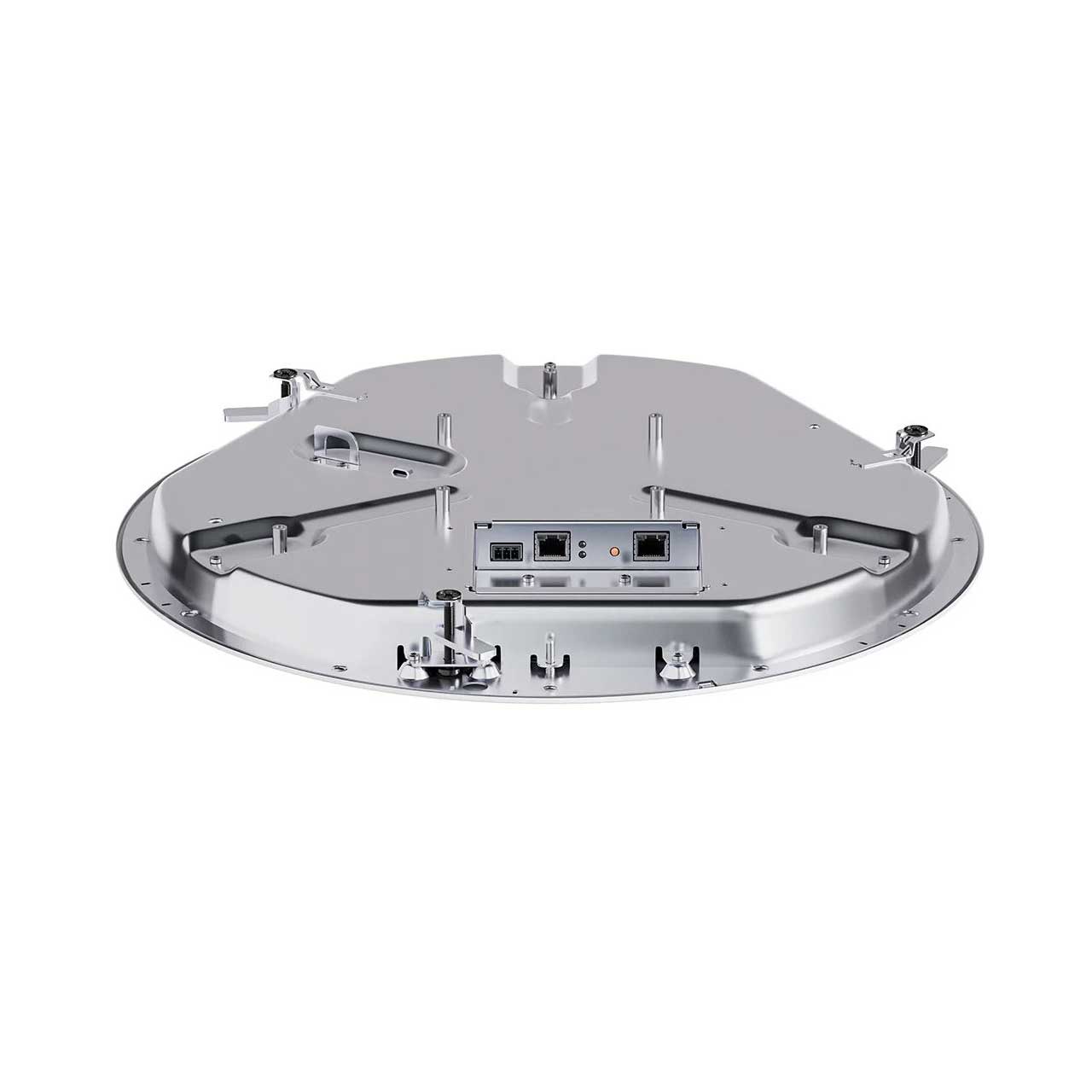

  • Chicago plenum connection box cover plate
  • Drilling templates
  • Phoenix connector
  • Safety rope

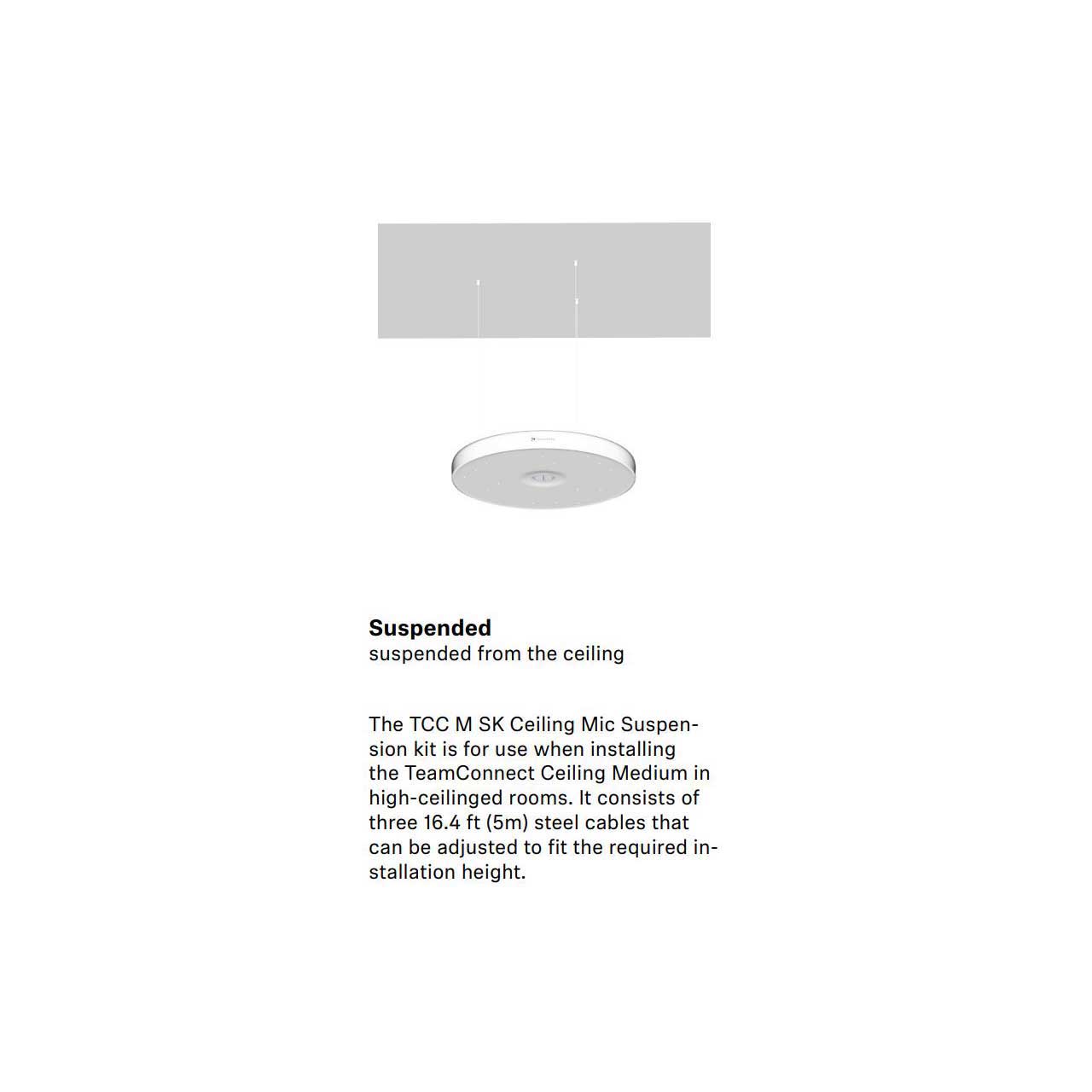

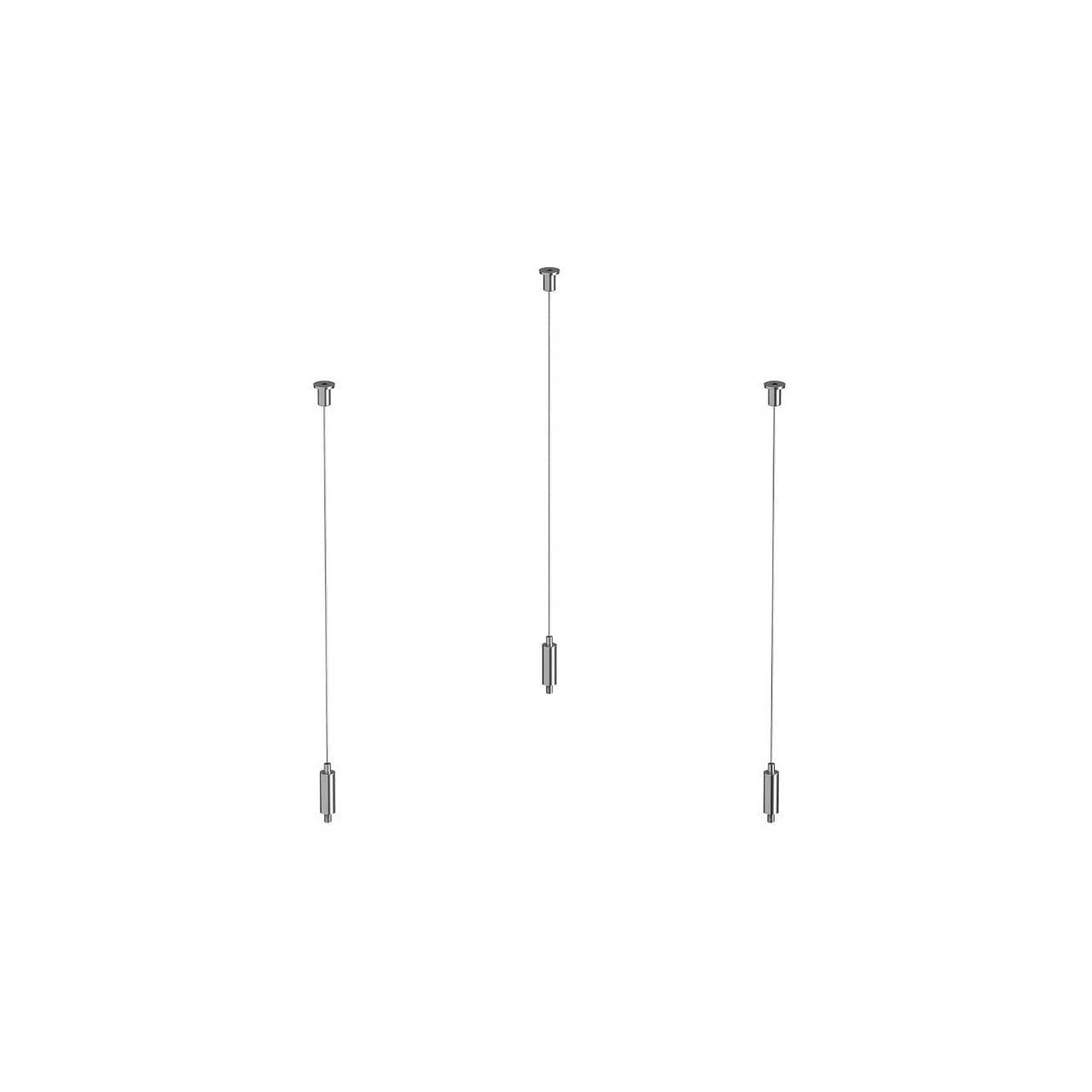

  • Suspension kit


• GTIN:

  0615104387874
