Shure ADX3 Axient Digital Plug-On 3-Pin XLR Transmitter with ShowLink Remote Control Built-in - 606-663 Mhz

ADX3-K54 - Overview

• Features:

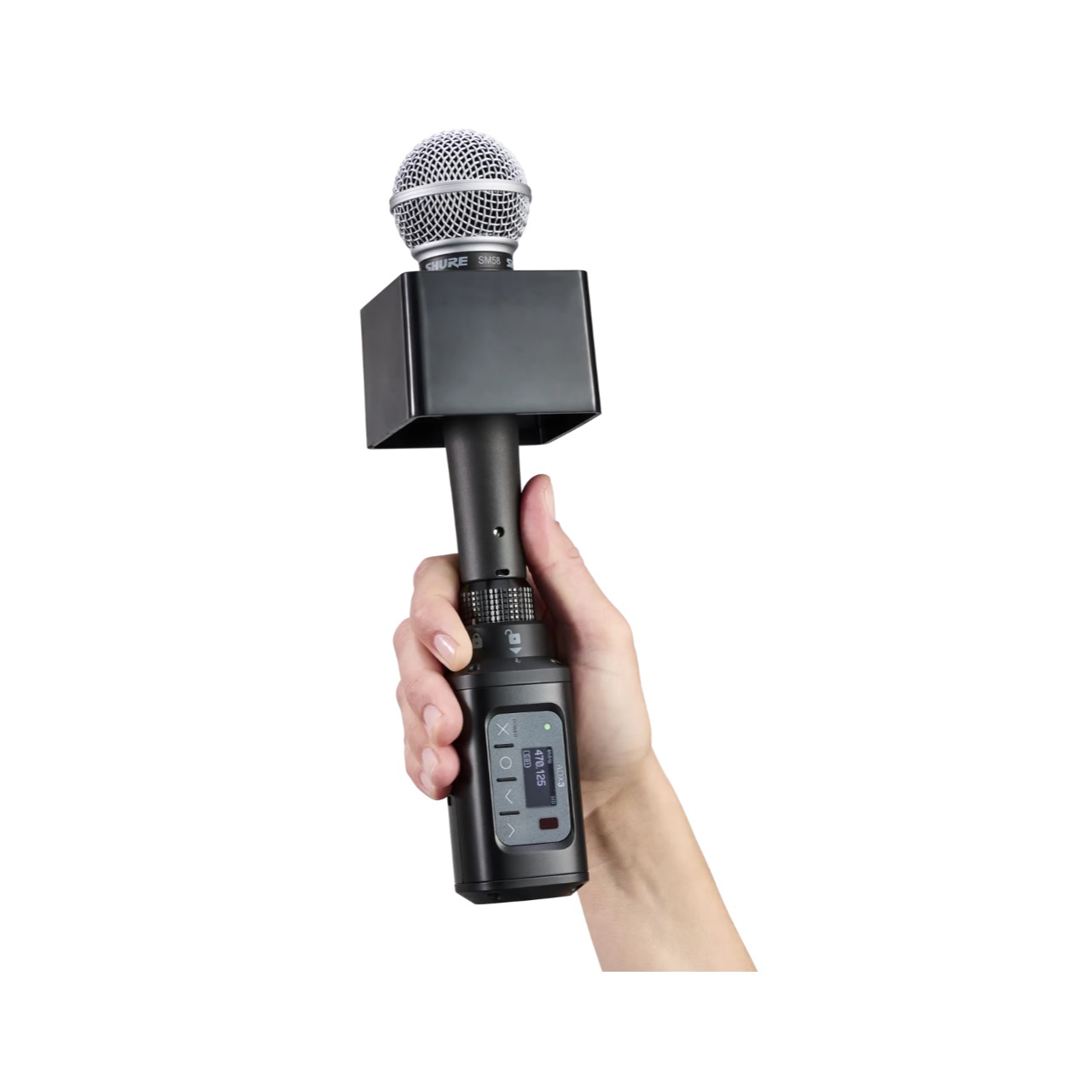

  • Axient Digital ADX Series wireless plug-on transmitter
  • ShowLink enabled for comprehensive, real-time control of all Axient Digital transmitter parameters from the mix position
  • Patented locking mechanism for secure, wobble-free connection

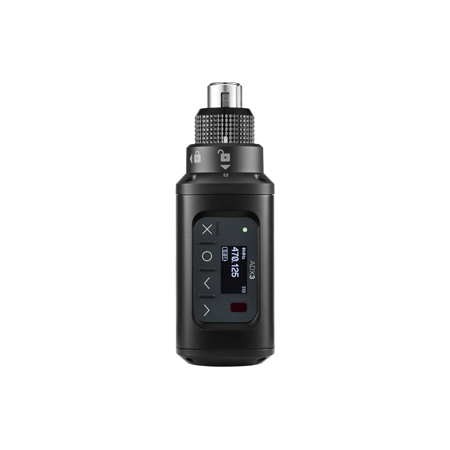

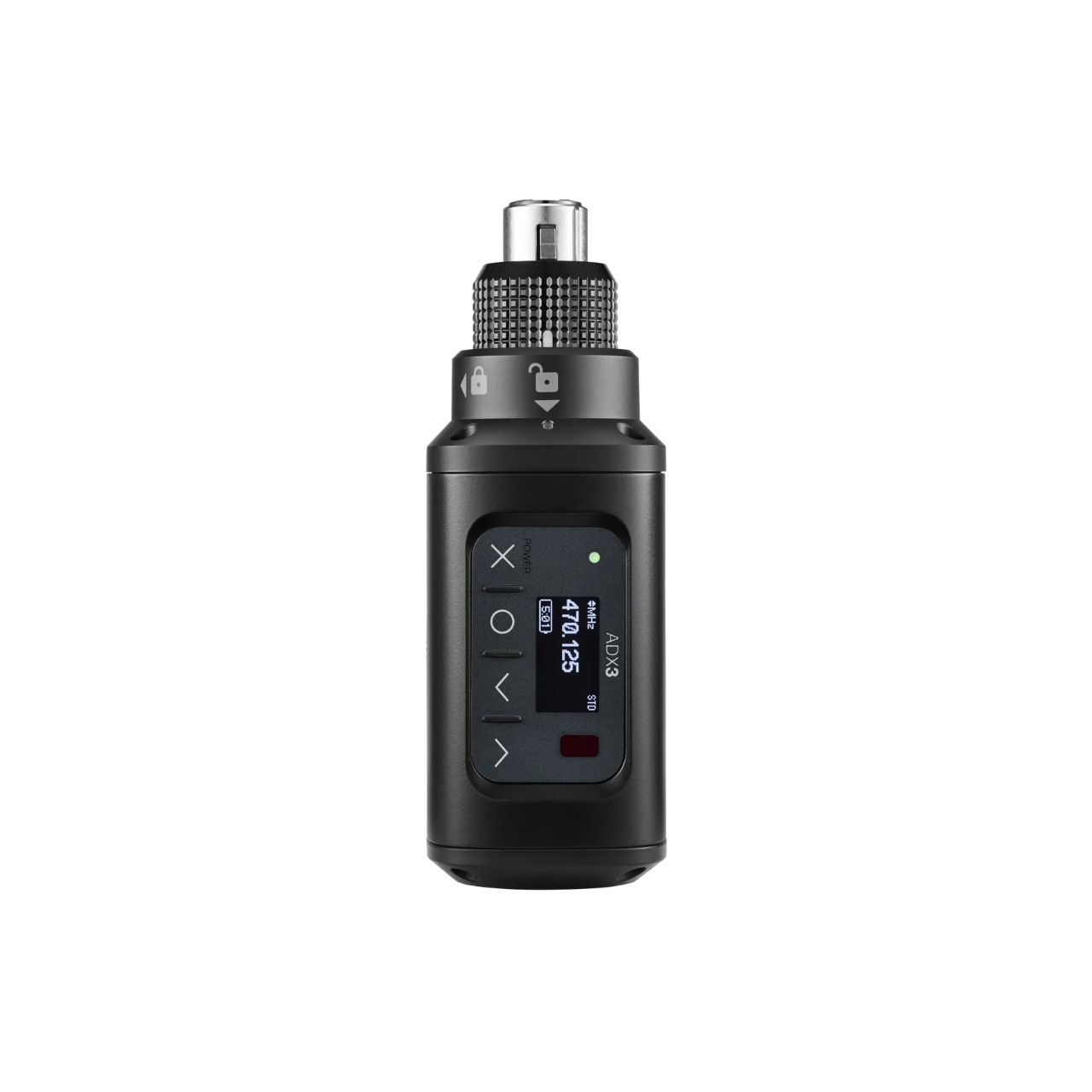

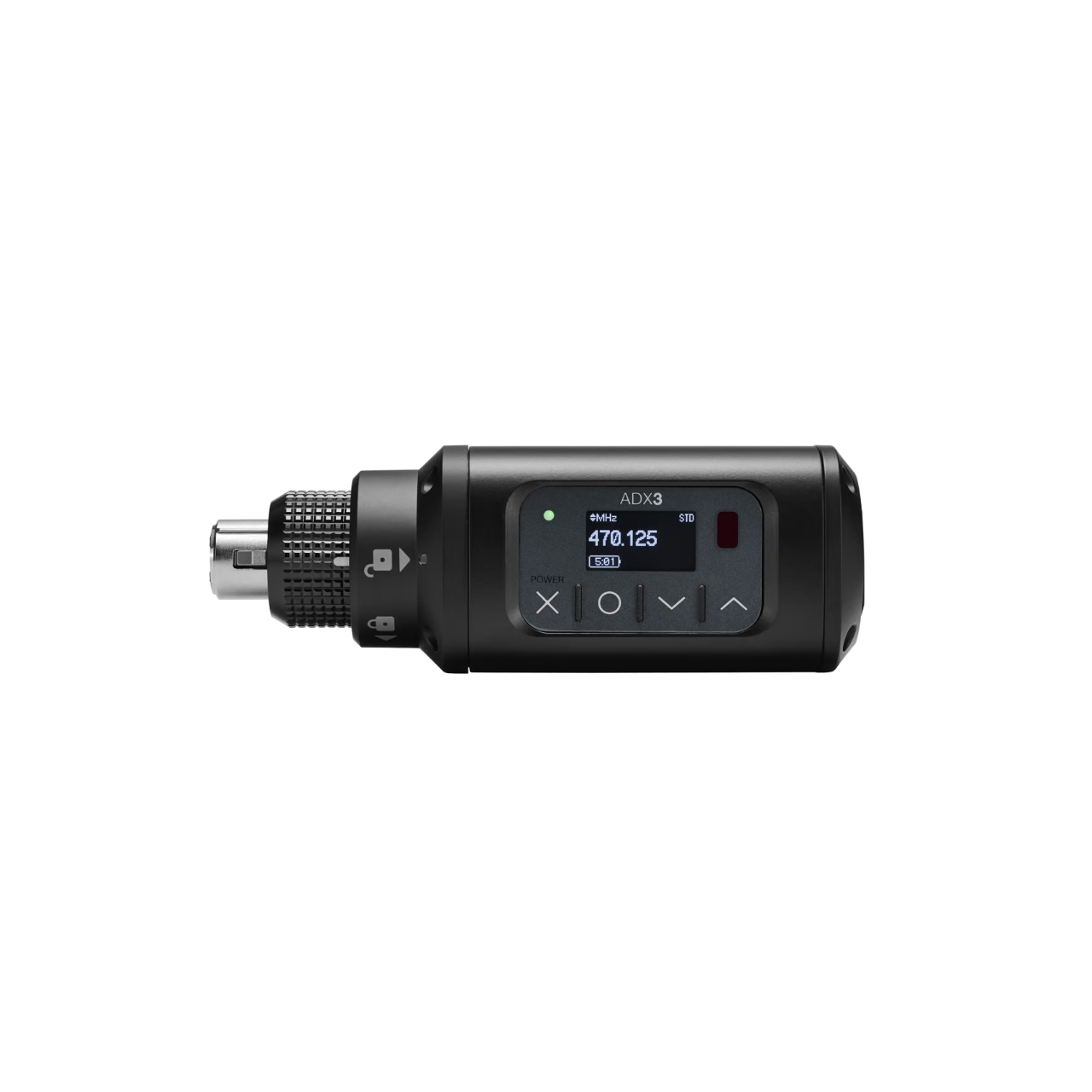

  • OLED display with easy-to-navigate menu and controls
  • Rugged metal construction that is resistant to dust and moisture
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • 300 feet (100 meter) line-of-sight operating range
  • Selectable modulation modes optimize performance for spectral efficiency:
    - Standard - Optimal coverage, low latency
    - High density - Dramatic increase in max system channel count
  • Switchable power levels (2/10/35 mW, region dependent)

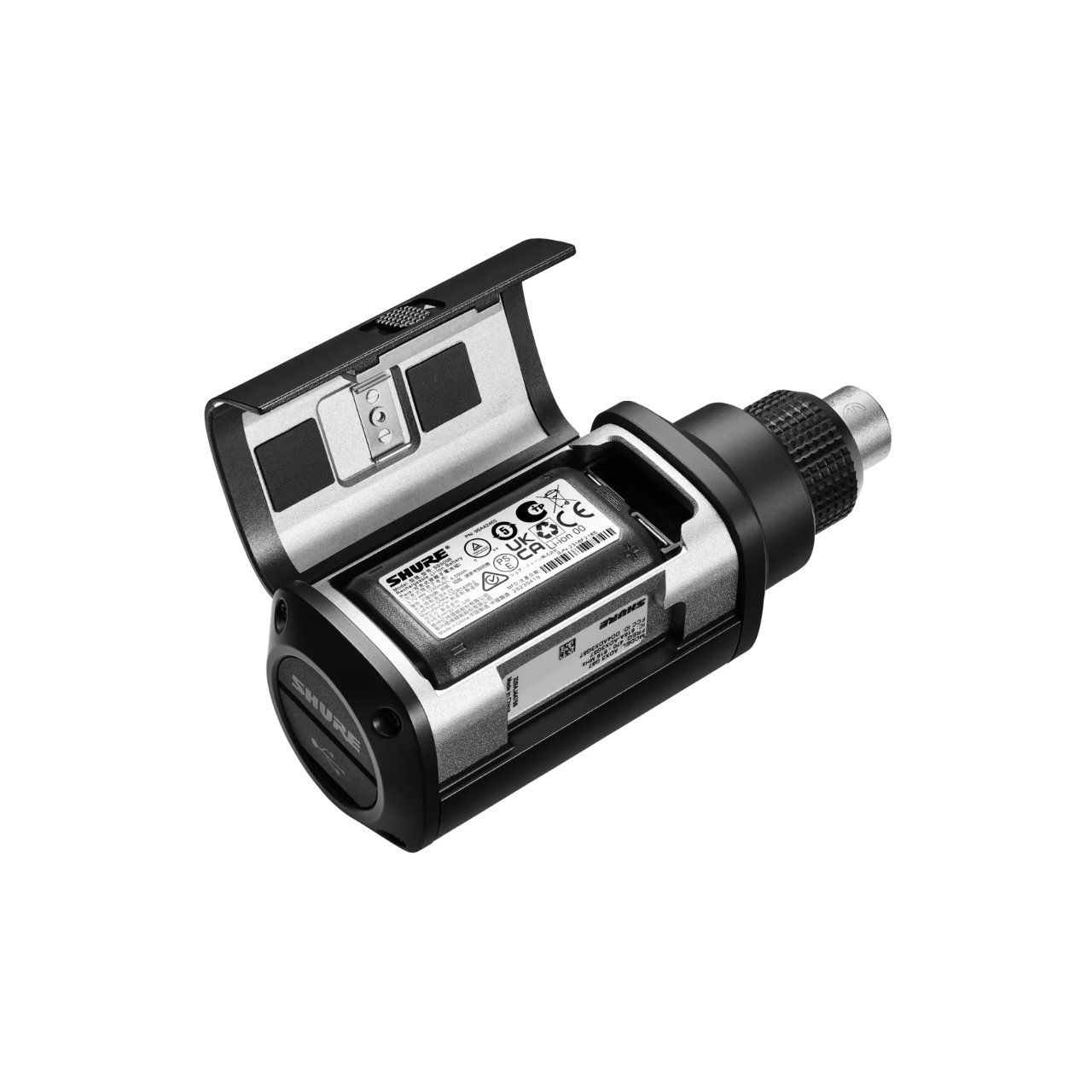

  • Shure SB900 rechargeable battery (included) or AA battery (sold separately) options
  • Shure SB900 lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect

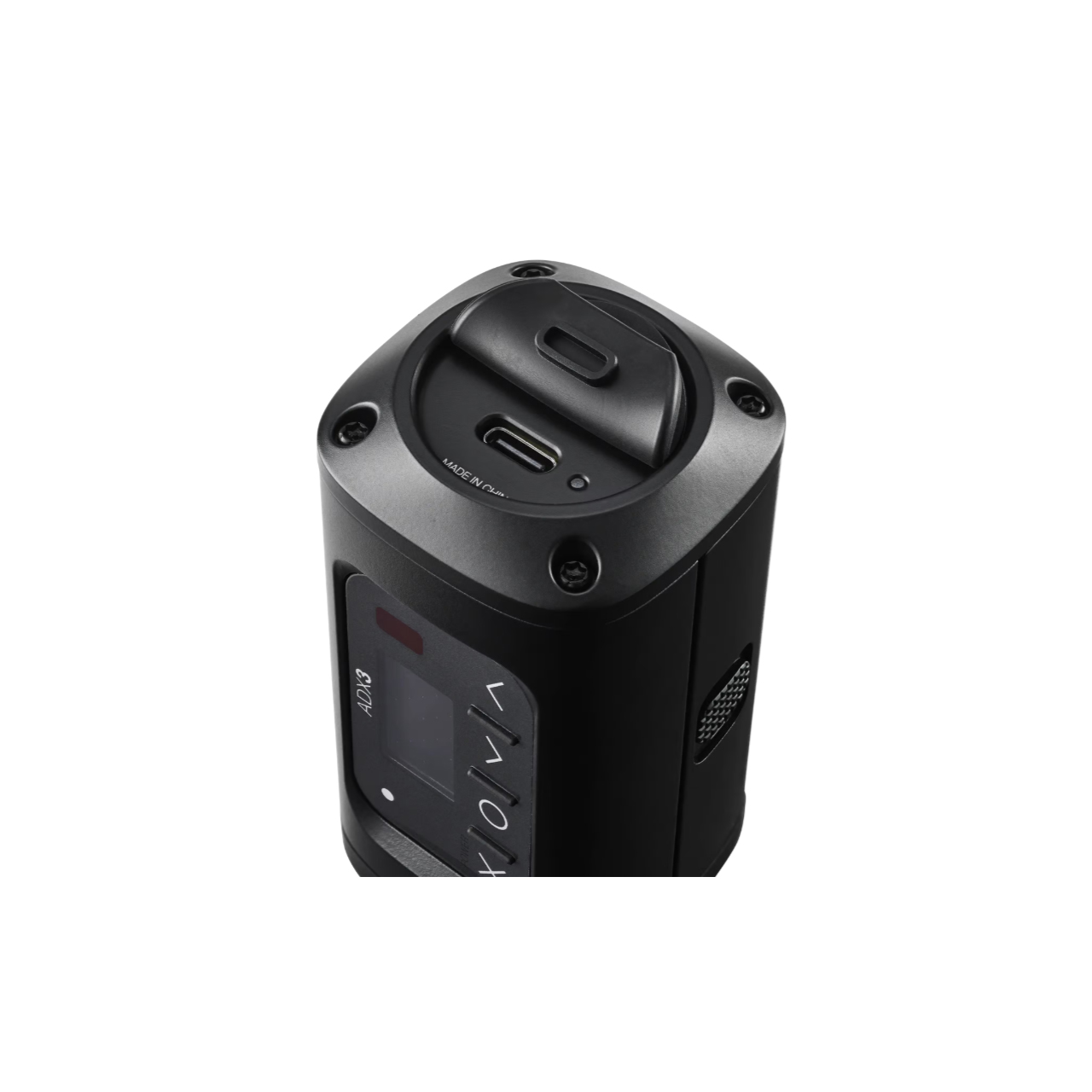

  • External power and charging option over USB-C port
  • Included: 2x SB900B batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage


• Specifications:

  • Mic Offset Range: -12dB to 21dB (in 1dB steps)
  • Battery Type: Shure SB900B-series Rechargeable Li-Ion or LR6 AA batteries 1.5V
  • Battery Runtime @ 10mW:
    - Shure SB900B or SB900B-A: > 6 hours
    - Alkaline: > 5 hours
    Note: Phantom power, RF output and the impedance of the connecting device can impact battery life.
  • Dimensions (HxWxD): 5.0" x 1.8" x 1.8" (126mm x 44.5mm x 44.5mm)
  • Weight:
    - without Battery: 8.0oz (240g)
    - with AA Batteries: 9.28oz (263g)
    - with Shure Rechargeable Battery: 9.88oz (280g)
  • Housing: Cast Metal
  • Operating Temperature Range: -14°F (-10°C) to 122°F (50°C)
  • Storage Temperature Range: -40°F (-40°C) to 165°F (74°C)

    Audio Input
  • Connector: 3-pin female XLR
  • Configuration: Balanced
  • Impedance:
    - Pad -12dB: 26.64kΩ
    - 0dB: 6.64kΩ
    - Boost12dB: 6.64kΩ
  • Maximum Input Level 1kHz at 1% THD:
    - Pad -12dB: 21dBV
    - 0dB: 9dBV
    - Boost12dB: -3dBV
  • Preamplifier Equivalent Input Noise (EIN):
    - System Gain Setting ≥ +20
    - -115dBV, A-weighted, typical
  • Phantom Power: +48V (7mA maximum), +12V (15mA maximum)
  • High Pass Filter: Two-pole (12dB per octave), cut off frequency selectable from 40 to 240 in 20Hz increments

    RF Output
  • Antenna Type: Dipole
  • Impedance: 50Ω
  • Occupied Bandwidth: <200kHz
  • Channel-to-Channel Spacing:
    - Standard Mode: 350kHz
    - High Density Mode: 125kHz - varies by region
  • Modulation Type: Shure Axient Digital Proprietary
  • Power: 2mW, 10mW, 35mW

    ShowLink
  • Network Type: IEEE 802.15.4
  • Antenna Type: Dipole
  • Frequency Range: 2.40GHz to 2.4835GHz (16 Channels)
  • RF Output Power: 10dBm (ERP)


• Item Includes:

  • 1x ADX3 Axient Digital Plug-On 3-Pin XLR Transmitter - 606-663 Mhz
  • 2x SB900B Batteries
  • 1x USB-A to USB-C Cable
  • 1x Belt Clip/Pouch
  • 1x Zippered Storage Bag


• GTIN:

  0042406777506
