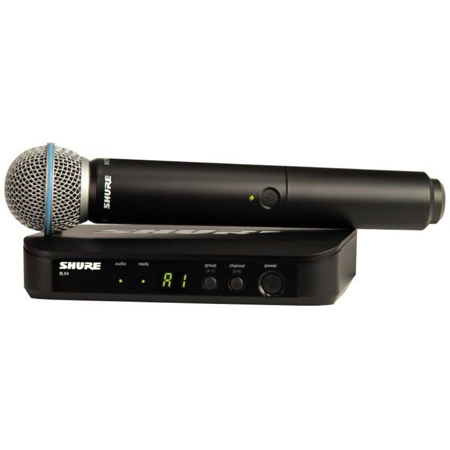

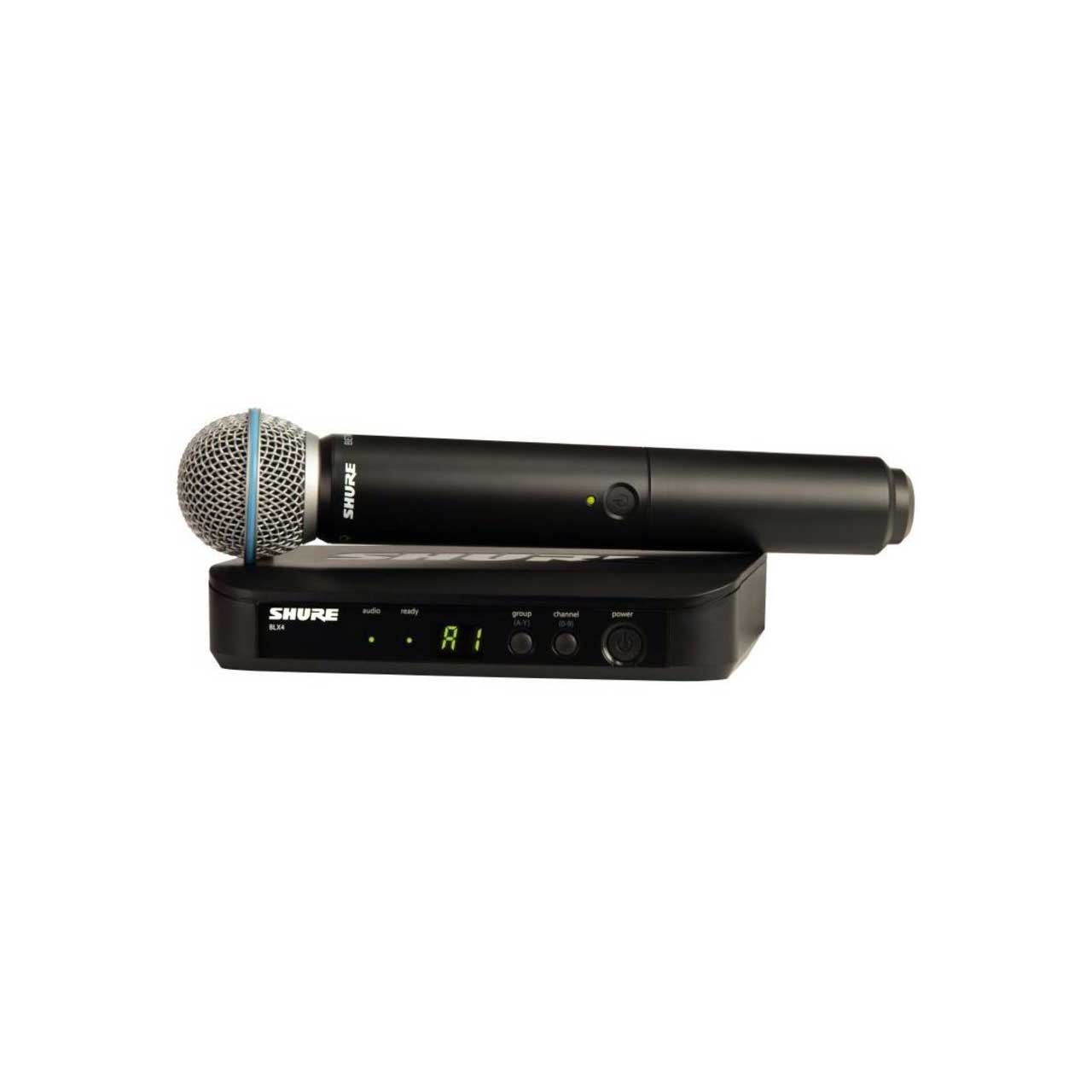

Shure BLX24-B58-H10 Handheld Wireless Mic System with BETA58 - H10 542 - 572 MHz

BLX24/B58=-H10 - Overview

• Features:

  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10 dB gain attenuation
  • Color ID caps (available separately)


• Specifications:

  • General
  • Working Range: 300 ft Line of Sight (Actual range depends on RF signal absorption, reflection and interference)
  • Audio Frequency Response: 50 to 15,000 Hz
  • Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone; 0.5%, typical
  • Dynamic Range: 100 dB, A-weighted, typical
  • Operating Temperature: 0° F to 135° F (Battery characteristics may limit this range)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
  • Frequency: 542 - 572 MHz

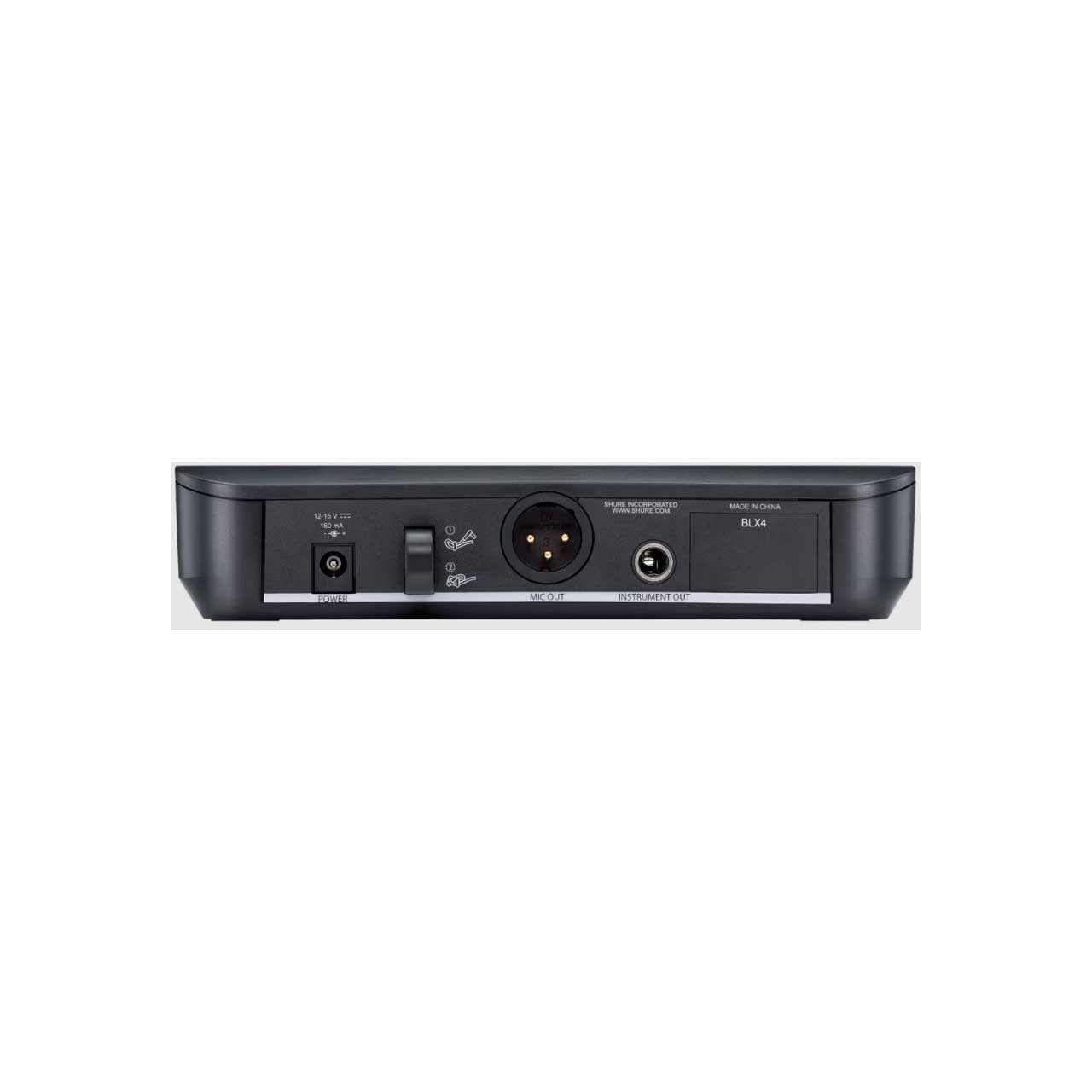

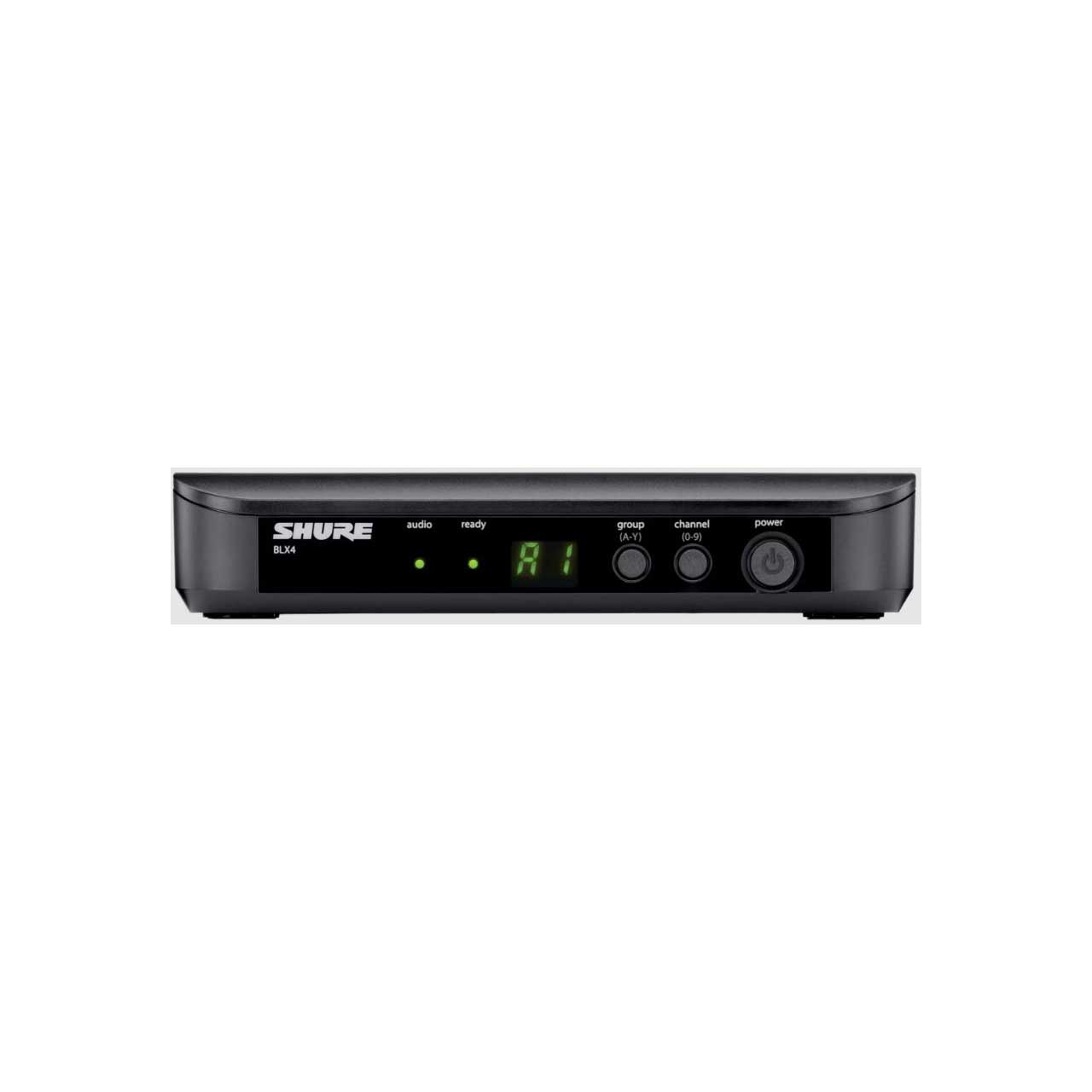

    Wireless Receiver
  • Output Impedance: XLR connector: 200 Ω; 1/4" connector: 50 Ω
  • Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100 kΩ load); 1/4" connector: -13 dBV (into 100 kΩ load)
  • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions (H x W x D): 1.57 X 7.40 X 4.05 Inch
  • Weight: 8.5 oz.
  • Housing: Molded ABS
  • Power Requirements: 12-15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

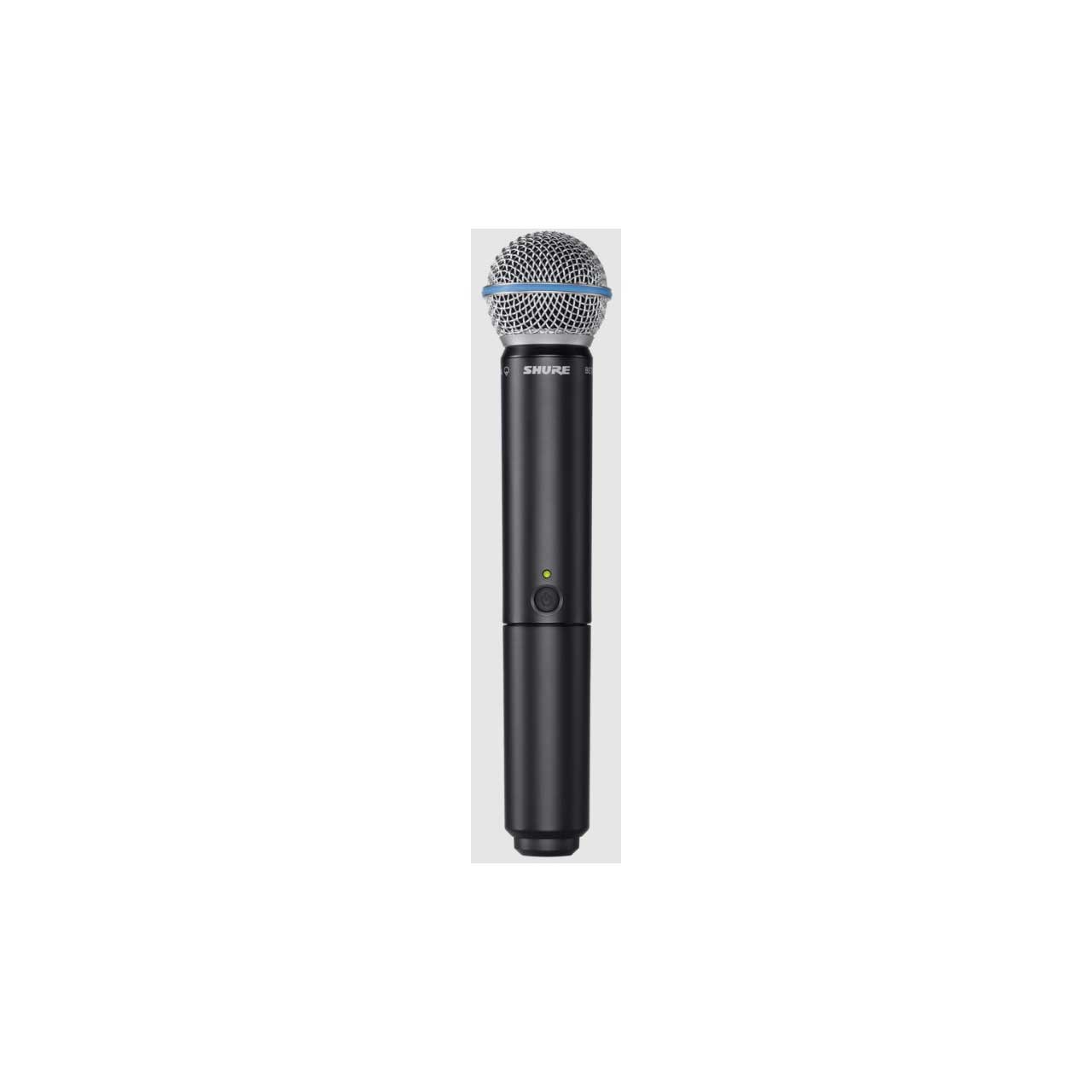

    Handheld Transmitter
  • Audio Input Level gain 0dB: -20 dBV maximum; -10dB: -10 dBV maximum
  • Gain Adjustment Range: 10 dB
  • RF Transmitter Output: 10 mW, typical varies by region
  • Dimensions: 8 7/8 X 2 1/8 inch
  • Weight: 7.7 oz. (without batteries)
  • Housing: Molded ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)


• Item Includes:

  • 1 - 95D16526 Carrying Case
  • 1 - WA371 Swivel Adapter
  • 1 - PS24 Power Supply
  • 1 - 31B1856 Thread Adapter


• GTIN:

  0042406470124
