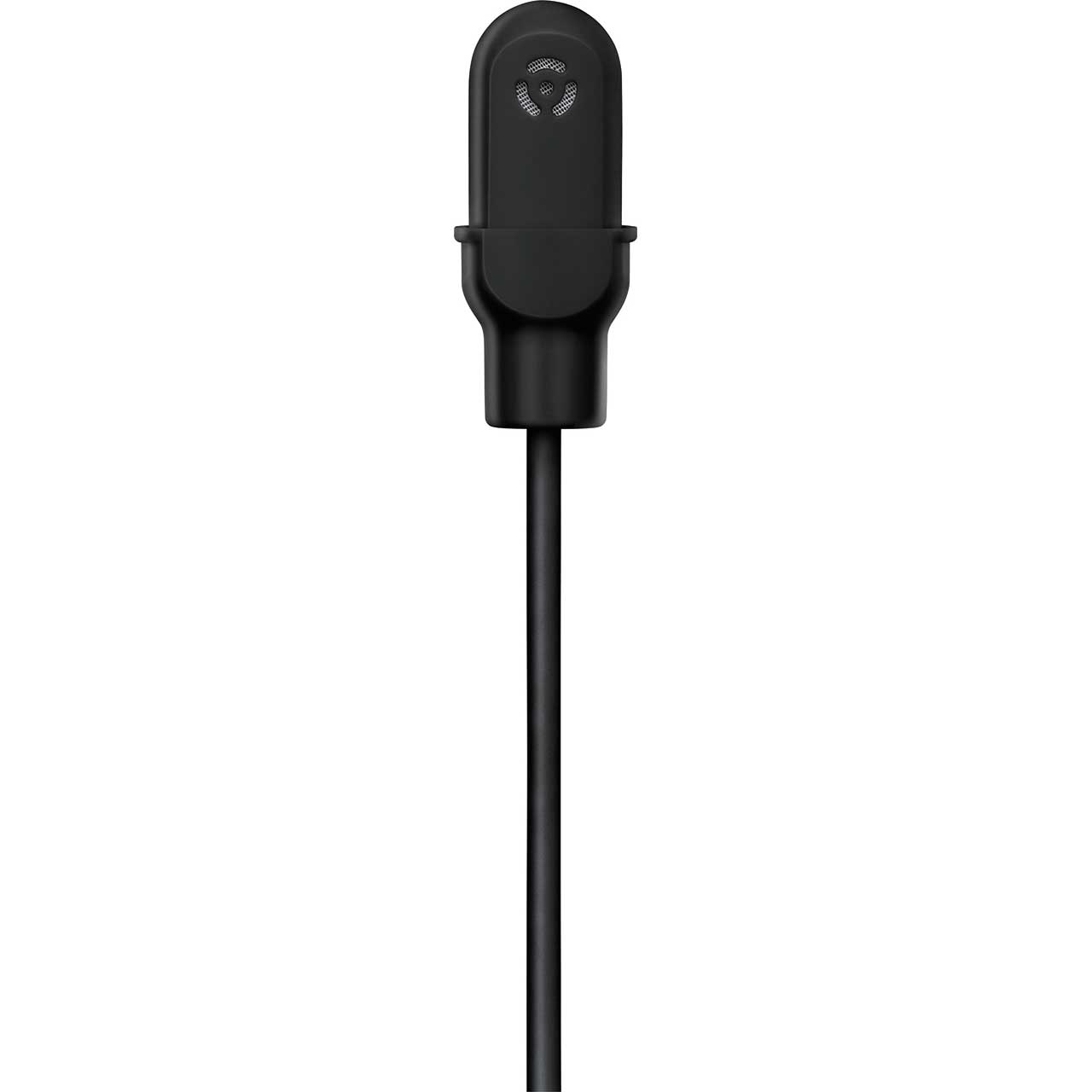

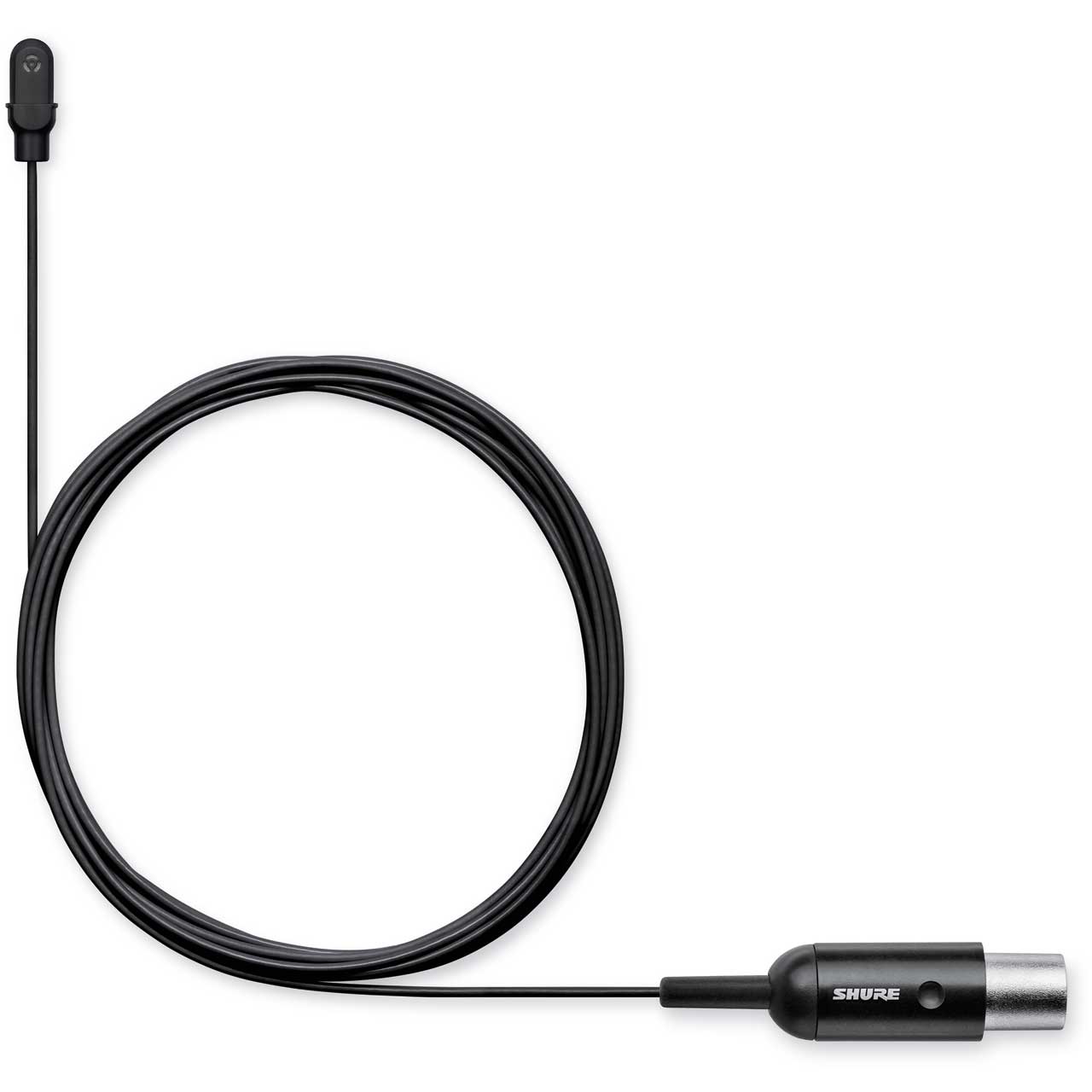

Shure DL4B/O-MTQG-A DuraPlex IP57 Omni Lav Mic with TA4F (mTQG) Connector - Black

ITEM #: SH-DL4B-O-MTQG-A MFG #: DL4B/O-MTQG-A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$374.00

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DL4B/O-MTQG-A - Overview

Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the elements won't slow you down. As comfortable on the beach as it is in a broadcast studio, the Shure DL4B/O-MTQG-A DuraPlex features a neutral, full sound quality that lives up to the highest audio standards.The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.

  • Features:

    • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
    • IP57 dust-resistant, waterproof rated
    • Neutral, full sound quality for film, broadcast, speech, theater,and performance applications
    • Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevity - Immune to memory effect and kinks - Fully paintable with typical theater paints, pens, and polishes
    • PresenceCap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
    • Available in four colors: Black, Cocoa, Tan, White
    • Available in two connector types: TA4F (mTQG) and LEMO
    • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount

  • Specifications:

    • Microphone Capsule: MEMS
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 Hz to 20 kHz
    • Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
    • Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
    • Signal-to-Noise Ratio: 63 dB
    • Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
    • Dynamic Range: 101.0 dB Typical
    • Microphone Current Draw: 220 µA, maximum
    • Bias Voltage Recommended Operating Voltage: 5 VDC
    • Housing: Molded ABS
    • Polarity:
      MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
      LEMO: Positive pressure on dia-phragm produces positive voltage on Pin 3 with respect to Pin 1
    • Cable Diameter: 1.6 mm
    • Cable Length: 66.0 in (1.67 m)
    • Net Weight: 15.0 g (0.53 oz)
    • Capsule Dimensions (L x D): 14.5 mm x 5.2 mm

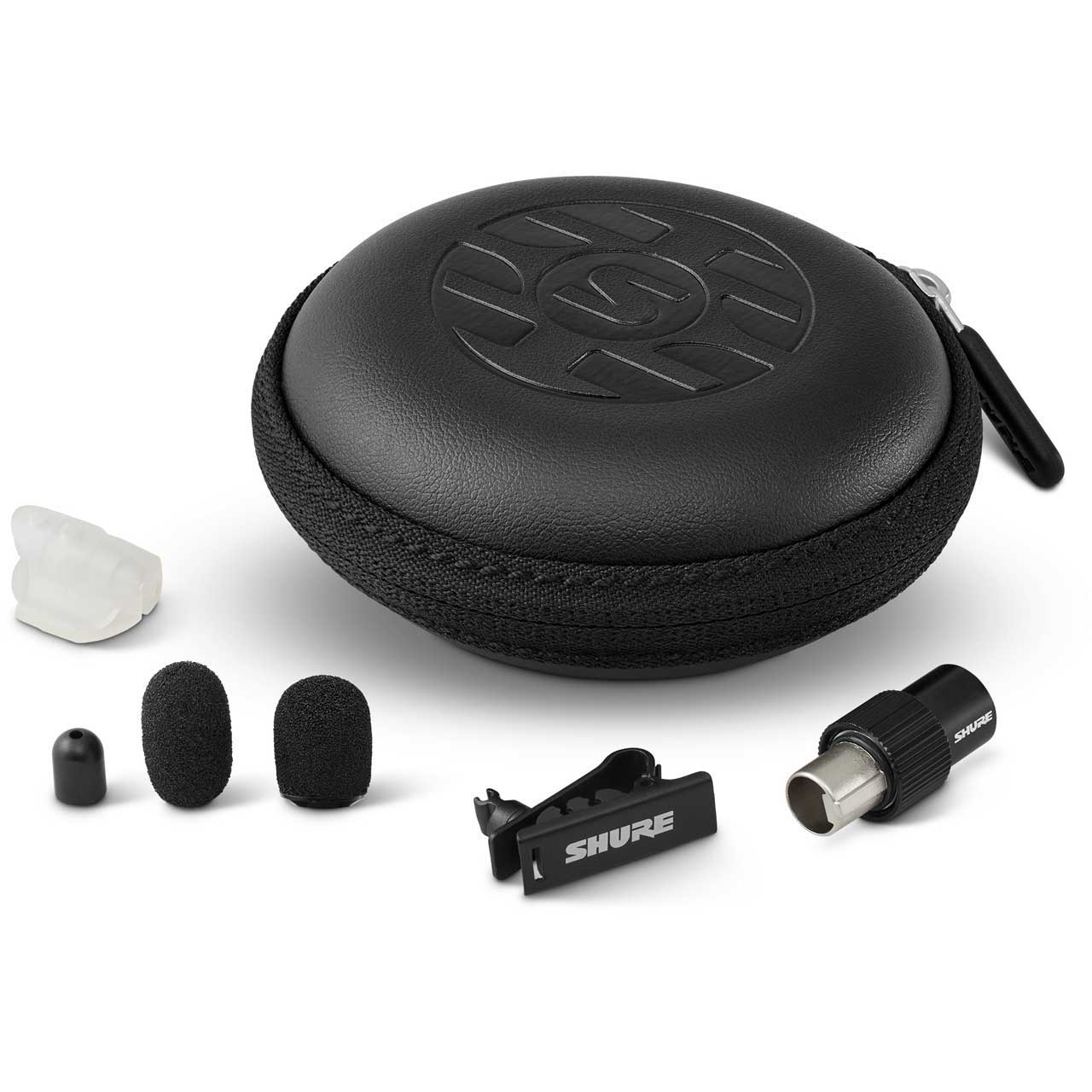

  • Item Includes:

    • 1x Shure DL4B/O-MTQG-A DuraPlex IP57 Omni Lav Mic
    • 1x Single Tie Clip
    • 1x Presence Cap
    • 1x Snap-Fit Windscreen
    • 1x Foam Windscreen
    • 1x Sticky Mount
    • 1x Case
    • 1x Threaded TA4F Adapter (MTQG SKUs Only)

  • GTIN:

    0042406662987
