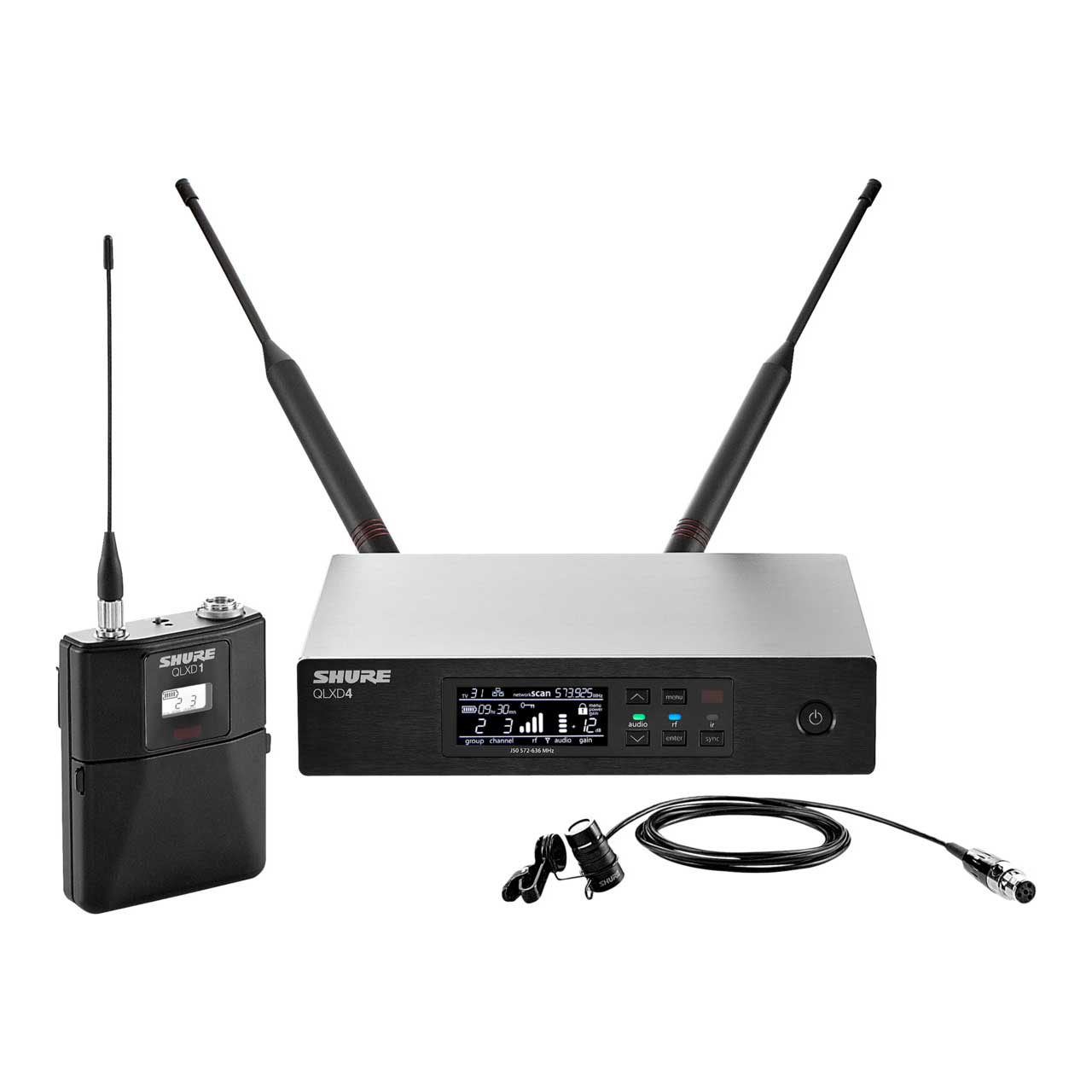

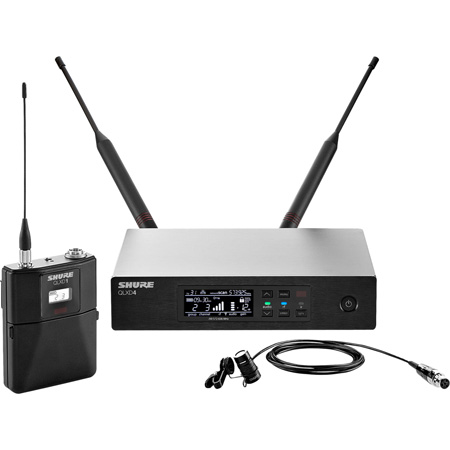

Shure QLXD14/83-H50 Digital Wireless Mic System with WL183 Lav Mic 534-598MHz

ITEM #: SH-QLXD14-83-H50 MFG #: QLXD14/83-H50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,427.00

Our Price:

$1,059.00

Availability: In Stock
iAvailability Description Popup


QLXD14/83-H50 - Overview

Featuring the WL183 Omnidirectional lavalier microphone, QLXD14/83 combines professional features with simplified setup and operation. Defined, streamlined performance with transparent 24-bit digital audio. The QLXD offers networked control, AES-256 encryption, and simplified setup and operation, QLX-D delivers outstanding digital wireless sound for mid-size events and installations.

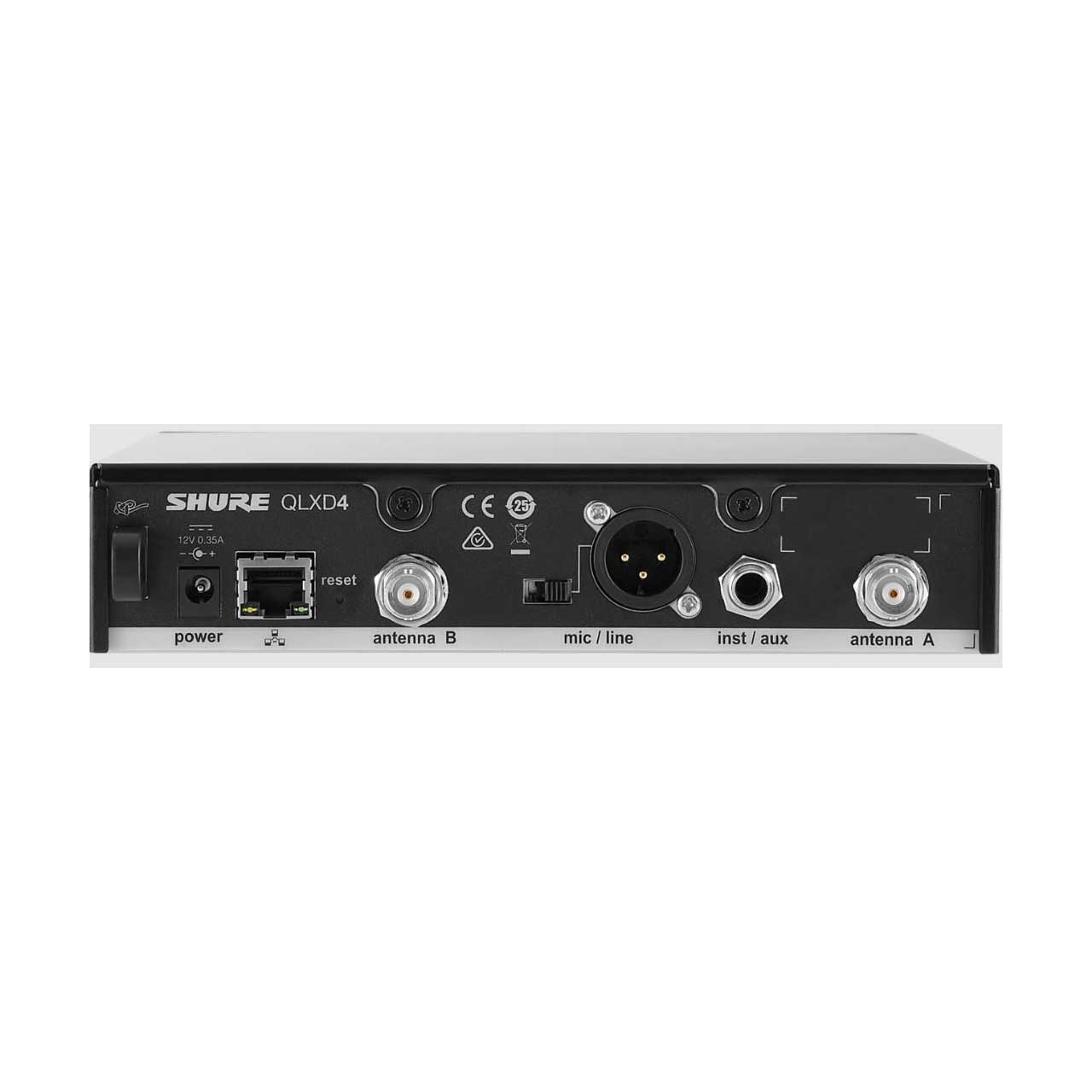

QLXD4 Digital Wireless Receiver
Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function. Works with QLX-DT Digital Wireless Systems and features Ethernet networking and mobile monitoring and control capabilities. Includes QLXD4, hardware for rack-mounting, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead Adapters, and user guide

QLXD1 Bodypack Transmitter
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range. Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship. Works with QLX-D Digital Wireless Systems and offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries. Includes QLXD1, 2 AA batteries, black zippered pouch, and user guide.

  • Features:

    • Transmitter form factors include handheld, bodypack, headworn, lavalier, instrument clip-on, and combo
    • Power options include Shure SB900 Lithium-Ion Rechargeable Battery and AA batteries
    • 64 MHz tuning bandwidth
    • 17 Compatible systems per 6 MHz TV channel and 22 systems per 8 MHz channel

    • QLXD4 Digital Wireless Receiver
    • 64 MHz tuning bandwidth (region dependent)
    • More than 60 preset compatible channels per frequency band (region dependent)
    • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
    • Digital predictive switching diversity ensures solid RF connection
    • AES 256-bit encryption for secure wireless transmission
    • Up to 60 dB of adjustable audio gain
    • High-contrast LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • Detachable ½ wave antennas
    • Mic / line switchable XLR output
    • 1/4" Instrument output
    • Durable aluminum construction with brushed finish

      QLXD1 Transmitter
    • Over 120 dB of dynamic range: no transmitter gain adjustments needed
    • AES 256-bit encryption for secure transmission
    • Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
    • External charging contacts for docked charging
    • Backlit LCD with easy to navigate menu and controls
    • Selectable display mode showing group/channel, frequency, or battery runtime
    • 4-Pin male mini connector (TA4M)
    • Rugged metal construction
    • Detachable 1/4 wave antenna
    • Frequency and power lockout

  • Item Includes:

    • WL183 Omnidirectional Lavalier Condenser Microphone
    • QLXD4 Digital Wireless Receiver
    • QLXD1 Wireless Bodypack Transmitter

  • GTIN:

    0042406350389
