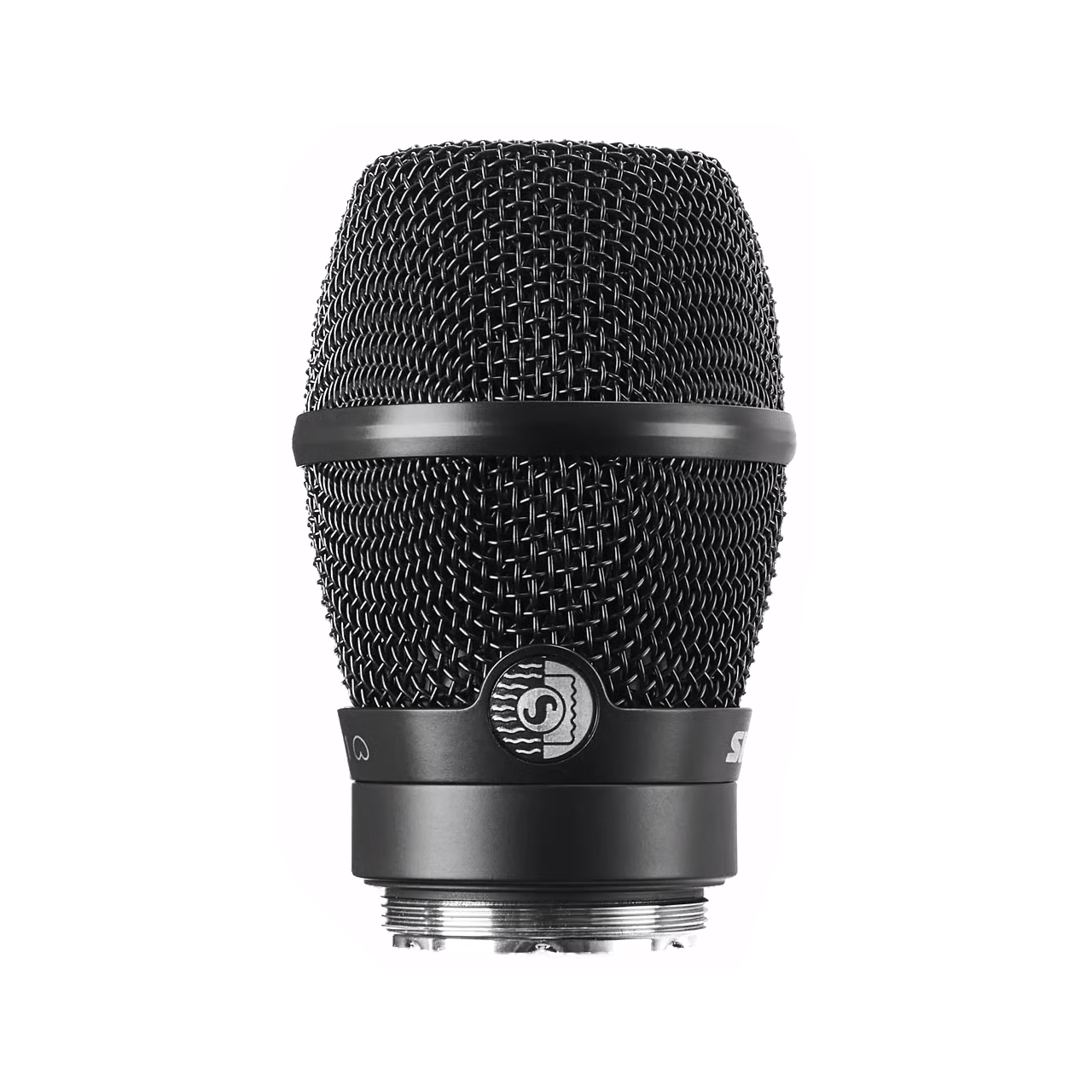

Shure RPW192 KSM11 Wireless Cardioid Condenser Vocal Microphone Capsule - Works with Shure Handheld Transmitters - Black

ITEM #: SH-RPW192 MFG #: RPW192

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,124.00

Our Price:

$899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RPW192 - Overview

You've Simply Never Heard Wireless Vocals That Sound This Good
Developed specifically for digital wireless on-stage performance, live event recording and premium streaming, the premium cardioid RPW192 capsule delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default.

As modern live stages have transitioned to digital technology, the KSM11 Wireless Condenser Microphone Capsule was developed to take advantage of increased digital audio linearity-equal output across the frequency range.

Available in black or nickel finish, compatible with all Shure wireless handheld transmitters with interchangeable microphone capsules.

  • Features:

    • Works with SHURE Axient Digital, QLX, SLX, and ULX series handheld transmitters
    • Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range.
    • Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristine & focused vocal reproduction.
    • Rigorously streamlined design for an overall smaller and lighter capsule footprint when compared to typical wireless capsules.
    • Advanced suspended isolation system for virtually zero handling noise.
    • Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals.

  • Specifications:

    • Type: Electret Condenser
    • Polar Pattern: Cardioid
    • Freqeuncy Response: 50Hz - 20,000Hz
    • Output Impedance (1 kHz): 250Ω with 5V DC
    • Sensitivity at 1 kHz, Open Circuit Voltage: -46.5dBV/Pa
    • Maximum SPL with 5V DC: 151dB SPL
    • Signal-to-Noise Ratio: 71.5dB
    • Dynamic Range with 5V DC: 128.5dB
    • Clipping Level with 5V DC: 10dBV
    • Self Noise: 22.5dB SPL typical, equivalent SPL, A-weighted
    • Polarity: Positive pressure on diaphragm produces positive voltage into trasn-mitter with respect to ground.
    • Power Requirements: 5 Volt Bias from Shure Transmitter
    • Weight: 5.23oz (150g)
    • Dimensions (Dia x Height): 1.92" x 3.0" (48.7mm x 76.3mm)
    • Housing: Aluminum and steel grille

  • Item Includes:

    • 1x RPW192 KSM11 Cardioid Condenser Wireless Capsule (Black)

  • Warranty:

    • 1 Year Warranty

  • GTIN:

    0042406692199
