Shure SLXD15/WL85-G58 Portable Digital Wireless System - SLXD1 Bodypack Tx/SLXD5 Rx/WL185 Cardioid Lav Mic - 470-514MHz

ITEM #: SH-SLXD1585-G58 MFG #: SLXD15/85-G58

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$874.00

Our Price:

$699.00

Availability: In Stock
iAvailability Description Popup


SLXD15/85-G58 - Overview

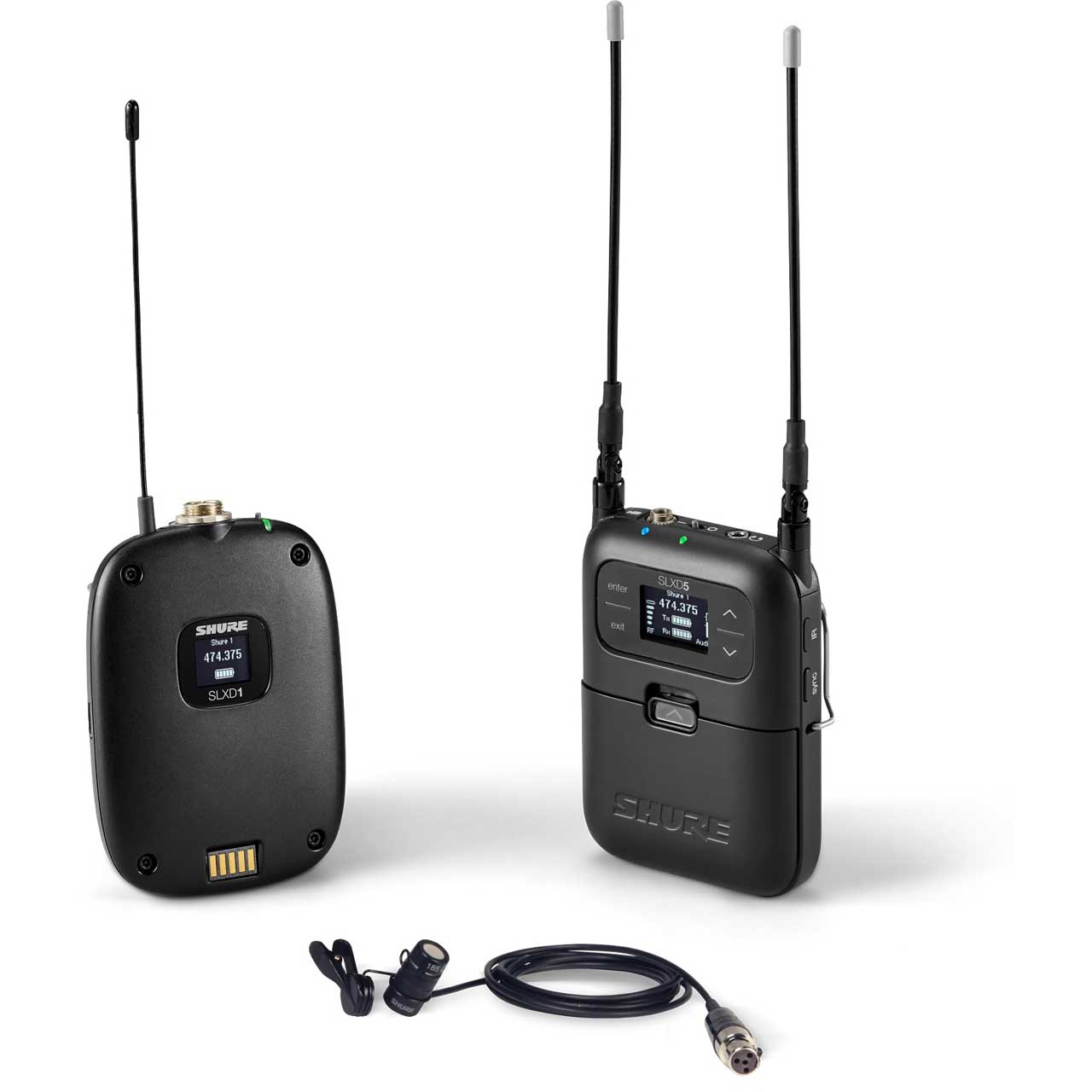

The Shure SLXD15/85-G58 is a SLXD15/WL85 Portable Digital Wireless Bodypack System with a SLXD1 Bodypack Transmitter, SLXD5 Single-Channel Portable Receiver (470-514MHz) and a WL185 Cardioid Lavalier Microphone.

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear - In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >118 dB dynamic range.

Dropouts Are Out - From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep The Show Going - Ready to perform for all-day conferences and nighttime performances up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

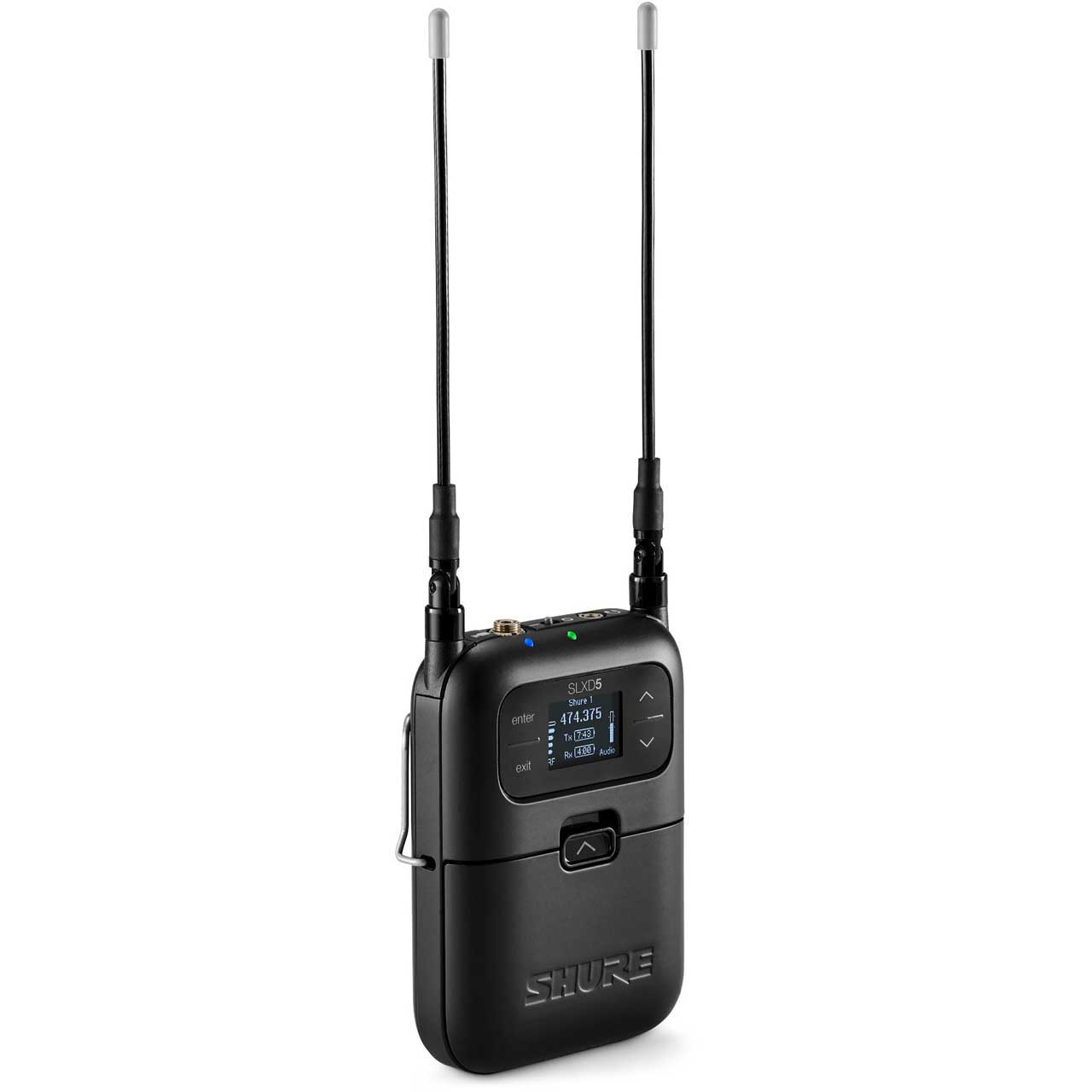

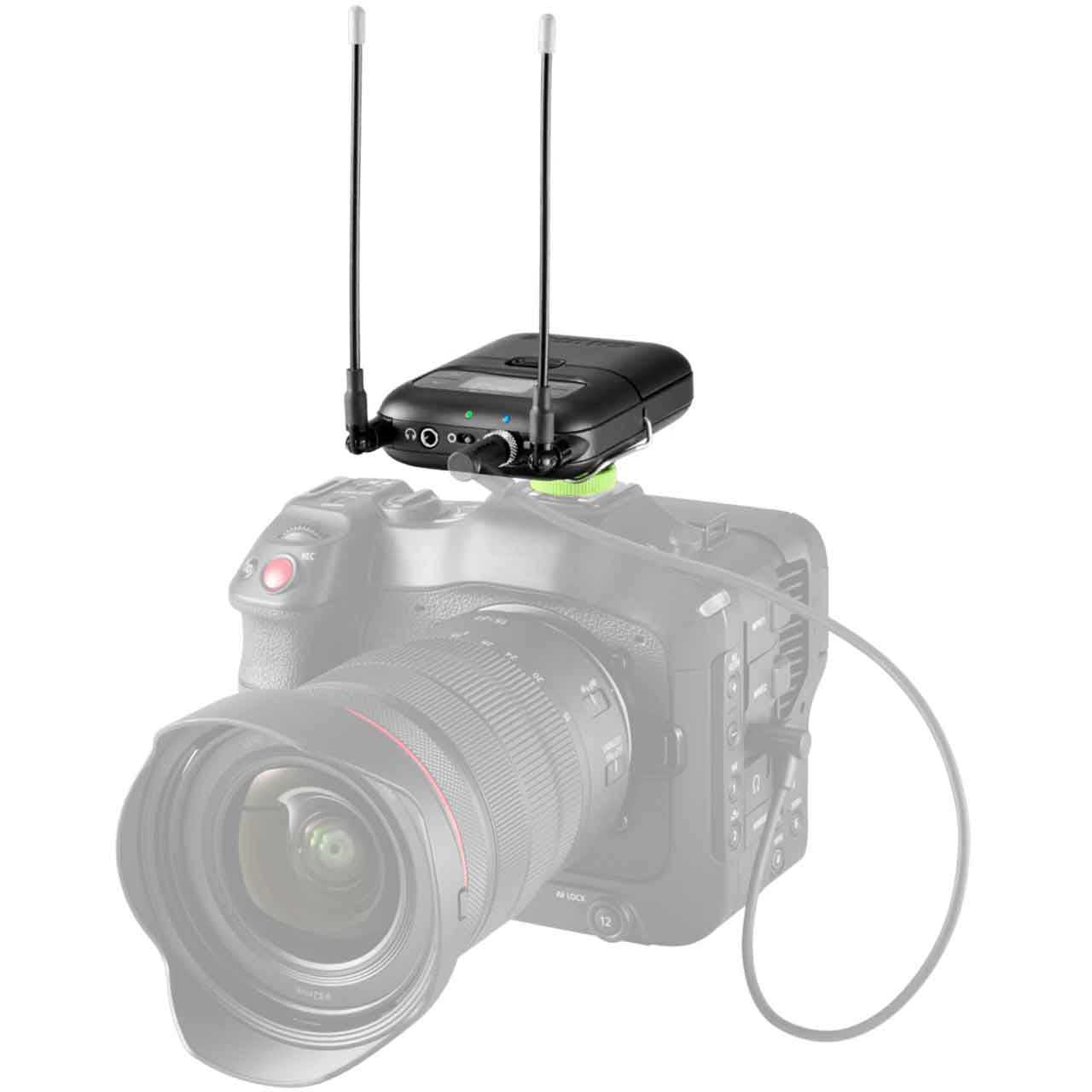

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

  • Features:

    • 118 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync

  • Specifications:

    • System Specs
    • RF Carrier Frequency Range: 470-514MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity -97 dBm at 10-5 BER

      Audio
    • Latency 3.2 ms
    • High-Pass/Low Cut Filter: 150 Hz, -12 dB/octave
    • Audio Frequency Response: 20 Hz-20 kHz (+1, -2 dB)
    • Audio Dynamic Range: 118 dB @1% THD
    • Total Harmonic Distortion: <0.02%

      Temperature Range
    • Operating Temperature Range: 0 °F to 122 °F (-18 °C to 50 °C)
    • Storage Temperature Range: -20 °F to 165 °F (-29 °C to 74 °C)

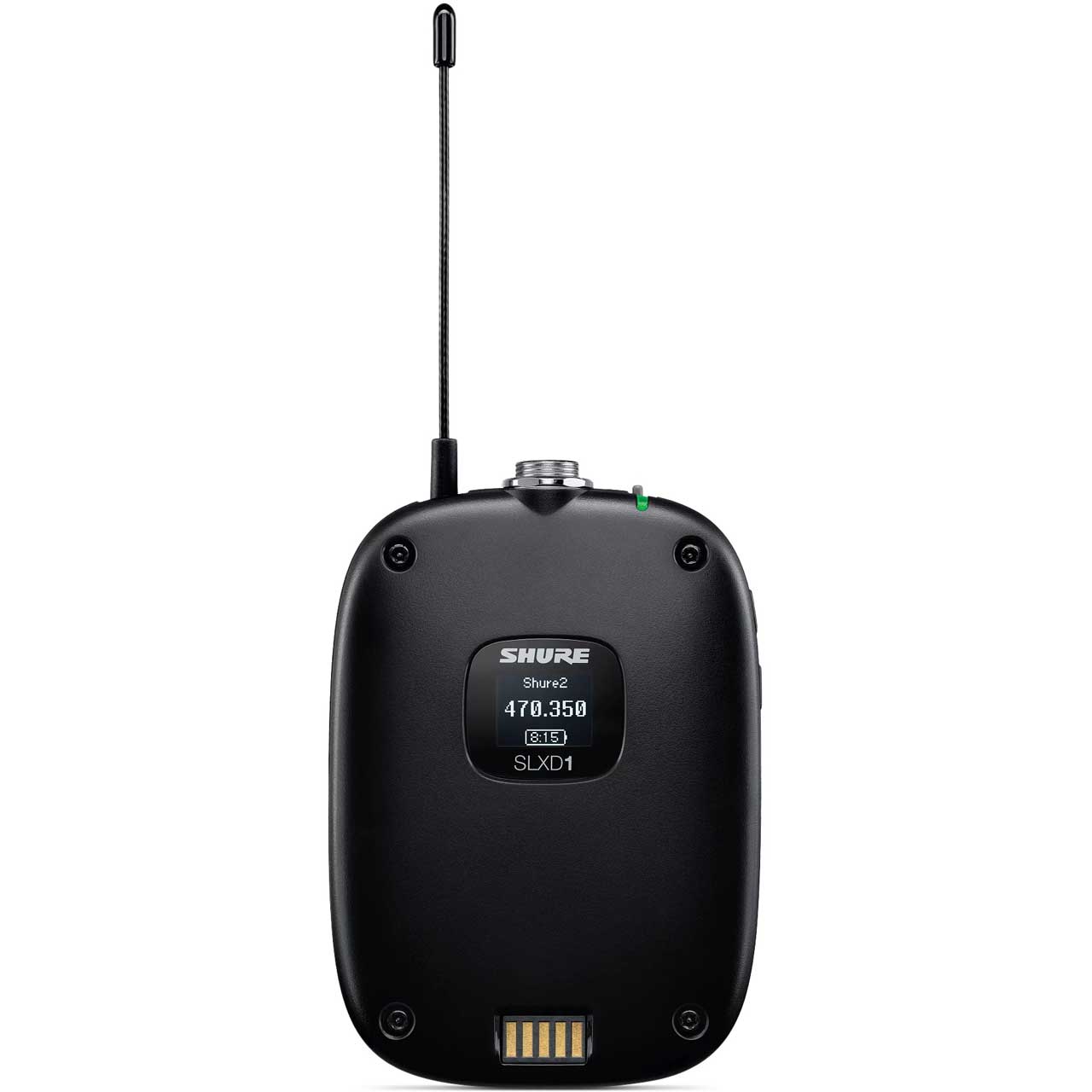

      SLXD1 Digital Wireless Bodypack Transmitter Specifications
    • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
    • Dimensions (HxWxD): 3.86" x 2.68" x 1.0" (98mm x 68mm x 25.5mm)
    • Weight: .19lbs (3.1oz)
    • Housing: PC/ABS

      Audio Input
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 Mω
    • Maximum Input Level: 8.2 dBV
    • Preamplifier Equivalent Input Noise (EIN): -118 dBV

      RF Output
    • Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Propietary Digital
    • Power: 1 mW/10 mW

      SLXD5 Portable Digital Wireless Receiver Specifications
    • Dimensions (HxWxD): 4.21" x 2.68" x 1.0" (107mm x 68mm x 25.3mm)
    • Weight: 1.8lb (182g)
    • Housing: Aluminum
    • Power Requirements: Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    • Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

      RF Input
    • Spurious Rejection: >75 dB
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip

      Audio Output:
    • Audio Frequency Response: 20 Hz - 20 kHz
    • Connector Type: 1/8" (3.5 mm), x2
    • Full Scale Output: Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ω Load

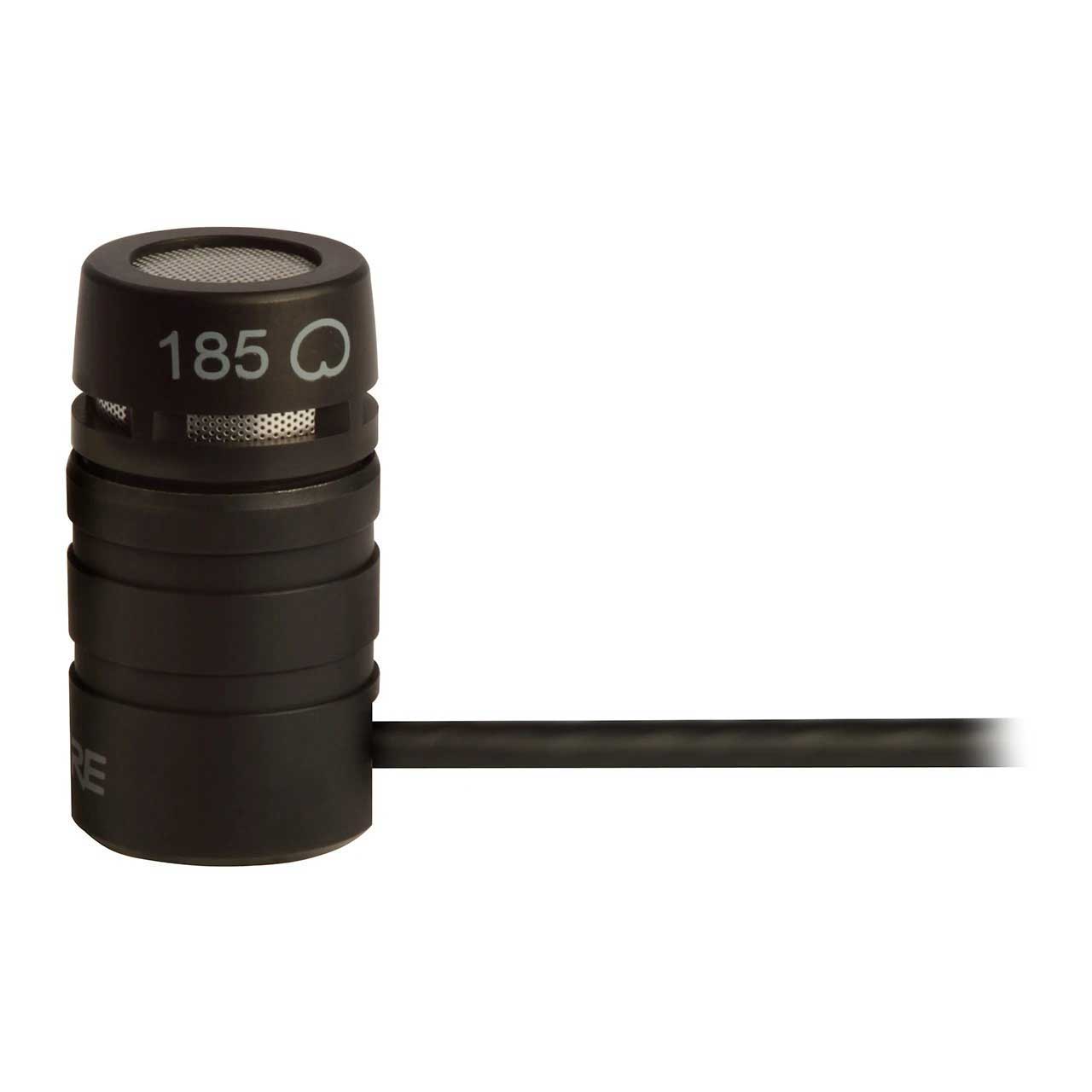

      WL185 Lavalier Microphone Specifications
    • Sensitivity: -45.5 dBV/Pa
    • Maximum SPL: 130.5 dB SPL
    • Self Noise (A-Weighted): 28.0 dB SPL
    • Dynamic Range: 102.5 dB

  • Item Includes:

    • 1x Shure SLXD1 Digital Wireless Bodypack Transmitter
    • 1x Shure SLXD5 Single-Channel Portable Digital Wireless Receiver
    • 1x Shure WL185 Omnidirectional Lavalier Microphone

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0042406811514
