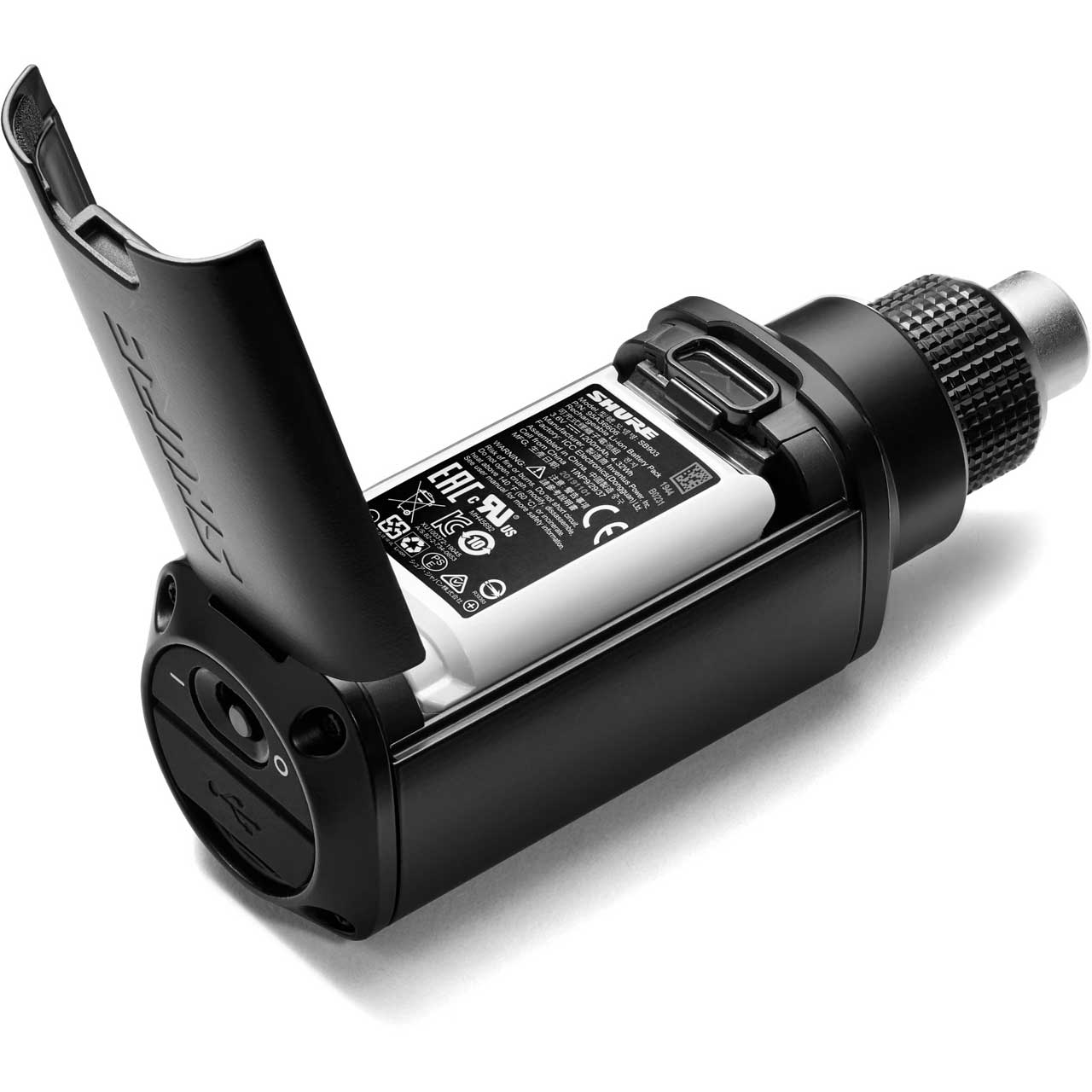

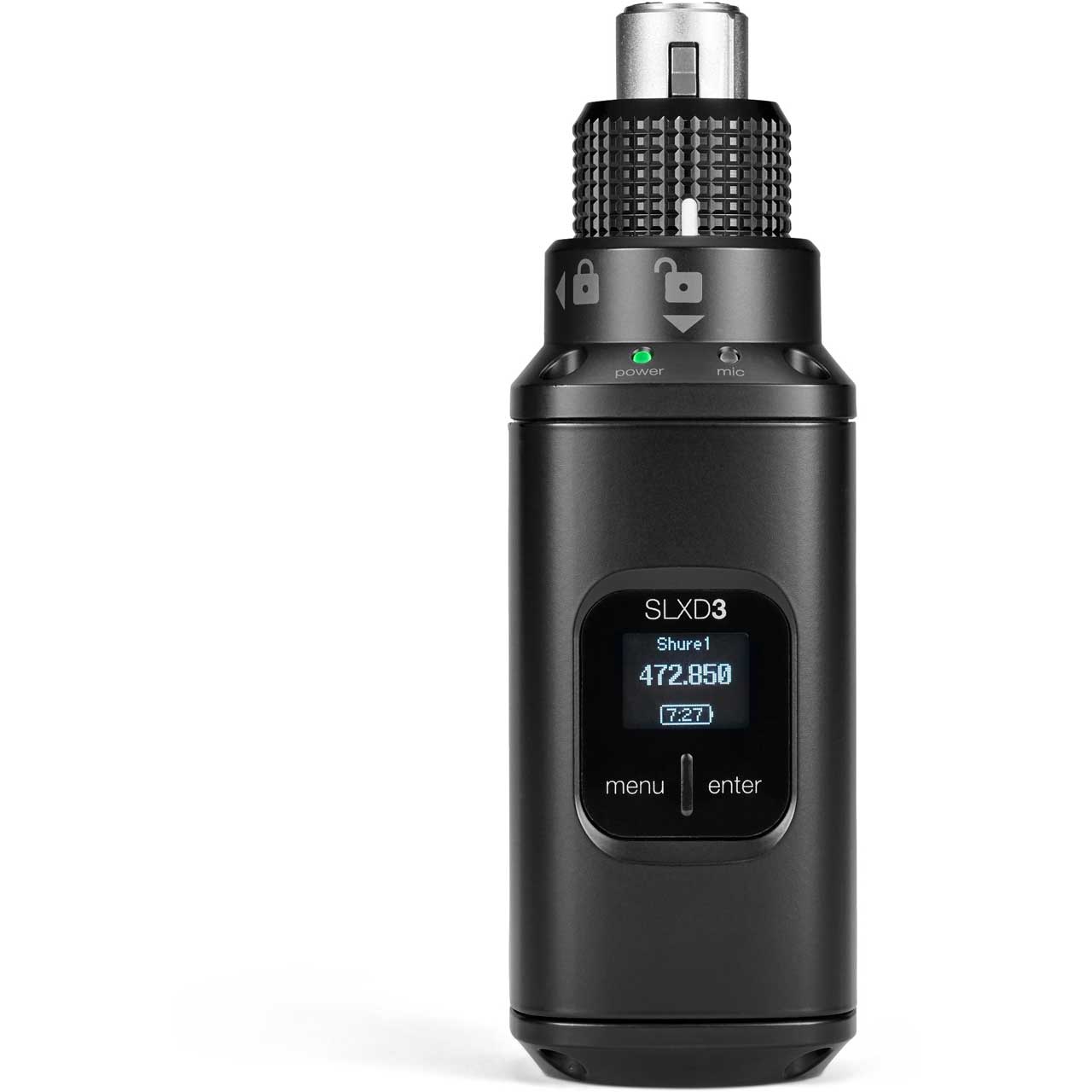

Shure SLXD3 Plug-On Digital Wireless Transmitter with XLR Connector - 558-616MHz

SLXD3=-J52 - Overview

• Features:

  • Convert any XLR source for use within SLX-D wireless systems
  • Provides +12-48 VDC phantom power for use with condenser microphones
  • Patented locking mechanism for secure, wobble-free connection
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • Switchable 1/10/30 mW power levels (region- and band-dependent)
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Rugged metal construction


• Specifications:

  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Weight: .44lbs (7 oz)
  • Housing: Aluminum, Zinc Alloy, PC/ABS

    Audio Input
  • Configuration: XLR
  • Maximum Input Level: Pad -12 dB: 20.5 dBV, 0 dB: 8.5 dBV, Boost +12 dB: -3.5 dBV
  • Phantom Power: +48 V (7 mA maximum), +12 V (15 mA maximum)

    Rf Output
  • Antenna Type: Dipole
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Propietary Digital
  • Power: 1 mW/10 mW/30 mW
  • Specific Absorption Rate (SAR): <0.17 W/kg


• Item Includes:

  • 1x Shure SLXD3 Digital Wireless Plug-on Transmitter


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0042406812061
