Shure ULXD124/85 Handheld/WL185m Lavalier Combo Wireless Microphone System Band G50 - (470 - 534 MHz)

ITEM #: SH-ULXD12485-G50 MFG #: ULXD124/85-G50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,368.00

Our Price:

$1,998.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ULXD124/85-G50 - Overview

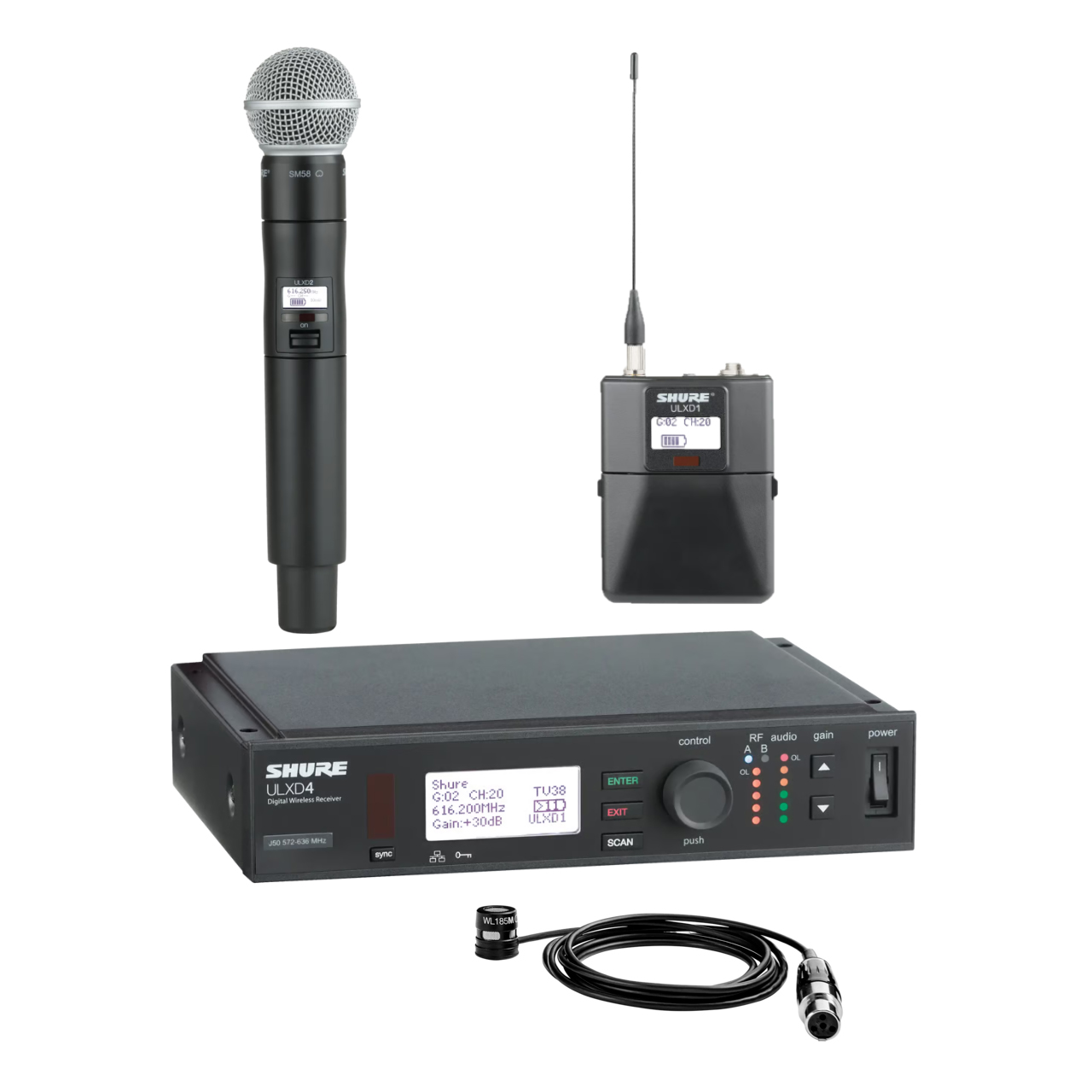

    The Shure ULX-D Digital Wireless Combo Microphone System delivers transparent, 24-bit digital audio transmission, uncompromising audio clarity, extremely efficient RF performance, secure signal encryption and advanced recharging. This system includes the ULX-D receiver, ULXD2 handheld transmitter with SM58 microphone capsule, ULXD1 bodypack and WL185m lavalier.

    Both the transmitters and receiver are made of galvanized steel, making it rugged enough for any application. Its 24-bit / 48kHz digital audio fidelity, wide frequency response and 120 dB dynamic range result in an audio quality that's synonymous with wired microphones.

    Its efficient and stable RF performance features up to 64MHz overall tuning range, support for 14 active transmitters in one 6 MHz TV channel and 60 compatible channels on one frequency band. The ULX-D's optimized scanning automatically finds and deploys the cleanest frequencies available and interference detection alerts provide instant confirmation when interference is present.

    The system's 256-bit signal encryption sends RF signal securely. Additional features include intelligent Shure battery circuitry for efficient battery charges, comprehensive LCD displays, XLR and 1/4" phone balanced outputs, Ethernet network capability much more.

    • Features:

      • Frequency G50 / 470 to 534MHz
      • ULXD4 Receiver
      • ULXD2 Handheld Transmitter
      • SM58 Capsule
      • ULXD1 Bodypack Transmitter
      • WL185m Cardioid Low Profile Lavalier Microphone
      • 24-Bit Transparent Digital Audio Quality
      • 300' (100m) Line of Sight Operation
      • 256-Bit Encoded Signal Encryption
      • Rugged Metal Construction

    • Specifications:

      • RF Carrier Frequency Range: 470-534 MHz, varies by region
      • Working Range: 100 m (330 ft)
      • RF Tuning Step Size: 25 kHz, varies by region
      • Image Rejection: >70 dB, typical
      • RF Sensitivity: -98 dBm at 10-5 BER
      • Latency: <2.9 ms
      • Total Harmonic Distortion: -12 dBFS input, System Gain @ +10, <0.1%
      • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
      • Spurious Rejection: >80 dB, typical
      • Connector Type: BNC
      • Impedance: 50 &Omega
      • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
      • Bias Voltage: 12 - 13 V DC; 170 mA maximum, per antenna
      • Network Interface: Single Port Ethernet 10/100 Mbps
      • Network Addressing Capability: DHCP or Manual IP address
      • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
      • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)

    • Item Includes:

      • 1x ULXD4 Digital Wireless Receiver (G50)
      • 1x ULXD2 Handheld Transmitter with SM58 Microphone Capsule (G50)
      • 1x ULXD1 Wireless Bodypack Transmitter - G50 / 470 to 534MHz
      • 1x WL185m Cardioid Low Profile Lavalier Microphone
      • 1x Power Supply
      • 2x 1/2 Wave Antenna
      • 2x BNC Cable
      • 1x Rackmount Kit
      • 1x Ethernet Cable - 5' (1.52m)
      • 2x AA Alkaline Batteries
      • 1x Rackmount Bracket, Short
      • 1x Rackmount Bracket, Long
      • 1x Link Bar
      • 1x Antenna for Bodypack transmitter
      • 1x Zipper Bag for Bodypack Transmitter
      • 1x AA Battery Adapter for Bodypack Transmitter

    • GTIN:

      0042406214148
