SL-1.1 US BLK - Overview

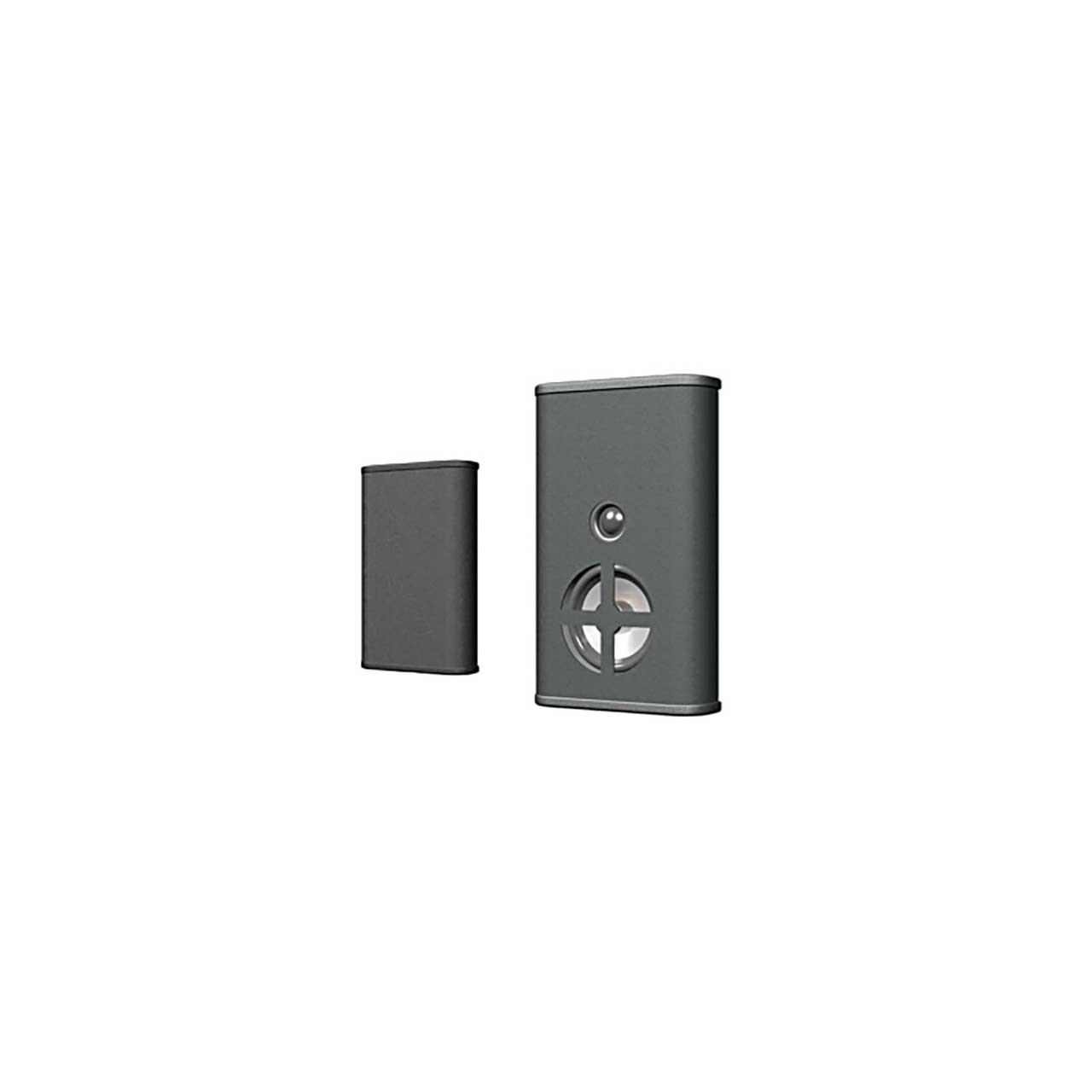

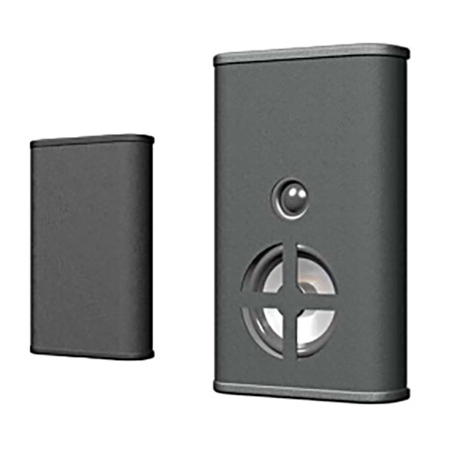

The SL-1.1US is an ultra-slim 2-way loudspeaker designed to be surface-mounted flat on a wall and disappear into the architectural surroundings. It employs a 1" textile dome HF driver and a 4" long-excursion LF driver to yield a very smooth, neutral response for near-field applications.

The addition of an available SBC-110 ceiling mounted subwoofer extends low frequency response to 34 Hz and increases maximum system SPL.

  • Features:

    • ultra-slim profile (only 1.6" deep)
    • 120° H x 120° V coverage
    • blends into architectural environment
    • hidden mounting bracket

  • Specifications:

    • Nominal Data
    • Frequency Response: 130 - 20,000 Hz ± 3 dB
    • Sensitivity: 89 dB @ 2.83 volts / 1M
    • Impedance: 8Ω
    • Power Handling: 45 W long term program
    • Maximum Output: 103 dB long term / 109 dB peak @ 1 meter on axis
    • Nominal Coverage Angles: 120° H x 120° V
    • Dimensions (H x W x D): 11.00" x 6.75" x 1.75"
    • Net Weight 4.2 lbs
    • Shipping Weight 5.2 lbs

      Descriptive Data
    • System Configuration: Low profile 2-way
    • Components & Loading: (1) 4" LF, (1) 1" textile dome HF
    • High-Pass Filter: Built-in 1st order @ 120 Hz
    • Enclosure Type: Sealed, ultra-slim profile
    • Enclosure Material: Steel chassis, with composite endcaps
    • Finish: Black or White (custom colors available)
    • Connectors: Dual binding head screws
    • Suspension Hardware: Hidden bracket included
    • Grille: Integral, fabric wrapped, or optional perforated metal grille
