SLINGSTUDIO HUB - Overview

The industry's first portable, wireless multi-camera broadcasting platform. Monitor, record, switch, edit and stream live HD-quality video wirelessly to Facebook, YouTube, Twitch, Twitter/Periscope, Livestream, Ustream, Restream.io and other RTMP destinations. It's portable, affordable and easy to use.

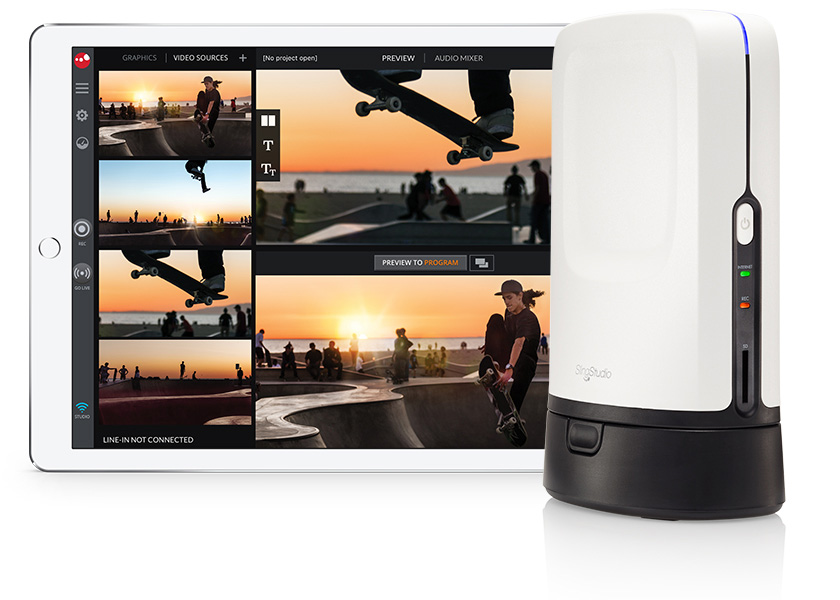

When one camera angle isn't enough, SLINGSTUDIO delivers simple multi-camera magic for a variety of video applications including sports, schools, houses of worship, distance learning, corporate events, weddings, voice overs, video blogging and broadcast TV/ There are all kinds of possibilities. When used with SlingStudio hardware, the SlingStudio Console app puts the power of multi-camera right in your hands, allowing you to easily manage your entire wireless SlingStudio production with a supported iPad.

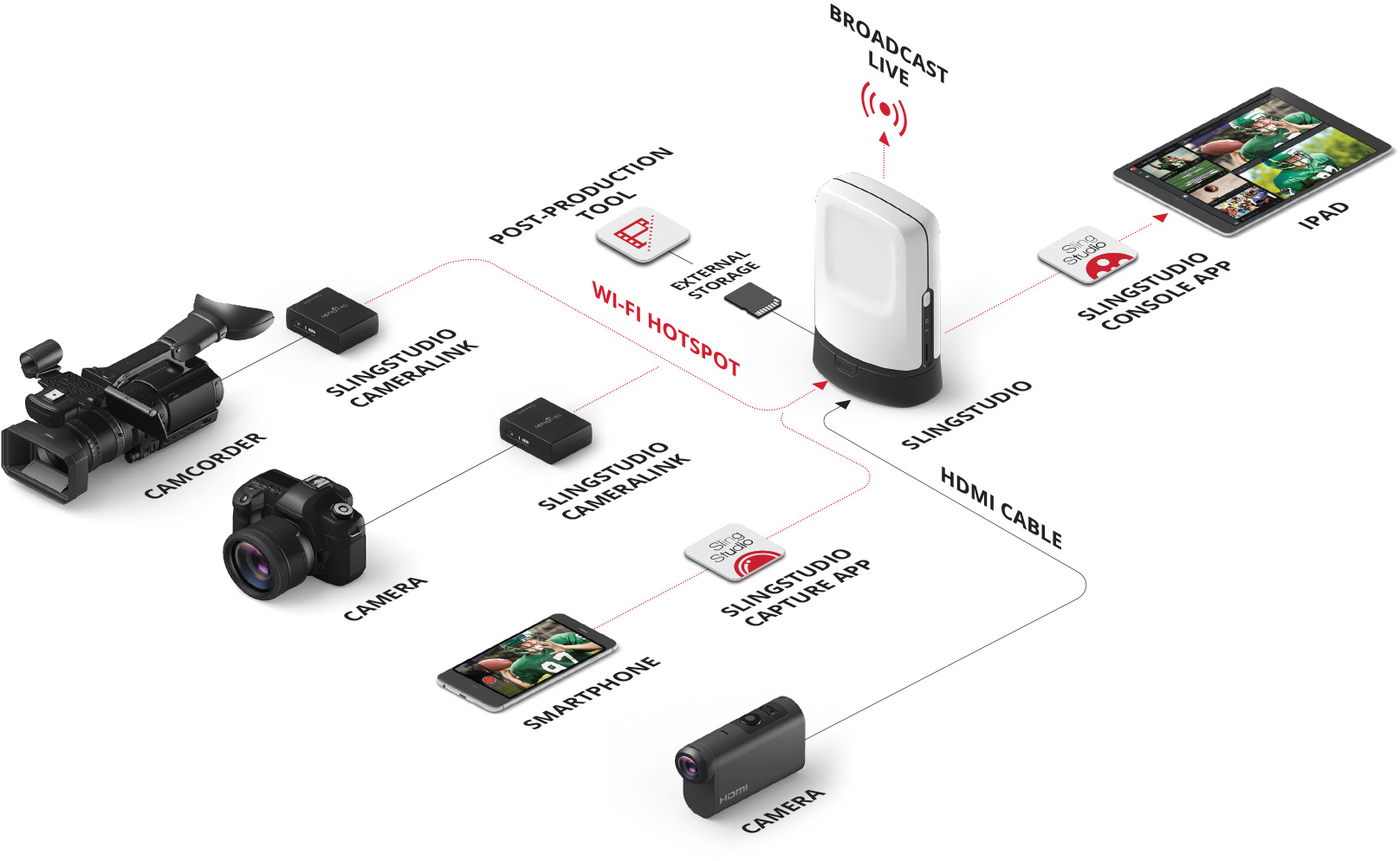

The wireless, battery-powered SlingStudio makes it easy to connect cameras and smartphones to live-broadcast your professional multi-camera productions. Connect up to 10 video sources and, with no cables or external power source, you can be on location anywhere you can carry a backpack. Video sources can be your iPhone, iPod, Android phone a pro camera or even a laptop... all in gorgeous 1080p HD resolution.

SlingStudio is the new standard in portable video production. Now it's simple for anyone to wirelessly connect multiple cameras to record, edit, produce and broadcast their own synchronized live or recorded streams from anywhere. SlingStudio is an affordable, easy-to-use alternative to traditional end-to-end video platforms. Setup is simple so you can start creating content right away, without training. SlingStudio gives you smart playback with embedded tags, plus cloud storage. Live-share your broadcast-quality content and collaborate with other users.

  • Features:

    • Connect up to 10 video sources and monitor up to 4 using the Console app running on iPad Air 2 or above (free download from the Apple App Store)
    • Switcher supports cut, dissolve and wipe transitions as well as Picture-in-picture (PIP), multiple split views
    • Full audio mixer functionality with monitoring mode support and adjustable audio delay up to 330 milliseconds to synchronize line-in audio with video
    • Overlays Text overlays, lower-thirds (title and scoreboard)
    • Import JPG and PNG graphics (1920 x 1080 resolution) for live switching/production or MP4 and MOV videos for live switching/production
    • Video sources can be an iPhone, iPod, Android phone, a pro camera or a laptop
    • Insert, adjust and overlay your own JPG and PNG graphics - including logos, lower-third titles, profile pics, ads and background images - on your live program feed.
    • Get up to 7 recordings with each production, including individual feeds, the program recording, a quad view and line-in audio.
    • With zero wires to wrangle and camera distances of up to 300 feet, your setup and teardown is a breeze.
    • Enhance the live viewing experience with a no-latency HDMI passthrough mode that syncs your video with the house audio.
    • Easily import your footage to Adobe Premiere Pro CC and Apple Final Cut Pro X, saving hours of post-production time.

  • Specifications:

    • Wireless Video Inputs:
    • Up to 4 monitored sources via Wireless 802.11ac connectivity, supporting up to 1080p30, 720p60, and 720p30 video
    • Up to 2 monitored sources via wireless 802.11ac connectivity, supporting up to 1080p60 video

      Supported wireless sources* via 802.11ac:
    • Cameras/camcorders* with HDMI output (requires CameraLink, sold separately)
    • iPhone 6* or higher (requires Capture app - free download from Apple App Store)
    • Select Android phones* with Android 5.0 Lollipop or higher (requires Capture app - free download from Google Play)

      HDMI Input
    • Video: HDMI Type A connector - 1080i60, 1080p30, 720p60 and 720p30
    • Audio: 2-channel embedded audio (48 KHz, 16-bit)

      HDMI Video Output
    • HDMI Type C connector supporting up to 1080p60 video output of program/quad view. Zero-latency option available in HDMI passthrough mode for an HDMI input source.

      Analog Audio Input
    • 3.5 mm port for line-level, 2-channel unbalanced input (mic-level input requires external pre-amp or mixer)

      AV Sources Supported
    • Up to 10 connected sources and 4 monitored sources* in 1080p30/720p60/720p30 modes. Some example combinations include:
    • 2 smartphones, 1 CameraLink, 1 HDMI input
    • 3 smartphones, 1 HDMI input
    • 3 cameras/camcorder via CameraLink, 1 HDMI input
    • 4 cameras/camcorder via CameraLink
    • 4 smartphones

      AV Sources Supported
    • Up to 2 monitored sources.* Some example combinations include:
    • 2 cameras/camcorder via CameraLink
    • 2 smartphones
    • 1 camera/camcorder via CameraLink, 1 smartphone

      Multi-Camera Monitoring
    • Simultaneous monitoring of up to 4 video sources on iPad Air 2 or higher (requires free download of Console app from the Apple App Store)

      Video Recording Formats (MP4)
    • H.264 High Profile 4:2:0
    • 1080p60 up to 30 Mbps
    • 1080p30 up to 16 Mbps
    • 720p60 up to 16 Mbps
    • 720p30 up to 4 Mbps

      Audio Recording Formats (AAC-LC)
    • 2-channel 48 KHz, 16-bit up to 320 Kbps

    • Multi-Stream Recording (MP4)
    • 7 simultaneous recordings of:
    • 4 video sources/inputs
    • 1 quad view of 4 inputs (video only)
    • 1 program/output stream
    • 1 line-in (audio-only) recording

    • Recording Media Types
    • SD card slot (selected UHS speed class U3 and higher*)
    • USB 3.0 hard drives, SSD drives - available via USB-C port (requires USB-C Expander - sold separately)

    • Playback
    • Playback of all recordings from the Console app
    • Timecode Syncing
    • Import and time-align recordings directly to Adobe Premiere Pro CC and Apple Final Cut Pro X.
    • Create a new program recording in 4K, in higher bit rates, or with higher quality video codecs, with all edits, effects and transitions preserved in the higher-quality program recording.

      Livestreaming
    • Simultaneous recording and livestreaming of program output
    • Max. bit rate for livestreaming: 8 Mbps (input source bit rates up to 30 Mbps)

      Platforms Supported
    • Facebook, YouTube, Twitch, Twitter/Periscope, Livestream, Ustream, Restream.io and other RTMP destinations

  • GTIN:

    0753960015026
