Sennheiser SL RACK RECEIVER DW-4-US SpeechLine Rack Receiver

ITEM #: SLRACKRECEIVERDW MFG #: SL RACK RECEIVER DW-4-US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$669.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SL RACK RECEIVER DW-4-US - Overview

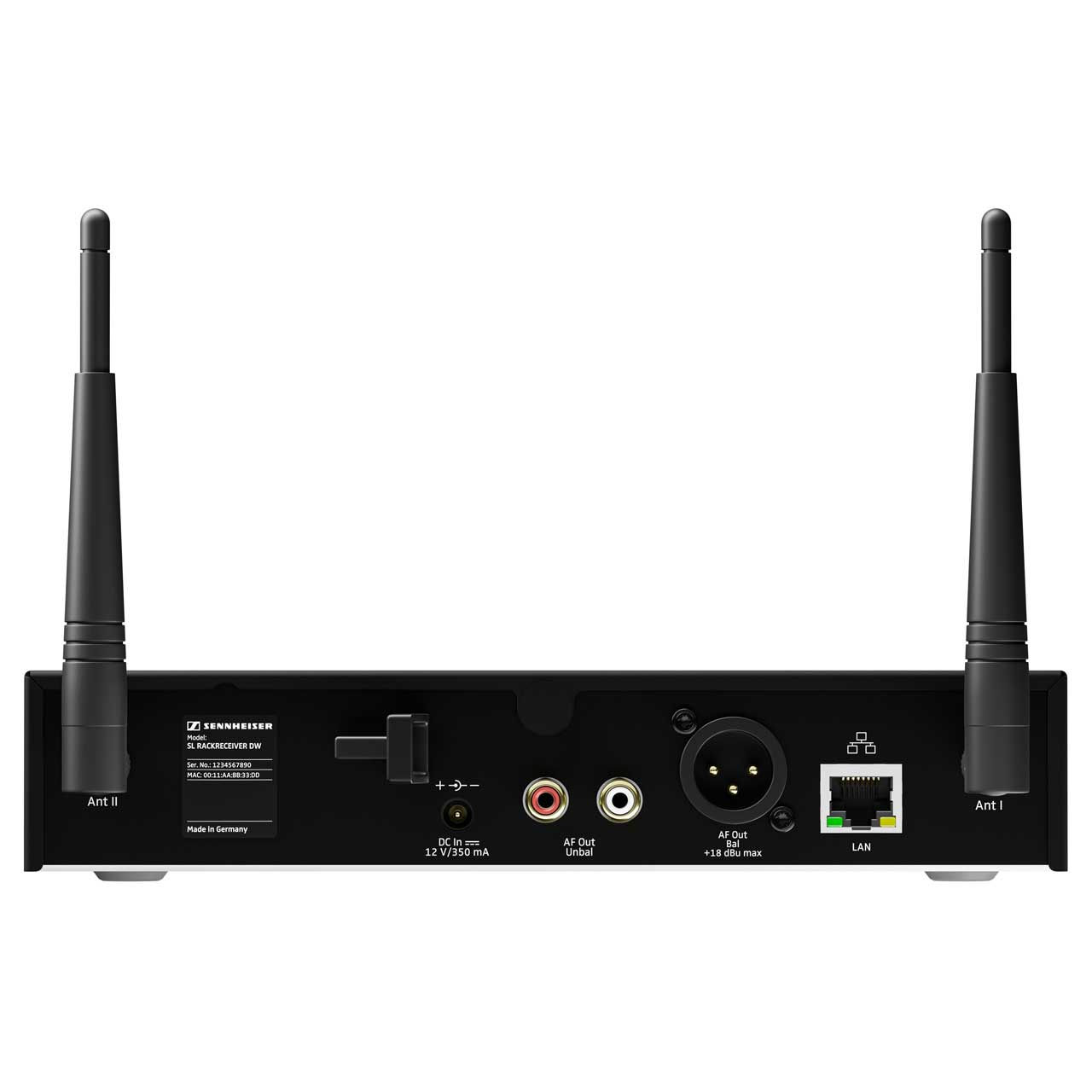

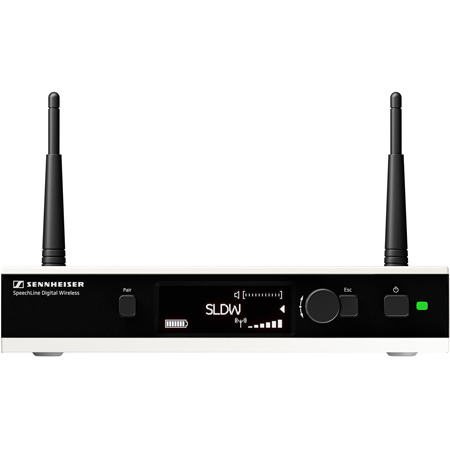

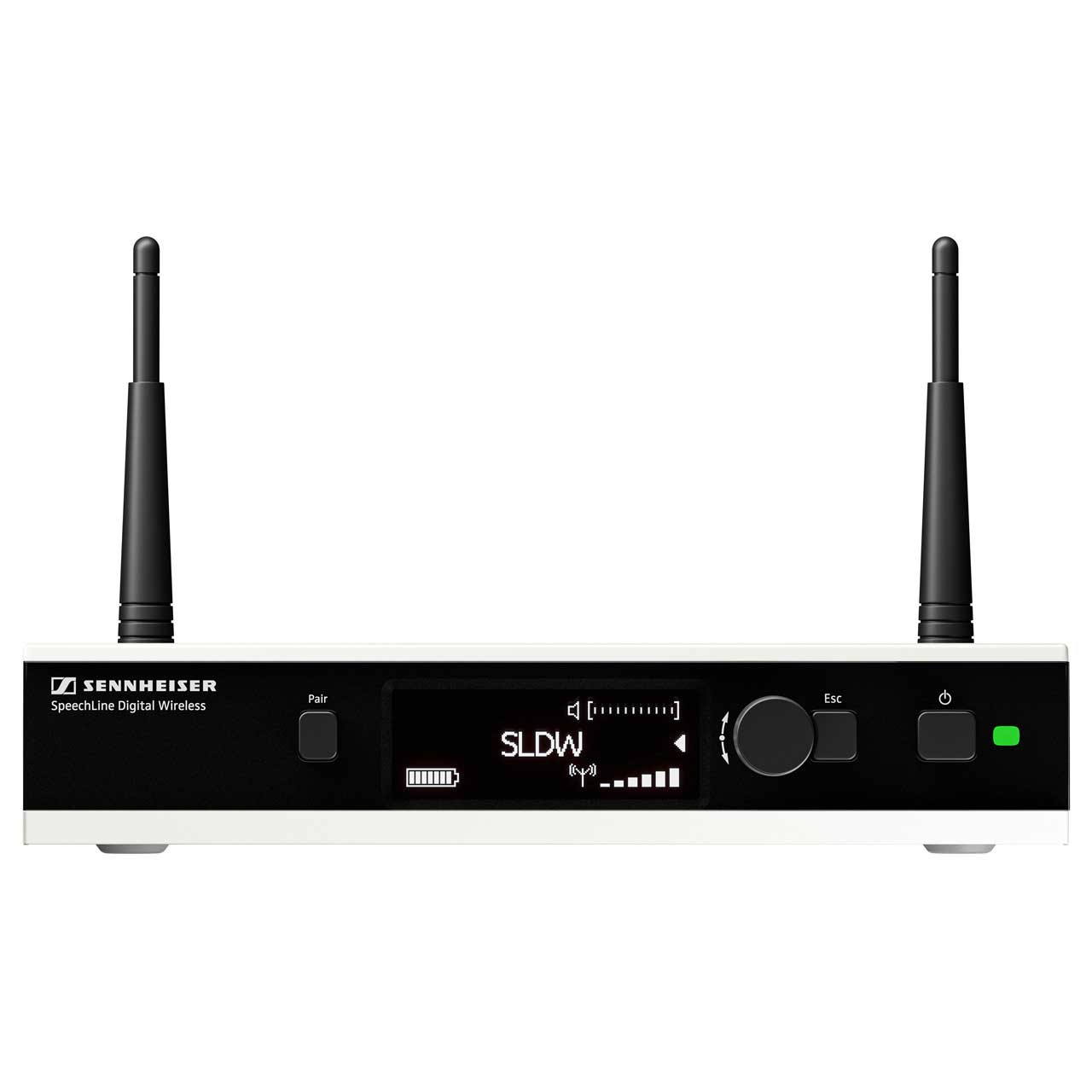

The Sennheiser SL RACK RECEIVER DW-4-US half 19" stationary SL Rack Receiver is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.

  • Features:

    • Automatic frequency and interference management
    • Speech optimized automatics and sound profiles
    • Clear and easy focused user interface with OLED display
    • Ethernet connectivity (IPv4 and IPv6)
    • Media control protocol integration
    • Secure 256 bit AES encryption
    • Remote controllable
    • Quick setup pairing process

  • Specifications:

    • Power Supply: 12 V DC
    • Frequency Range: 1,920 to 1,930 MHz
    • Frequency Response: 20 to 20,000 Hz
    • THD, total harmonic distortion: typ. 0.1 %
    • Weight: approx. 828 g
    • Power Consumption: 350 mA
    • Signal-to-Noise Ratio: > 90 dB(A)
    • RF Output Power: Adaptive, up to 250 mW (country-specific)
    • Antenna Connector: 2 x reverse SMA
    • Audio Output Level (balanced): max. +18 dBu, typ. -24 dBu
    • Audio Output Level (unbalanced): max. +6 dBu

      Audio Effects
    • Low Cut: -3 dB at 120 Hz
    • Equalizer: 7-band graphic equalizer withsound presets
    • Sound profiles: Female voice, male voice, instrument/media

    • Network Protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
    • Dynamic Range: > 120 dB(A)
    • RF Sensitivity: < -90 dBm
    • Sampling rAtes: 24 bit/48 kHz
    • Connection: Audio Out - XLR 3M Audio Out: 2 x RCA Network: RJ 45

  • Item Includes:

    • 1x SL Reveiver DW - Rack Receiver
    • 1x Power Supply
    • 1x Antennas

  • GTIN:

    0615104243804
