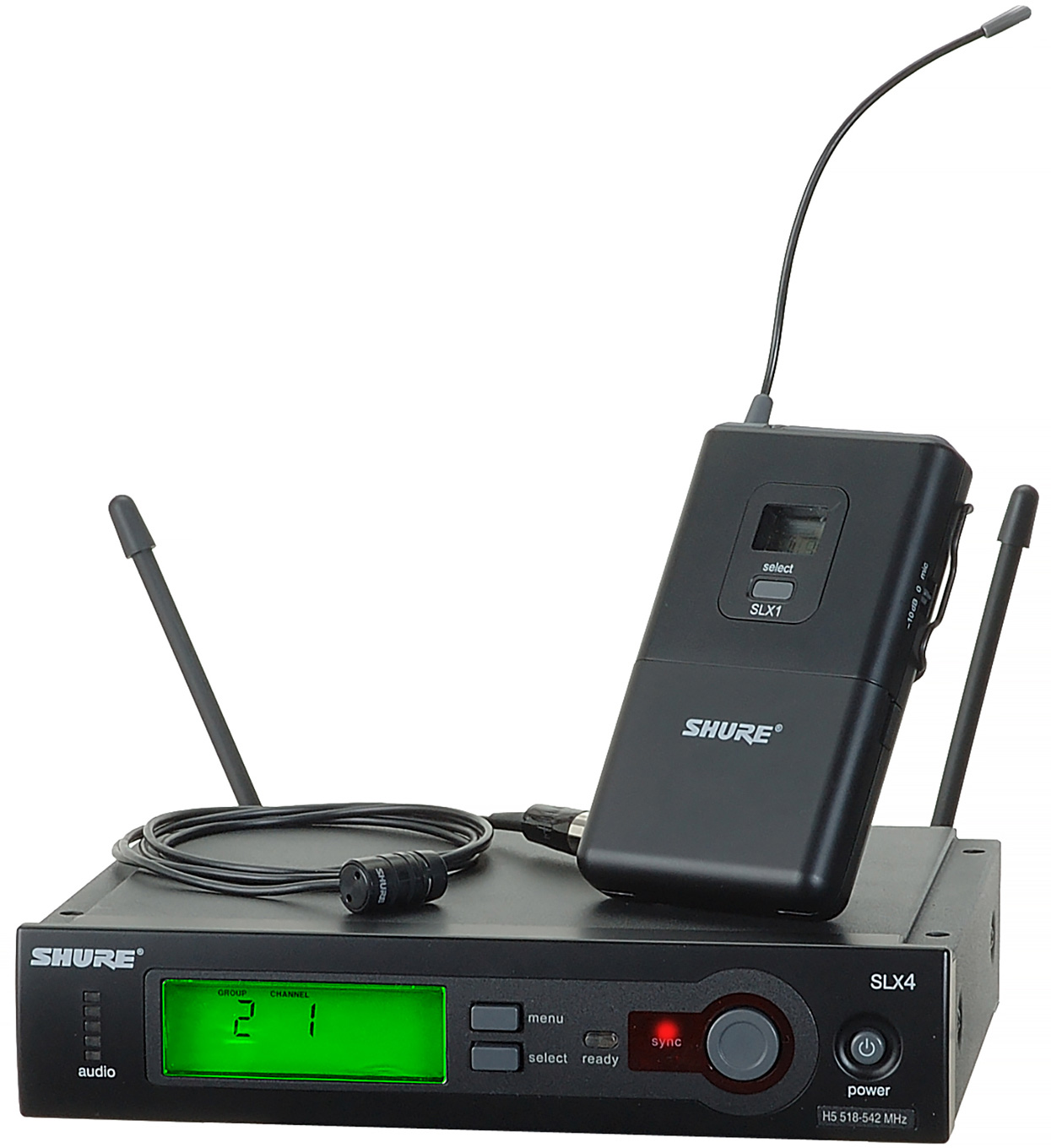

Shure SLX Wireless Bodypack System with WL185 Mic - H5 518-542 MHz

SLX14/85-H5 - Overview

• Features:

  • SLX1 Features
  • Automatic Transmitter Setup
  • Backlit LCD with timeout feature
  • Frequency and power lockout
  • 3-segment battery fuel gauge
  • 2 AA batteries (included) provide 8 hours continuous use
  • Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25" x 2.5" x 0.75")

    SLX4 Features
  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Optional logic functionality for software echo cancellation and remote battery life monitoring (SLX4L only)

    WL185 Features
  • For Live Vocals, Video, Broadcast & ENG
  • Cable Terminated with TA4F Connector
  • Tailored Frequency Response
  • Cardioid Polar Pattern
  • Includes Tie Clip
  • Windscreen


• Specifications:

  • Operating Range: 30-100 m (100-300 ft.) under typical conditions, depending on transmitter type
  • Audio Frequency Response: Minimum: 45 Hz, Maximum: 15 kHz (± 2 dB)
  • Total Harmonic Distortion: 0.5%, typical (ref. ± 38 kHz deviation, 1 kHz tone)
  • Dynamic Range: >100 dB A-weighted
  • Operating Temperature Range: -18°C (0°F) to +50°C (+122°F)

    SLX4/SLX4L Specs
  • Housing: Galvanized steel
  • Audio Output Level: XLR connector (into 600 Ω load): -13 dBV
  • 1/4 inch connector (into 3000 O load):
  • -2 dBV
  • Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: >70 dB, typical
  • Power: 12-18 Vdc at 150 mA, supplied by external power supply

    SLX2 Specs
  • Housing: Molded ABS handle and battery cup
  • Audio Input Level: -8 dBV maximum at 0dB position
  • Operating range: 100 m (300 ft.)
  • Power Requirements: 2 AA size alkaline or rechargeable batteries
  • Battery Life (alkaline): >8 hours

    SLX1 Specs
  • Housing: Molded ABS case
  • Audio Input Level: +10 dBV max. at 0 dB gain position
  • Operating range: 100 m (300 ft.)
  • Power Requirements: 2 AA size alkaline or rechargeable batteries
  • Battery Life (alkaline): >8 hours

    WL185 Specs
  • Frequency Response: 50 to 17,000 Hz
  • Output Impedance: 1800 Ω
  • Dynamic Range: 102.5 dB
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  • Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter


• Item Includes:

  • WL185 lavalier microphone
  • SLX1 bodypack transmitter
  • SLX4 receiver
  • Tie clip
  • Rackmount kit
  • Two 1/4 wave antennas
  • Power supply
  • 2 AA batteries
  • protective bumpers with 8 screws
  • vinyl bag
  • user guide


• GTIN:

  0042406122276
