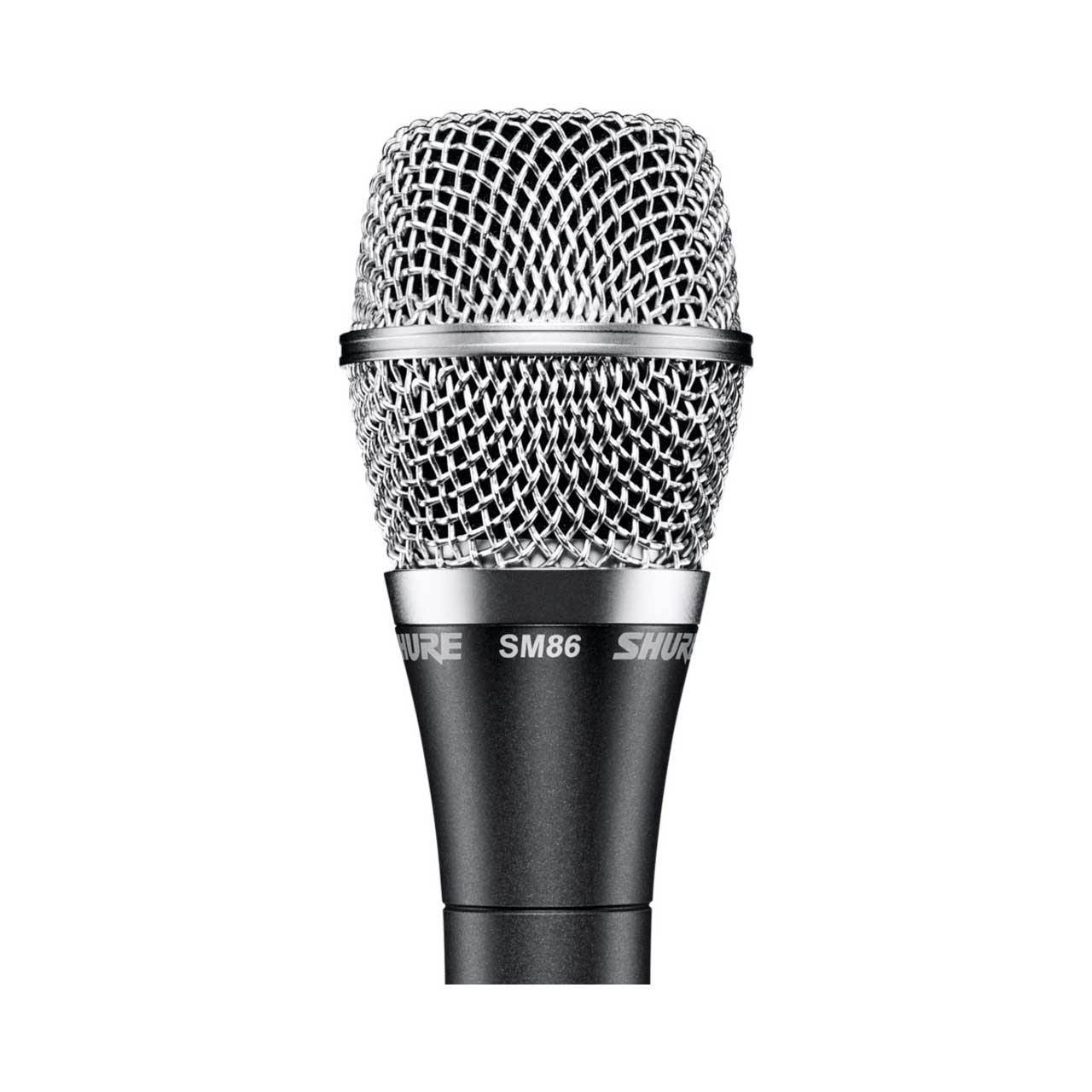

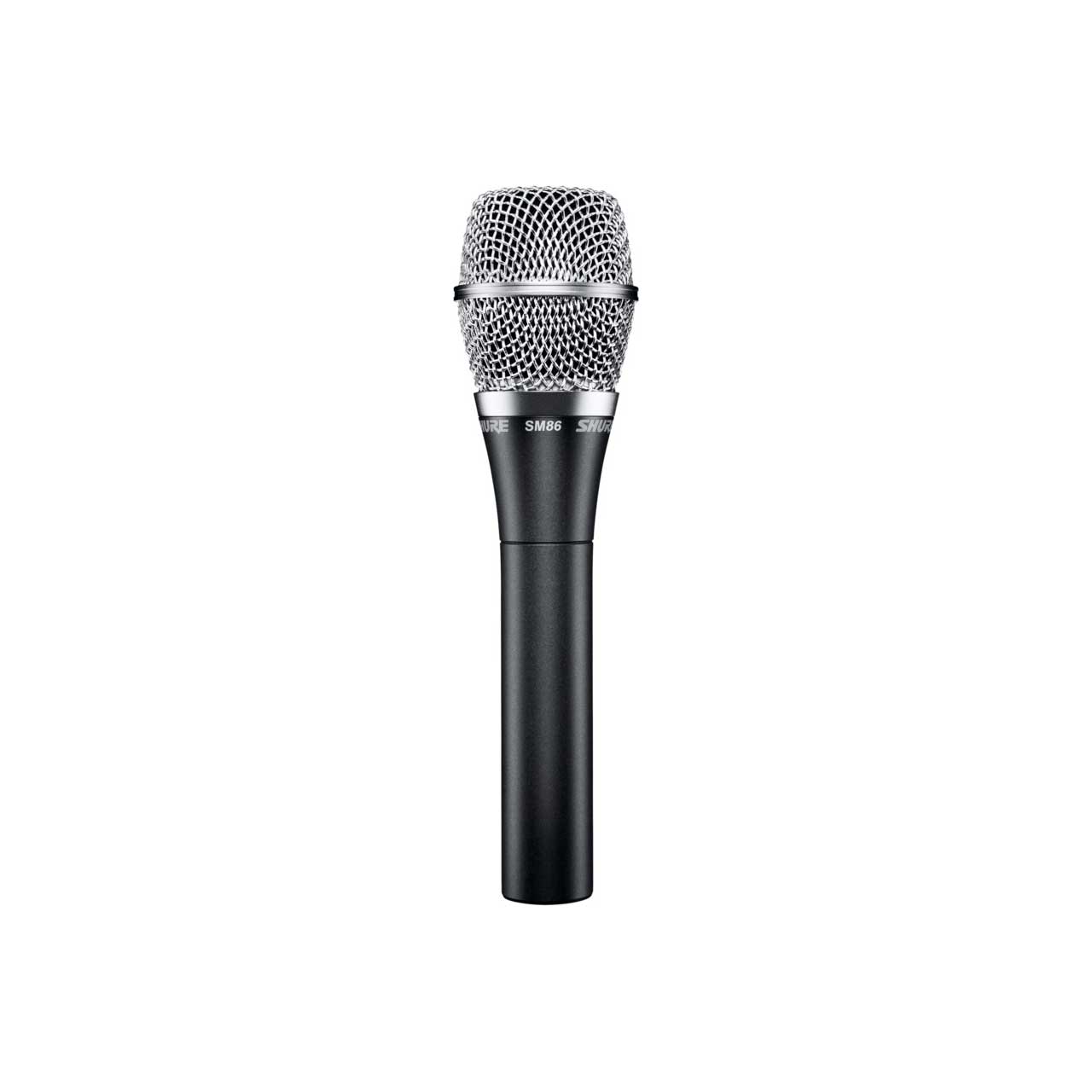

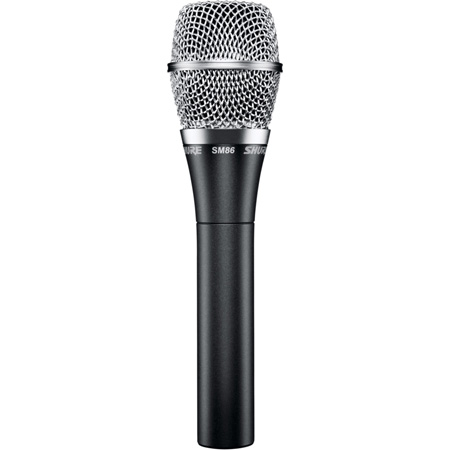

Shure SM86 Cardioid Condenser Handheld Microphone

SM86 - Overview

• Features:

  • Condenser cartridge for studio quality sound
  • Tailored frequency response for a clear reproduction of vocals
  • Rugged construction withstands the rigors of touring sound
  • Cardioid polar pattern minimizes unwanted background noise
  • Excellent choice for stage monitors and personal monitors
  • Built-in three-point shock mount minimizes handling noise
  • Two-stage "pop" filter reduces wind and breath noise


• Specifications:

  • Type: Condenser
  • Frequency Response: 50 to 18,000 Hz
  • Polar Pattern: Cardioid Sensitivity (at 1,000 Hz)
  • Open Circuit Voltage: -50 dBV/Pa (3.15 mV) (1 Pa = 94 dB SPL)
  • Impedance: 150 Ohms at 1 kHz
  • Recommended minimum load impedance: 600 Ohms
  • Output Clipping Level: 1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
  • Maximum SPL (at 1,000 Hz): 1000 ohm load (1% THD): 147 dB
  • Self-Noise: 23 dB typical, A-weighted
  • Dynamic Range (1000 ohms): 124 dB (maximum SPL to A-weighted noise level)
  • Signal-to-Noise Ratio: 71 dB at 94 dB SPL (IEC 651) *S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
  • Power Requirements: 11 to 52 Vdc, 5.2 mA
  • Case: Dark gray, enamel-painted, die-cast with a stainless steel grille
  • Connector: Three-pin professional audio connector (male XLR type)
  • Net Weight : 284 grams (10 oz)
  • Dimensions: 183 mm (6-3/16 in.) L x 49 mm (1-1/4 in.) W at the widest point


• Item Includes:

  • 1 - A25D Break Resistant Microphone Clip
  • 1 - 26A13 Microphone Bag
  • 1 - 31A1856 5/8" to 3/8" Thread Adapter


• GTIN:

  0042406112406
