Tripp Lite SMART1500PSGLCD 1500VA 900 Watt/120V Pure Sine Wave Gaming UPS Battery Backup - LCD/AVR/RGB LEDs/USB Charging

ITEM #: SMART1500PSGLCD MFG #: SMART1500PSGLCD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$470.07

Our Price:

$349.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMART1500PSGLCD - Overview

This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1500PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater.

Reliable, Expandable Battery Backup Keeps You Playing Through Power Outages
The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 300W gaming system connected, the SMART1500PSGLCD provides 17 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout. For additional play, the UPS supports an optional Tripp Lite BP24V9T external battery pack (sold separately), which provides 41 minutes of expanded runtime.

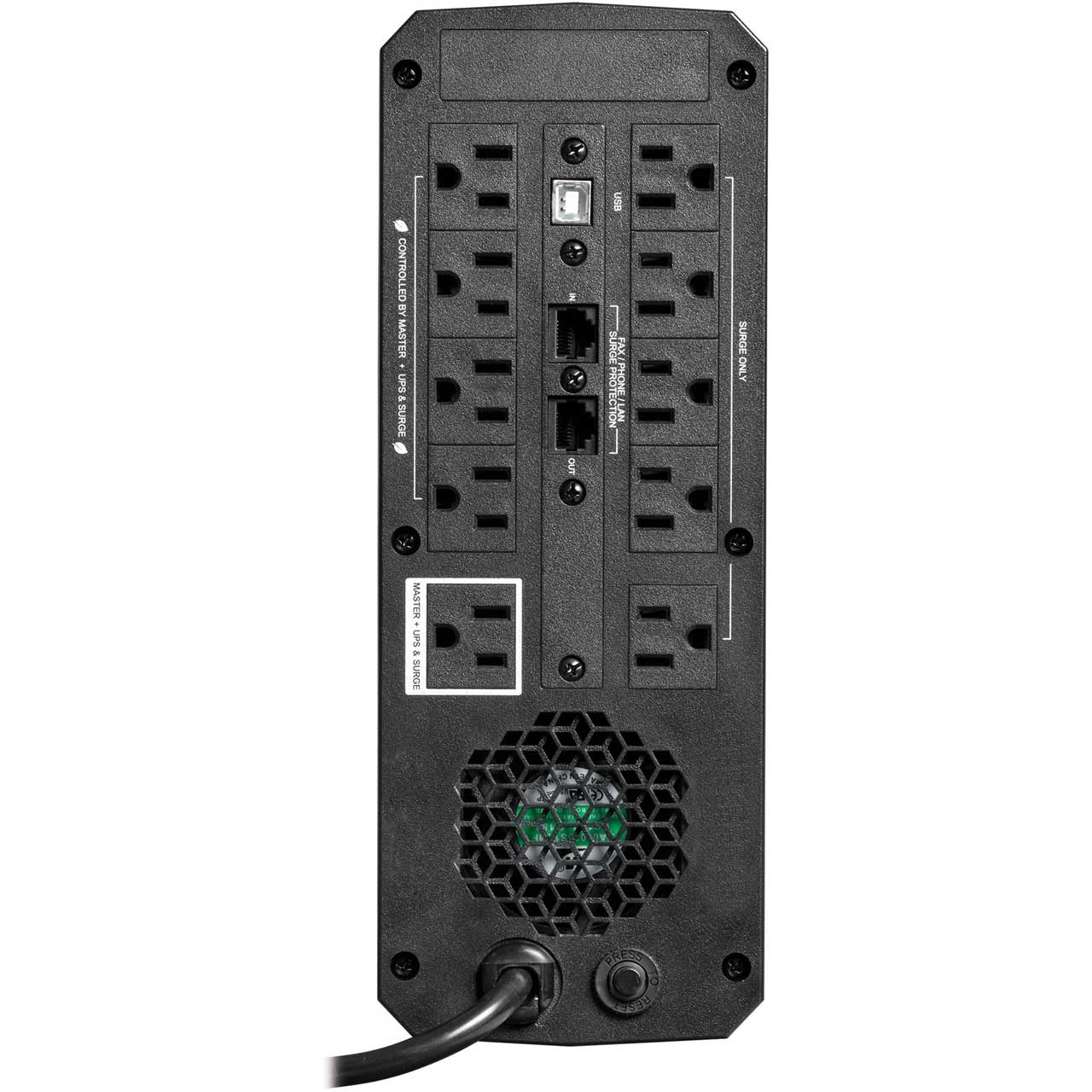

10 NEMA 5-15R Outlets
Four 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Five outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device.

Dynamic Lighting Adds Excitement to Your Gaming Experience
The SMART1500PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or Tripp Lite's free downloadable software utility, two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations.

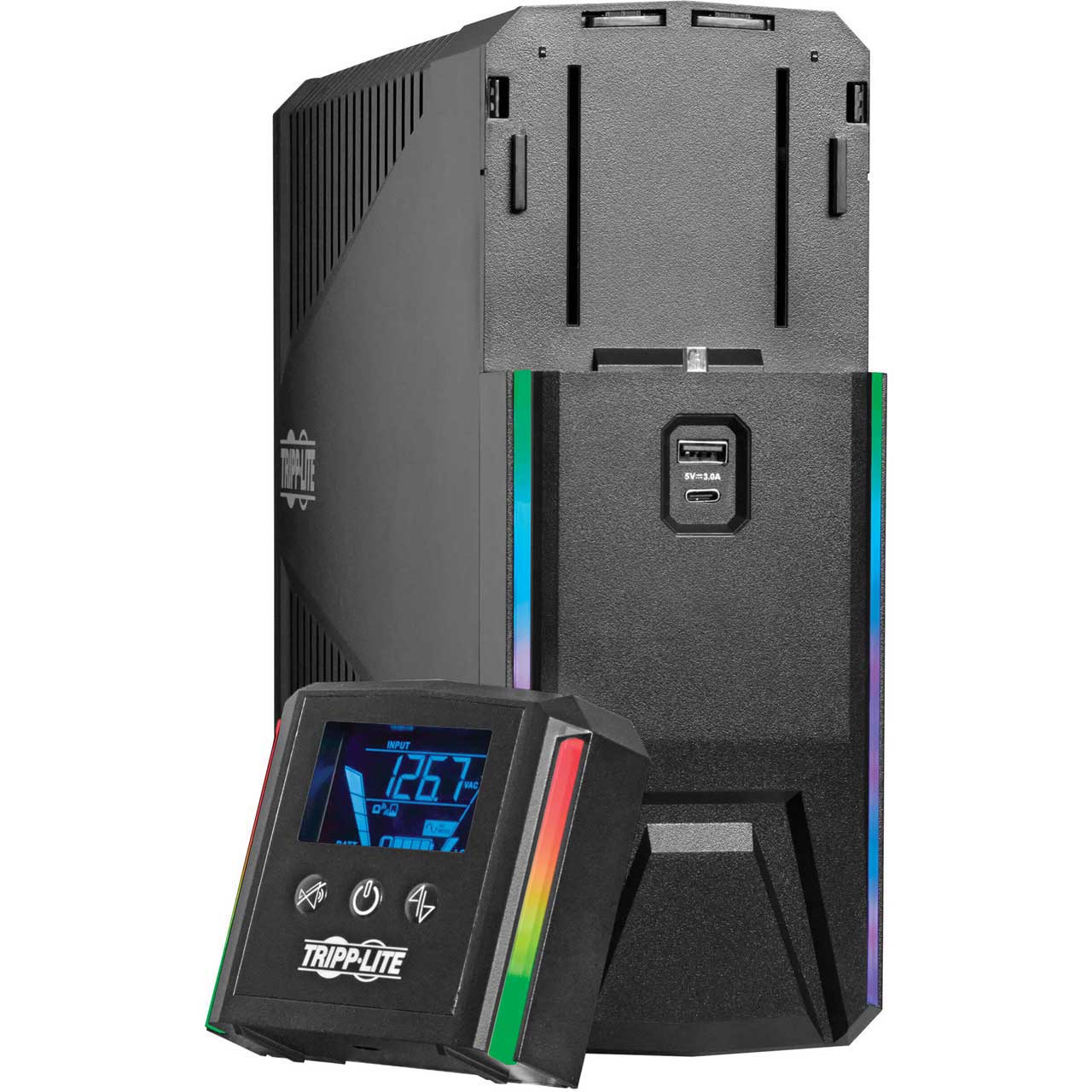

Detachable Wireless LCD Reports Real-Time Status
The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours.

Automatic Voltage Regulation Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500PSGLCD maintains regulated 120V nominal output during brownouts as low as 97V and overvoltages up to 145V, while keeping the battery fully charged and ready to take over in case of power failure.

Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Safely Shut Down Automatically Even When You Aren't Around
By downloading and installing Tripp Lite's free PowerAlert® software on your computer and connecting it to the UPS system with the included USB cable, you can set up safe unattended shutdown in the event of a prolonged power failure when you aren't around.

Note: Installing PowerAlert provides enhanced functionality, but is not required.

  • Features:

    • Protects your gaming equipment against blackouts, brownouts and surges
    • Keeps power running during outages to allow time for game saves and safe shutdown
    • Maintains continuous 120V nominal output during low- and high-voltage conditions
    • USB charging ports keep your smartphone, tablet and other devices at capacity
    • Programmable RGB LED banks offer more than 16 million color combinations

  • Specifications:

    • Input
    • Rated input current (Maximum Load): 12A
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-15P
    • Input Circuit Breakers: 15A
    • UPS Input Cord Length (ft.): 5
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase

      Output
    • Output Capacity: (VA): 1500, (kVA): 1.5, (Watts): 900, (kW): 0.9
    • Frequency Compatibility: 50 / 60 Hz
    • Frequency Compatibility Details: Automatic frequency selection
    • Output Voltage Regulation (Line Mode): 120V (±10%)
    • Output Voltage Regulation (Battery Mode): 120V (±10%)
    • UPS Output Receptacles (Surge Suppression Only): 5 UPS outlets, 5 surge-only outlets
    • Output AC Waveform (AC Mode/Battery Mode): Pure Sine wave
    • Nominal Output Voltage(s) Supported: 120V
    • Output Receptacles: (10) 5-15R

      Battery
    • Battery Type: Valve Regulated Lead Acid (VRLA)
    • Runtime Full Load (min.): 3
    • Runtime Half Load (min.): 10
    • Expandable Battery Runtime: Extended runtime supported via optional external battery pack (limit 1)
    • DC System Voltage (VDC): 24
    • Battery Recharge Rate (Included Batteries): 7 hours from 10% to 90%

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 97V and overvoltages up to 145V
    • Overvoltage Correction: Input voltages between 132-145 are reduced by 10.3%
    • Undervoltage Correction: Input voltages between 97-108 are boosted by 11.5%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 316
    • UPS AC Suppression Response Time: Instantaneous
    • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Primary Form Factor: Tower
    • Cooling Method: Fan
    • Shipping Dimensions: 14.80 x 7.28 x 19.68"
    • UPS Housing Material: ABS
    • UPS Power Module Dimensions: 11.02 x 4.13 x 16.92"
    • UPS Power Module Weight: 29.26lb

      Environmental
    • Operating Temperature Range: +32 to +104 ° F
    • Storage Temperature Range: +5 to +122 ° F
    • Relative Humidity: Up to 90%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 98
    • AC Mode Efficiency Rating (100% Load): >96%

      Line / Battery Transfer
    • Transfer Time: 6ms typical, 10ms max
    • Low Voltage Transfer to Battery Power (Setpoint): 97V
    • High Voltage Transfer to Battery Power (Setpoint): 145V

      Standards & Compliance
    • Product Certifications: RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
    • Product Compliance: FCC Part 15 Class B (USA)

  • Item Includes:

    • 1x SMART1500PSGLCD Pure Sine Wave Gaming UPS Battery Backup
    • 1x USB cable
    • 1x Owners manual

  • Warranty:

    • 3-year limited

  • GTIN:

    0037332253774
