HDVF-L10 - Overview

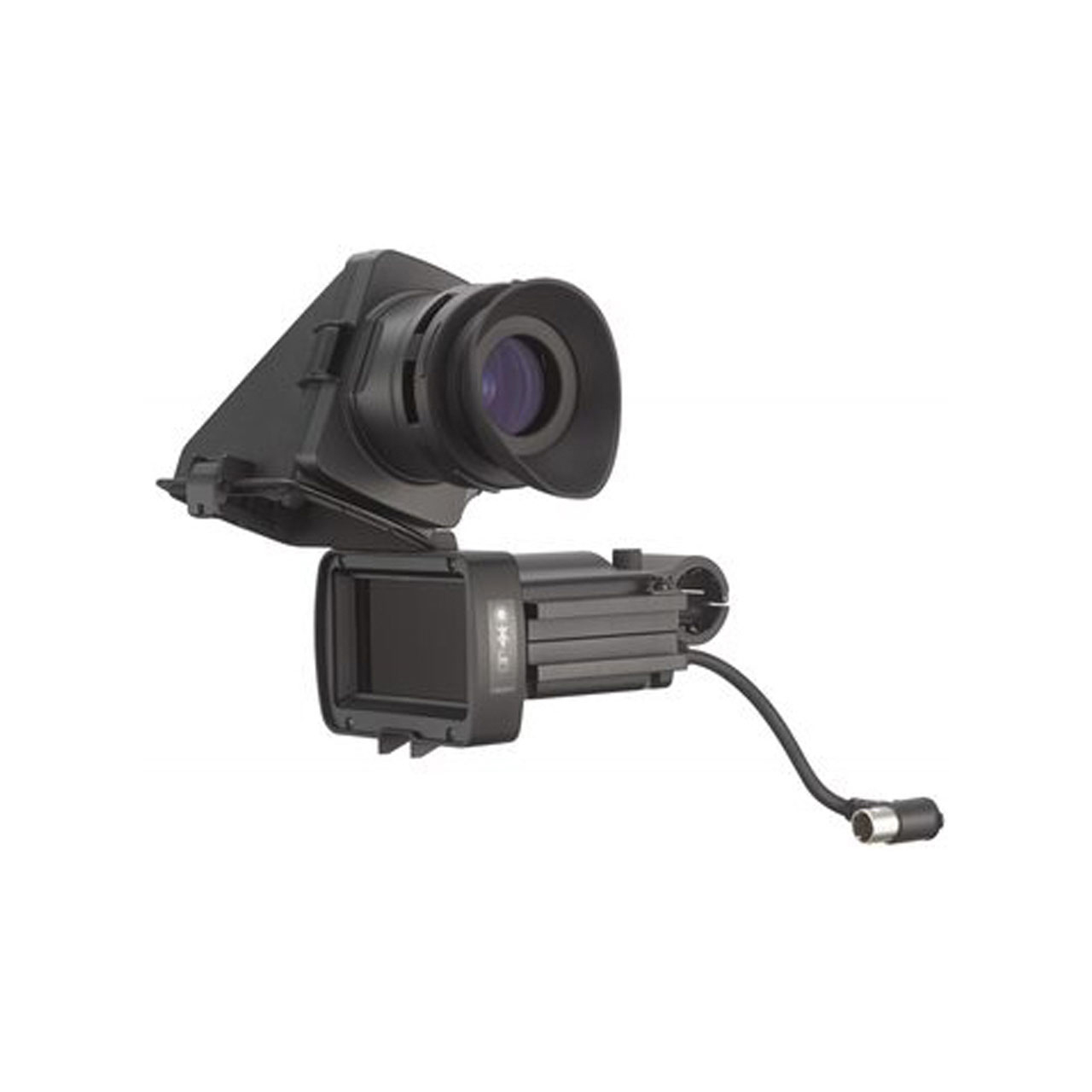

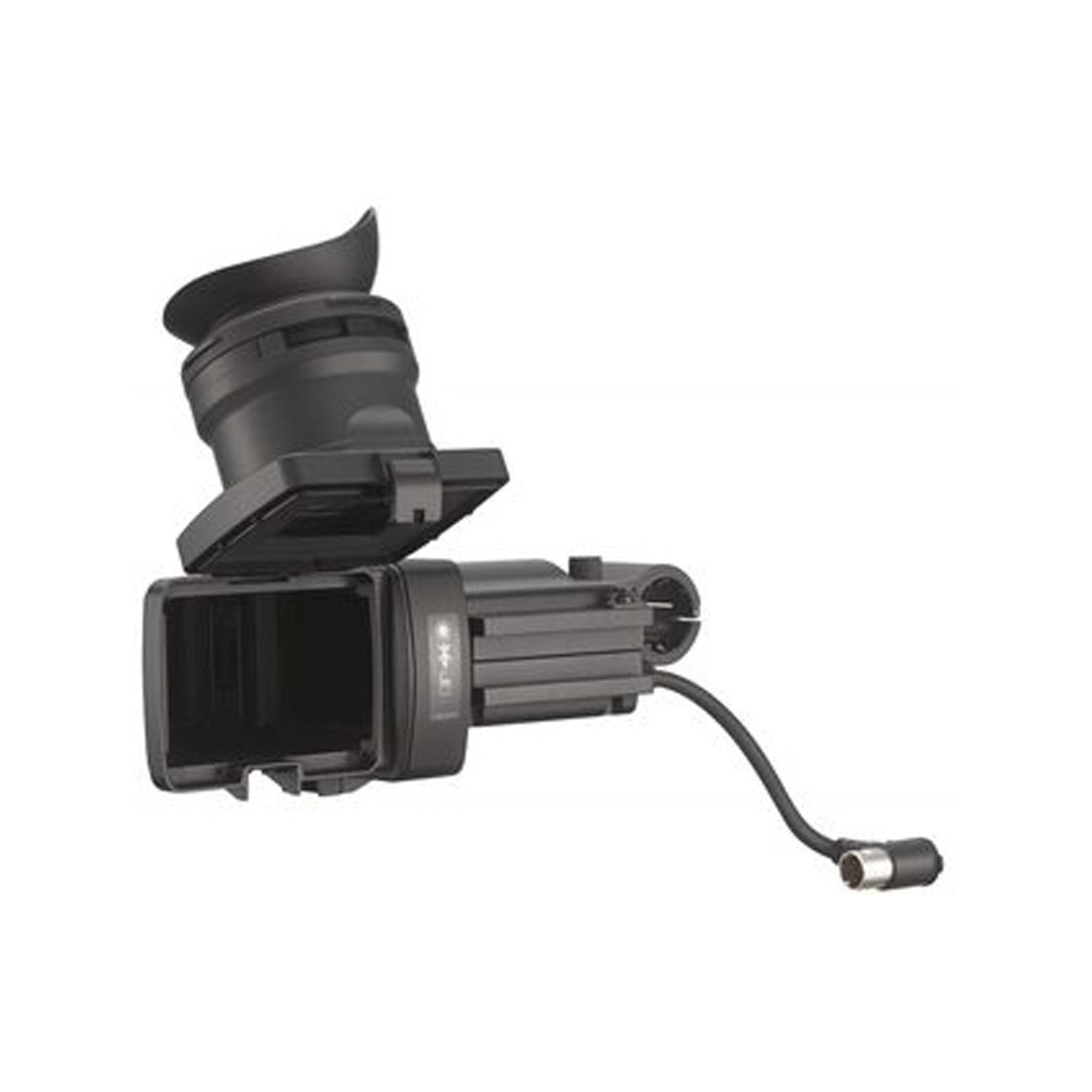

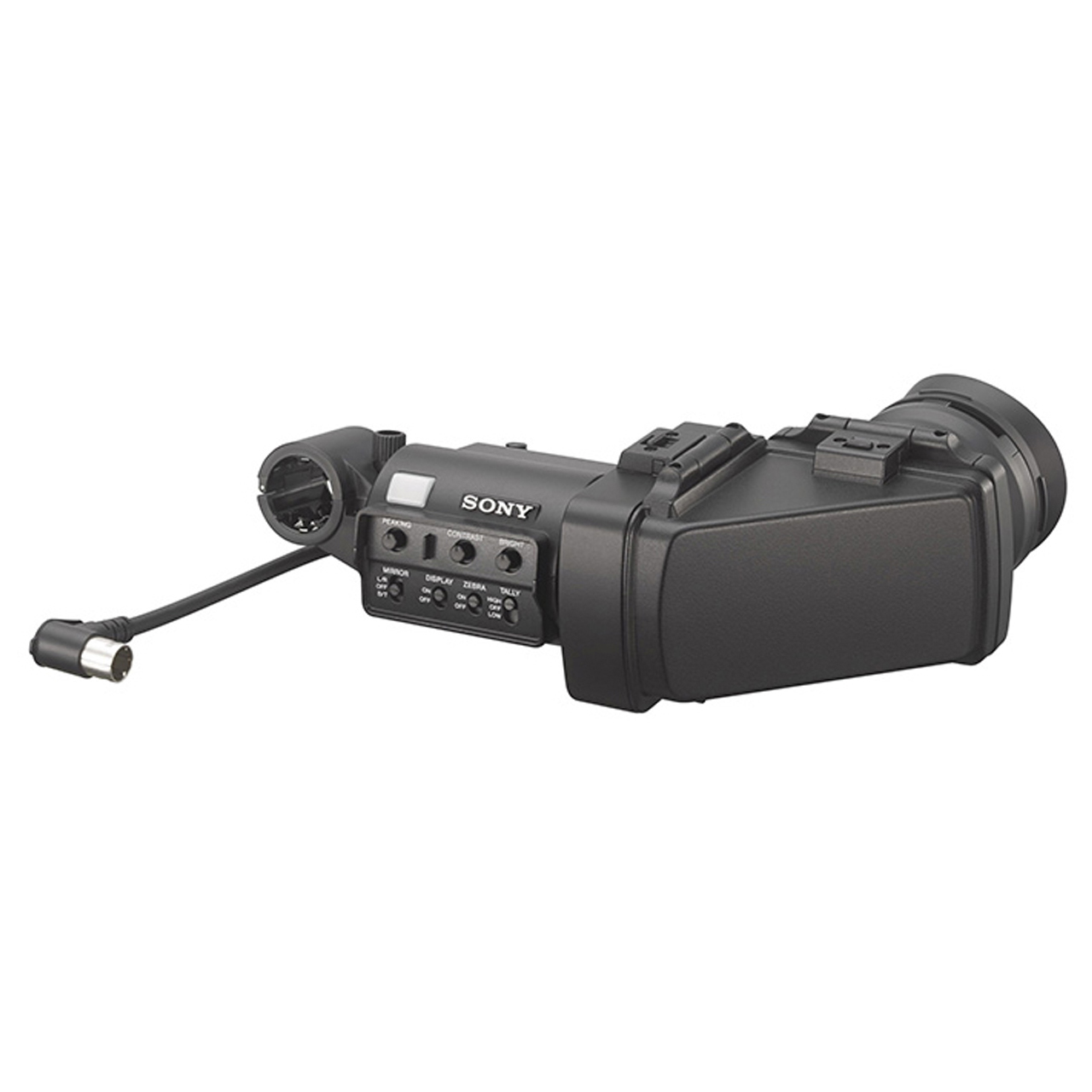

The Sony HDVF-L10 is a 3.5" Color LCD HD Viewfinder for cameras with a round-type 20-pin viewfinder interface. The applicable cameras output the higher resolution QHD signal to this viewfinder. Camera operators can see the LCD, directly, because the optical loupe and the elbow parts can be flipped-up

Compatible Cameras:
HXC-FB75KC
HXC-FB75H
HDC-1700
HDC-2400
HDC-2500
HDC-2570
HDC-3300R
HDC-4300
HSC-100R
HSC-100RF
HSC-300R
HSC-300RF
PDW-680
PDW-700
PDW-850
PDW-F800
PMW-500
PXW-X400
PXW-X500

Features:
- 3.5 Inch Color LCD QHD Viewfinder
- Uses Round-Type 20-Pin Viewfinder Interface
- Switchable Display Mode
Specifications:
- General
- Power Supply: 10.5 to 17.0 V DC (supplied by the camera)
- Power Consumption: 3.3 W
- Operating Temp: 23°F - 113°F (-5°C - 45°C)
- Storage Temp: -4°F - 140°F (-20°C - 60°C)
- Mass: 1.54lbs (700g)
- Dimensions (WxHxD): 8" x 10.13" x 2.38" (201mm x 255mm x 60mm)
- 3.5" Color TFT Transflective LCD Image Display Area Dimensions: 3.13" x 1.75" (76.8mm x 43.2mm)(H/V, 16:9 aspect ratio)

  Performance
- Brightness: 200 cd/m2 (typical) (when eyepiece is attached)
- Resolution: 500 lines or more
- Color Temperature: 6500 K (typical)

  Connectors
- Camera Connector: Round-type 20-pin connector
