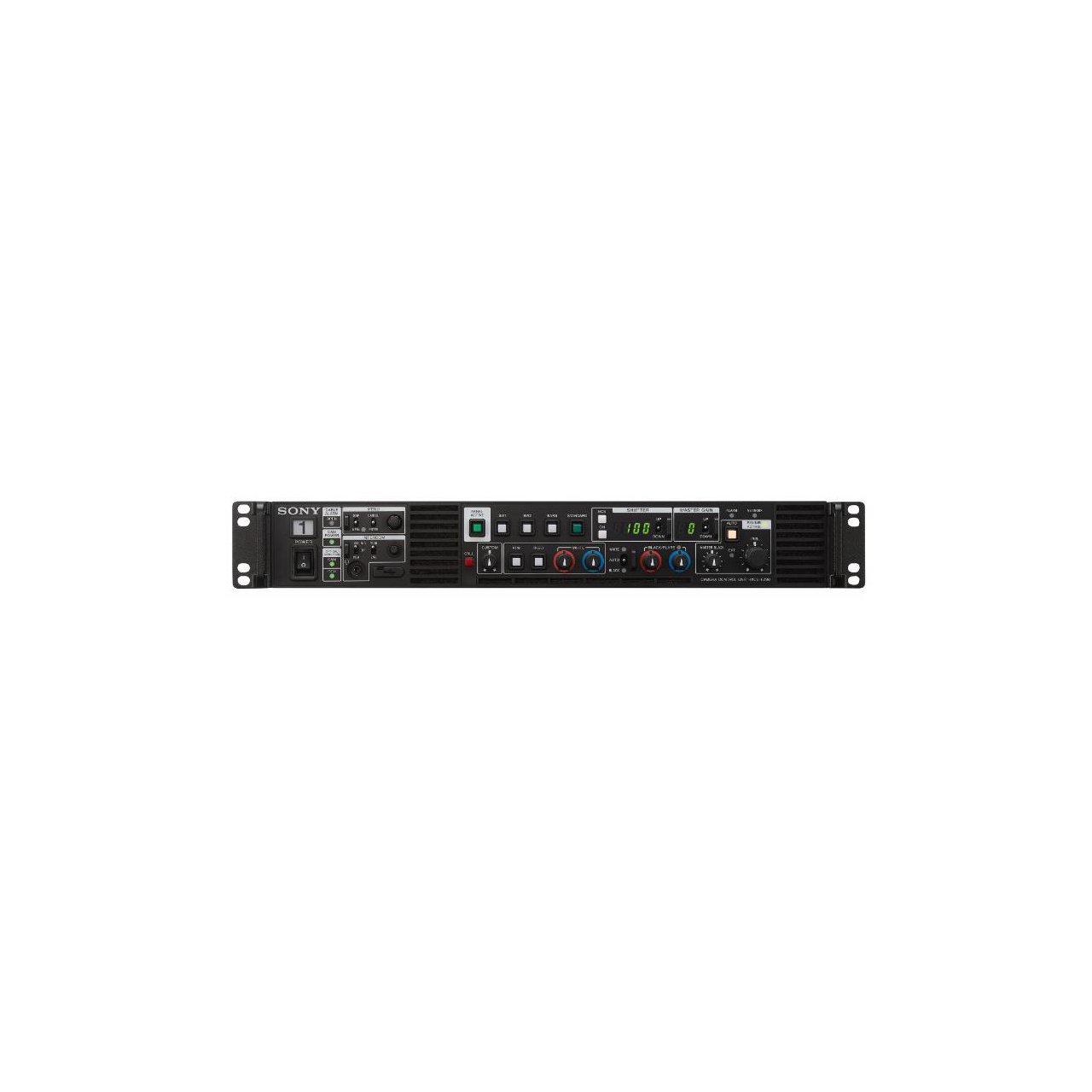

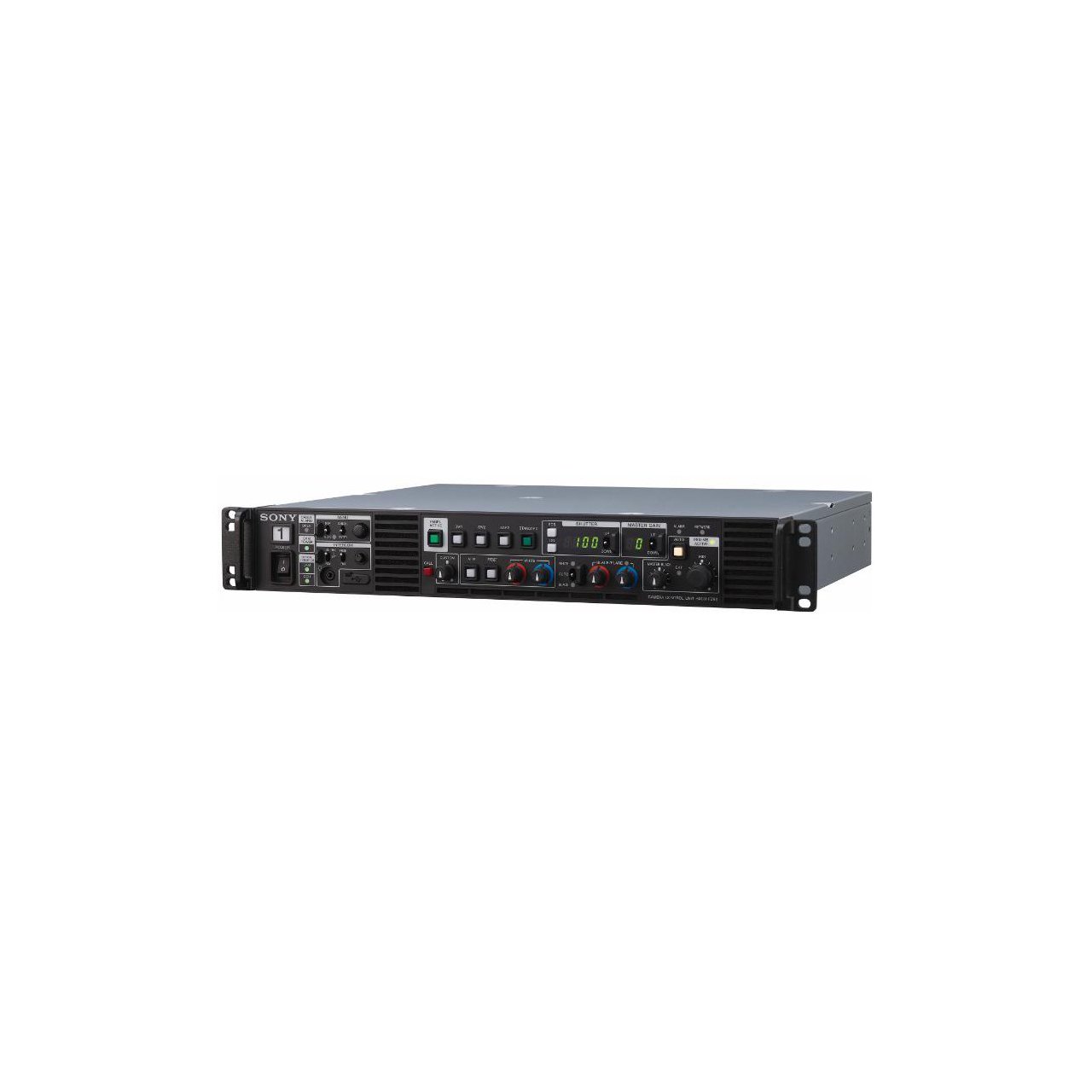

Sony HXCU-FZ90L 4K/HD Camera Control Unit for HXC-FZ90 Cameras - Lemo Connector Interface

HXCU-FZ90L - Overview

• Features:

  • Multiple frame rates over 3G-SDI and 12G-SDI signals
  • Future-proof 4K and 4K HDR support
  • Fiber cable extension


• Specifications:

  • General
  • Power Requirements: AC 100 V to 240 V, 50/60 Hz
  • Operating Temp: 5°F - 104°F (5°C - 40°C)
  • Storage Temp: -4°F - 140°F (-20°C - 60°C)
  • Mass: 13lbs (5.9kg)
  • Dimensions (WxHxD): 19" (16-3/4") x 2-5/8" x 14-1/2" (482mm (424mm) x 66mm x 366mm)
  • Signal Format: 4K 2160: 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720: 59.94p, 50p SD 480: 59.94i, 576: 50i

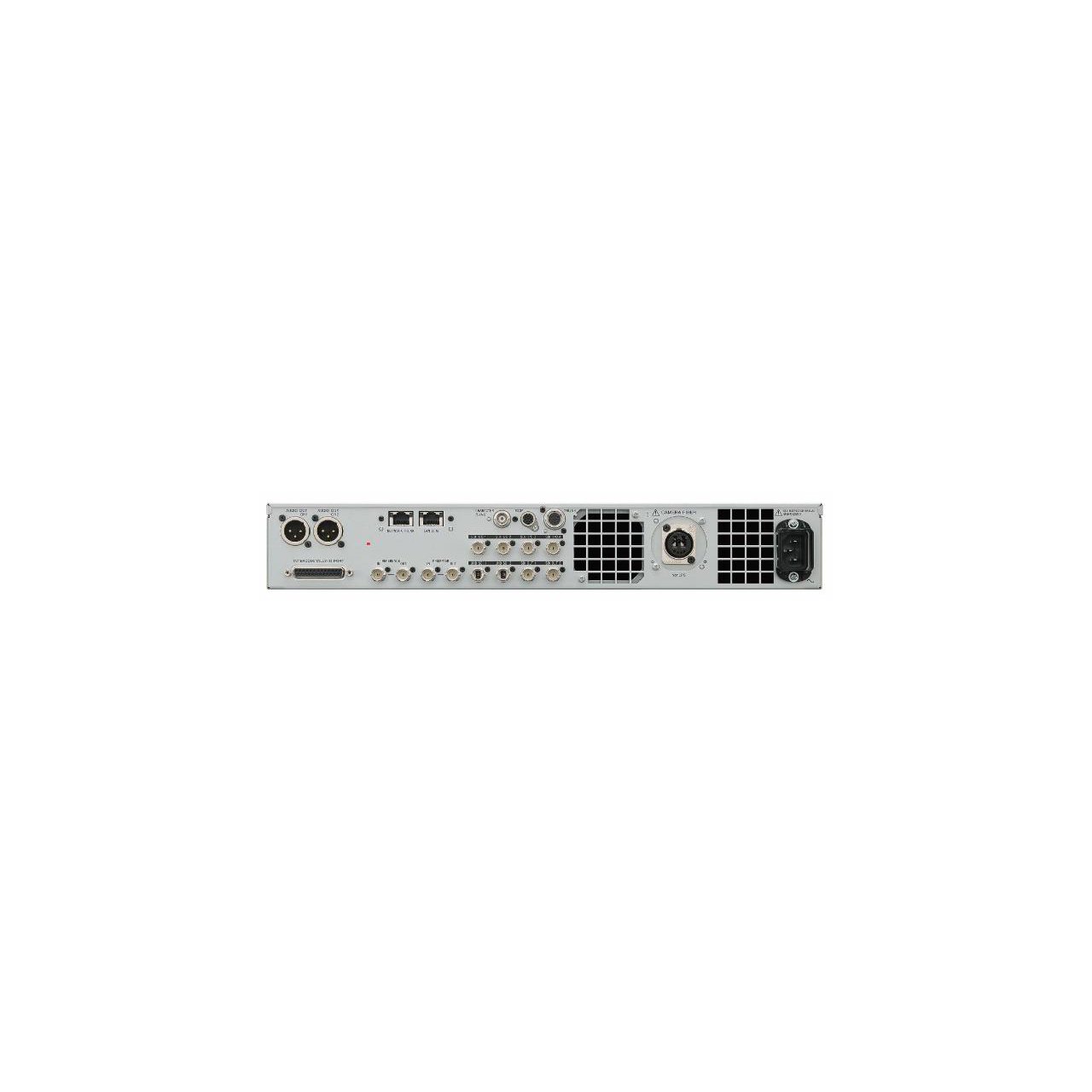

    Input/Output
  • Camera: 1x Optical Fiber, CCFN Cable or Single Mode Fiber Cable (LC type)
  • Distance of Power Supply: 300m
  • Distance of Fiber Cable by Local Power Supply: 10km (max.) by Single Mode Fiber Cable (LC type)(with HXC-FZ90)
  • Intercom (on the front panel): EARPHONE: 4-pole mini jack
  • Intercom/Tally/Program:
    - 1x D-Sub 25-pin, female
    - INTERCOM (PROD, ENG), 4 Wire/RTS: 0 dBu, Clear-Com: -14 dBu
    - PGM
    - TALLY (R,G)
    - PREVIEW OUT
  • Remote: 1x 8-pin
  • Trunk: 1x 12-pin
  • LAN COM: RJ-45 8-pin
  • NETWORK TRUNK: RJ-45 8-pin
  • Reference: 2x BNC, In: HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75Ω SD: Black Burst (NTSC: 0.286 Vp-p, 75Ω / PAL: 0.3 Vp-p, 75Ω)
  • Prompter: 2x BNC, In: VBS, 1.0 Vp-p, 75Ω, 1 system, Out: Loop-Through
  • SDI I/O 1-4:
    - 3G/HD/SD SDI I/O
    - 4x BNC
    - 3G SDI: SMPTE ST424/425 Level-A/B,
    - 0.8 Vp-p, 75Ω, 2.970 Gbps/2.967 Gbps
    - HD SDI: SMPTE ST292, 0.8 Vp-p, 75Ω
    - 1.485 Gbps/1.4835 Gbps
    - SD SDI: SMPTE ST259, 0.8 Vp-p, 75Ω
    - 270 Mbps
    - 3G SDI/HD SDI/SD SDI

    Input
  • AC In: 1x AC 100 V to 240 V

    Output
  • SDI Out 1-2:
    - 3G/HD/SD SDI OUTPUT
    - 4x BNC
    - 3G SDI: SMPTE ST424/425 Level-A/B
    - 0.8 Vp-p, 75Ω, 2.970 Gbps/2.967 Gbps
    - HD SDI: SMPTE ST292, 0.8 Vp-p, 75Ω
    - 1.485 Gbps/1.4835 Gbps
    - SD SDI: SMPTE ST259, 0.8 Vp-p, 75Ω
    - 270 Mbps
    - 3G SDI/HD SDI/SD SDI
  • UHD Out 1-2:
    - 12G/6G/3G/HD SDI OUTPUT
    - 2x BNC
    - 12G SDI: SMPTE ST2082, 0.8 Vp-p, 75Ω
    - 11.88 Gbps/11.868 Gbps
    - 6G SDI: SMPTE ST2081, 0.8 Vp-p, 75Ω
    - 5.940 Gbps/5.934 Gbps
    - 3G SDI: SMPTE ST424/425 Level-A/B,
    - 0.8 Vp-p, 75Ω, 2.970 Gbps/2.967 Gbps
    - HD SDI: SMPTE ST292, 0.8 Vp-p, 75Ω
    - 1.485 Gbps/1.4835 Gbps
  • Character/Sync:
    - 1x BNC, VBS, 1 Vp-p, 75Ω
    - HD SYNC: Tri-level sync, 0.6 Vp-p, 75Ω
    - SD SYNC: NTSC: 0.286 Vp-p, 75Ω
    - PAL: 0.3 Vp-p, 75Ω
  • Audio Out CH-1, CH-2: 2x XLR 3-pin, male, 0/-20 dBu/+4 dBu


• Item Includes:

  • 1x Tally Plate Number Set (0-9)
  • 1x Operating Instructions Camera Operation Manual CD
  • 1x Operation Guide
  • 1x Warranty Booklet


• Warranty:

  • 2 Year Warranty
