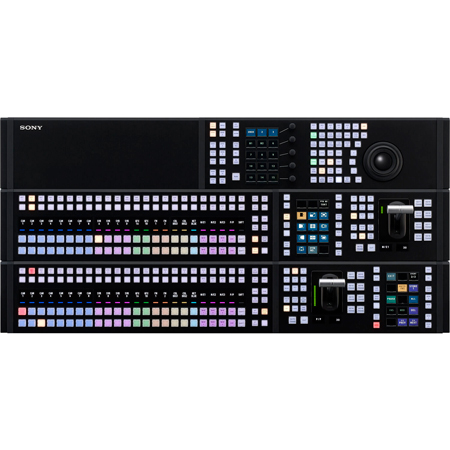

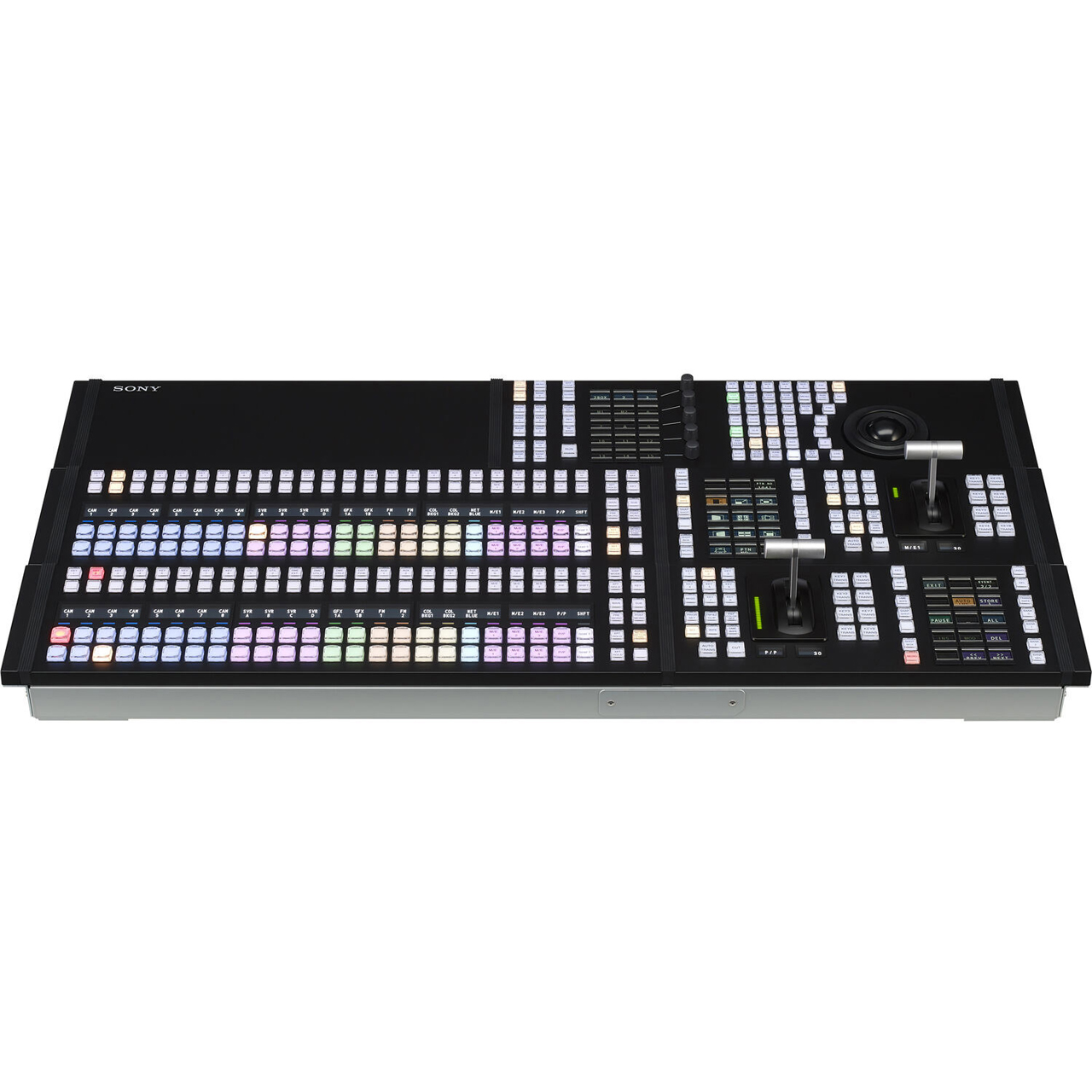

Sony ICP-X1224 2 M/E 24 Button Compact Control Panel for Sony XVS-G1

SNA-ICPX1224 - Overview

• Features:

  • Utility and ShotBox Block
    - 15 color LCD buttons with 20 assignable buttons
    - UTIL/SB mode: Utility/ShotBox recall
    - Menu mode: Menu Parameter Adjustment With Rotary Knobs
  • Device Control Block
    - Easy-to-use trackball for fine adjustment, plus direct-access buttons
    - Resizer/DME adjustment (Size, Position, Rotation, etc.)
    - DDR/VTR control (Play, Stop, Jog/Shuttle, etc.)
  • Transition Block
    - Next Transition Block with assignable buttons enables extremely flexible operation
    - OLED displays for M/E name or Transition Rate
    - 8 Key Transition buttons for 4 Keyers (AUTO+CUT) or 8 Keyers (AUTO)
  • Crosspoint Block
    - OLED Source Name display (up to 12 characters)
    - Tri-Color buttons with selectable coloring for easy grouping of sources
    - Assignable Delegation buttons (Key 1-8, AUX1-16, Utility/ShotBox, Macro)
  • FlexiPad Block
    - The Flexi Pad is used for creating and recalling memorized functions for easy operation
    - Macro/ShotBox direct execution, Macro editing
    - Snapshot/Wipe Snapshot/DME-Wipe Snapshot recall


• Specifications:

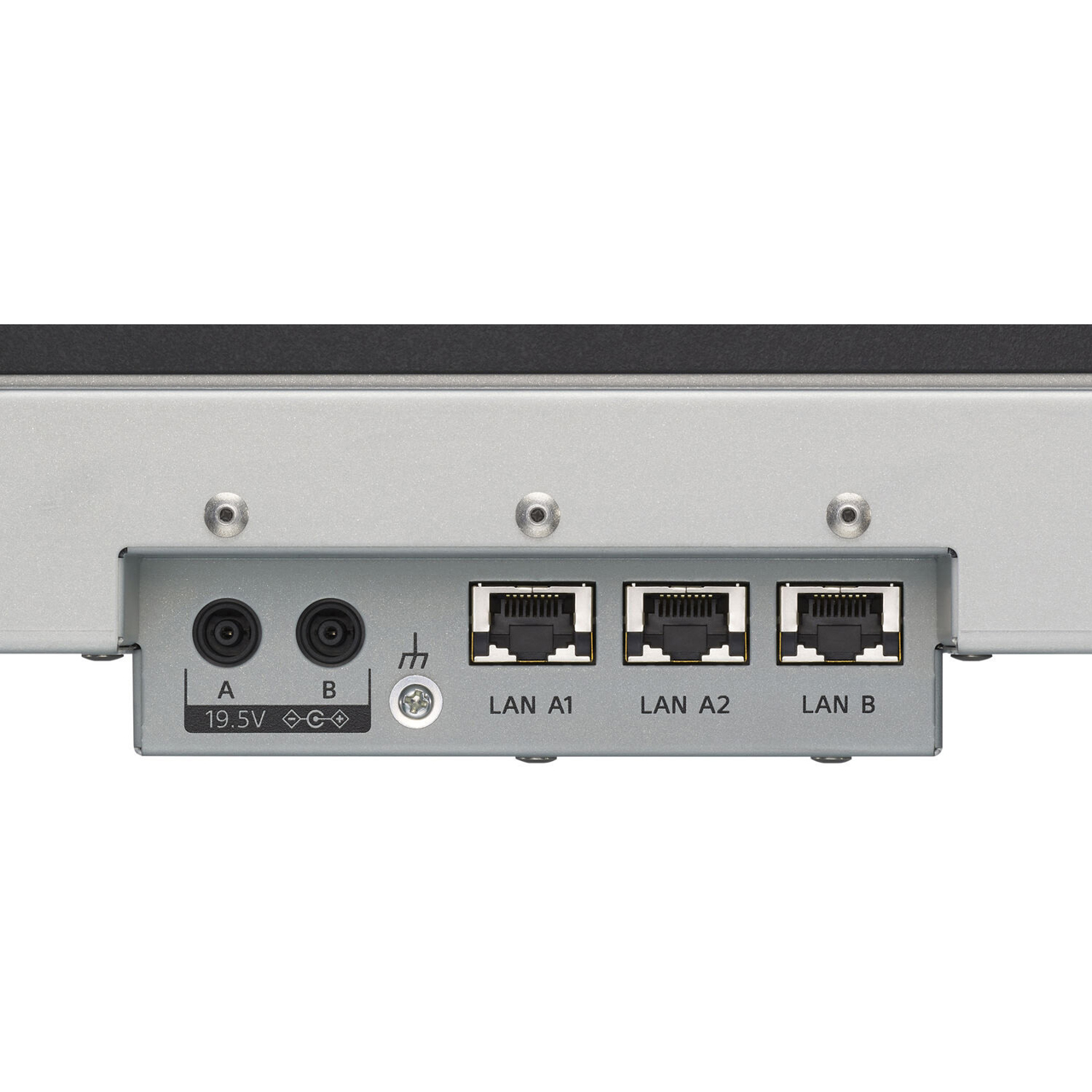

  • Power Requirement: DC IN-A/B : DC 19.5 V
  • Power Consumption: DC 2.1 A
  • Operating Temperature: 41°F - 104°F (5°C - 40°C)
  • Dimensions (WxHxD): 36" x 17.375" x 3.75" (912.0mm x 438.5mm x 94.7mm)
  • Weight: 33.06lbs (15kg)
  • LAN-A1: 1x RJ-45, 1000BASE-T


• Item Includes:

  • 1x Sony ICP-X1224 M/E 24 Button Compact Control Panel


• Warranty:

  • 1-Year Limited Warranty
