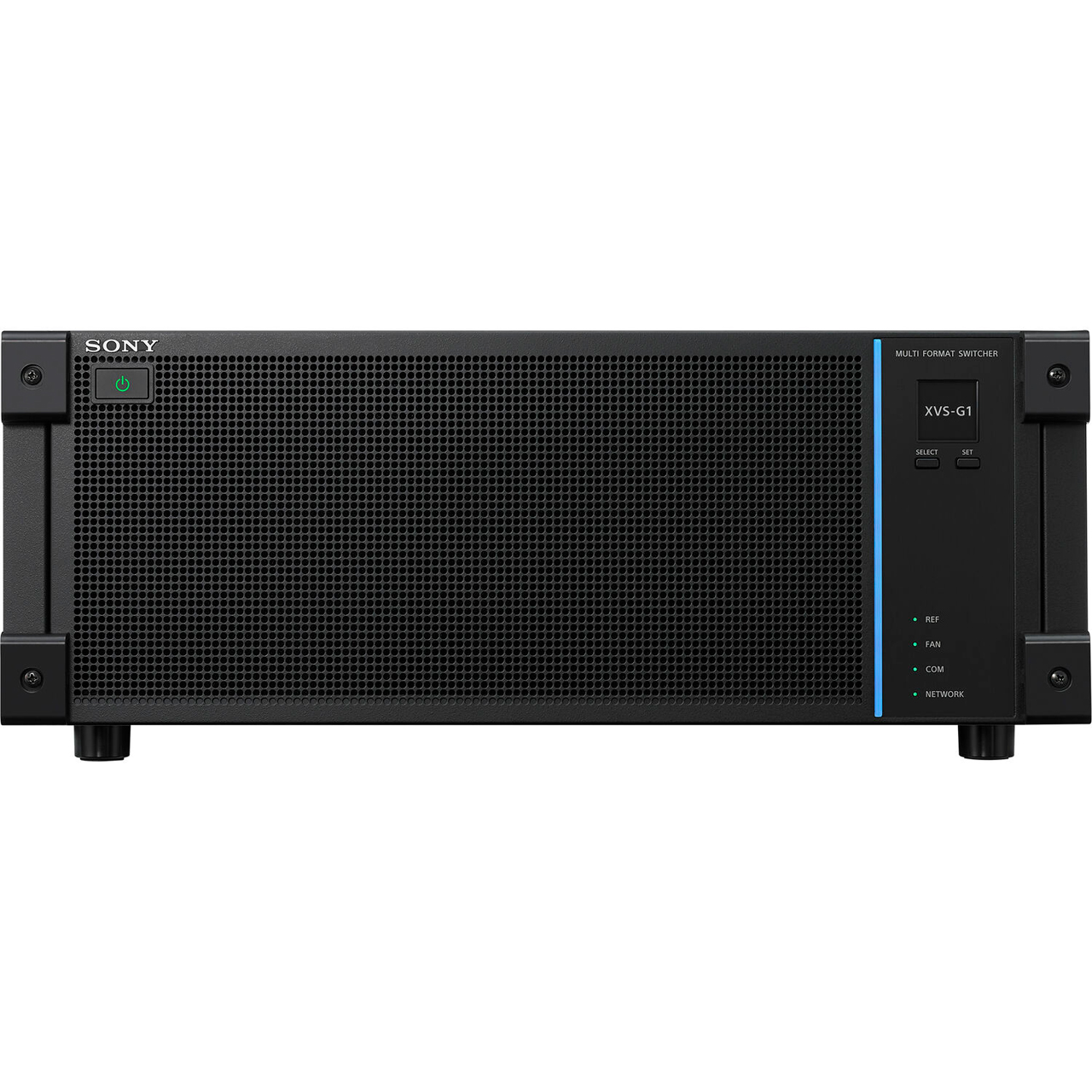

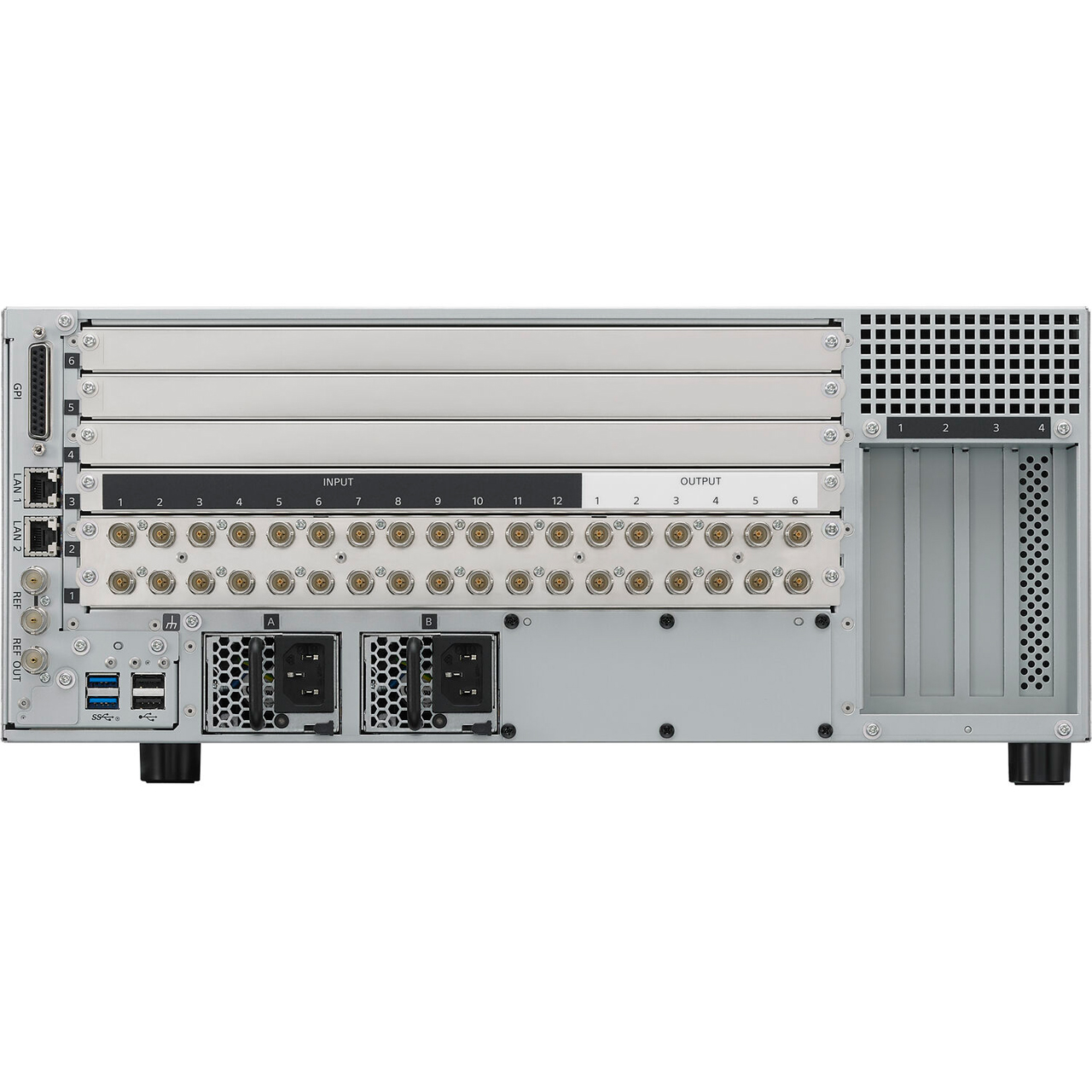

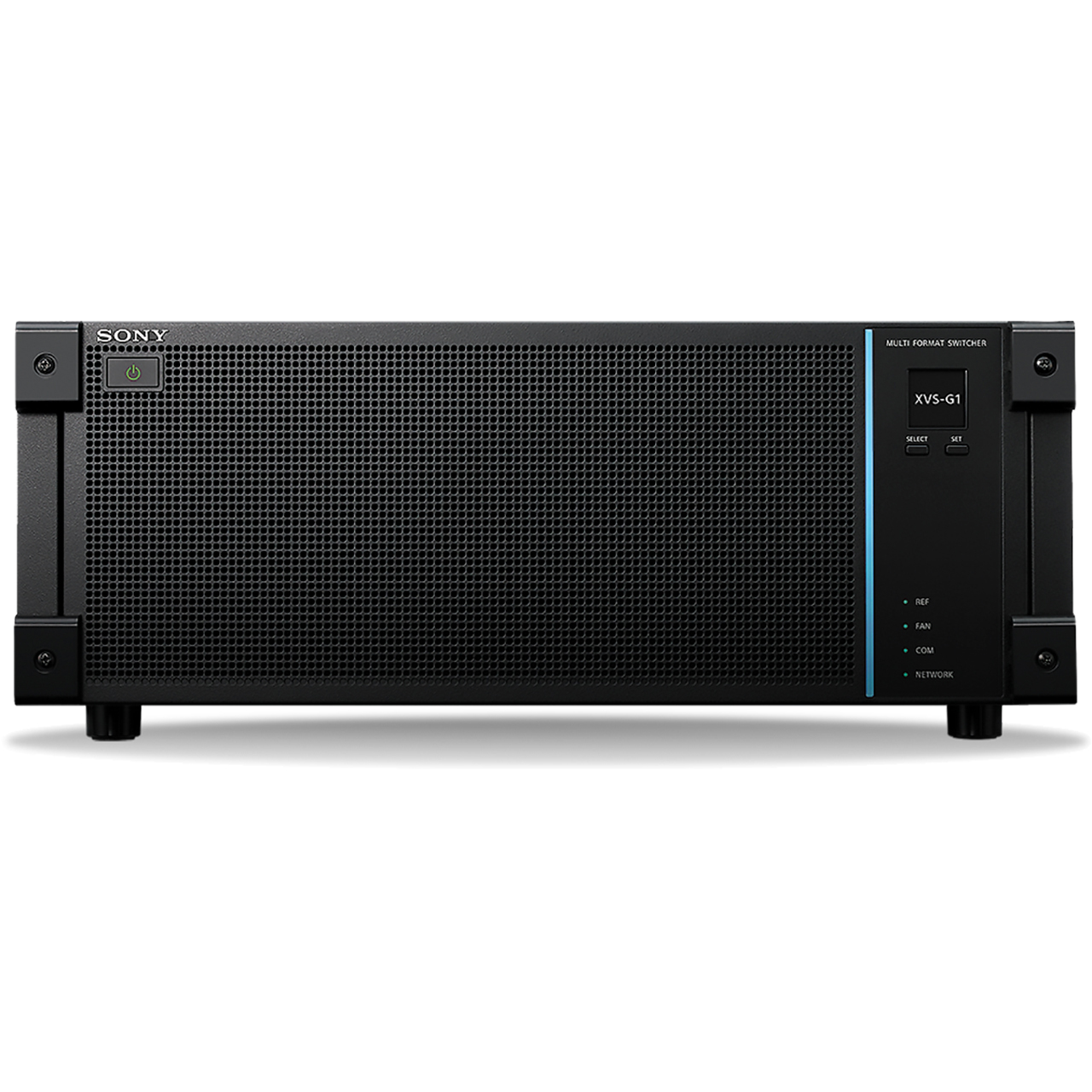

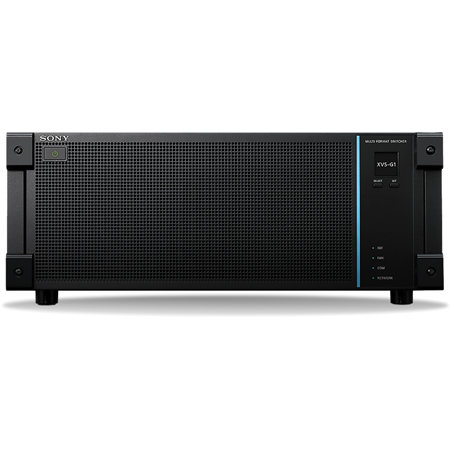

Sony is proud to introduce the latest member of the XVS family of production switchers. The XVS-G1 inherits many of the well-established features and architecture from the current models and adds cutting-edge technology for a range of visual processing enhancements. The all-new 4RU processor is combined with a range of four stylish new control panels plus a newly developed web-based operational menu for efficient and simple installations. The XVS-G1 builds on the success of the MVS-3000A and MVS-6530 switchers, bringing full HD and 4K (UHD) capacity at an affordable price. Configurable from 1 to 4 M/E banks, the XVS-G1 offers 16 full-feature keyers with up to 44 inputs, 24 outputs in HD mode, or 24 in, 12 out in 4K (UHD). These features make it the perfect choice for small and medium studios, flyaway packs, and OB production units.
The Next-Generation Platform in Live Production Switchers
The XVS-G1 introduces a hybrid architecture that augments the well-proven video processing structure of the XVS series with an optional GPU-based effects and graphics module. Its configuration retains a central processing unit (CPU) and field-programmable gate array (FPGA), while adding an optional graphics processing unit (GPU), ensuring high performance and flexibility with visual processing enhancements while maintaining high reliability and stable operation. High-speed processing, enabled by the hardware at 4K (UHD) resolution, and High Dynamic Range (HDR) imaging, means virtually no compromises in performance and speed for real-time processing and ultra-low latency. High-density, high-resolution video processing using the latest software technology provides versatility and upgradability. The XVS-G1 system offers an affordable and flexible solution to meet the creative needs of today's live productions.
A High-Potential Platform for Maximum Creativity Realized by the Optional GPU and Modular Software Structure
The XVS-G1 offers new creative features, including a built-in clip player, 3D digital multi-effects, extra still logo keys, and new multi-viewer functionality. HDR is also supported with Sony's SR Live workflow and multiple HDR format conversion options.
16 keyers are provided, each with its own 2.5D resizer. These full-function keyers can be deployed in various configurations across 1 to 4 M/E banks. An additional dedicated Clip Transition keyer is available on each M/E.
The optional GPU pack provides a file-based clip player, integrated for the first time in a Sony live production switcher. There are four channels in HD mode and two channels in 4K (UHD) mode. Multiple clips can be stored and replayed, each with a maximum duration-for both HD and 4K (UHD) content-of up to 60 minutes. Widely available AVC codec files in MOV or MP4 container formats are supported.
Media files are easily and instantly loaded into the internal SSD storage directly from any network-connected device via a web browser. The user-friendly style of the clip player and switcher minimizes preparation and setup time, simplifying live operation.
Other functions provided by the GPU include 4 channels of full-3D digital multi-effects in HD mode, or 2 channels in 4K (UHD), and four still logo keyers.
Control PTZ Camera Remotely
By updating to Software Version 1.20 (or later), you can now easily control a Sony remote camera with the XVS-G1.
Use Sony's IP Remote control panel, RM-IP10 etc., to preset the necessary camera operations on the XVS-G1 prior to shooting.
During the actual shooting, simply press a button on the XVS-G1 to recall the preset, and the pre-assigned camera work can be reproduced using only the XVS-G1 and a remote camera, without the need to use the RM-IP10 or other devices.
This feature enables efficient operation and new video expression in live production with a small number of people. Suitable across various production scenes, including as House of Worship and education.
