Sony PXWZ450 XDCAM 4K HDR 2/3 Type CMOS Sense Shoulder Camcorder - 3840x2160 Resolution - 4K Mic/Viewfinder/Mic Included

ITEM #: SNY-PXWZ450KC MFG #: PXW-Z450KC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$37,995.00

Our Price:

$36,095.25

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PXW-Z450KC - Overview

    The Sony PXW-Z450KC records 4K QFHD (3,840 x 2,160) at 50p/59.94p, with 4K Slow and Quick motion up to 59.94p, as well as a variety of HD formats including XAVC Intra, XAVC Long GOP, MPEG HD 422, and MPEG HD 420. The Z450 can not only record and output SDR, but also HDR pictures as Hybrid Log Gamma (HLG) and S-Log3 with BT.2020 color space.

    Thanks to a specially developed 4K 2/3-type Exmor R CMOS sensor, the PXW-Z450 allows you to use a wide range of commercially available B4 mount lenses without having to use an adapter. The PXW-Z450 offers the same advanced features as the PXW-X400 Full HD camcorder, with exceptional weight balance and low power consumption, alongside excellent networking features.

    4K HDR / HD SDR simultaneous recording
    The Z450 can record both 4K HDR and HD SDR simultaneously to support high speed workflows.* No need to spend time converting 4K HDR clips to HD SDR to get on-air quickly.

    Advanced picture monitoring
    To make HDR production easier, picture quality can be monitored with BT.709 imagery in the viewfinder while shooting S-Log3 or HLG, while a high quality Focus Magnifier picture can be made from the 4K resolution image.

    Versatile B4 ENG lens options
    Thanks to a versatile 2/3-type native sensor and B4 lens mount, this camcorder allows you to install a variety of B4 ENG lenses including either 4K or HD. This flexible lens options supports a variety of shooting applications while saving cost.

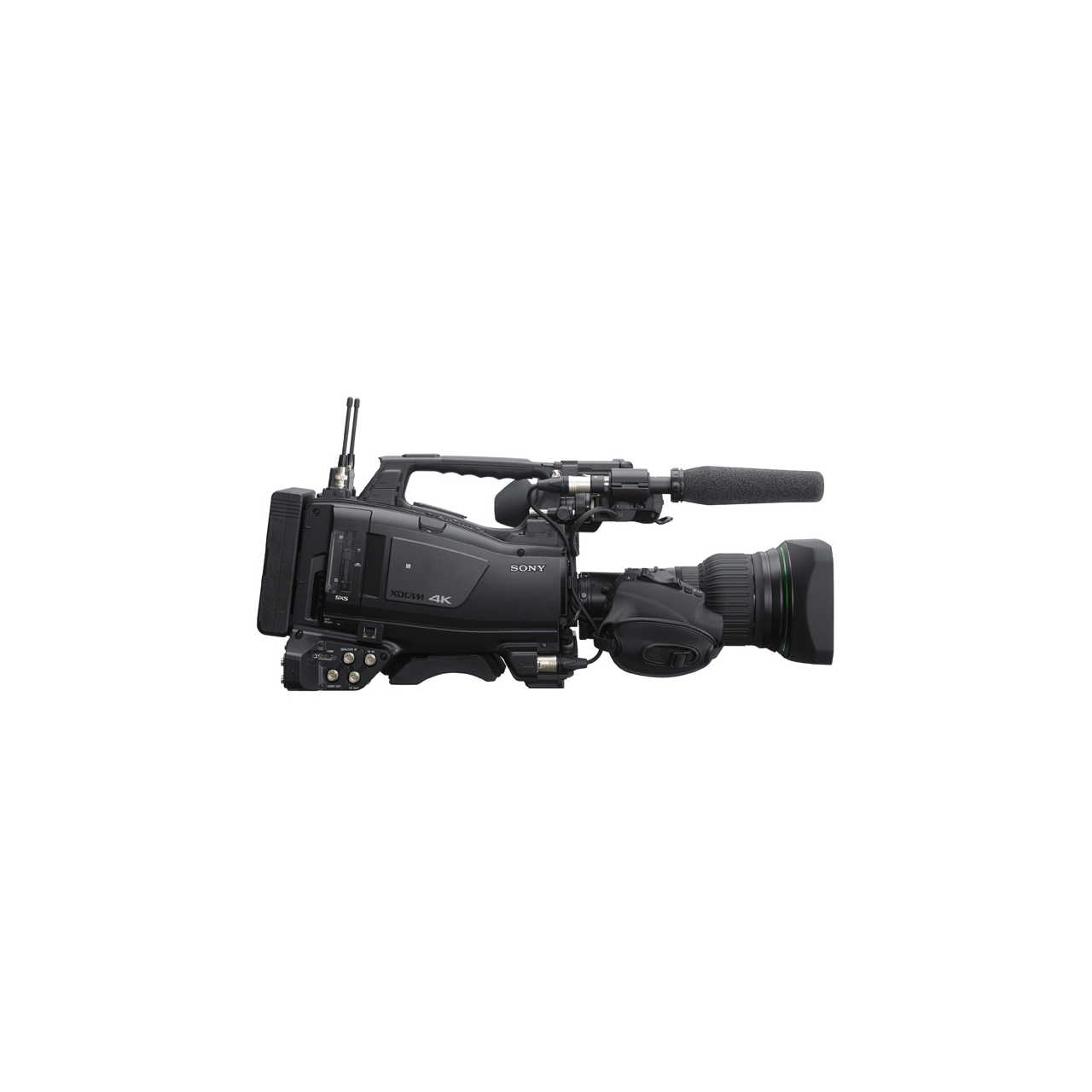

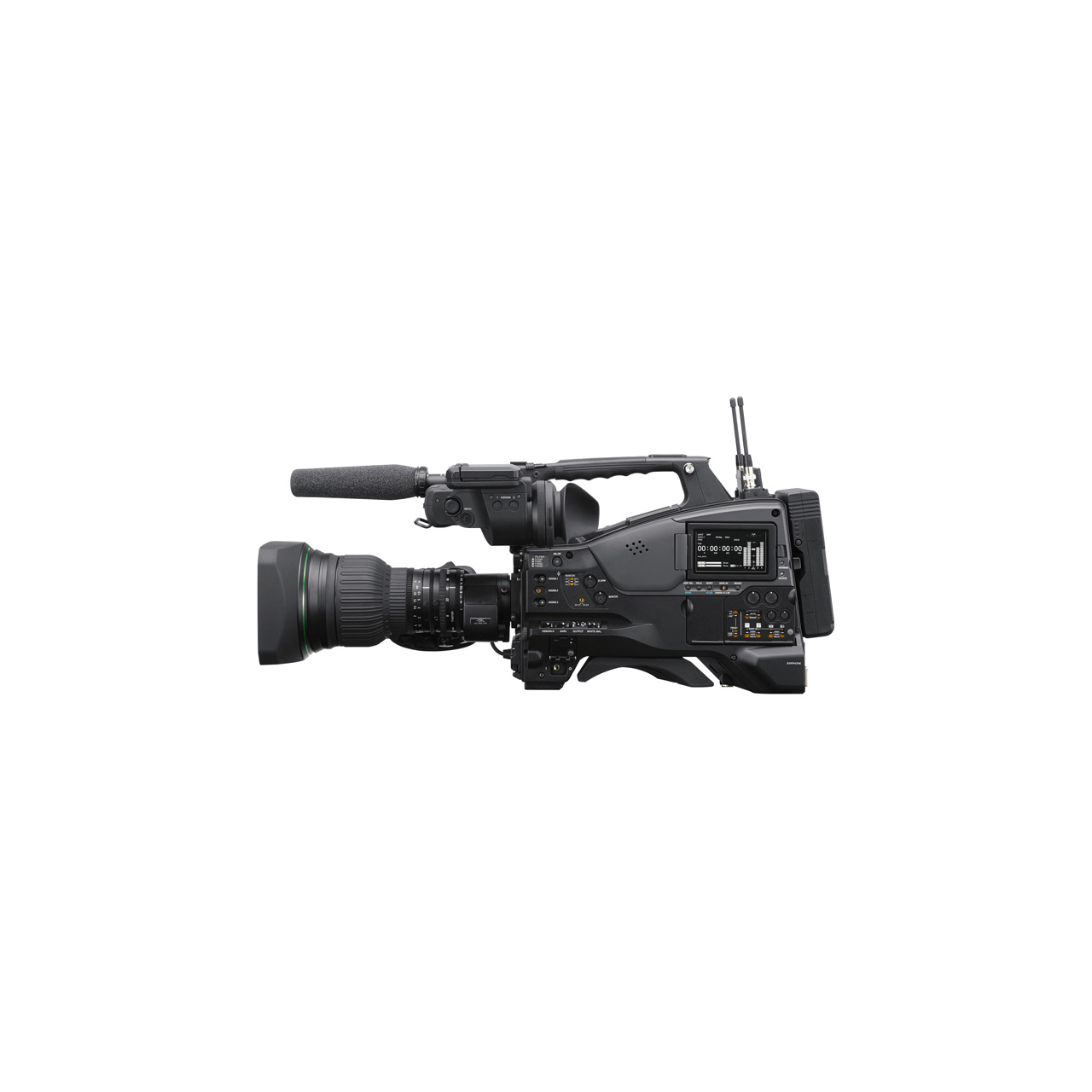

    PXW-Z450KC - 18X Portable 4K Lens Kit Model
    This cost-effective 4K shoulder camcorder kit includes the camcorder itself, plus HDVF-EL20 OLED colour view finder, shotgun microphone and a lightweight 1.72kg 4K 18X Canon portable lens. The lens has a focal length of 7.6-137mm, support for ALAC (Auto Lens Aberration Compensation) and its dimensions are (W x H x L) 160.5 x 105 x 206.2mm (6.3 x 4.1 x 8.1 in.)

    • Features:

      • Advanced workflow features
      • A wealth of formats and features for professionals
      • 4K 1/3-type 3CMOS sensor
      • 25x professional zoom lens with three independent rings and large focal length
      • Advanced Face Detection AF
      • Built-in electronic variable ND Filters
      • Instant HDR workflow
      • High quality recordings in 4K QFHD and HD
      • 4K Slow and Quick motion
      • High sensitivity image making
      • 4K HDR / HD SDR simultaneous recording to one card
      • Quad Link 3G-SDI option for 4K 50p/59.94p output
      • 4K cache recordings
      • Discover optimized weight balance
      • Supports Full HD OLED viewfinders
      • Advanced picture monitoring
      • Embedded RJ-45 connector
      • One-touch wireless LAN connection
      • Built-in wireless module with Content Browser Mobile
      • Support for DWX wireless microphone systems
      • Records a second camera's feed via SDI

    • Specifications:

      • General
      • Mass: Approx. 7lbs 15 oz / 3.6 kg (Body only)
      • Dimensions (WxHxD): 6.75 x 10.675 x 13.125 inches / 170 x 269 x 332 mm (Body Only)
      • Power Requirements: DC 12 V (11 V to 17.0 V)
      • Power Consumption: Approx 26 W (LCD On)
      • Operating Temperature: 32°F to 104°F (0°C to 40°C)
      • Storage Temperature: -4°F to +140°F (-20°C to +60°C)

        Lens

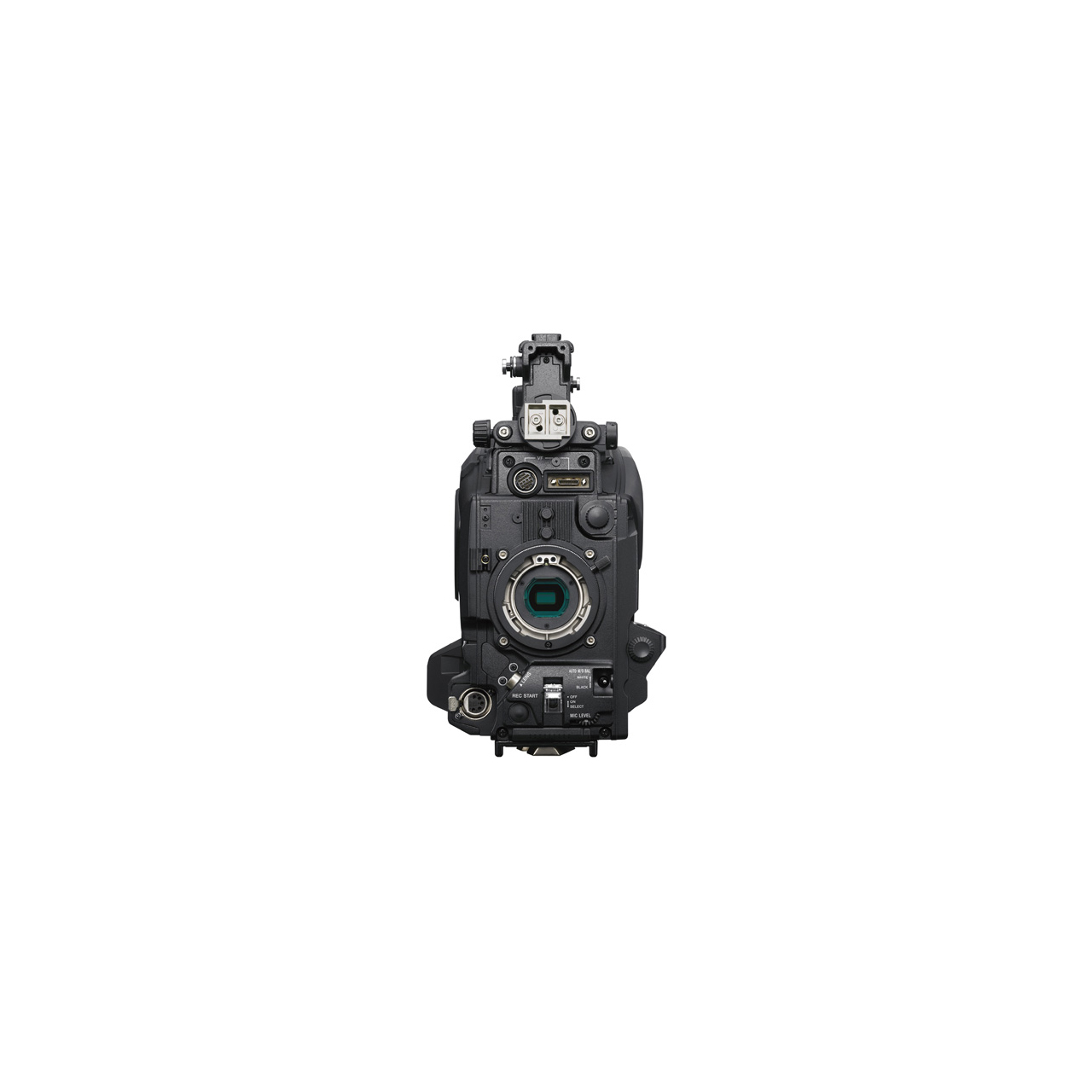

      • Lens Mount: Sony 2/3-inch type bayonet mount

        Input/Output
      • Genlock Input: BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced
      • Timecode Input: BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ
      • SDI Input
        - SMPTE ST292/ST259 standard compliant, 4-channel audio
        - 1.5G
        - Poolfeed Recording (upto 1080 59.94i)
      • Audio Input
        - CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable
        - LINE: +4, 0, -3 dBu
        - AES/EBU: AES3 compliant
        - MIC: -70 dBu to -30 dBu
      • Mic Input: XLR-type 5-pin, female: -70 dBu to -3 0 dBu
      • WRR (Wireless Microphone Receiver)
        - D-sub 15-pin
        - Analog CH1: -40 dBu
        - Digital CH1/CH2: -40 dBFS
      • SDI Output: Output 1/2/3/4: BNC (x4), 0.8 Vp-p,
      • Video Output: BNC, SD analog composite/HD-Y selectable
      • Audio Output: XLR-type 5-pin, male, +4/0/-3 dBu (balanced)
      • Timecode Output: BNC, 1.0 Vp-p, 75 Ω
      • Earphone Output:
        - Stereo mini jack (x1)
        - -11 dBu reference level output, maximum monitor volume, 16 Ω load
      • Speaker Output: Monaural, 300 mW output
      • DC Input: XLR-type 4-pin, male, 11 V to 17 V DC
      • DC Output: Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
      • Lens: 12-pin, lens power source (11 V to 17V DC, 1.0 A maximum rated current)
      • Remote: 8-pin
      • Light: 2-pin
      • Camera Adapter: D-sub, 50-pin (x1)
      • Ethernet: RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3
      • USB: USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)
      • HDMI: A type, 19-pin (x1)
      • Viewfinder: 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02

        Audio Performance
      • Frequency Response: 20 Hz to 20 kHz (±3 dB or less)
      • Dynamic Range: 90 dB (typical)
      • Distortion: 0.08% or lower (-40 dBu input level)
      • Headroom: 20 dB (factory default) (20, 18, 16, 12dB), EBUL

        Camera
      • Imager: 2/3-type "Exmor R" 4K CMOS
      • Effective Resolution: 3840 (H) x 2160 (V)
      • Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
      • Shutter Speed (Slow Shutter(SLS)): 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
      • Slow & Quick Motion Function: 1080p: Frame rate selectable from 1fps to 60 fps
      • Sensitivity (2000 lx, 89.9% reflectance):
        - F10 (typical) (1920 x 1080/59.94i mode or 3840 x 2160/59.94p mode)
        - F11 (typical) (1920 x 1080/50i mode or 3840 x 2160/50p mode)
      • Minimum Illumination: 0.019 lx (F1.4, +42 dB, 16-frame accumulation)
      • White Balance: Preset (3200K), Memory A, Memory B/ATW
      • Gain Selection: -9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB(TBD)
      • S/N Ratio: 61 dB typical (typical, 1920x1080/59.94i mode, Noise Suppression On)

        Other Equipment:
      • Built-in LCD Monitor: Color LCD, Screen size: 8.8 cm (3.5 inch) diagonal *3 , Aspect ratio: 16:9, Number of pixels: 960 (H) x 540 (V) for Video display, Audio level, TC, battery and media remaining capacity
      • Built-in Speaker: Yes
      • Media SxS Card Slots: Number of slots: 2
      • Media SD Card Slots: 1x Proxy, 1x Utility
      • GPS: Yes
      • Built-in Network Module: Yes
      • NFC: Yes

    • Item Includes:

      • 1x PXW-Z450 Shoulder Cam Body
      • 1x Shoulder Belt
      • 1x Cold Shoe Kit
      • 1x Lens Mount Cap
      • 1x USB wireless LAN module (IFU-WLM3)
      • 2x Protective Cap
      • 1x Operation Guide
      • 1x Operation Manual (CD-ROM)
      • 1x 4K 18x Zoom Canon Lens
