Blackmagic Design Pocket Cinema Camera 6K Pro with Core SWX PowerBase EDGE LINK Battery Pack & P-Tap Cable & Charger Kit

MTK-BMDPC6KPCBKT - Overview

• Features:

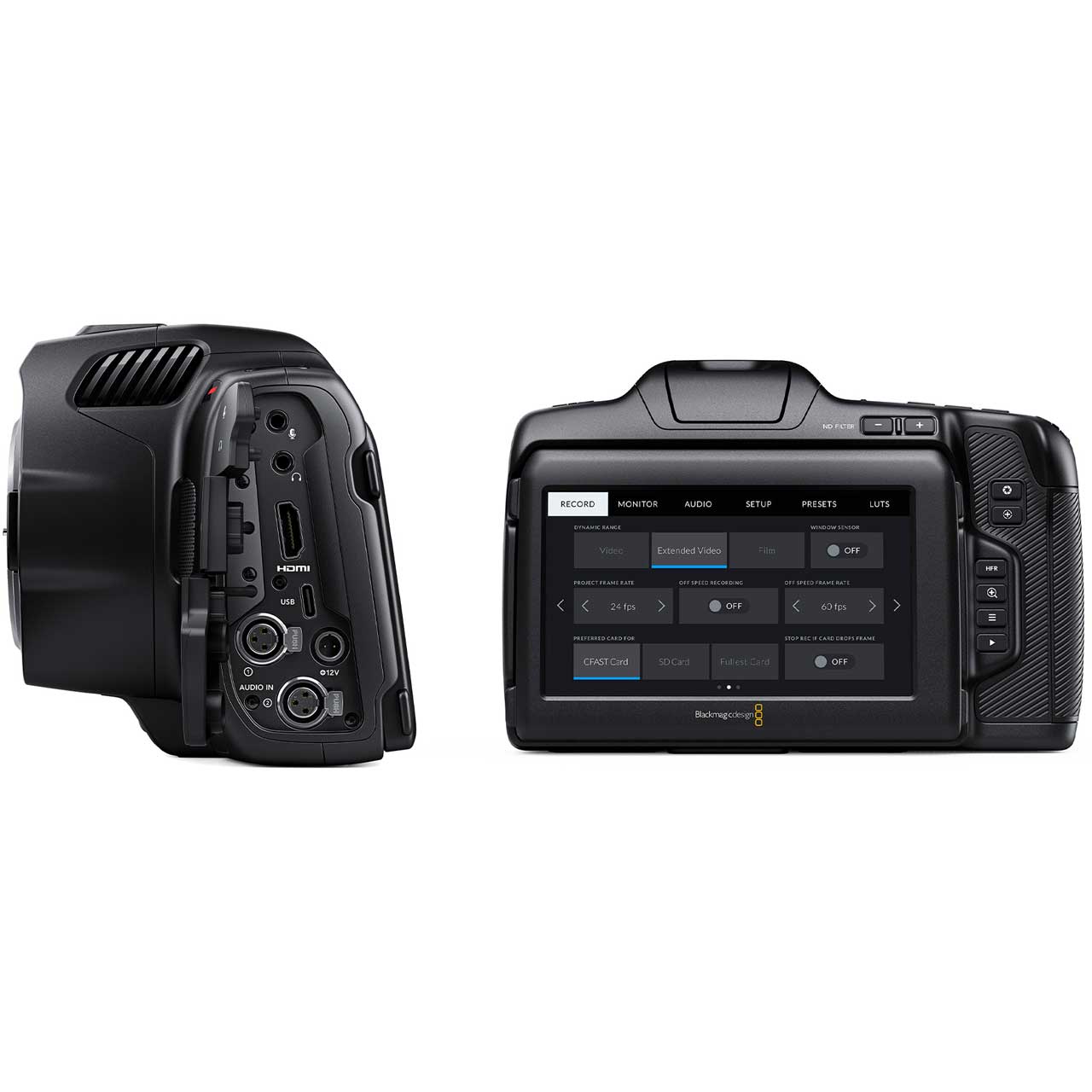

  • Pocket Cinema Camera 6K Pro
  • Effective Sensor Size: 23.10mmx12.99mm (Super 35)
  • Lens Mount: Active EF mount.
  • Lens Control: Iris, focus and zoom on supported lenses.
  • Dynamic Range: 13 Stops.
  • Dual Native ISO: 400 and 3200

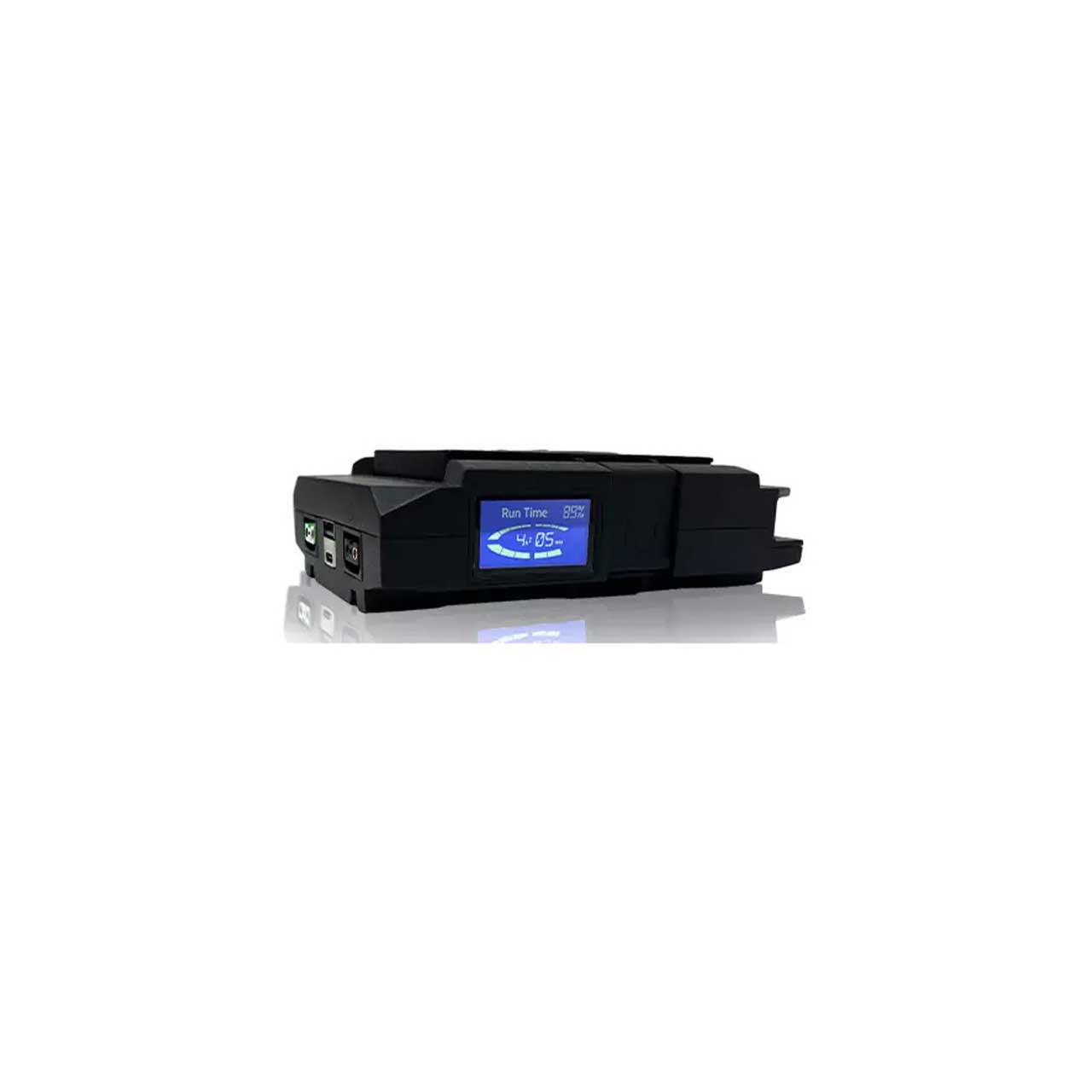

    PBE-Link
  • Compatible Charging: The Powerbase Edge charges on all Core SWX V-Mount battery chargers, as well as other manufactures V-Mount chargers such as SonyT, RED&Trade; and IDXT. In addition, the battery pack can be charged via the p-tap with the PB70C15 charger.
  • USB Power Core: SWX has an integrated p-tap (powertap/dtap) connector on the side of he battery allowing you to power any 12vdc device from this port which is a feature Core SWX had since its first battery 16 years ago. With their "ear to the ground," they also know how important mobile devices are to production, and so they are one of the first companies to incorporate a USB port on the packs, providing accessible charging for your mobile devices.
  • Storage Mode: Hold the LCD backlight button for 20 seconds to awaken and to put back into "Storage mode". All Edge battery packs are now shipped in "Storage Mode". Storage mode reduces the chance of the battery being delivered in a fully depleted state of charge.
  • Travel Safe: All of Core SWX batteries that are travel safe have an Air Compliant Label. They understand that customers are constantly onthe go, therefore Core SWX is dedicated to making there experience as smoothly as possible.
  • Smart Tap: As with all Core SWX brick battery offerings, the Hypercore series have an integrate p-tap (powertap/dtap) connector on the side of the battery allowing you to power any 12vdc device from this port. With that said, once again through extensive R&D Core SWX is now offering a "Smart Tap" which will pull all battery data.


• Specifications:

  • Pocket Cinema Camera 6K Pro
  • Shooting Resolutions
  • 6144x3456 (6K) up to 50fps
  • 6144x2560 (6K 2.4:1) up to 60fps
  • 5744x3024 (5.7K 17:9) up to 60fps
  • 4096x2160 (4K DCI) up to 60fps
  • 3840x2160 (Ultra HD) up to 60fps
  • 3728x3104 (3.7K 6:5 anamorphic) up to 60fps
  • 2868x1512 (2.8K 17:9) up to 120fps, 1920x1080 up to 120fps


  • Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60fps supported. Off-speed frame rates up to 60fps in 6K 2.4:1, 120fps in 2.8K 17:9 and 1080HD.
  • Built in ND Filters: Four position ND filter with clear, 2-stop, 4-stop and 6-stop IR ND filters.
  • Focus: Auto focus available using compatible lenses.
  • Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
  • Screen Dimensions: 5" 1920x1080.
  • Screen Brightness: 1500nits
  • Screen Type: LCD capacitive touchscreen.
  • Controls: Touchscreen menus on 5 inch screen. 1x Power Switch,1x Record, 1x Stills, 1x Scroll Wheelwith push integrated into handgrip, 1x ISO, 1x White Balance, 1x Shutter, 3xsoftware configurable Fn buttons, 2xND filter button, 1x Focus, 1x IRIS, 1x High Frame Rate (HFR), 1x Zoom, 1x Menu and 1x Playback.

    Connections
  • Total Video Outputs: 1x HDMI up to 1080p60
  • Analog Audio Inputs: 2xmini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1x 3.5mm Stereo Input.
  • Analog Audio Outputs: 1x 3.5mm headphone jack.
  • Computer Interface: USB Type-C for external drive recording, PTP camera control & software updates.

    Standards
  • HD Video: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD Video: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K DCI: 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60


  • Media: 1x CFast card slot, 1x SD UHS-II card slot, 1x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
  • External Control: iPad control, Bluetooth control, USB PTP camera control.

    Recording Formats
  • Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144x3456, 6144x2560, 5744x3024, 4096x2160, 3728x3104 and 2868x1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
  • ProRes at 4096x2160, 3840x2160 and 1920x1080 with film, extended video or video dynamic range or custom 3D LUT.


  • Software Included: Blackmagic OS; DaVinci Resolve Studio for Mac and Windows including activation key

    Power
  • Power Supply: 1x External 12V power supply.
  • External Power Input: 1x 2-pin locking connector.
  • Battery Type: NP-F570
  • Battery Life: Approximately 60 minutes
  • Power: 12V-20V

    PBE-Link
  • Capacity: 49wh (14.8vdc, 3.3Ah)
  • Operational Voltage: DC 12v-16.8v
  • Dimensions: 5.1 x 3.6 x 1.55"
  • Weight: 1.3lbs
  • Normal Runtime: approx. 12+ hours
  • Max Continuous Load: 8A

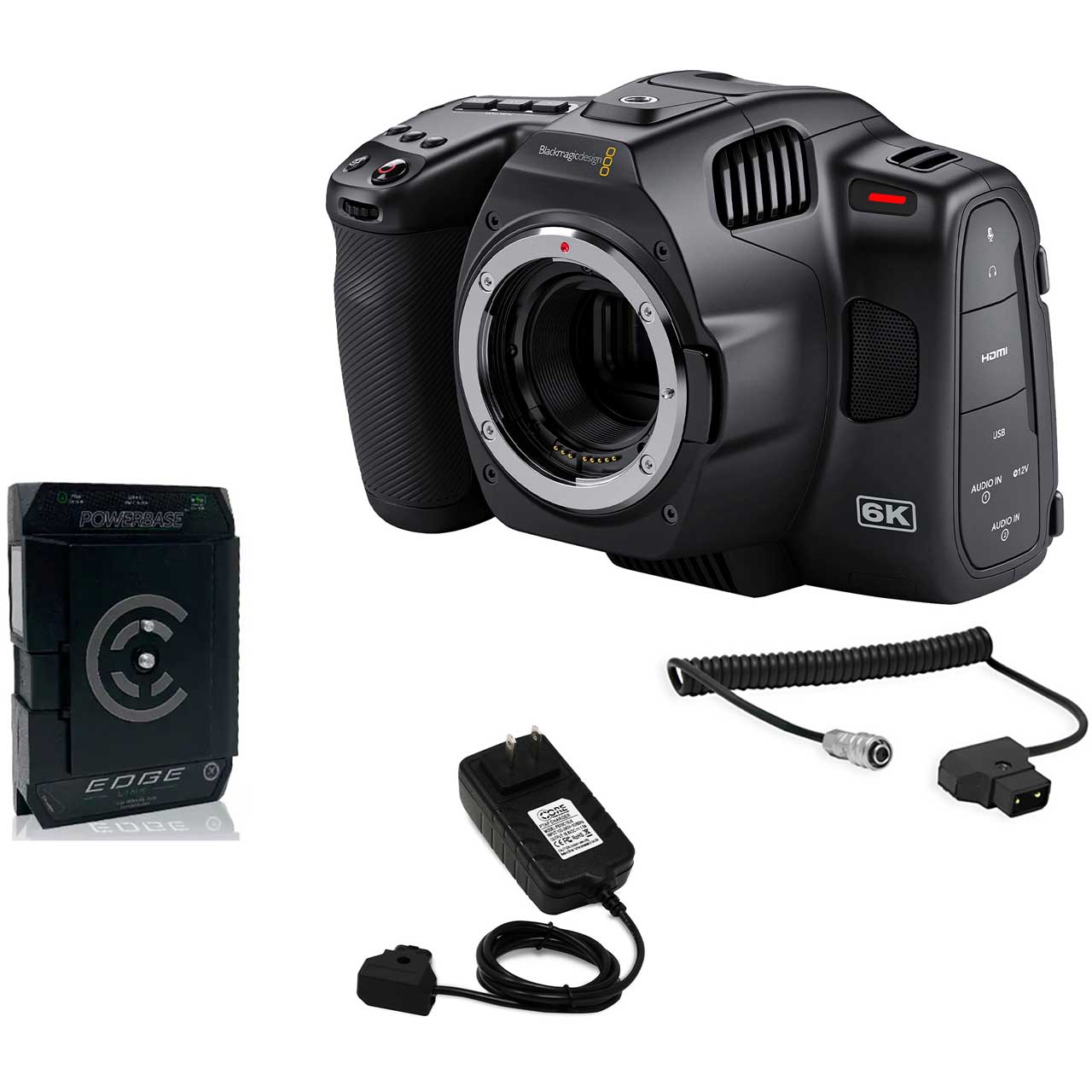

• Item Includes:

  • 1x Blackmagic Design Pocket Cinema Camera 6K Pro
  • 1x Core SWX PBE-Link PowerBase EDGE LINK Battery Pack

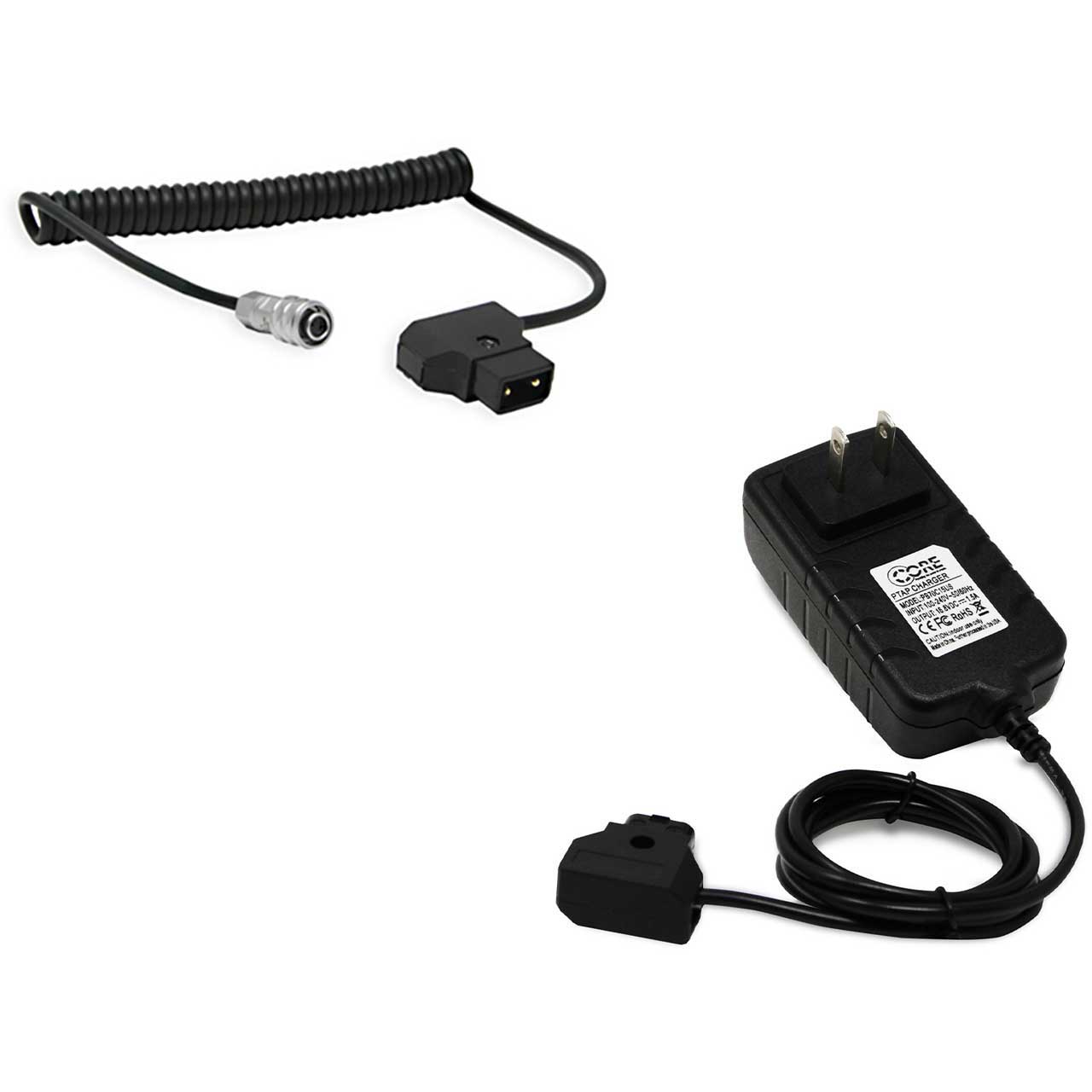

  • 1x Core SWX PTC-BMPC4 Coiled P-Tap to 2-Pin Cable
  • 1x Core SWX PB70C15US Single Position Powertap Charger
