RCP-1001 - Overview

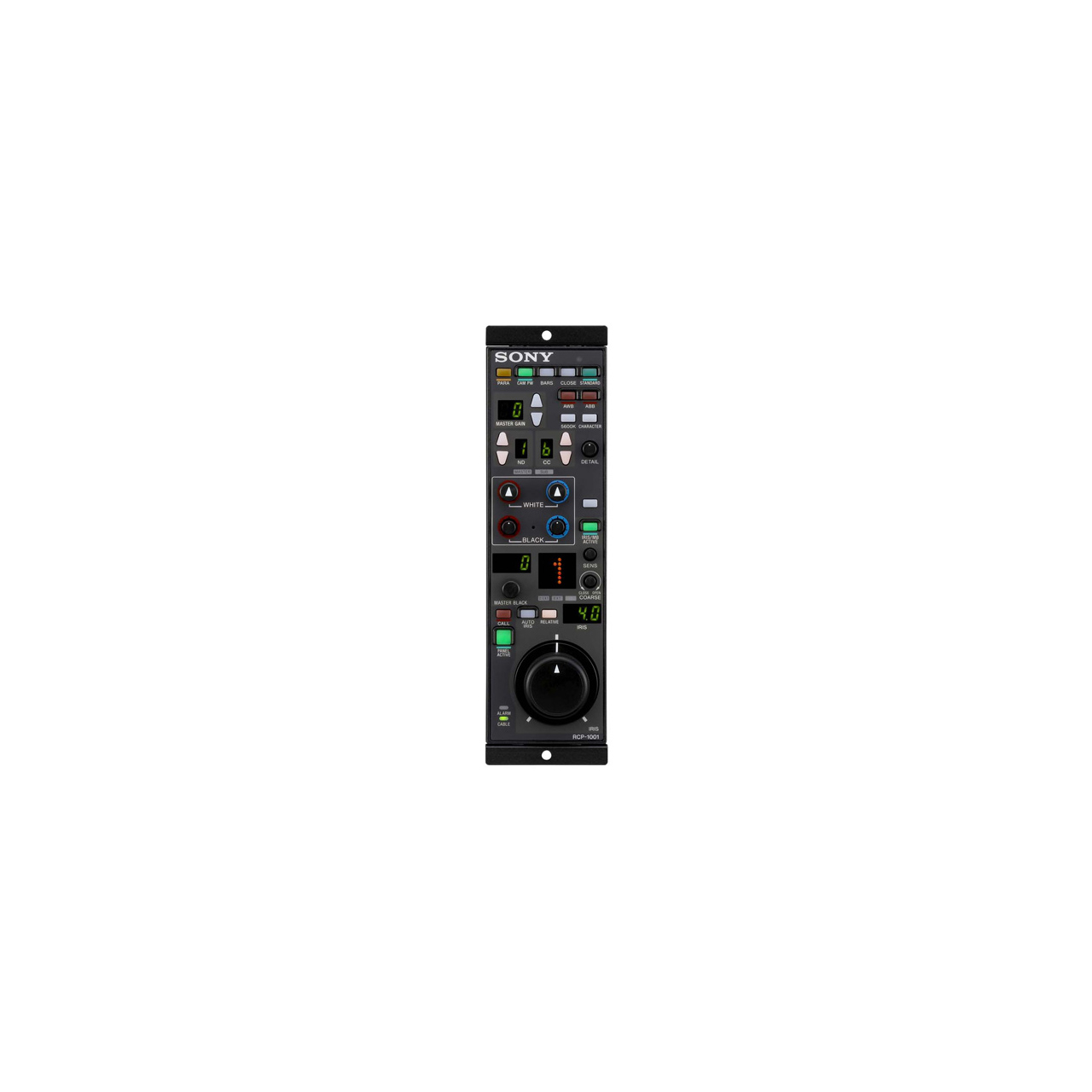

The Sony RCP-1001 is a compact control panel with specialized basic operations. The iris and master black adjustment block employs a dial (knob) type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used.

  • Features:

    • Simple and compact
    • IRIS/MB (master black) display window
    • Direct control filters and master gain buttons
    • Customisable switch

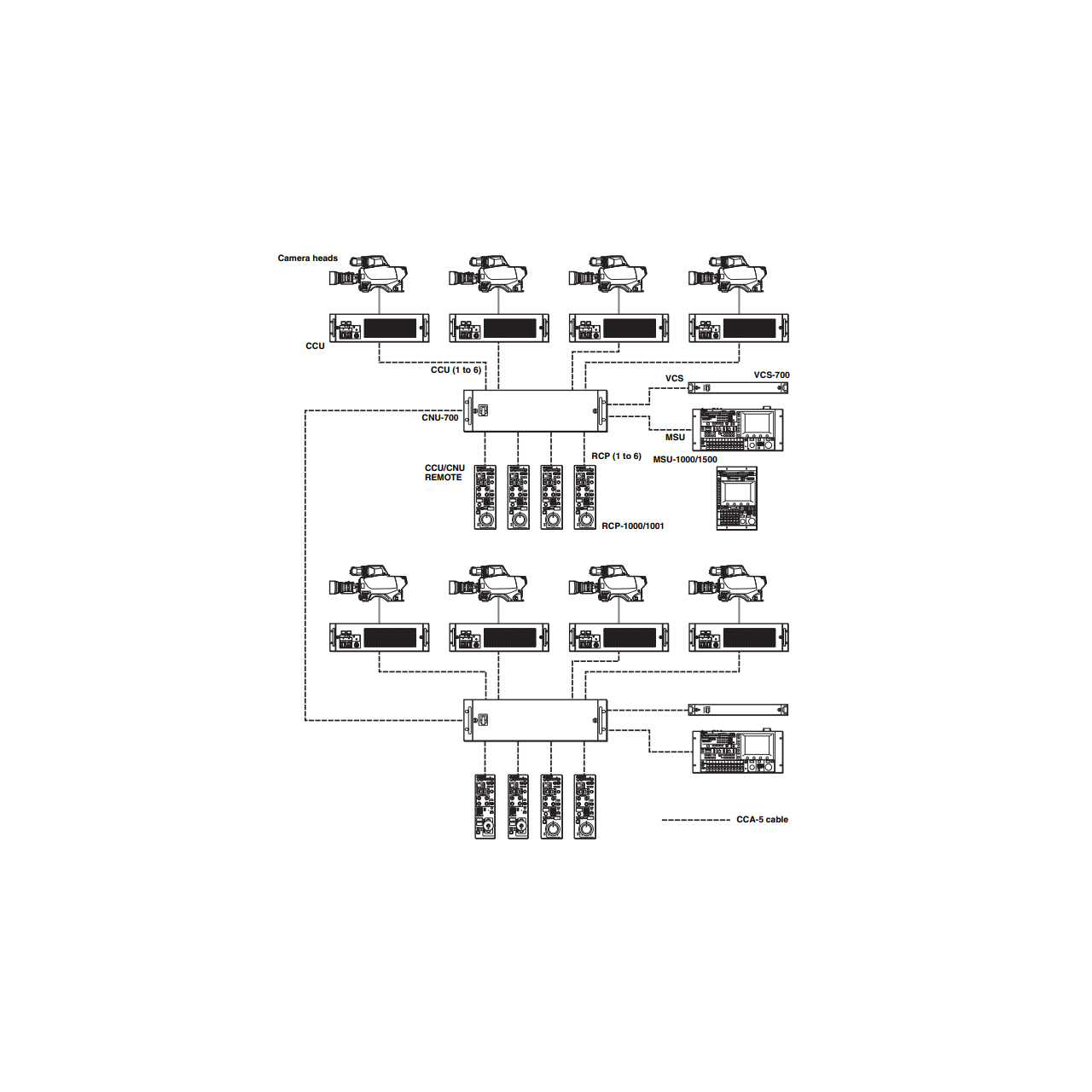

    • Building of a variety of control systems


  • Specifications:

    • General
    • Power Supply: DC 10.5 V to 30 V
    • Power Consumption: 2 W
    • Operating Temperature: 41°F - 104°F (5°C - 40°C )
    • Dimensions (WxHxD)(excluding protrusions): 2.75" x 9.63" x 3.38 (68mm x 244mm x 84.4mm)
    • Mass: 2lbs 9oz (1.1kg)

      Input/Output Connectors
    • CCU/CNU: Multi Connector 8-Pin, Female (1x)
    • EXT I/O: D-Sub 9-Pin, Female (1x)


  • Item Includes:

    • 1x Operation Guide
    • 1x Operation Manual CD
