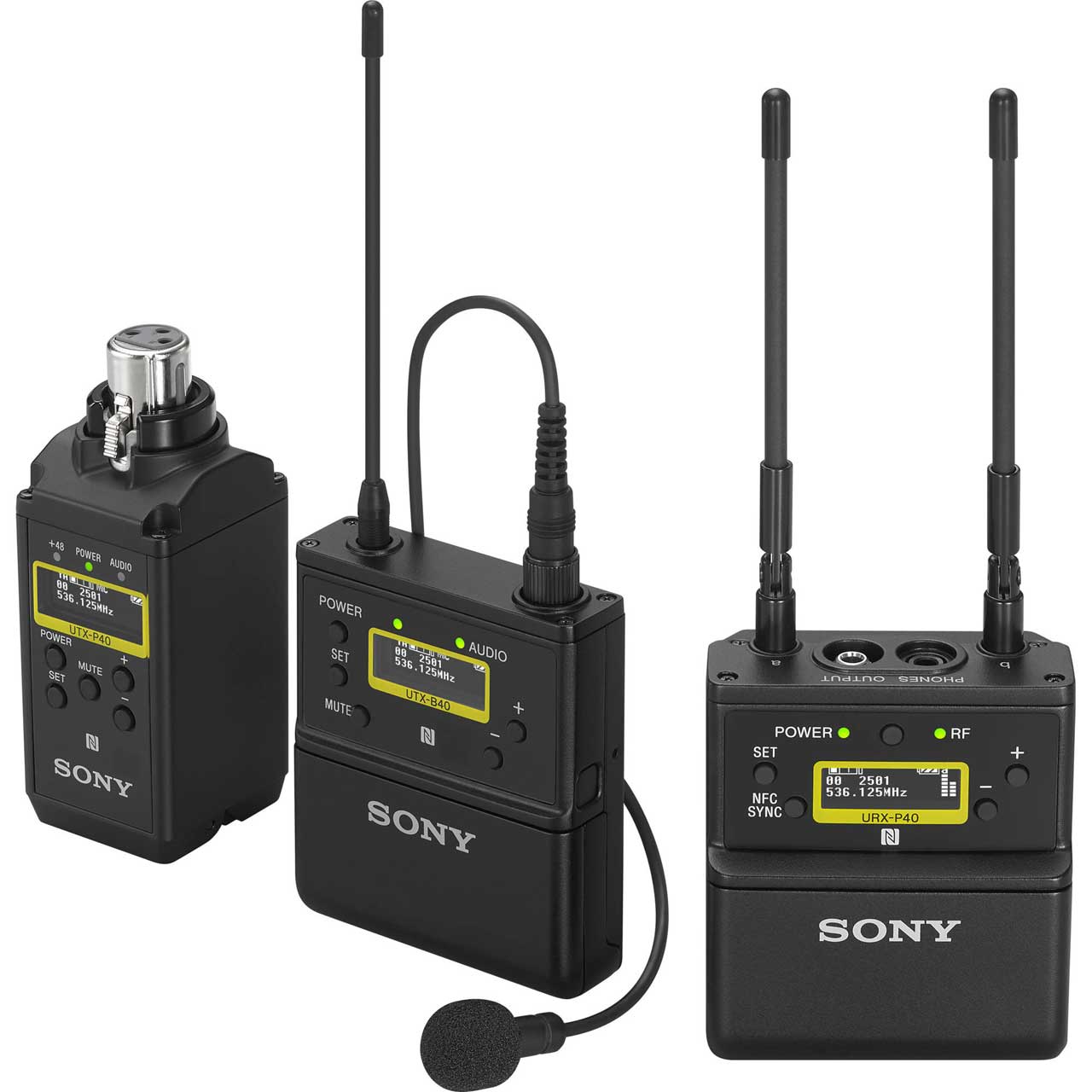

Sony UWPD26/25 UWP-D Bodypack Plug On Receiver Package - 536.125 MHz to 607.875 MHz

UWPD26/25 - Overview

• Features:

  • High-quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 and UTX-P40 transmitters from URX-P03, URX-P03D and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line input
  • +48 V power supply (plug-on transmitter)
  • Channel memory for fast switching between receiver frequencies for two-transmitter operation
  • Transmitter frequency sent to receiver, for matching multiple receivers to one transmitter


• Specifications:

  • URX-P40 portable receiver
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Reception Type: True diversity method
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  • Frequency Response: 23 Hz to 18 kHz (typical)
  • Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
  • Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
  • Audio Delay: Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
  • Audio Output Connector: 3.5 mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level: -60 dBV (3.5 mm diameter 3-pole locking mini jack) -20 dBFS (external connection) -50 dBFS (external connection, analog output)
  • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
  • Headphone Output Connector: 3.5 mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16-ohm)
  • Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz; In UWP compander mode: 32 kHz; In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life: * Approx. six hours
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Storage/Transport Temperature: -4° to 140°F (-20° to +60°C)
  • Dimensions (WxHxD): 2.48 x 2.76 x 1.22" (63 x 70 x 31mm) (excluding antenna)
  • Mass: Approx. 0.29Lbs (131g) (excluding batteries)

    UTX-B40 bodypack transmitter
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Antenna Type: 1/4 λ wave length wire antenna
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  • RF Output Power: 30 mW/5 mW selectable
  • Capsule Type: Elect retcondenser
  • Directivity: Omni-directional
  • Input Connector: 3.5 mm diameter 3-pole locking mini jack
  • Reference Audio Input Level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input)
  • Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
  • Frequency Response: 23 Hz to 18 kHz (Typical)
  • Signal-to-Noise Ratio: 60 dB (-60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.)
  • Distortion: 0.9% or less (-60 dBV, 1 kHz input)
  • Audio Delay: Approx. 0.35 ms
  • Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz; In UWP compander mode: 32 kHz; In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C™ connector)
  • Battery life*: Approx. 8 hours with output power of 30 mW
  • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Storage/Transport Temperature: -20° to +55°C (-4° to +131°F)
  • Dimensions (WxHxD): 2.48 x 2.87 x 0.75" (63 x 73 x 19mm) (excluding antenna)
  • Mass: Approx. 0.18Lbs (83g) (excluding batteries)

    UTX-P40 XLR plug-on transmitter
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
  • RF Output Power: 40 mW/5 mW selectable (UC, U, LA models) 30 mW/5 mW selectable (CE, CN models) 10 mW/2 mW selectable (J, E, KR models)
  • Input Connector: XLR-3-11C type (female)
  • Reference Audio Input Level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
  • Audio Attenuator Adjustment Range: 0 dB to 48 dB (3 dB steps)
  • Frequency Response: 23 Hz to 18 kHz (Typical)
  • Signal-to-Noise Ratio: 60 dB (-60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.)
  • Distortion: 0.9% or less (-60 dBV, 1 kHz input)
  • Audio Delay: Approx. 0.35 ms
  • Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz; In UWP compander mode: 32 kHz; In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C™ connector)
  • Battery Life* During +48 V OFF: Ap
