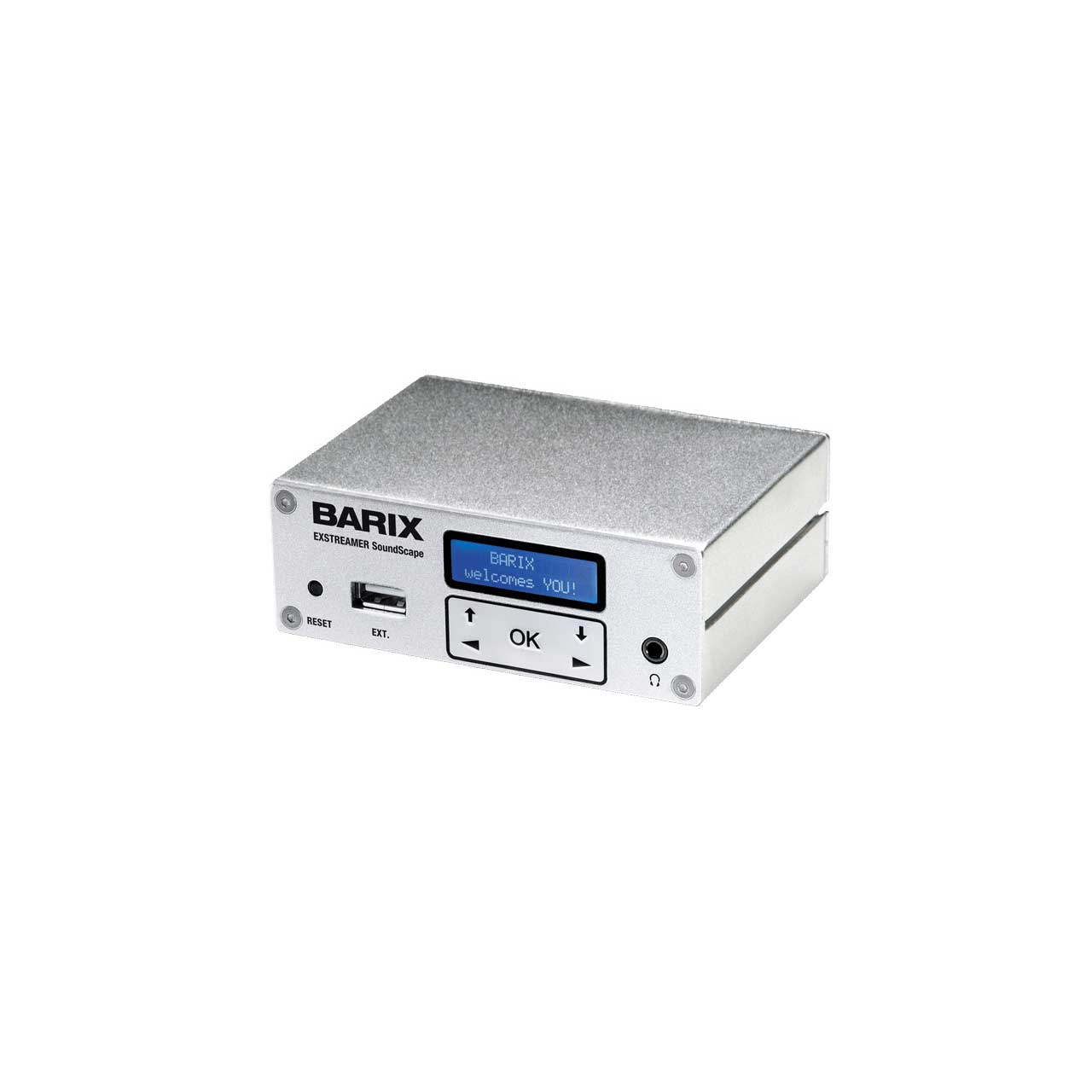

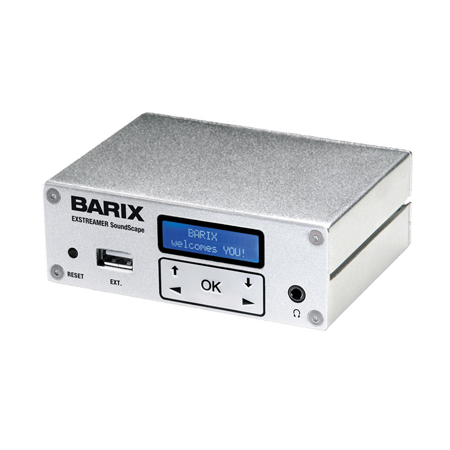

Exstreamer SoundScape Managed IP Network Audio Decoder/Player w/microSD Storage - B-Stock (Used No Original Packaging)

SOUNDSCAPE-BS - Overview

Supports playback of Playlists, Adverts and live Streams

• Features:

  • Please Note: This is a fully operational B-Stock item. The unit is fully optional and does not include its original packaging.


  • MP3 and AAC+ decoding
  • Plays Adverts, Playlists and HTTP Streams
  • Stereo Line Level Output
  • Internal microSD storage capability
  • Embedded Real Time Clock
  • Local web UI

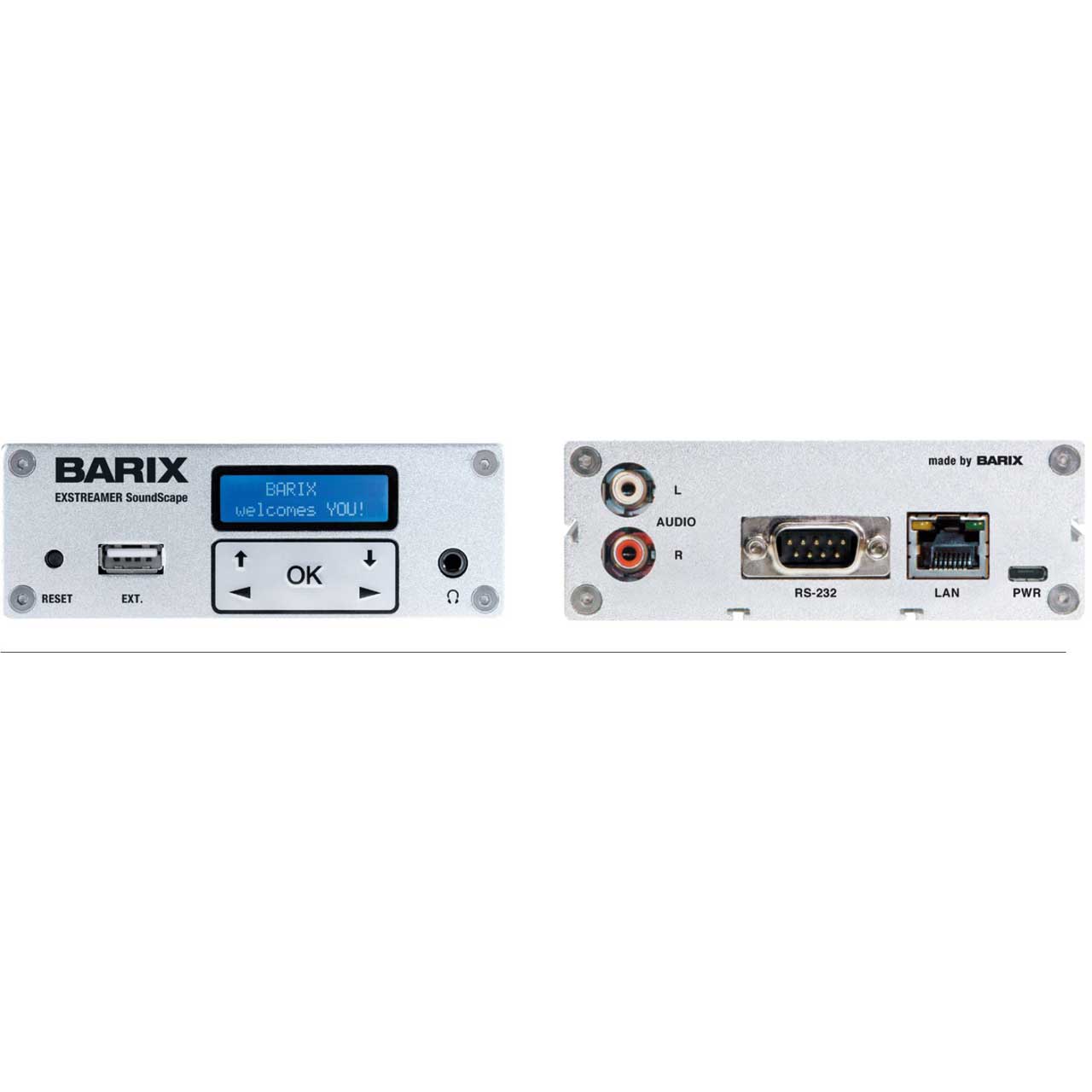

  • Display and Keypad
  • Serial and USB 2.0 interfaces
  • Low Power consumption


• Specifications:

  • Electrical: Power Supply 5VDC, 2 Watt max, Standard `Micro-B' USB connector.
  • Ethernet: 10/100Mbps Auto-negotiation, Auto MDI-X, RJ-45 connector with integrated Link/Activity LED, Protocols: TCP/IP, FTP, HTTP, DHCP, Web User Interface for remote control, status and troubleshooting.
  • Analog Output: Line level output, 40..60 Ohm impedance on RCA and 1/8" headphone jack, Output level software controllable, Full scale output voltage: 5.6 dBu, 4 Vpp into 600 Ohm load, Frequency response (-3dB) 20Hz...20kHz, Signal to Noise Ratio -92 dB, Total harmonic distortion (THD) <0.01%, Dynamic range 92dB, Stereo crosstalk -91dB @ 1kHz.
  • RS-232 Interface: Male 9-pin Sub-D connector, 115'200 Baud asynchronous, 5 VDC supply output for external device (100 mA max.).
  • Audio formats: MP3 codec; MP3 files (MPEG version 1, 2 and 2.5 layer III), CBR, VBR and ABR, 8 to 320 kbps, 8 to 48 kHz sample frequency, AAC and AAC+ codecs; AAC, MP4 and M4A audio file extensions, Main Profile, AAC-LC, AAC-HE v1 and v2, CBR and VBR, Up to 576 kbps, DRC (Dynamic Range Control); HTTP Streams, ICEcast and SHOUTcast streams.
  • Miscellaneous: Retro-illuminated display with 2 lines/16 chars and keypad with 5 buttons, RESET button for reboot and reset factory defaults.
  • Mechanical: Aluminum case, 250g, Rack and wall mountable using accessories.
  • Dimensions: W x H x D: 108x38x78.7mm (4.25x1.5x3.1 inch).
  • Declarations of conformity: RoHS, FCC, CE, C-Tick.
  • Operating Environment: 0 to +40°C / 32 to 104°F, 0 - 70% relative humidity, non-condensing.
  • Storage Conditions: 0 to +70°C / 32 to 158°F, 0 - 70% relative humidity, non-condensing.


• Applications:

  • Background Music in Retail and Hospitality Environments
  • Localized and Dynamic Advert Insertion
